i600 Components and Settings

Updated

    1. i600 package

    • The main package


    • Accessory package




    2. i600 components

    i600 Handpiece                                       1ea          1._i600.png

    Power Hub                                                1ea          2._power_hub.png

    i600 Handpiece Cover                            1ea          3._cover.png

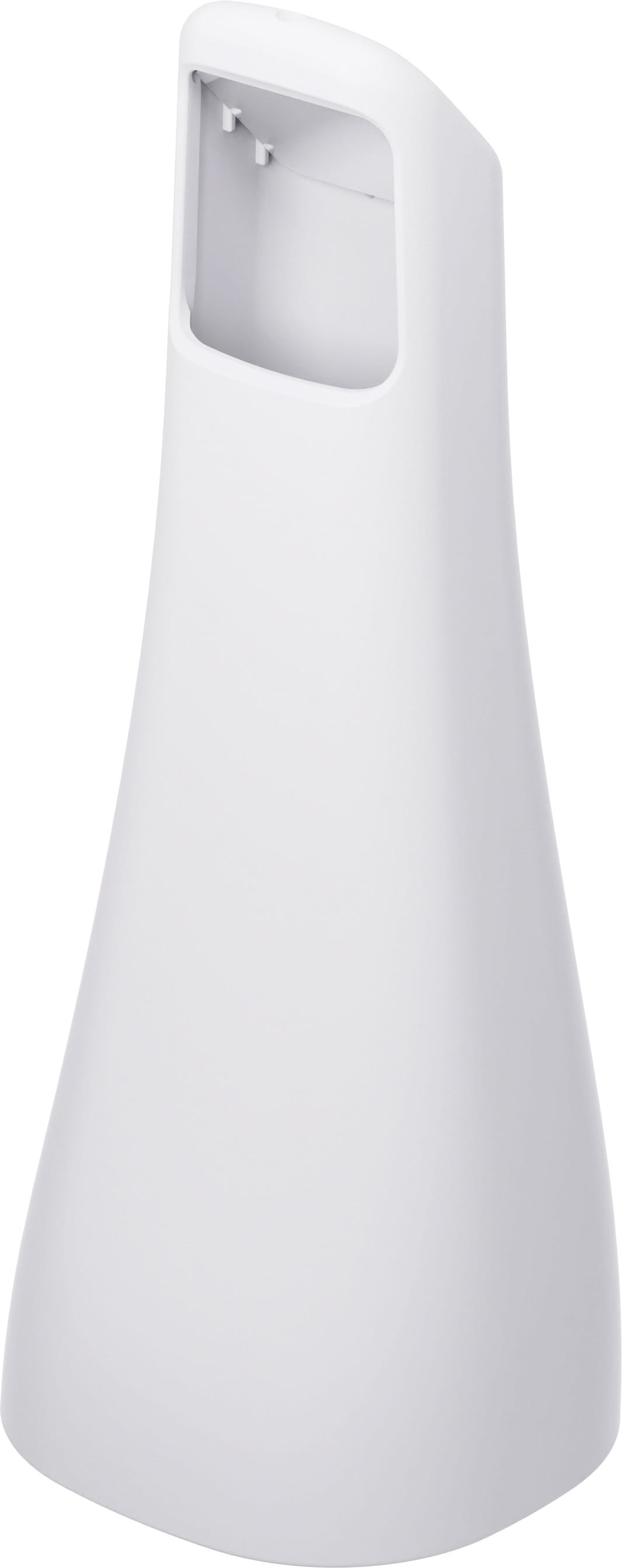

    Reusable Tip                                            4ea          4._tip.png

    Calibration Tool                                       1ea          5._calibration_tool.png

    Practice Model                                        1ea          6._practice_model.png

    Wrist Strap                                              1ea          7._wrist_strap.png

    Desktop Cradle                                       1ea          8._desktop_cradle.png

    Wall Mount Holder                                  1ea          9._wall_mount_cable.png

    Power Delivery Cable                             1ea          10._pd_cable.png

    USB 3.0 Cable.                                       1ea          11._USB_3.0_cable.png

    Medical Adapter                                     1ea          12._medical_adapter.png

    Power Cord                                             1ea          13._power_cord.png

    USB Flash Drive                                      1ea          14._USB_flash_drive.png

    (Pre-loaded with image acquisition software)

    User Guide                                              1ea          15._user_guide.png



    3. Setting up the i600 device



    Minimum system requirements for Medit Plug &Scan

    USB Type-C / USB Power Delivery supporting 5V, 3A output (formally known as USB Type-C 3.1, 3.2, or Thunderbolt, etc.)
    Depending on the PC manufacturer, the output conditions of the ports may not be satisfied, and Plug & Scan may not operate properly. If so, connect it to an externally Power hub.
    Refer to the table below for more information.




    Standard Connection using power hub




    (1) Connect the USB C cable to the Power Hub.


    (2) Connect the Medical Adapter to the Power Hub.


    (3) Connect Power Cord to the Medical Adapter.


    (4) Connect the Power Cord to a power source.


    (5) Connect the USB C cable to the PC.


    💡  Turning on the i600

    1. Press the power button on the i600.


    2. Wait until the USB connection indicator turns blue.


    💡  To turn off the i600, press and hold the power button of the i600 for 3 seconds.

    💡  Placing on the Desktop Cradle


    💡 Installation of Wall Mount Holder
