1. i900 classic Components Overview
| Appearance | Item (Model Name) | Qty |
| i900 classic Handpiece | 1 | |
|

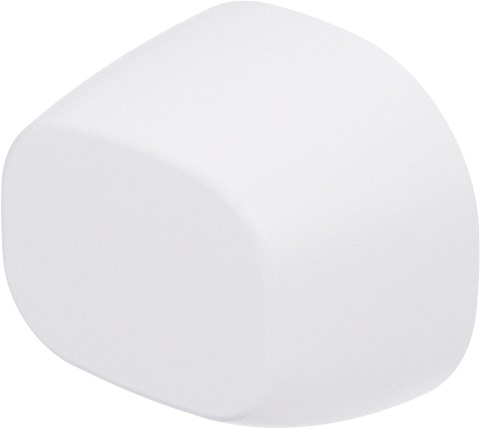

i900 classic Handpiece Cover (MO1-HC1) |
1 | |
|

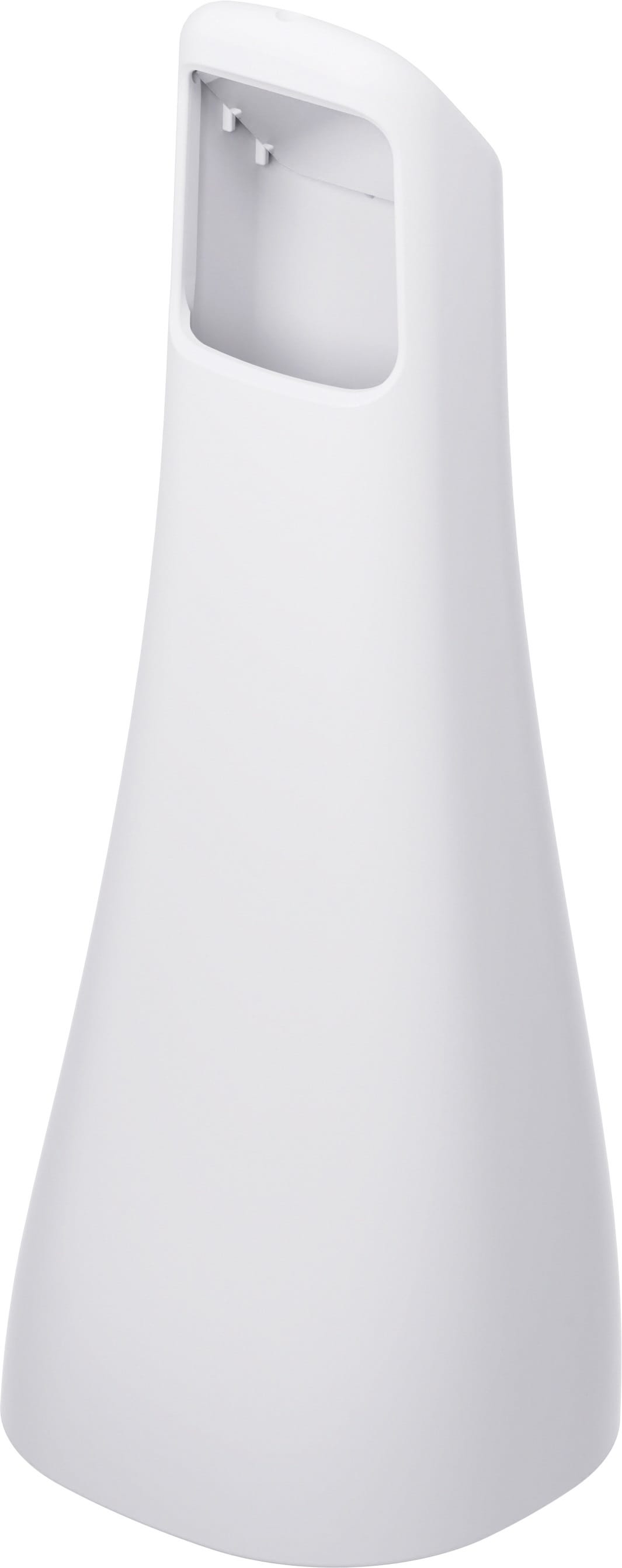

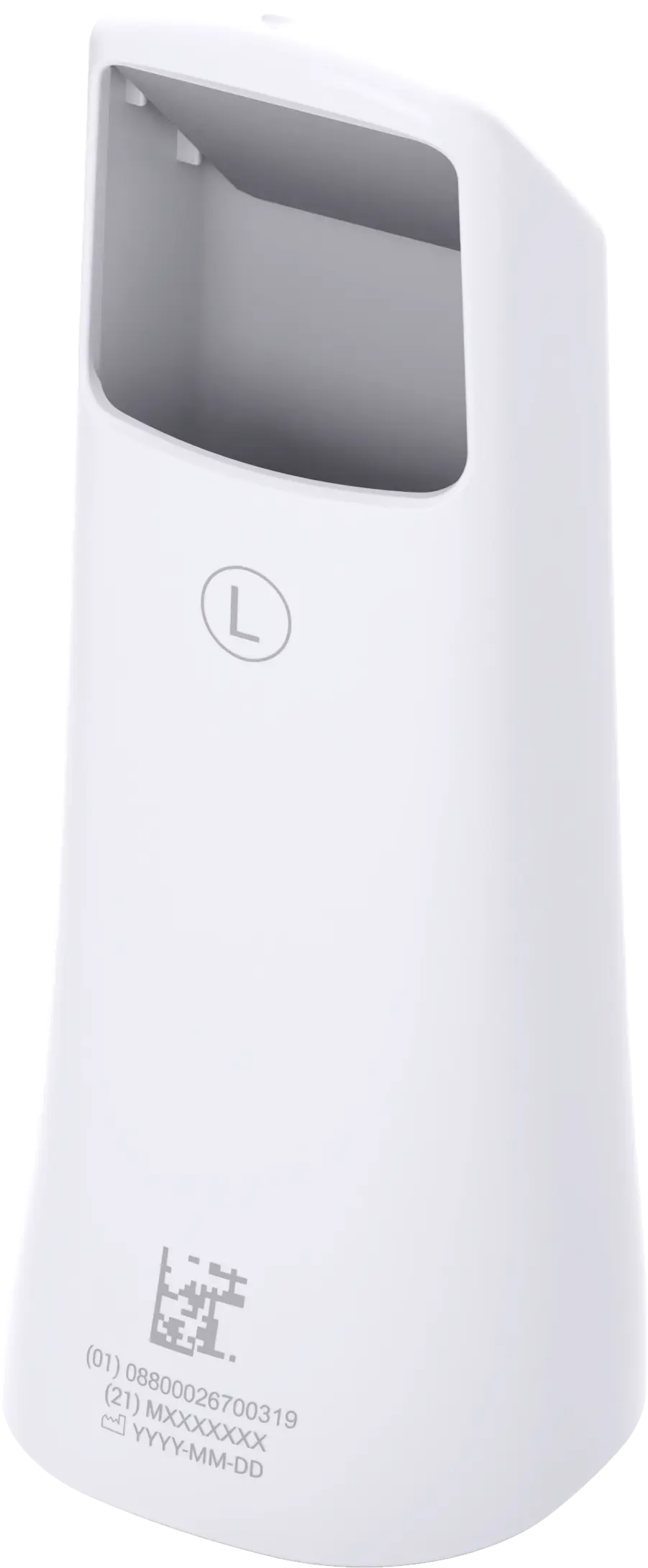

Reusable Tip (Large) (MO1-RTL) |
2 | |
|

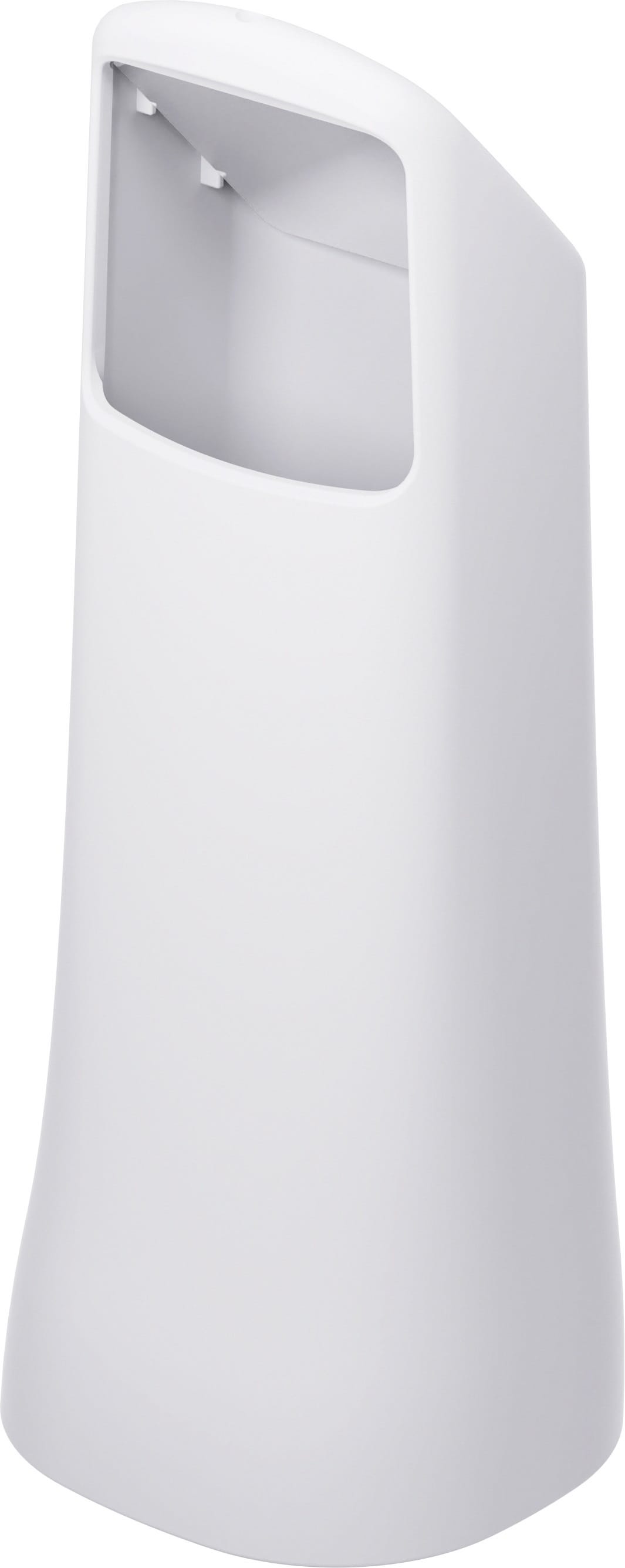

Reusable Tip (Medium) (MO1-RTM) |
2 | |
|

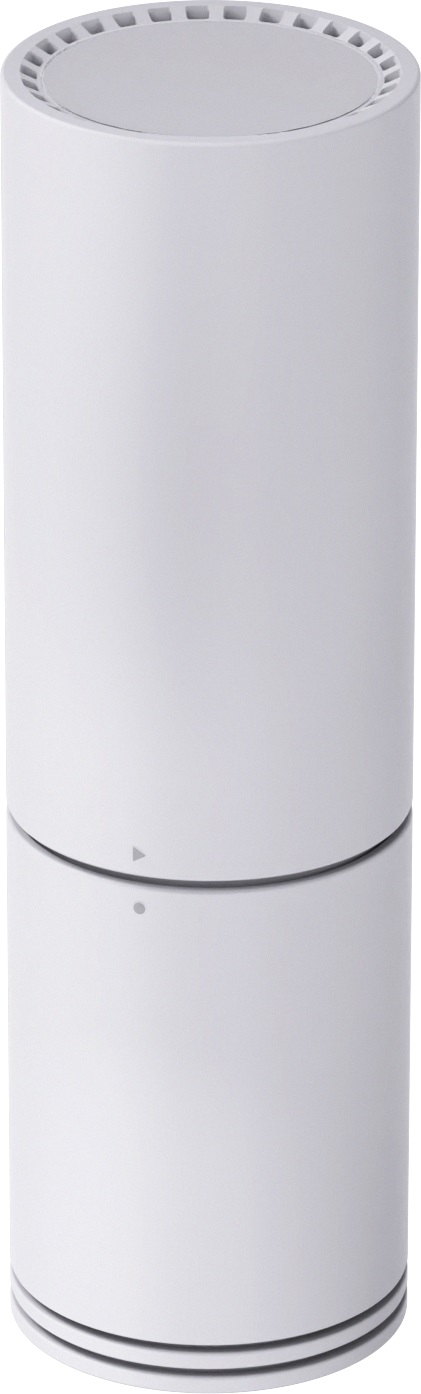

Calibration Tool (MO1-CT1) |
1 | |

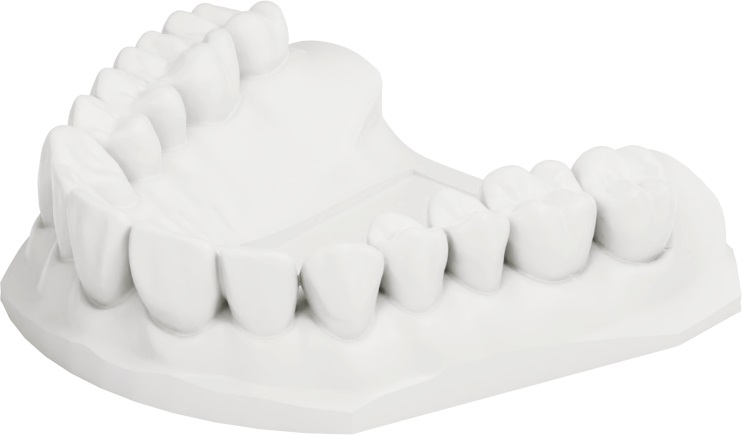

| Practice Model | 1 | |
|

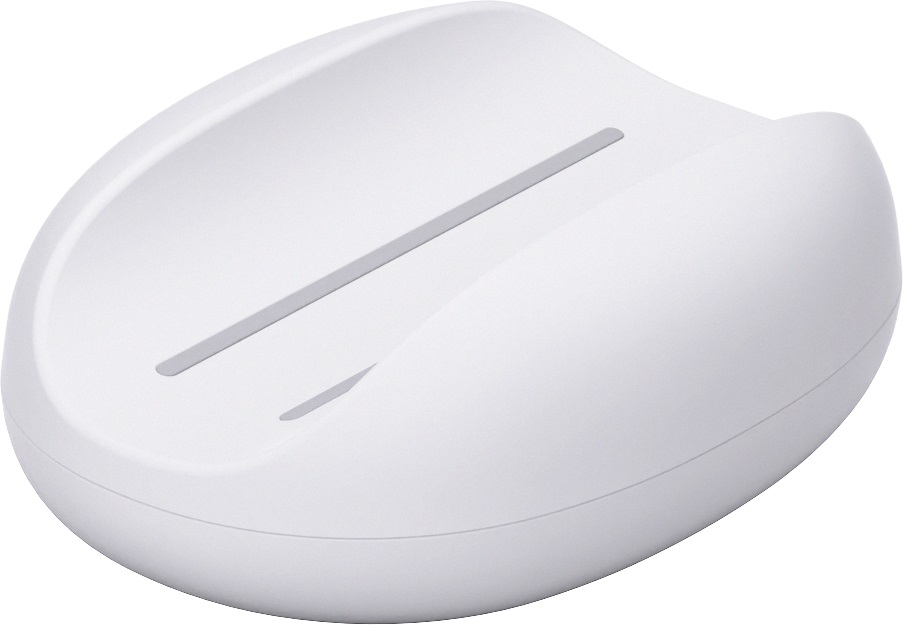

Desktop Cradle (MO1-DC) |
1 | |
|

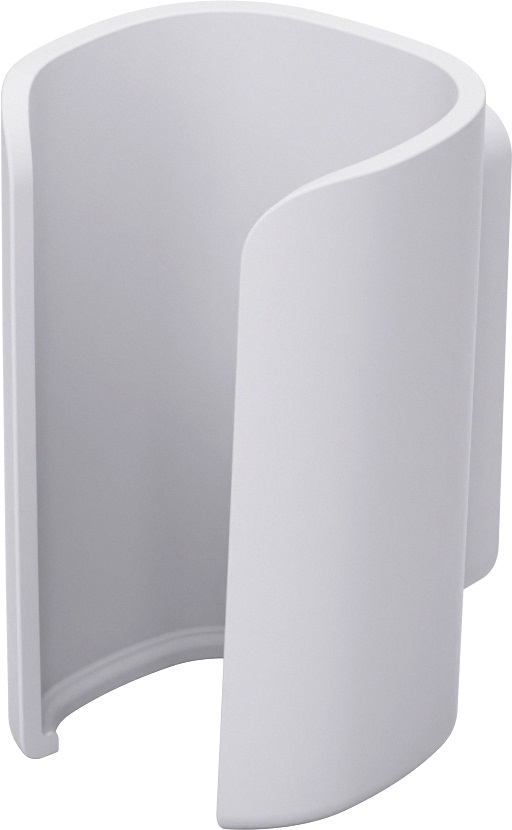

Wall Mount Holder (MO1-WH1) |
1 | |
| Power Delivery Cable (2.5m) | 1 | |
| Power Delivery Cable (2m) | 1 | |
|

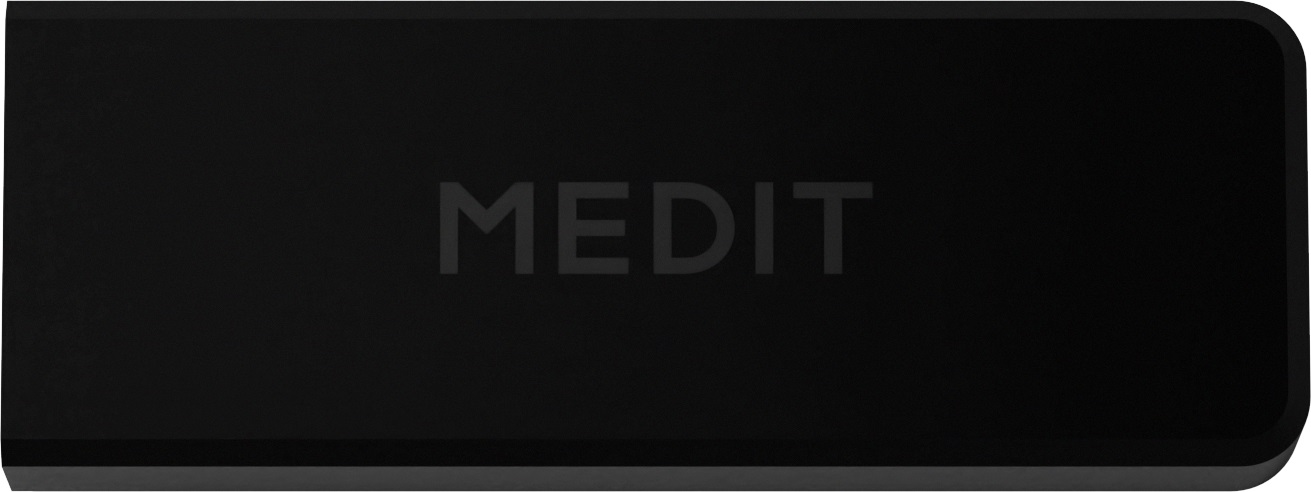

USB Flash Drive (Installer of Medit Scan for Clinic included) |
1 | |
| User Guide | 1 |
Additional Components (Sold Separately)
| Appearance | Item (Model Name) | Qty |
|

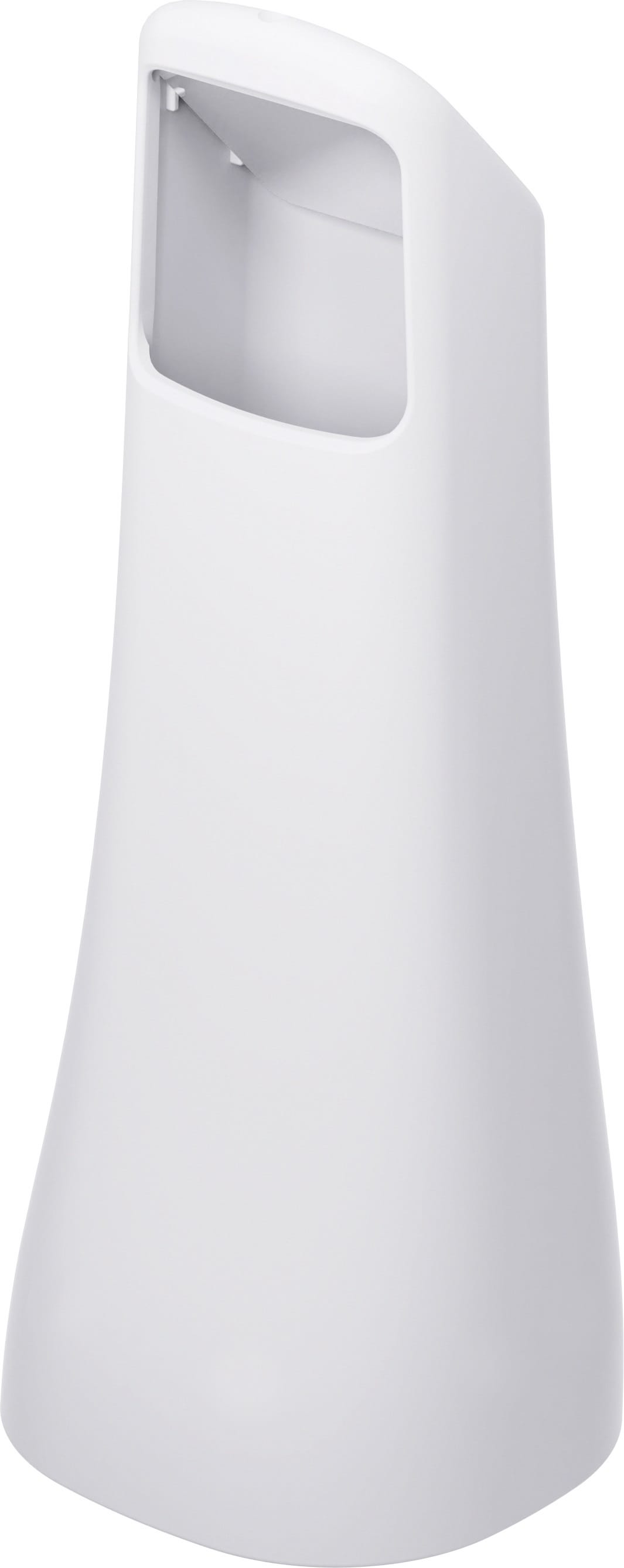

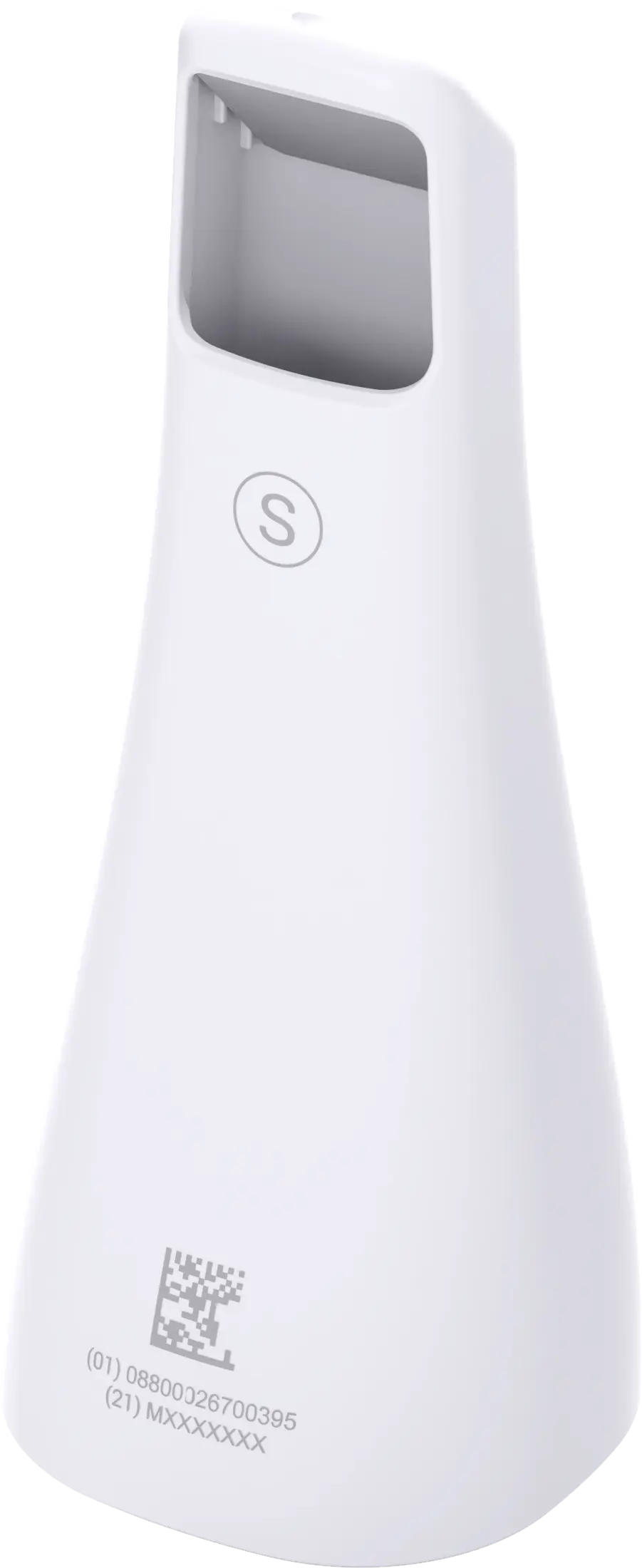

Reusable Tip (Small) (MO1-RTS) |
4 |
-
Check if your PC's USB-C port supports Power Delivery (PD) by looking for the symbol next to the port.
If PD is not supported, the i900 classic scanner cannot be used.For more details, refer to the link below.
What are the specifications of the compatible USB-C port? - Keep the practice model in a cool place away from direct sunlight. A discolored practice model may affect the results of the practice mode.
- Medit Scan for Clinics is included in the USB drive. This product is optimized for PC, and using other devices is not recommended. Do not use anything other than a USB port. It may cause malfunction or fire.
2. Setting Up the i900 classic System
The i900 and i900 classic share the exact same setup procedure.
You can connect i900 classic directly to a PC with the power delivery cable.
|
Turning On the i900 classic |
Turning Off |
|
|

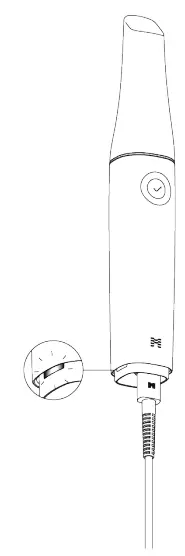

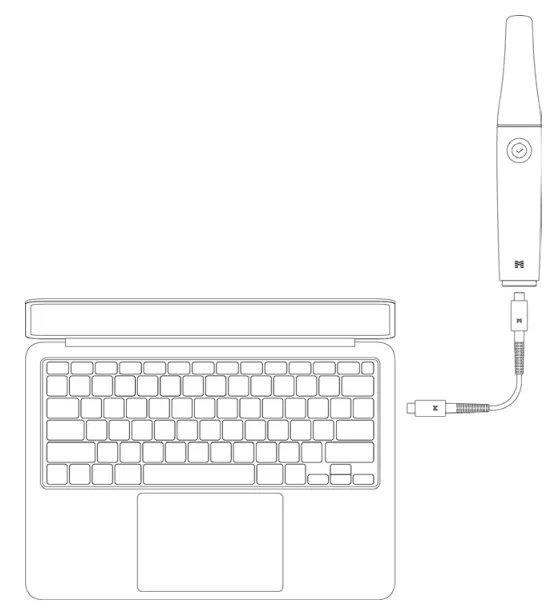

1. Connect the i900 classic to your PC with the power delivery cable, and the scanner will automatically power on. |
2. When power is applied, the rear LED lights up blue.
|
When you disconnect the power delivery cable, the scanner switches off. |
|
|
|
|

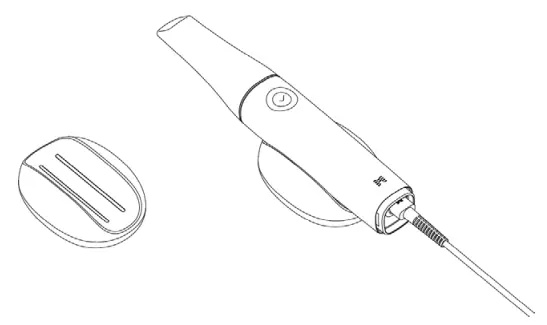

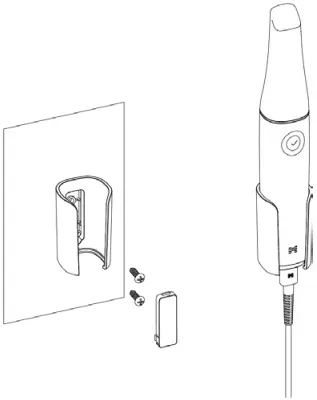

| Desktop Cradle | Wall Mount Holder |
