Depending on the device you are using, you can scan with i900 Mobility through the following software.

1. Windows PC/Mac

You can connect i900 Mobility to a Windows PC or Mac in either of the following ways:

• Wi-Fi connection
• Wireless Hub connection

Recommended System Requirements

Minimum System Requirements

System Requirements (Medit Link Express for Mac)

1.1 Wi-Fi Connection

Router Requirements

You can check your router information by referring to the label on the router, checking the Wi-Fi connection properties on your PC or Mac, or searching for the router model on the manufacturer’s website.

How to Check the Wi-Fi Connection Properties

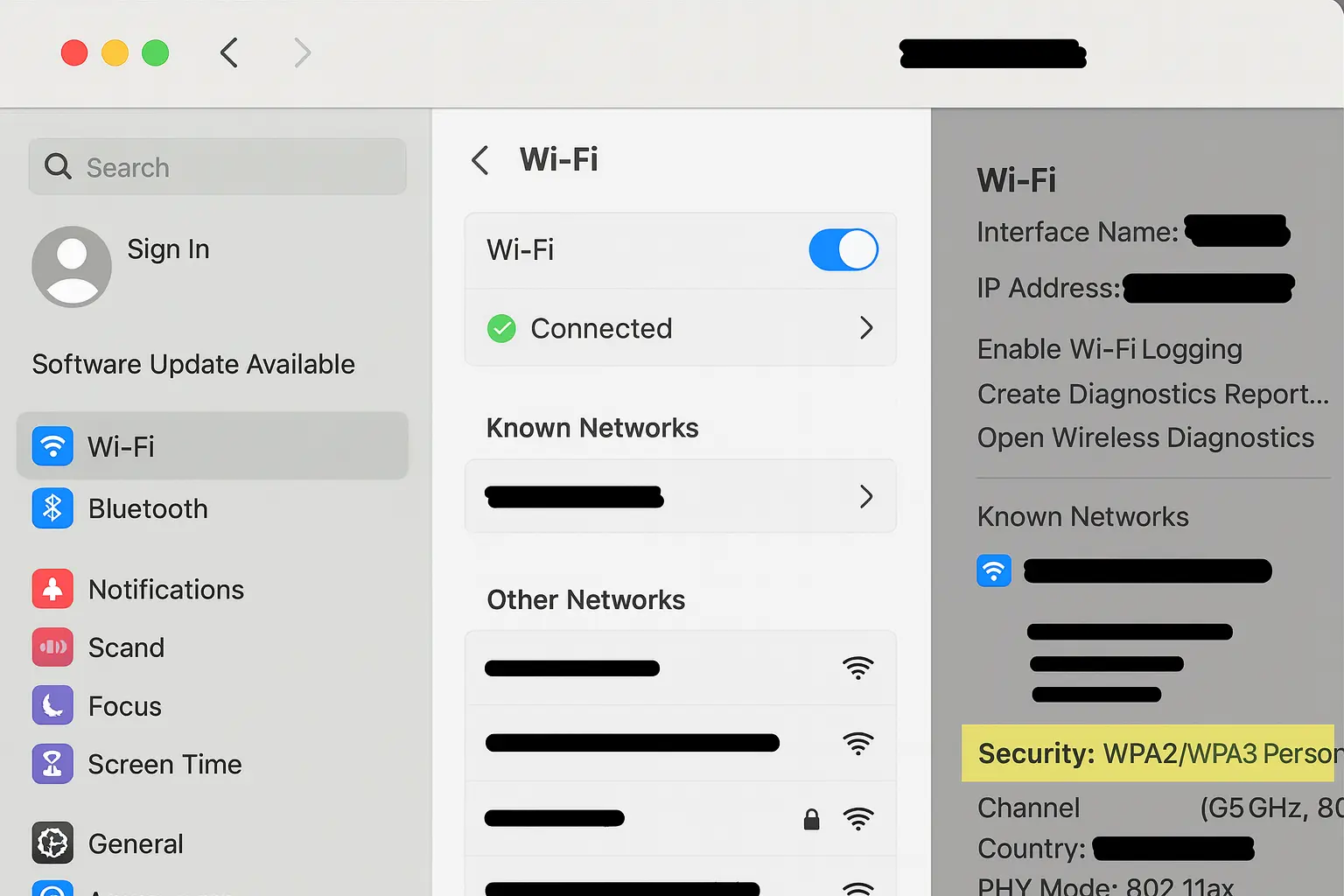

[Window PC] Go to Settings → Network & internet → Wi-Fi → Select the connected network name, and check the information under Protocol. Example: 802.11ac = Wi-Fi 5, 802.11ax = Wi-Fi 6	[Mac] While holding down the Option (⌥) key, click the Wi-Fi icon in the upper-right corner of the screen, and check the information displayed under Security.

The following two router specifications are particularly important to check.

(1) Wi-Fi Standard: Wi-Fi 6E Recommended

If the router does not meet the recommended standard, check whether it supports the following frequency bands and channel widths:

• 6 GHz (160 MHz)
• 5 GHz (80 MHz)

(2) Security Protocol: Only Personal Wi-Fi Networks Are Supported

Only personal Wi-Fi networks are supported. The use of enterprise Wi-Fi networks that require an additional authentication page may be restricted.

Supported security protocols:

WPA3SAE + AES, WPA3SAE/WPA2PSK + AES, WPA2PSK + AES, WPA2PSK + TKIP/AES, WPAPSK/WPA2PSK + AES

In environments where using a router is difficult or restricted, we recommend connecting through the wireless hub.

a. Using a PC or Mac with Medit Scan for Clinics

(1) Launch Medit Scan for Clinics and enable Wi-Fi. For the initial connection, Bluetooth must also be enabled. Connect the battery to the scanner and turn on the scanner. The scanner will then be detected automatically.

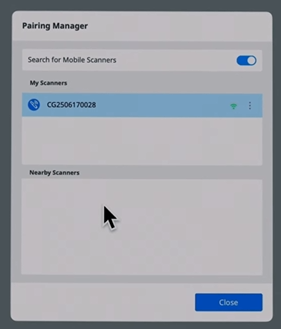

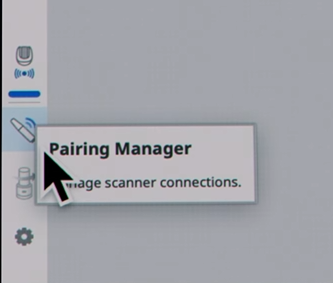

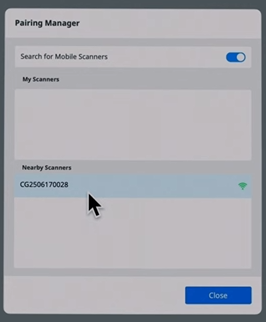

(2) In the pairing manager, select the serial number of the detected scanner and enter the Wi-Fi password to begin the connection process.

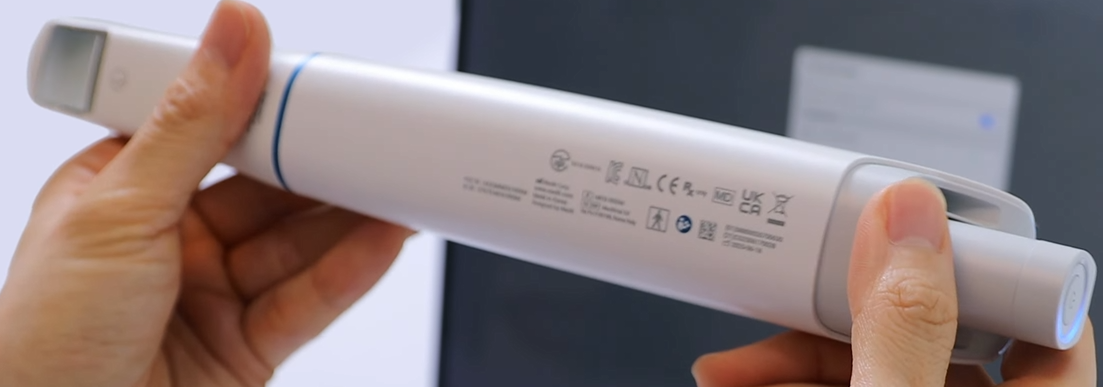

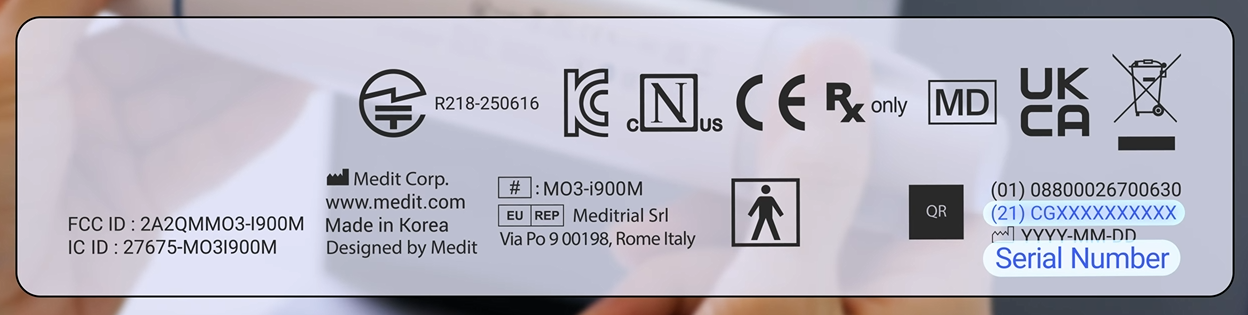

The serial number can be found on the bottom of the scanner.

b. Using a Mac with Medit Link Express for Mac

(1) Launch Medit Link Express for Mac and enable Wi-Fi. For the initial connection, Bluetooth must also be enabled. Connect the battery to the scanner and turn on the scanner. The scanner will then be detected automatically.

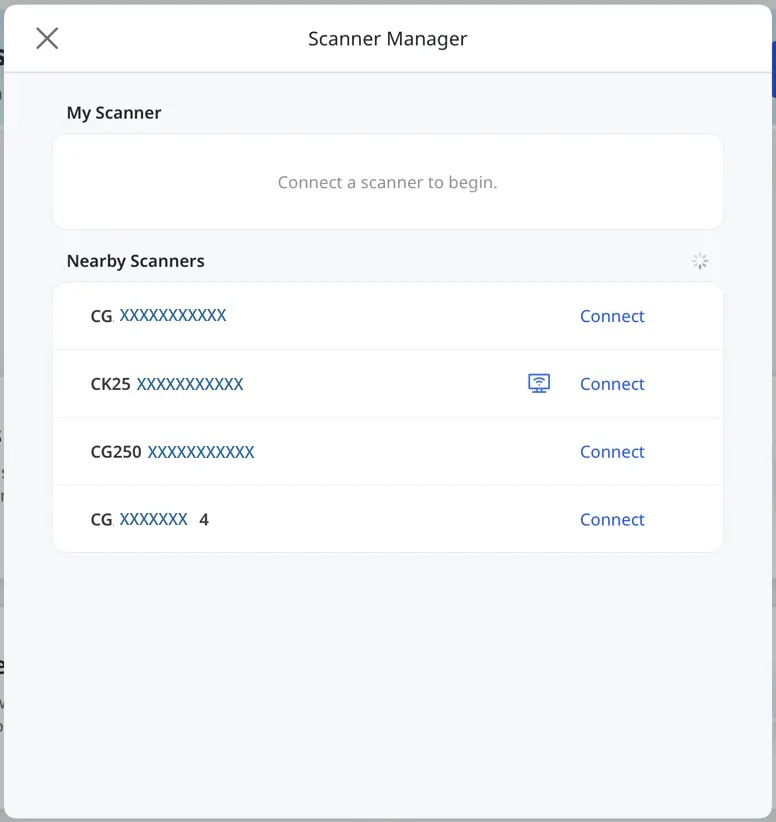

(2) In the scanner manager, select the serial number of the detected scanner and enter the Wi-Fi password to begin the connection process.

The serial number can be found on the bottom of the scanner.

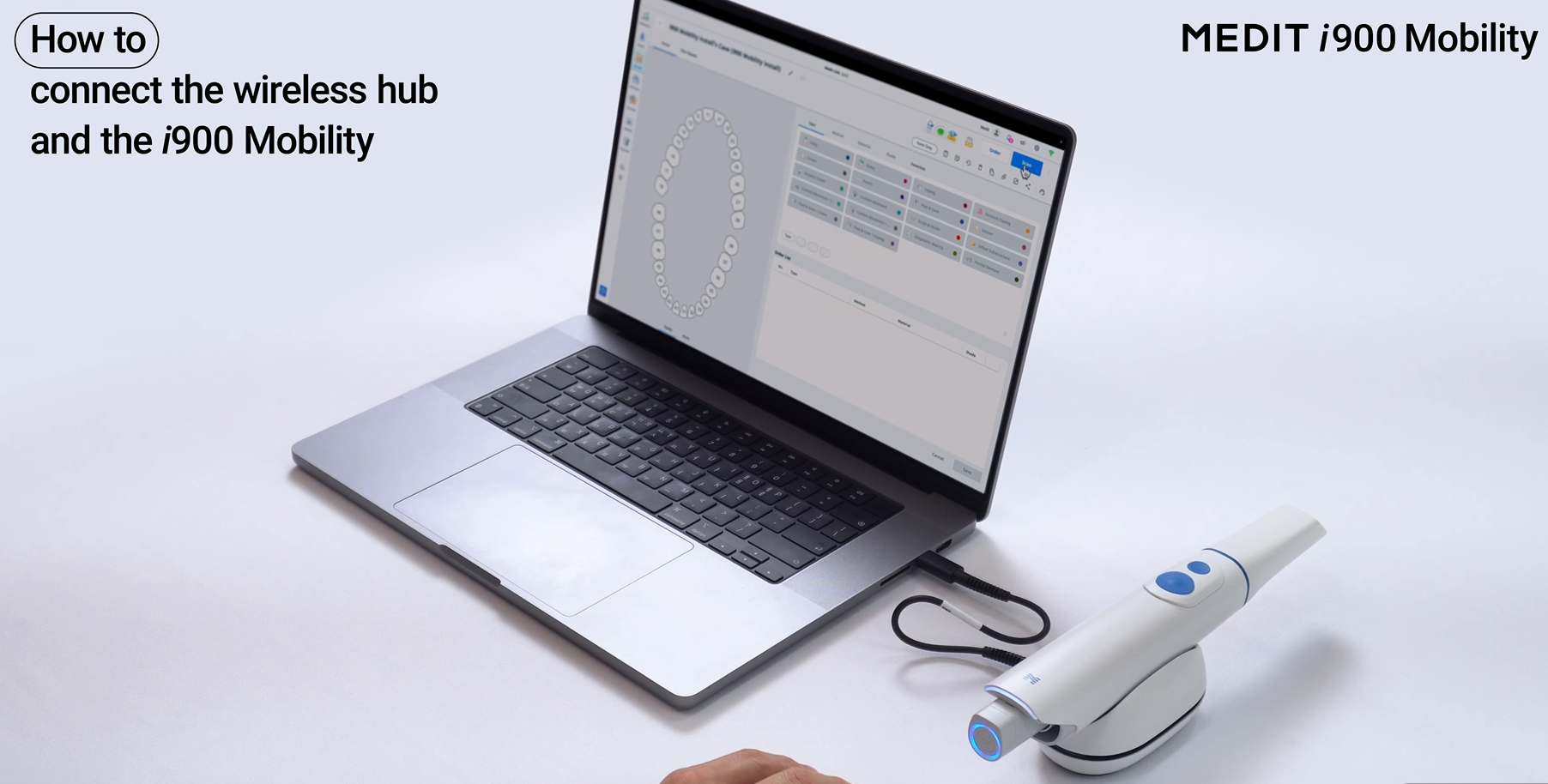

1.2 Wireless Hub Connection

a. When Using a PC or Mac with Medit Scan for Clinics

(1) Connect the power delivery cable (30 cm or 2 m) to the wireless hub.

(2) Connect the other end of the power delivery cable to an internet-connected PC or Mac.

(3) With Medit Scan for Clinics running, insert the battery into the scanner and turn on the scanner. The scanner will be detected automatically.

(4) In the pairing manager, select the serial number of the detected scanner to begin the connection process.

The serial number can be found on the bottom of the scanner.

b. When Using a Mac with Medit Link Express for Mac

(1) Connect the power delivery cable (30 cm or 2 m) to the wireless hub.

(2) Connect the other end of the power delivery cable to a Mac connected to the internet.

(3) Launch Medit Link Express for Mac, connect the battery to the scanner, and turn on the scanner. The scanner will be detected automatically.

(4) In the scanner manager, select the serial number of the detected scanner and enter the Wi-Fi password to begin the connection process.

The serial number can be found on the bottom of the scanner.

2. iPad

You can connect i900 Mobility to an iPad in any of the following three ways:

• Wi-Fi connection
• Wireless hub connection
• Hotspot connection using cellular data

First, make sure that your iPad meets the system requirements.

System Requirements (Medit Link Express for iPad)

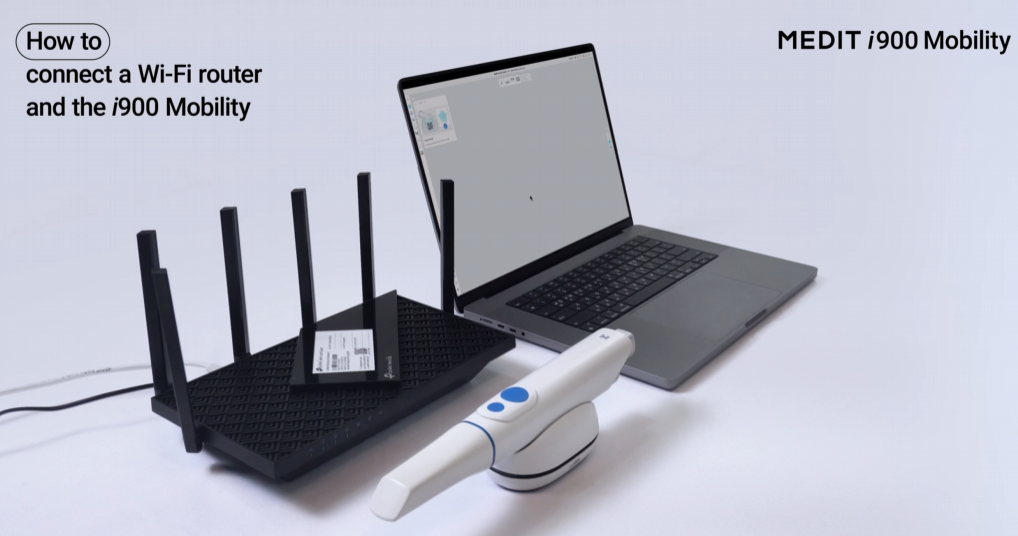

2.1 Wi-Fi Connection

Router Requirements

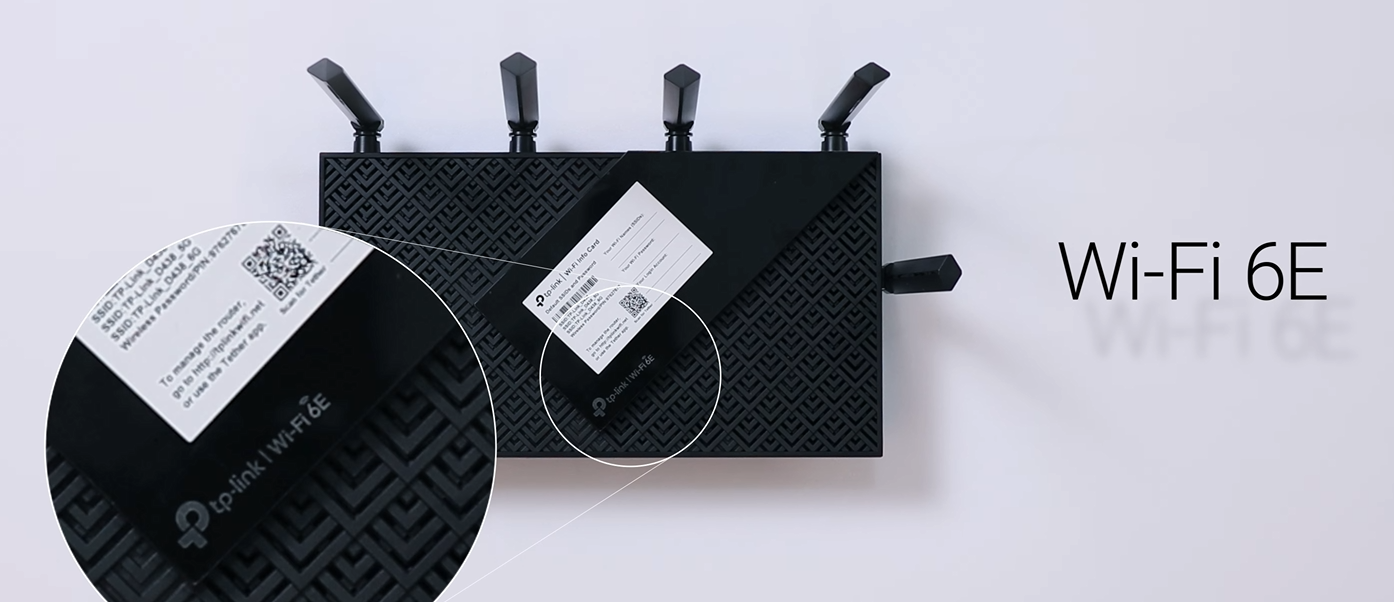

You can check the router information on the label attached to the router or by searching for the model name on the router manufacturer’s website.


The following two router specifications are particularly important to check.

(1) Wi-Fi Standard: Wi-Fi 6E Recommended

If the router does not meet the recommended standard, check whether it supports the following frequency bands and channel widths:

• 6 GHz (160 MHz)
• 5 GHz (80 MHz)

(2) Security Protocol: Only Personal Wi-Fi Networks Are Supported

Only personal Wi-Fi networks are supported. The use of enterprise Wi-Fi networks that require an additional authentication page may be restricted.

Supported security protocols:

WPA3SAE + AES, WPA3SAE/WPA2PSK + AES, WPA2PSK + AES, WPA2PSK + TKIP/AES, WPAPSK/WPA2PSK + AES

In environments where using a router is difficult or restricted, we recommend connecting through the wireless hub. If you need to move frequently, we recommend using a hotspot connection.

How to Connect the Scanner

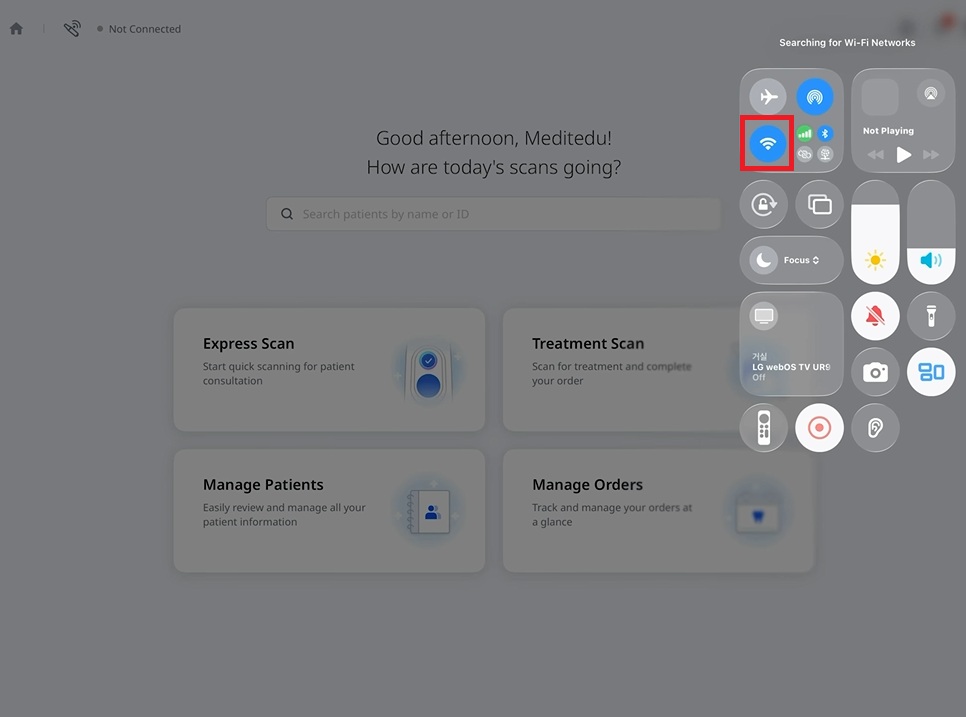

(1) Launch Medit Link Express for iPad and enable Wi-Fi. For the initial connection, Bluetooth must also be enabled. Connect the battery to the scanner and turn on the scanner. The scanner will be detected automatically.

(2) In the scanner manager, select the serial number of the detected scanner and enter the Wi-Fi password to begin the connection process.

The serial number can be found on the bottom of the scanner.

2.2 Wireless Hub Connection

(1) Connect the power delivery cable (30 cm or 2 m) to the wireless hub.

(2) Connect the other end of the power delivery cable to an iPad with an internet connection.

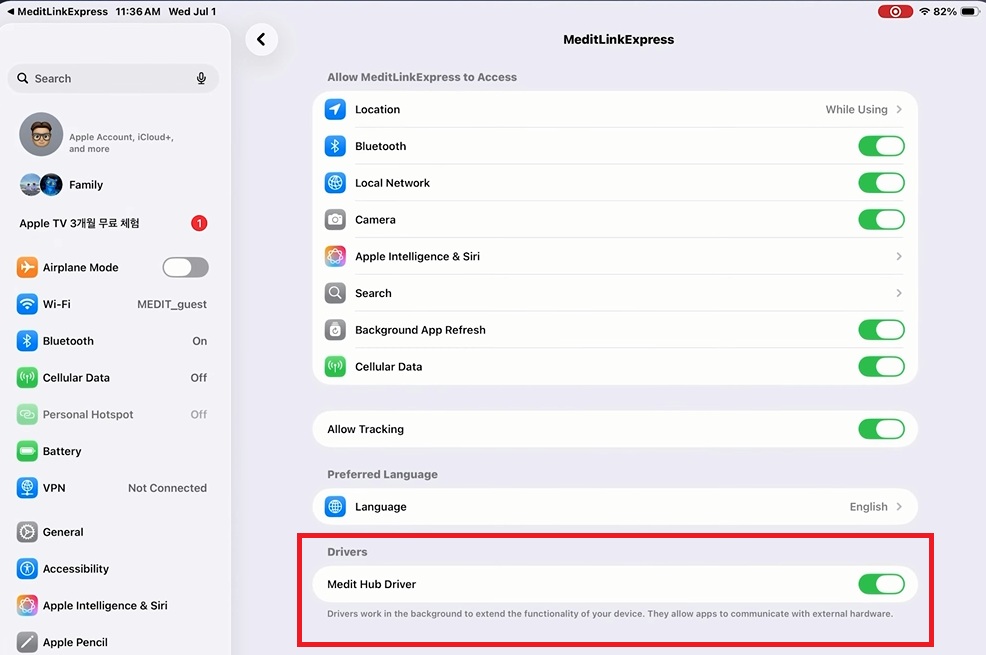

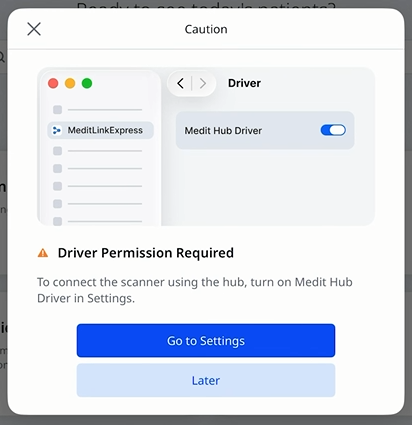

(3) In Settings, allow the connection to the hub drive.

(3) Launch Medit Link Express for iPad, connect the battery to the scanner, and turn on the scanner. The scanner will be detected automatically.

(4) In the scanner manager, select the serial number of the detected scanner and enter the Wi-Fi password to begin the connection process.

The serial number can be found on the bottom of the scanner.

2.3 Hotspot Connection Using Cellular Data

(1) Make sure that Wi-Fi is enabled on the iPad. If Wi-Fi is turned off, the scanner cannot connect to the hotspot network.
(Wi-Fi is automatically disabled after the hotspot is activated.)

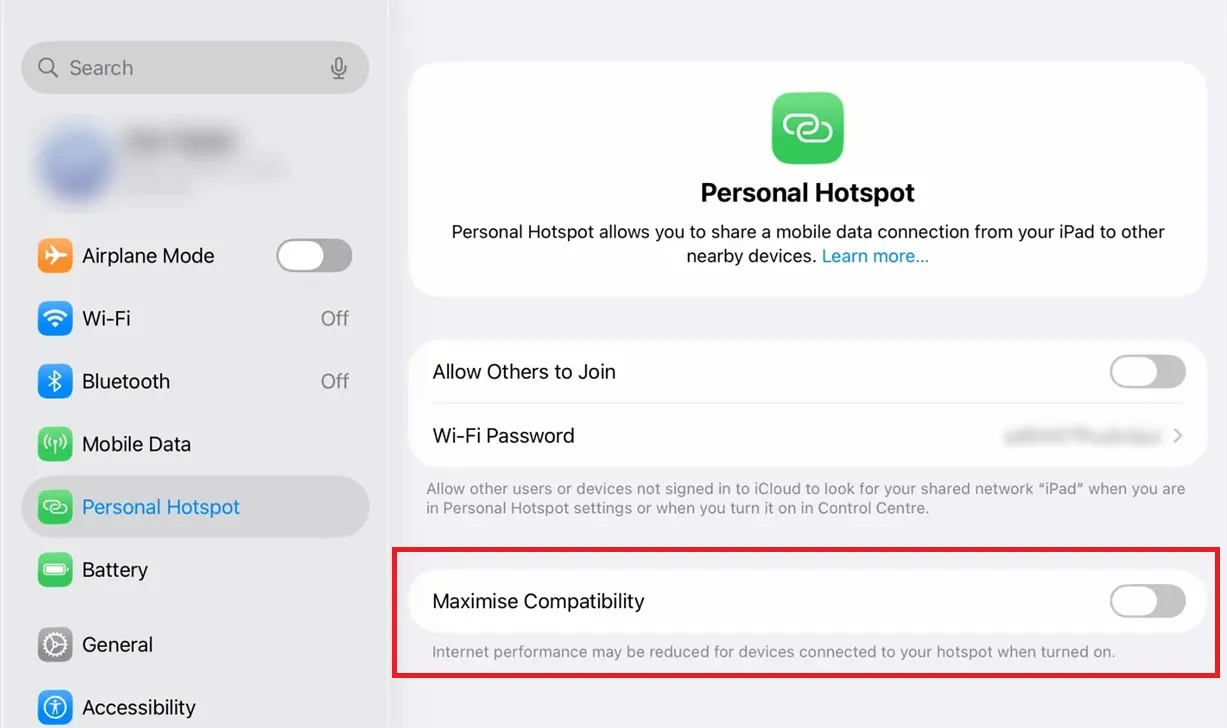

(2)  Configure the iPad as follows.

If Cellular or Personal Hotspot does not appear in Settings, the iPad is a Wi-Fi-only model and does not support this connection method.

Cellular Data: On

Personal Hotspot: On

Enabling Maximize Compatibility may reduce the data transfer speed. Make sure this option remains turned off.

Maximize Compatibility: Off

(3) Launch Medit Link Express for iPad. For the initial connection, Bluetooth must be enabled. Connect the battery to the scanner and turn on the scanner. The scanner will be detected automatically.

(4) In the scanner manager, select the serial number of the detected scanner and enter the hotspot password to begin the connection process.

The serial number can be found on the bottom of the scanner.

3. Related Videos and Articles

3.1 Videos

i900 Mobility Installation Guide (PC Version)

Medit i900 Mobility Connection Guide (iPad Version)

Medit i900 Mobility Wi-Fi Router Connection Guide

3.2 Articles

i900 Mobility Components and Settings

Medit Link Express Scanner Setup

[Guide] Recommended Wi-Fi Specifications and Installation Guide (i900 Mobility)

[FAQ] i900 Mobility

[FAQ] Medit Link Express and iPad & Mac

[Troubleshooting] i900 Mobility

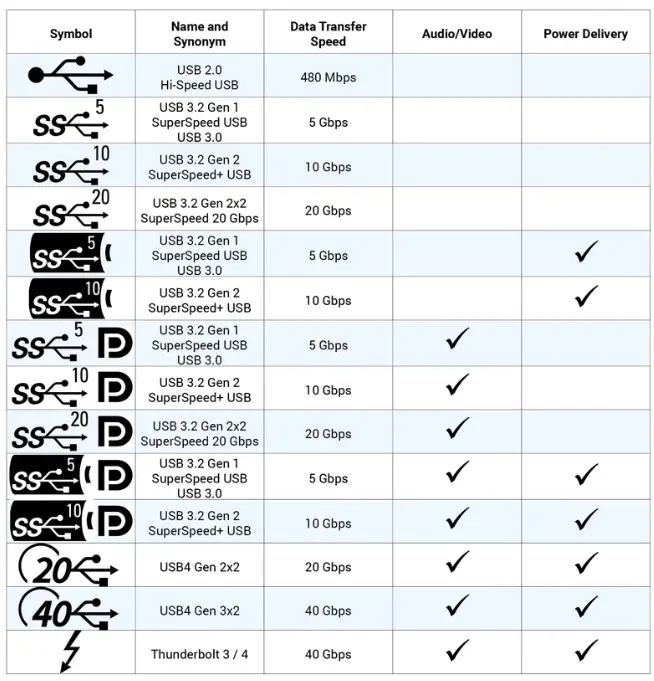

What are the specifications of the compatible USB-C port?
