1. i900 Components Overview
Appearance | Item (Model Name) | Qty |

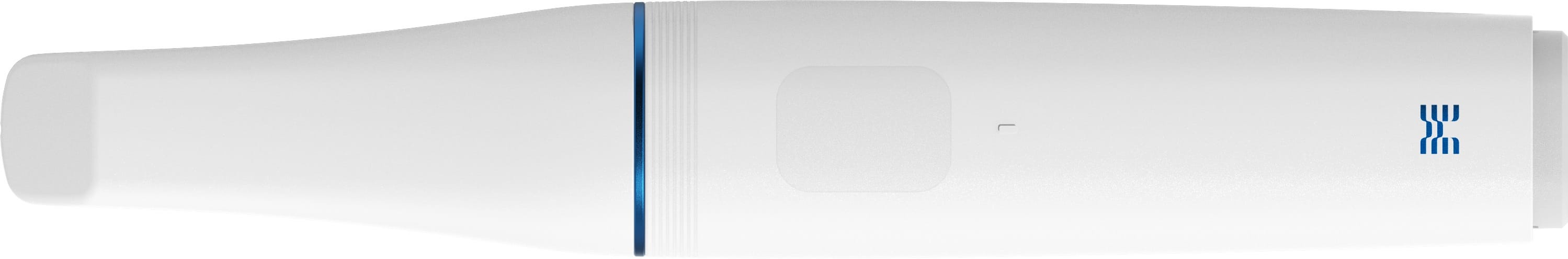

i900 Handpiece | 1 | |

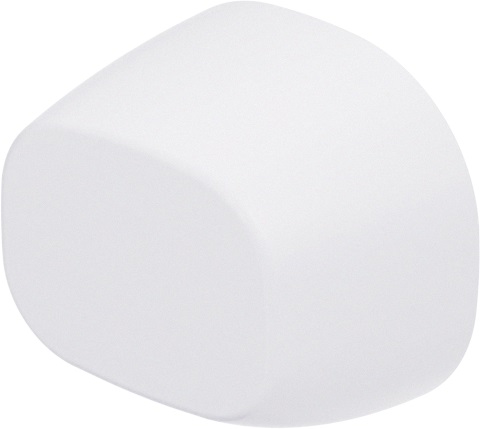

i900 Handpiece Cover (MO1-HC1) |
1 | |

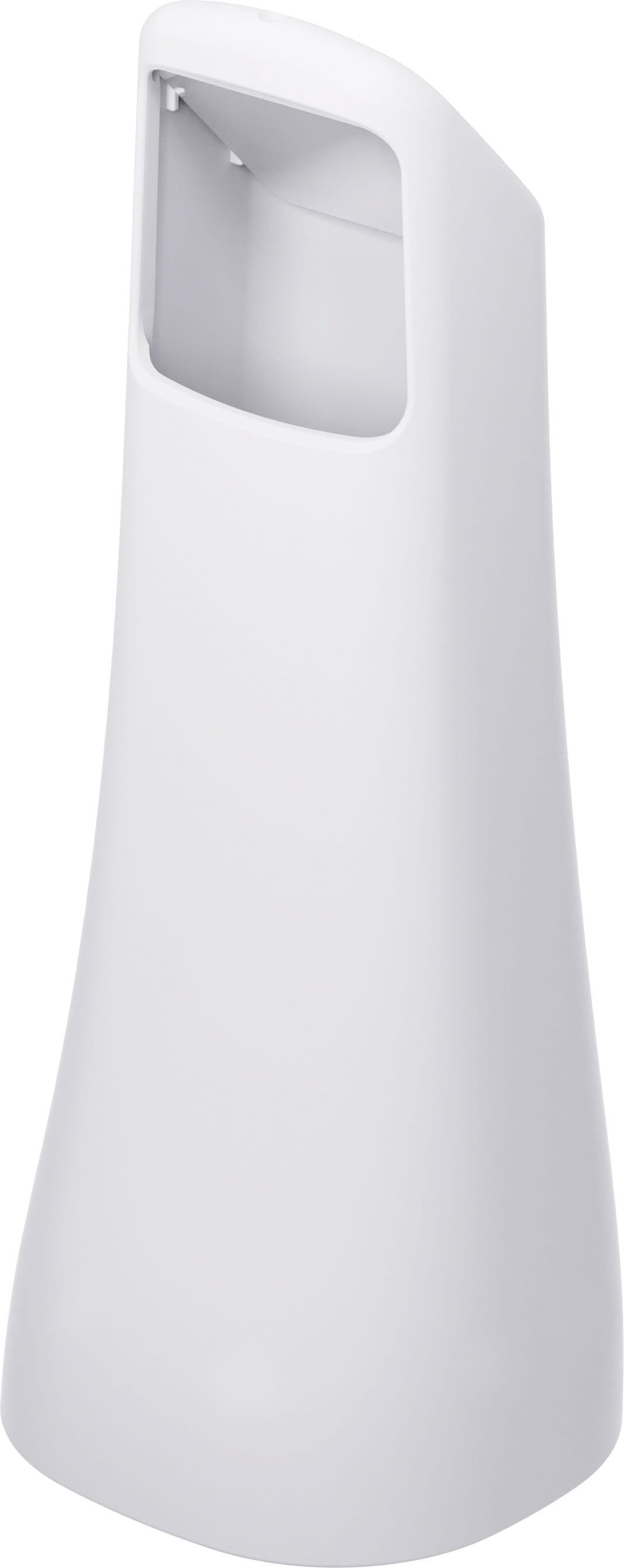

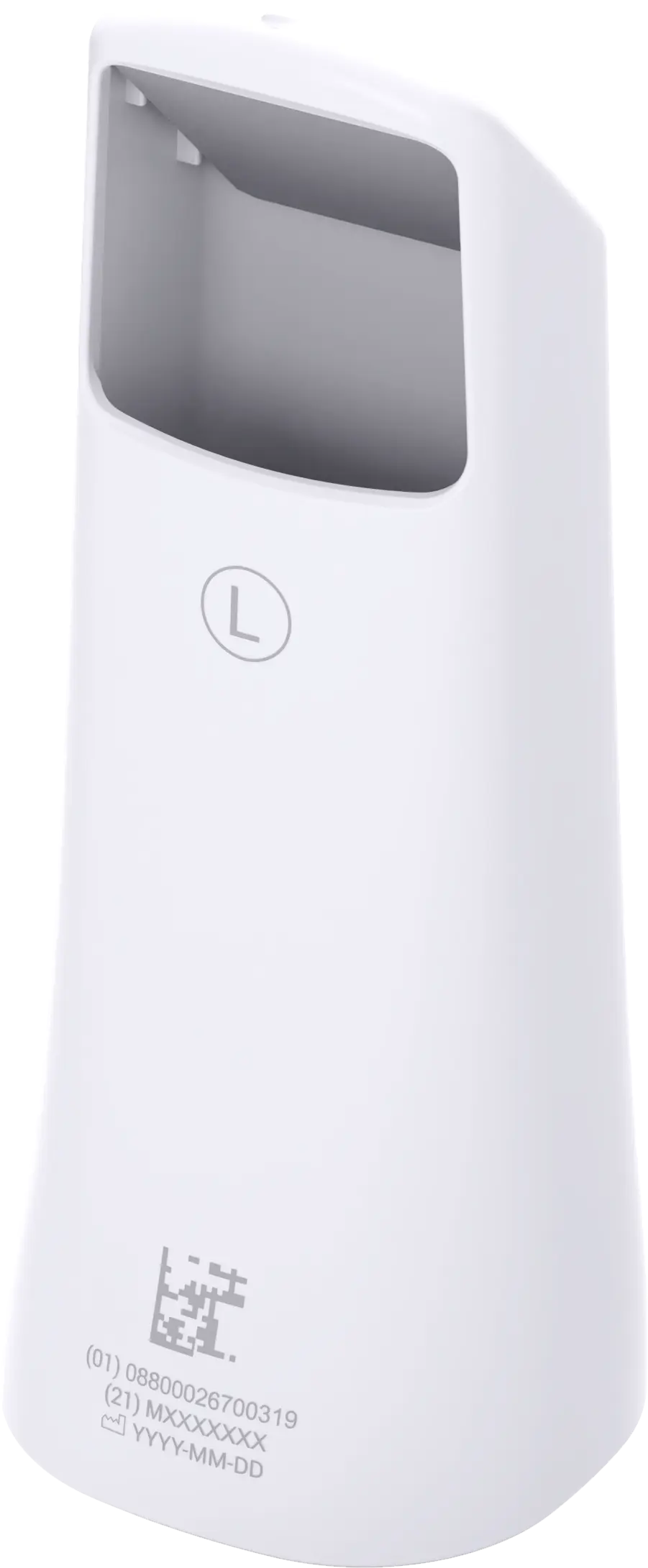

Reusable Tip (Large) (MO1-RTL) |
2 | |

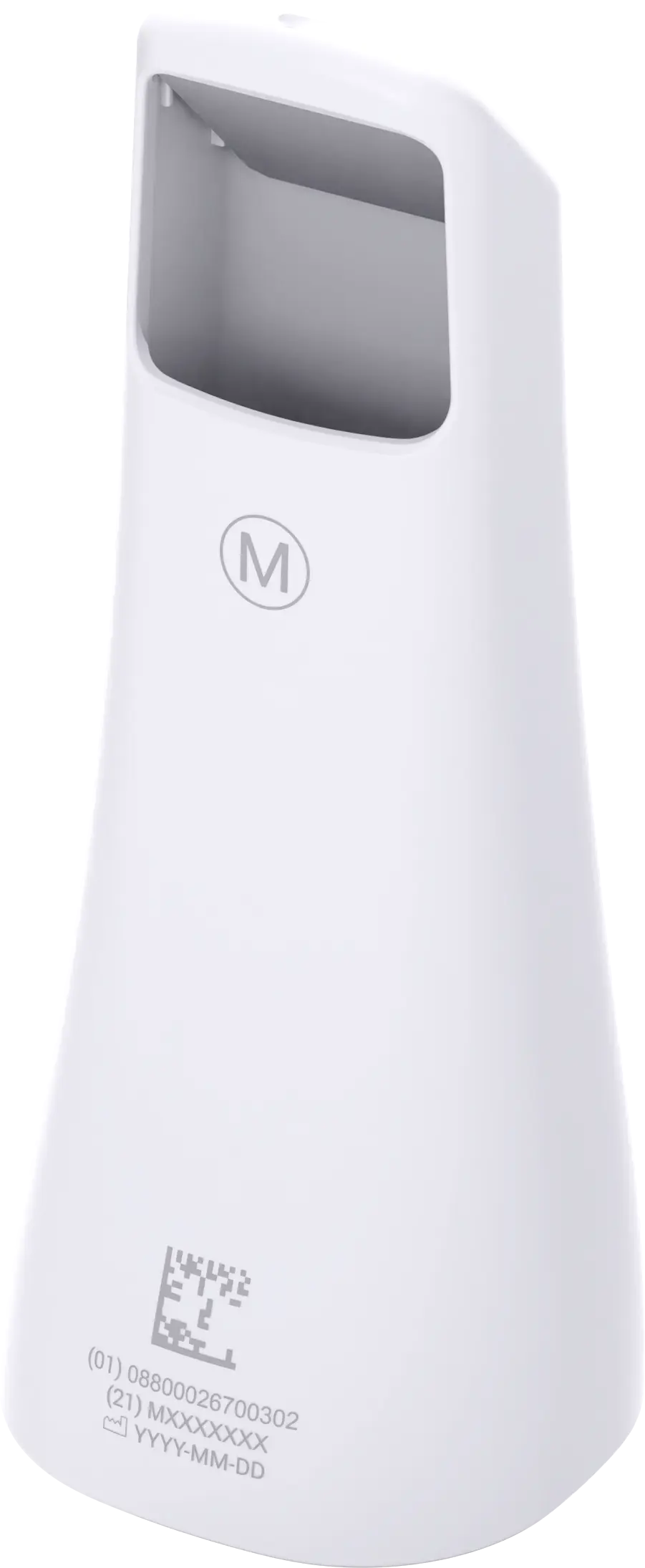

Reusable Tip (Medium) (MO1-RTM) |
2 | |

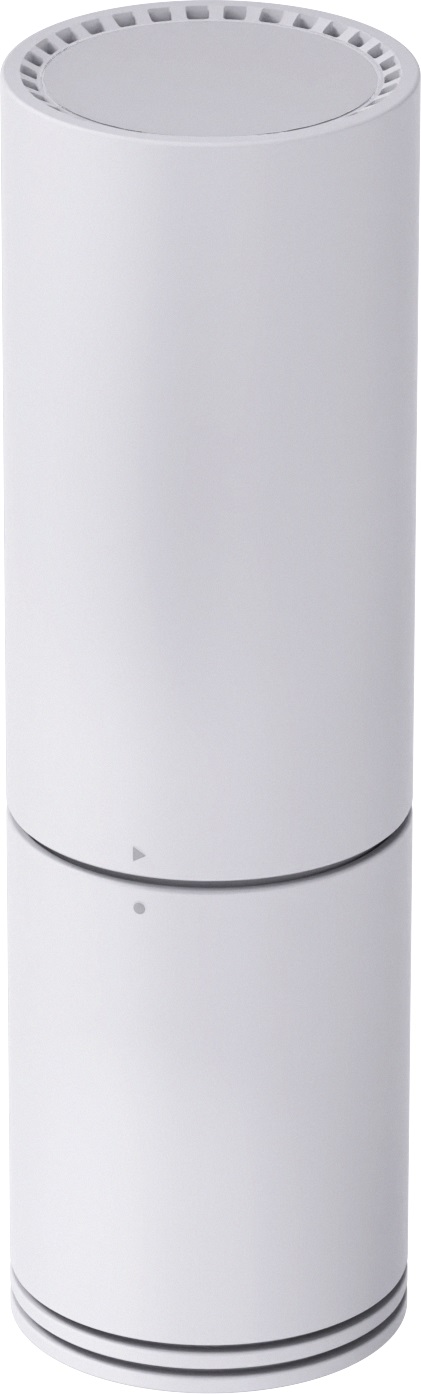

Calibration Tool (MO1-CT1) |
1 | |

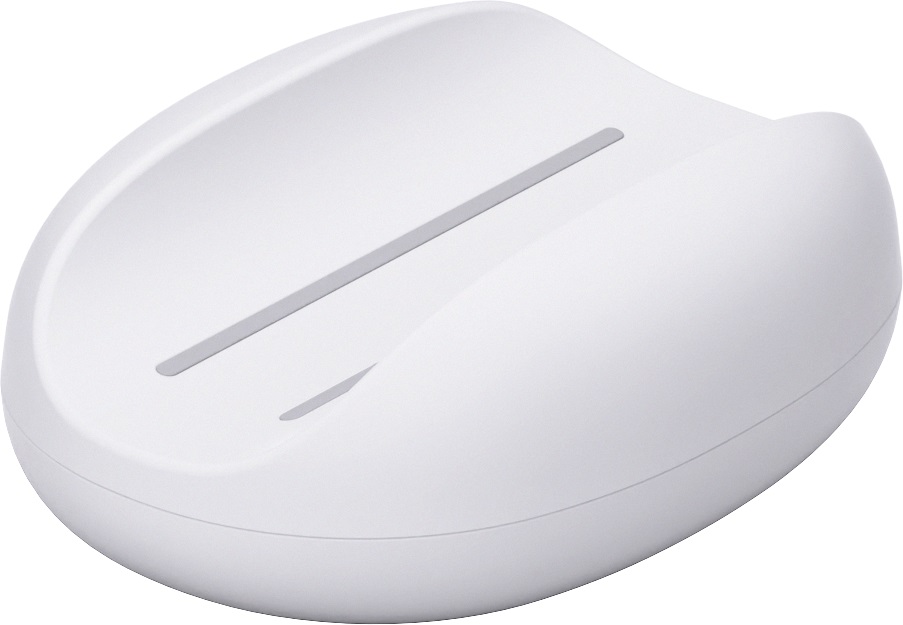

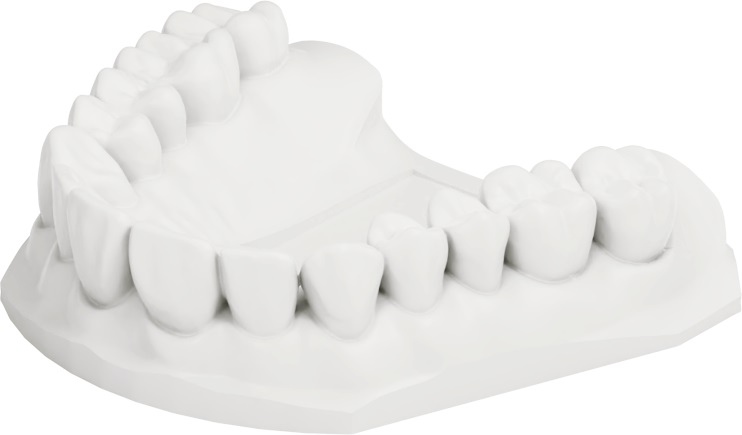

Practice Model | 1 | |
Desktop Cradle (MO1-DC) |
1 | |

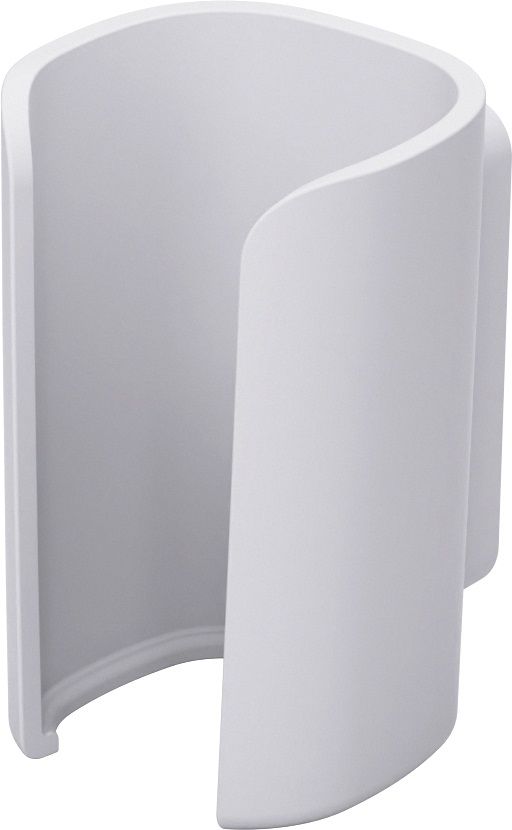

Wall Mount Holder (MO1-WH1) |
1 | |

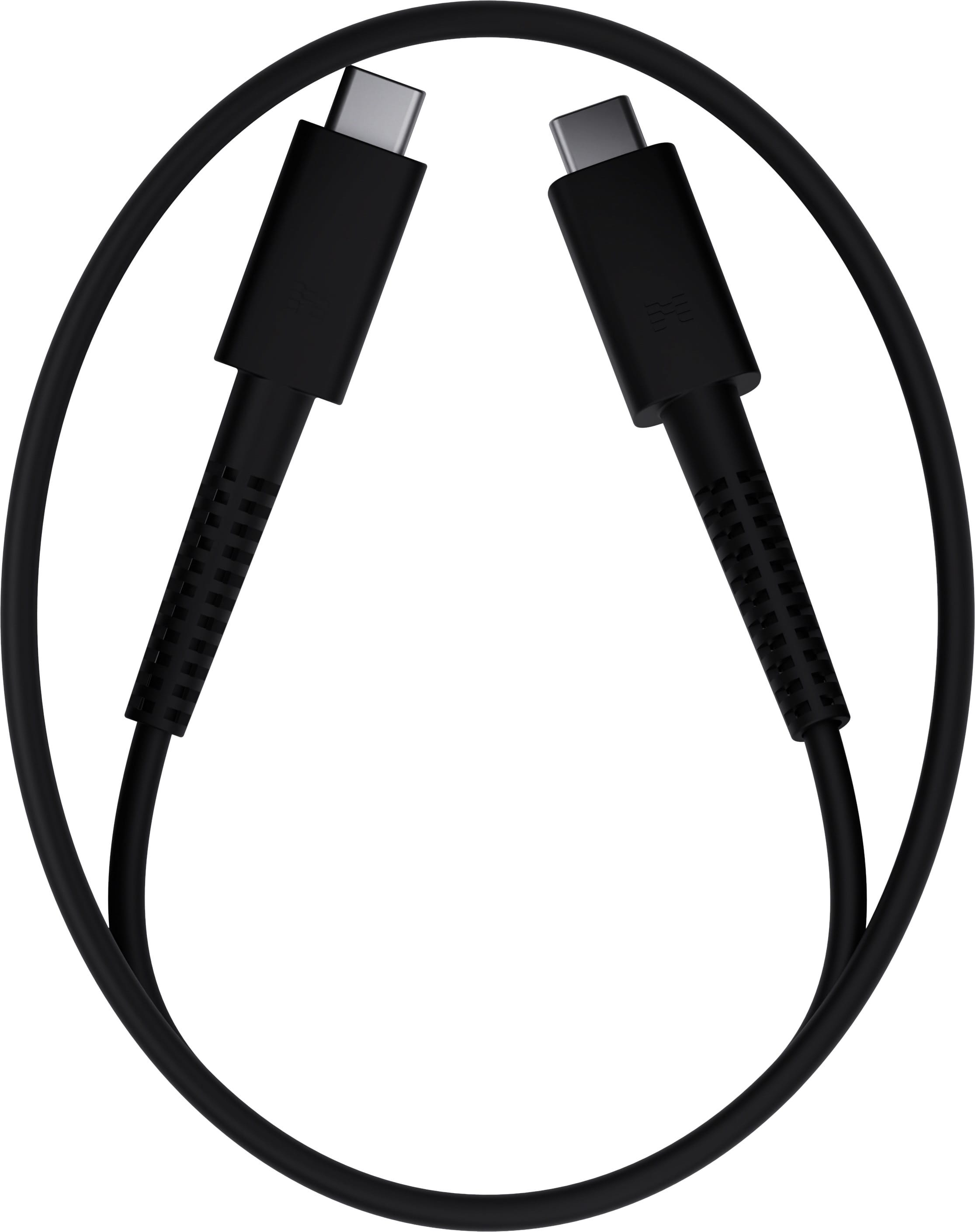

Power Delivery Cable (2.5m) | 1 | |
Power Delivery Cable (2m) | 1 | |
USB Flash Drive (Installer of Medit Scan for Clinic included) |
1 | |
User Guide | 1 |
Additional Components (Sold Separately)
Appearance | Item (Model Name) | Qty |

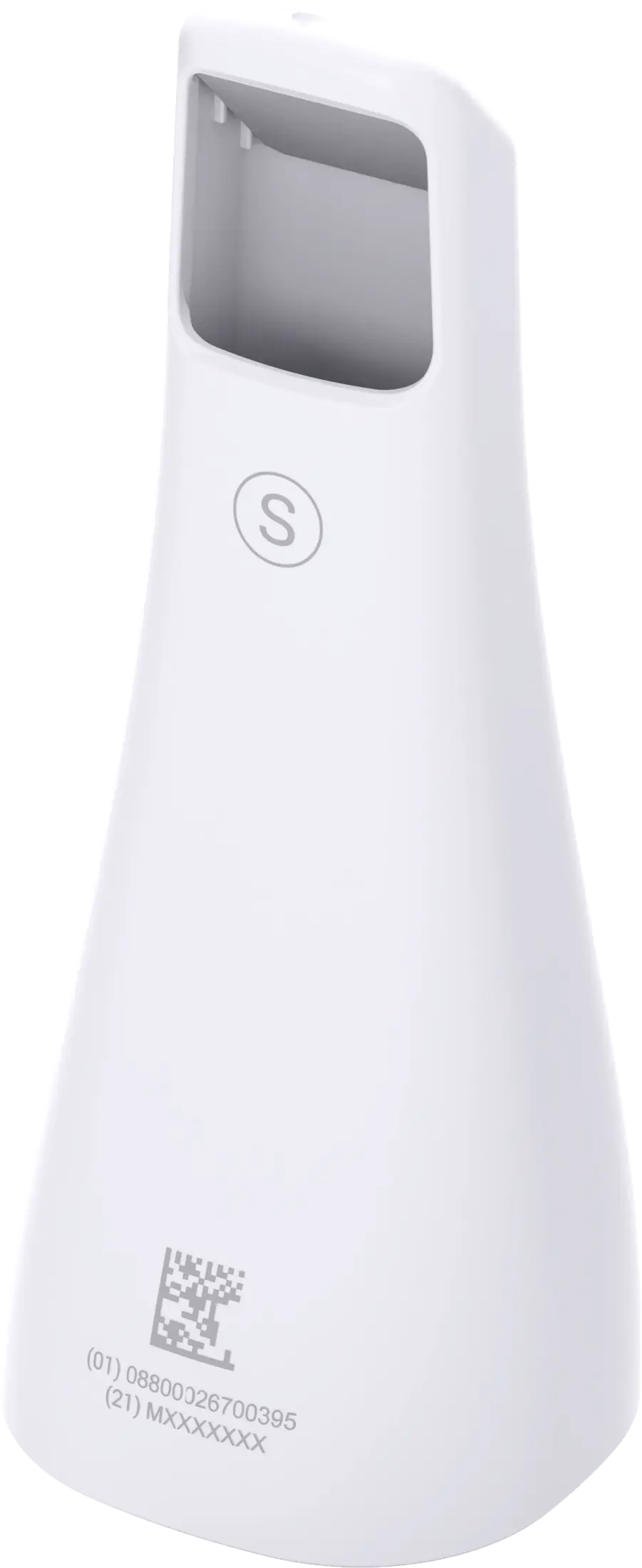

Reusable Tip (Small) (MO1-RTS) |
4 |
⚠️ Caution
- Keep the practice model in a cool place away from direct sunlight. A discolored practice model may affect the results of the practice mode.
- Medit Scan for Clinics is included in the USB drive. This product is optimized for PC, and using other devices is not recommended. Do not use anything other than a USB port. It may cause malfunction or fire.
2. Setting Up the i900 System

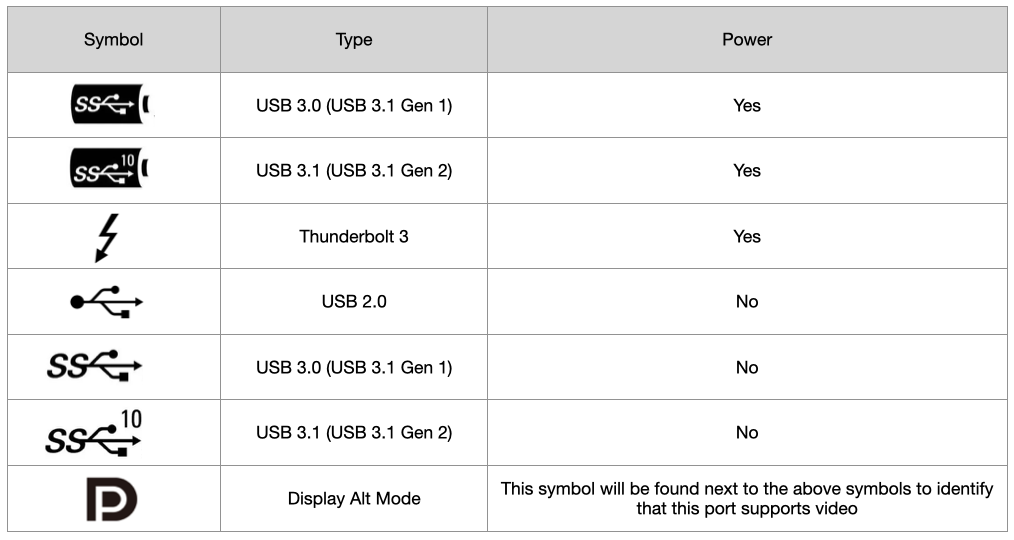

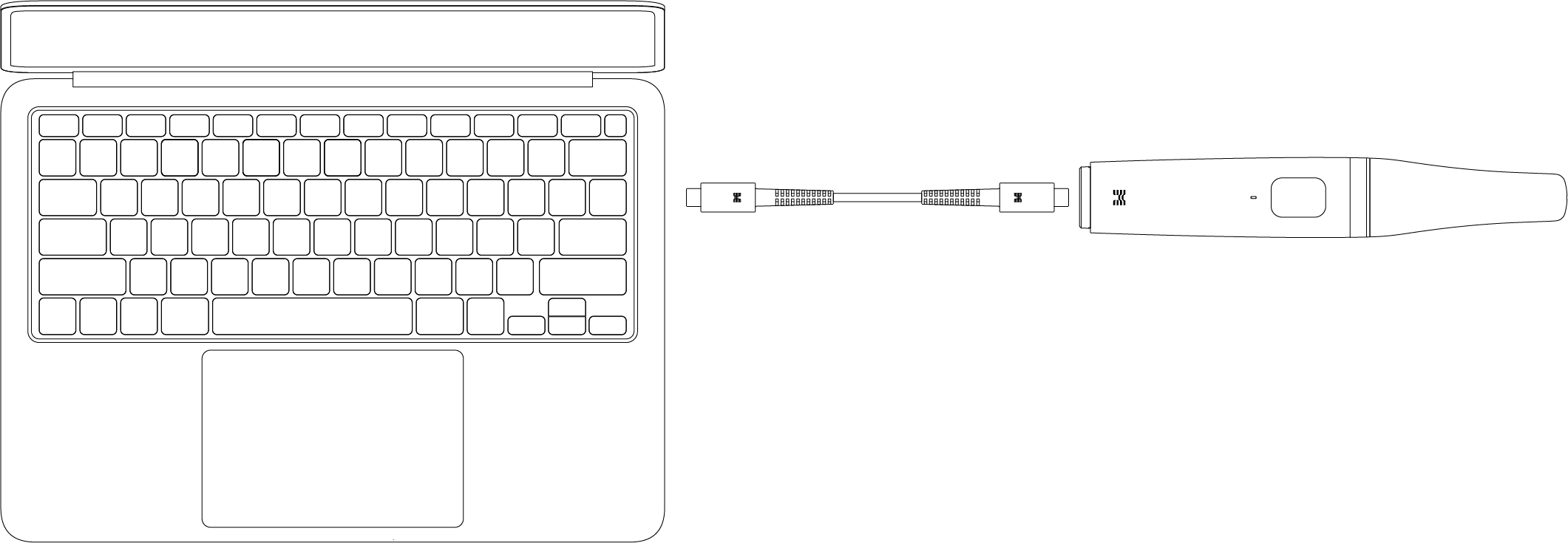

You can connect i900 directly to a PC with the power delivery cable.
Turning On the i900 |
Turning Off the i900 |
|

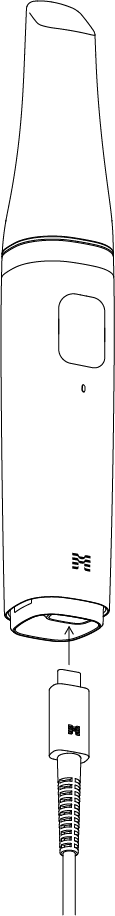

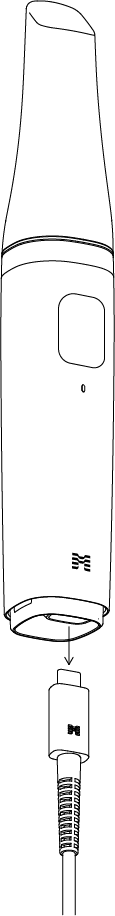

1. Connect the i900 to your PC with the power delivery cable, and the scanner will automatically power on. |

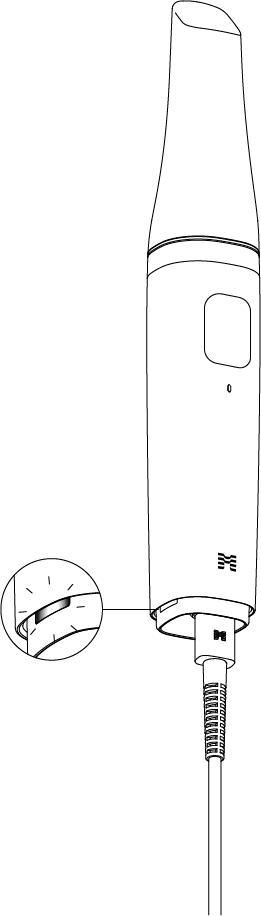

2. When power is applied, the rear LED lights up blue.
|
When you disconnect the power delivery cable, the scanner switches off. |
|
|

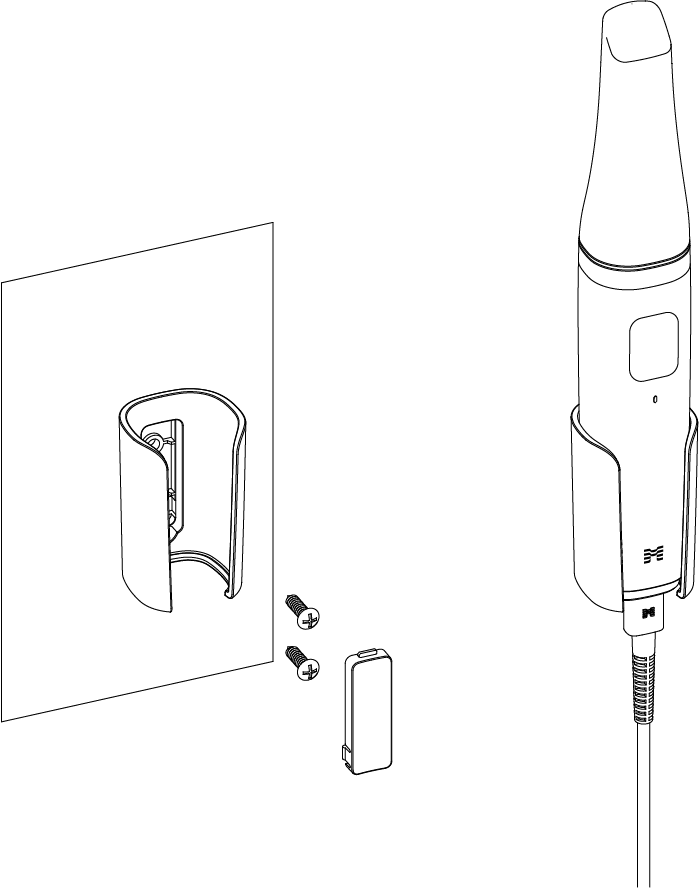

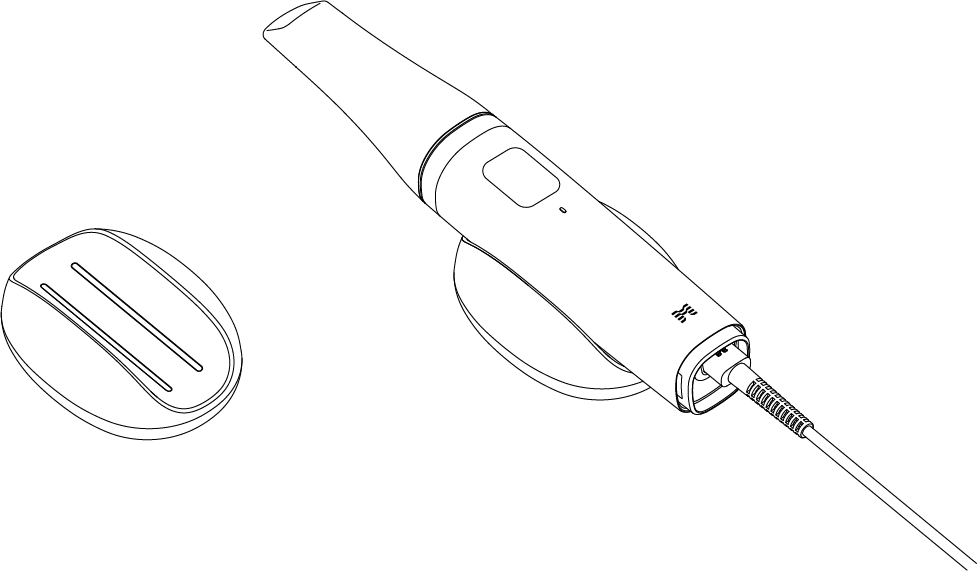

Desktop Cradle | Wall Mount Holder |
