1. i700 package
- Main package
- Accessory package
2. i700 components
No. Item Qty Appearance
1 i700 Handpiece 1ea
2 Power hub 1ea
3 i700 Handpiece cover 1ea

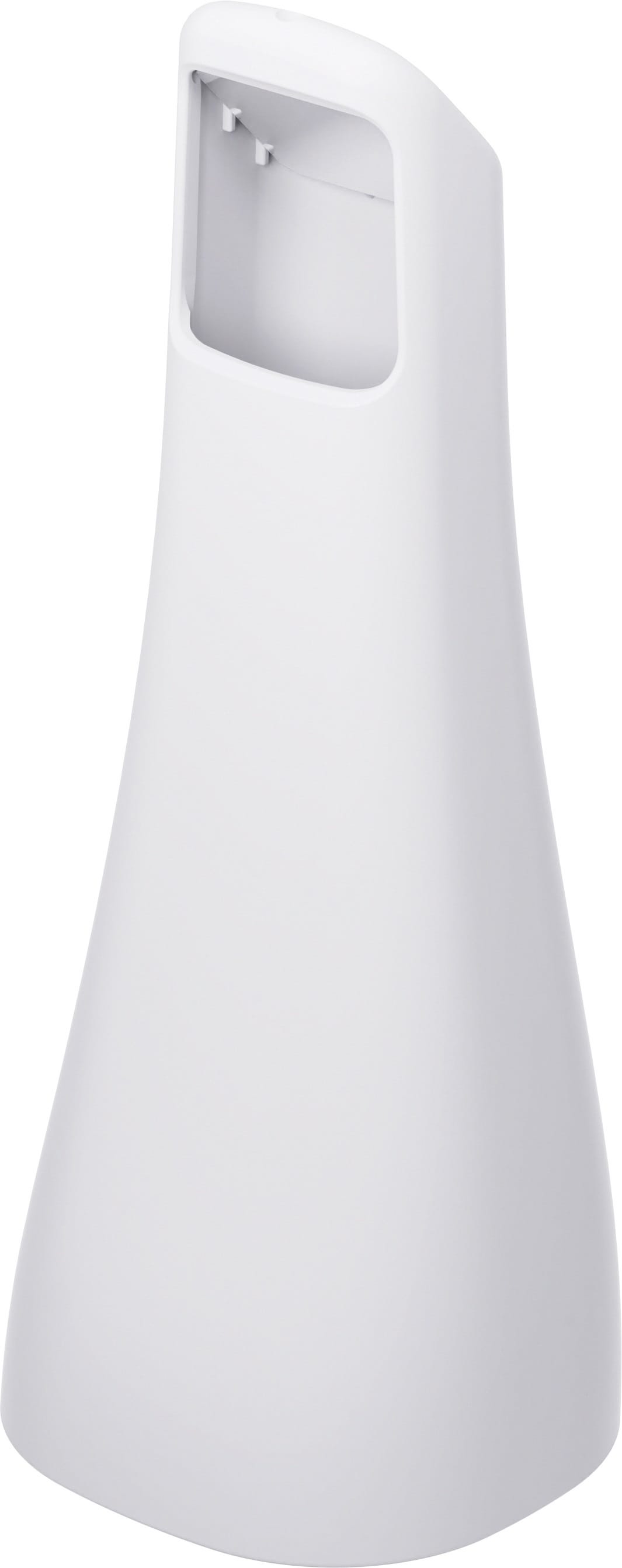

4. Reusable tip 4ea
5. Calibration tool 1ea
6. Practice model 1ea
7. Wrist strap 1ea
8. Desktop cradle 1ea
9. Wallmount holder 1ea
10. Power delivery cable 1ea
11. USB 3.0 cable 1ea
12. Medical adapter 1ea
13. Power cord 1ea
14. USB Flash drive 1ea
(Pre-loaded with image acquisition software)
15. User Guide 1ea
3. Setting up the i700
Minimum system requirements for Medit Plug &Scan
USB Type-C / USB Power Delivery supporting 5V, 3A output (formally known as USB Type-C 3.1, 3.2, or Thunderbolt, etc.)
Depending on the PC manufacturer, the output conditions of the ports may not be satisfied, and Plug & Scan may not operate properly. If so, connect it to an externally Power hub.
Refer to the table below for more information.
Standard Connection using power hub
(1) Connect the USB C Cable to the Power Hub
(2) Connect the Medical Adapter to the Power Hub.
(3) Connect the Power Cord to the Medical Adapter.
(4) Connect the Power Cord to a power source.
(5) Connect the USB C Cable to the PC.
💡 Turn on the i700 scanner.
- Press the power button on i700 and wait until the USB connection indicator turns blue.
💡 Turn off the i700 scanner.
- Press and hold the power button of the i700 for 3 seconds.
