i700 wireless components
- The main package
- Accessory package
| Appearance | Item | Qty |
| i700 Wireless Handpiece | 1 | |
| Wireless Hub | 1 | |
| Rechargeable Battery | 3 | |
| Extension Cable Battery | 1 | |
| Battery Charger | 1 | |
| Handpiece Cover | 1 | |
| Reusable Tip | 4 | |
| Handle | 1 | |
| Calibration Tool | 1 | |
| Practice Model | 1 | |
| Wrist Strap | 1 | |
| Desktop Cradle | 1 | |
| Wall Mount Holder | 1 | |
| USB 3.0 Cable (C to A) | 1 | |
| Power Delivery Cable (C to C) | 1 | |
| Medical Adapter for Wireless Hub | 1 | |
| Medical Adapter for Battery Charger | 1 | |
| Monitor Mount | 1 | |
| Power Cord | 2 | |
|
USB Flash Drive (incl. installer of Medit Scan for Clinics) |
1 | |
| User Guide | 1 |
Additional Components (Sold Separately)
| Appearance | Item (Model Name) | Qty |
|

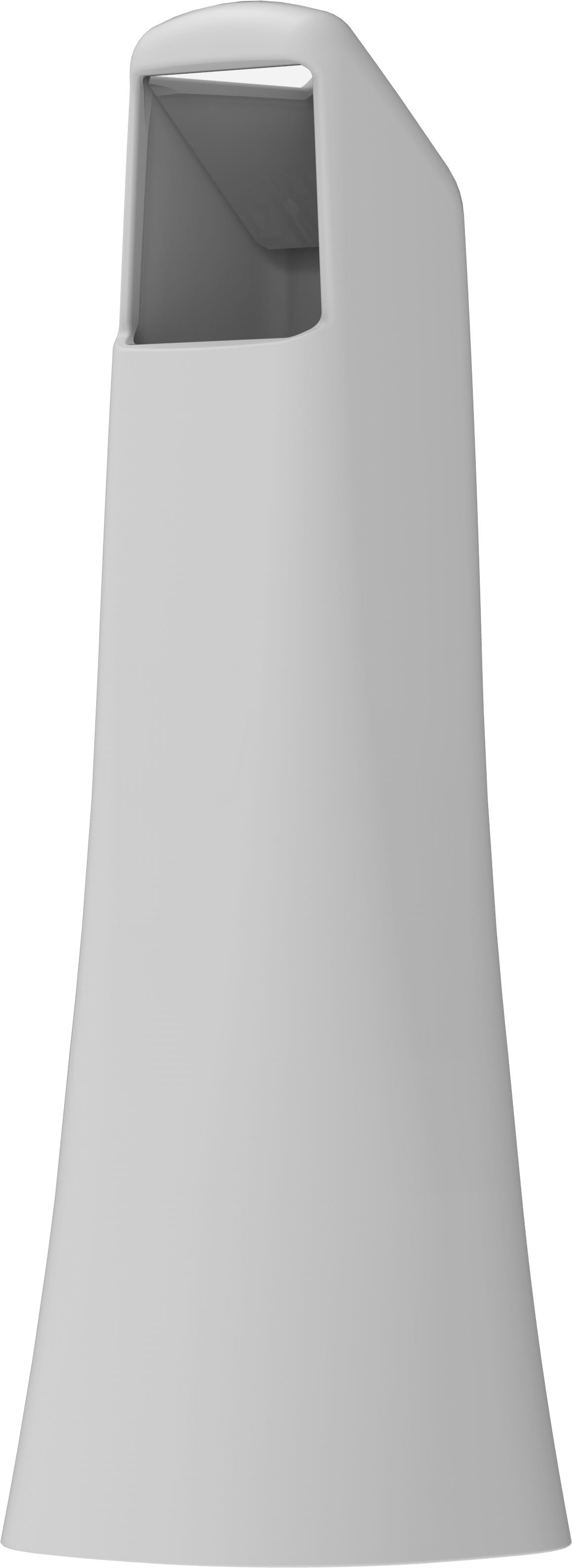

Small Tip |
4 | |
|
Auto Calibration Tool (incl. 1 rechargeable battery) |
1 | |
|
Handle-Fit Cradle |
1 | |
|

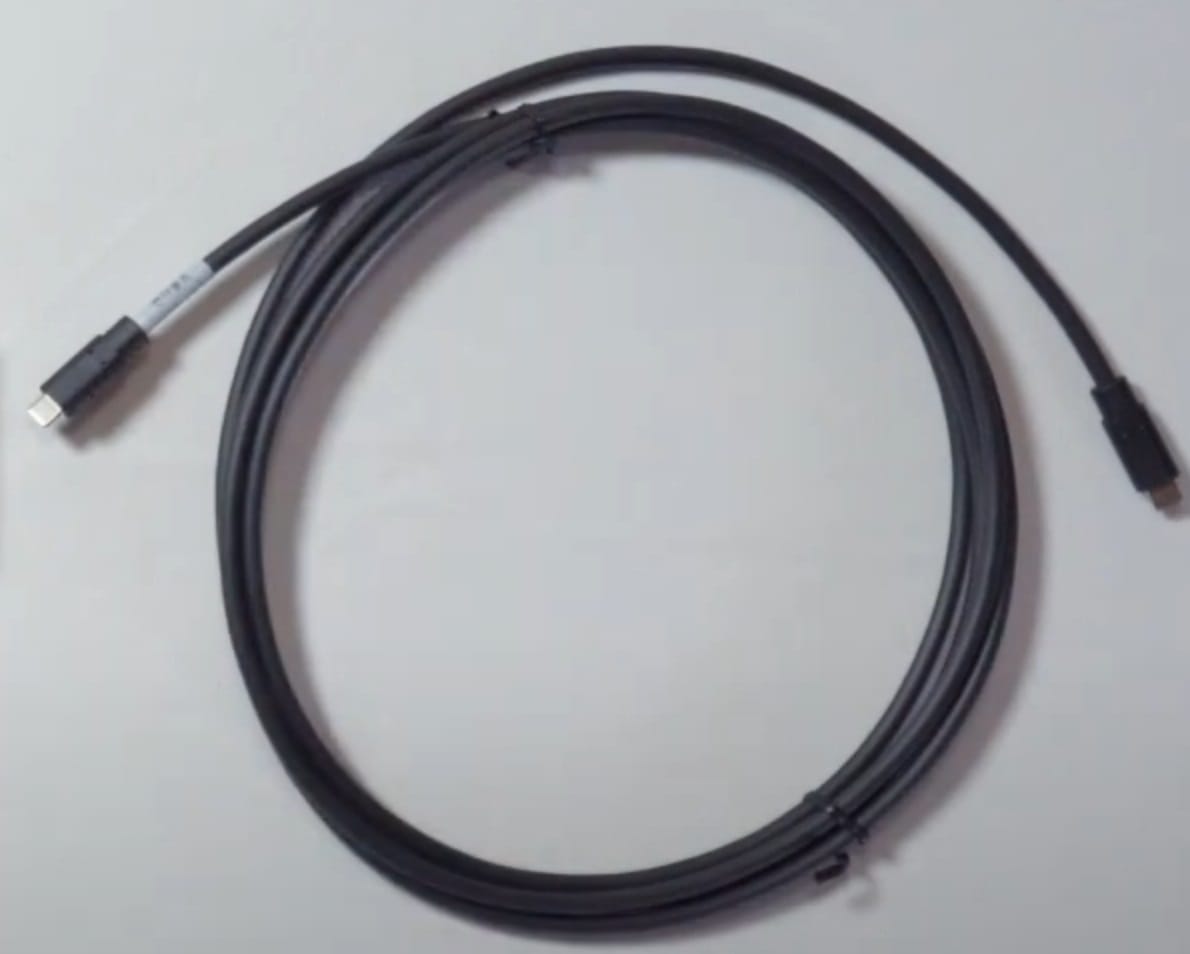

3M PD Cable |
1 |
- All components in the list can be purchased separately.
- Availability of items for sale may vary depending on the medical device registration status in each country or region. Please contact Medit or your local distributor for the availability of specific items.
- Keep the practice model in a cool place away from direct sunlight. A discolored practice model may affect the results of the practice mode.
- The strap is designed specifically for the weight of the i700 wireless and should not be used with other products.
- Medit Scan for Clinics is included in the USB drive. This product is optimized for PC, and using other devices is not recommended. Do not use anything other than a USB port. It may cause malfunction or fire.
- The auto-calibration tool is not included in the i700 wireless package. It can be bought separately from your place of purchase.

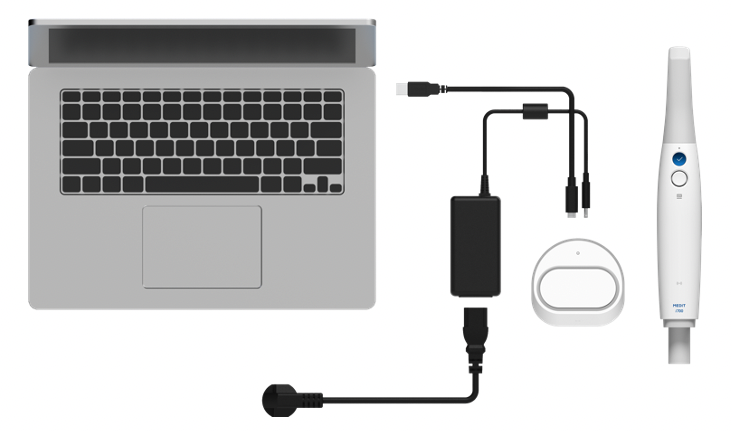

Setting up the i700 wireless System

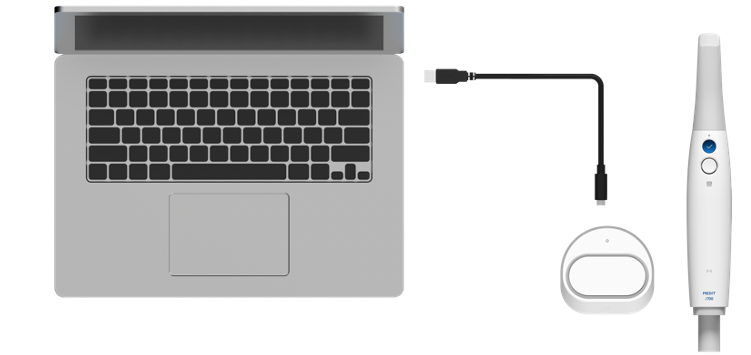

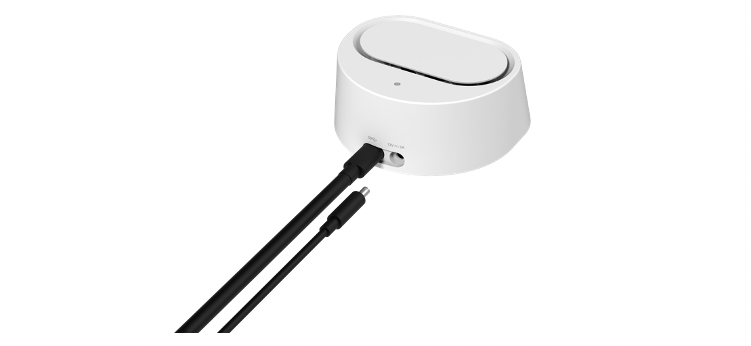

Connect the i700 wireless Wireless Hub (USB C to A)
(1) Connect the USB 3.0 cable (C to A) to the wireless hub.

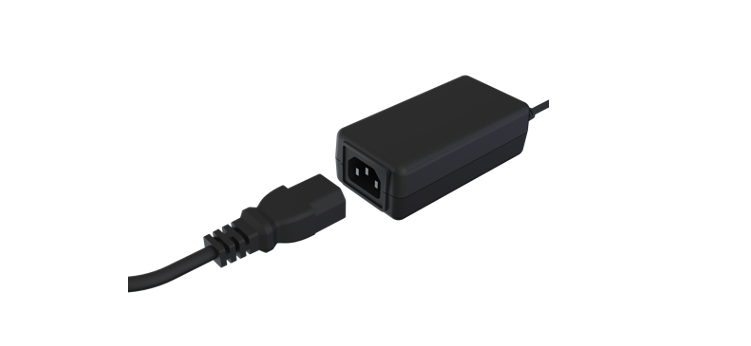

(2) Connect the adapter to the wireless hub.
(3) Connecting the power cord to the adapter automatically powers the wireless hub.
(4) Connect the USB 3.0 cable's A port connector to a PC.
The USB port is used only for signal transmission.

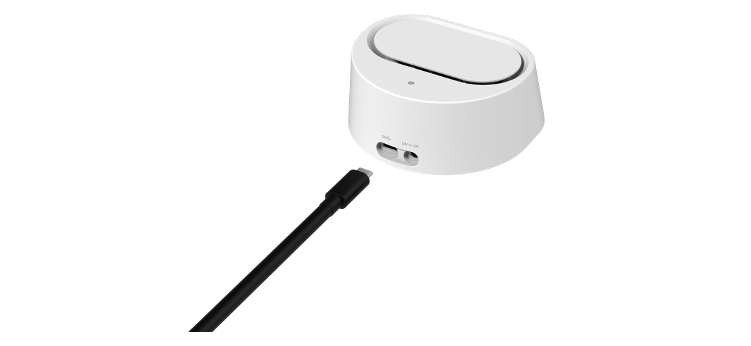

Connect the i700 wireless Wireless Hub (USB C to C)

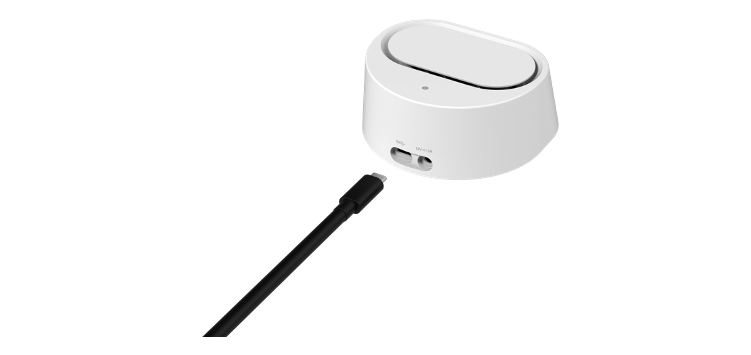

(1) Connect the power delivery cable (C to C) to the wireless hub.

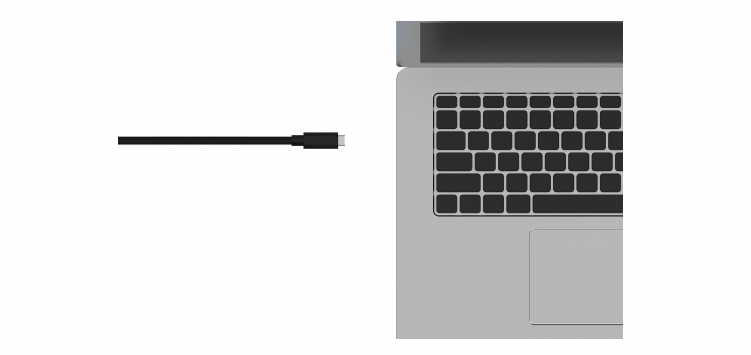

(2) Connect the power delivery cable to a PC.
9v DC power is supplied to the USB port.
Minimum system requirements for Medit Plug &Scan
USB Type-C / USB Power Delivery supporting 5V, 3A output (formally known as USB Type-C 3.1, 3.2, or Thunderbolt, etc.)
Depending on the PC manufacturer, the output conditions of the ports may not be satisfied, and Plug & Scan may not operate properly. If so, connect it to an externally Power hub.
Refer to the table below for more information.
Turning on the i700 wireless

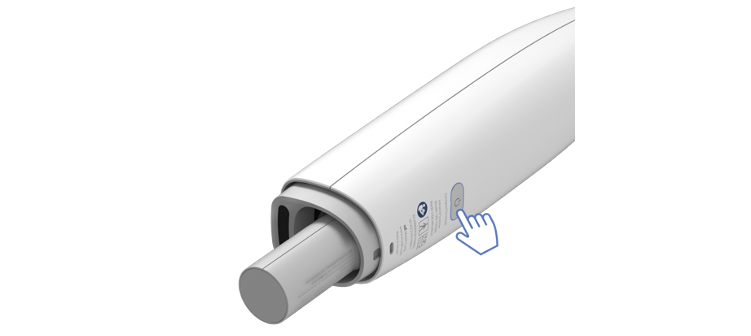

(1) Insert the battery into the i700 wireless handpiece and press the power button.
(2) When the power is supplied, the LED on the upper part of the i700 wireless handpiece turns blue.

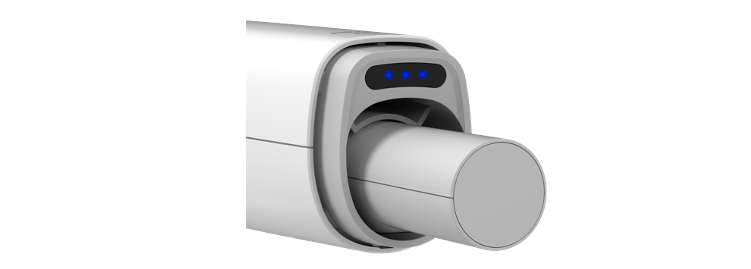

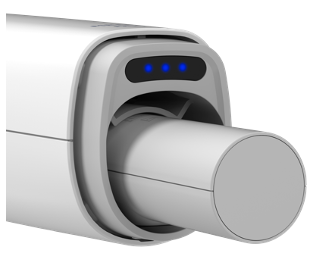

(3) Three LEDs on the bottom of the i700 wireless handpiece indicate the remaining battery level.
- 3 lights: 80 – 100%
- 2 lights: 50 – 79%
- 1 light: 20 – 49%
- 1 blinking light: 1 – 19%
- LED lights turned off: 0%

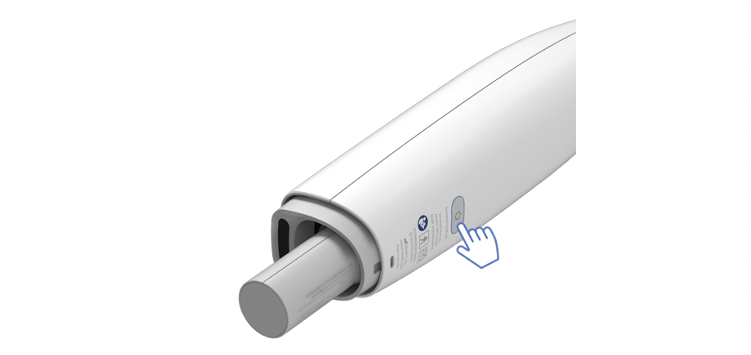

Turning off the i700 wireless
- Press and hold the power button at the bottom of the i700 wireless handpiece for 3 seconds. If the rechargeable battery is removed without turning the device off, it may shorten the lifespan of the i700 wireless and the battery.

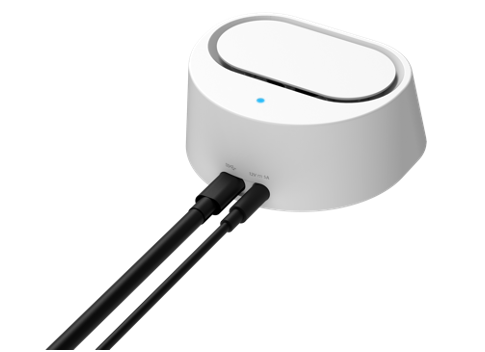

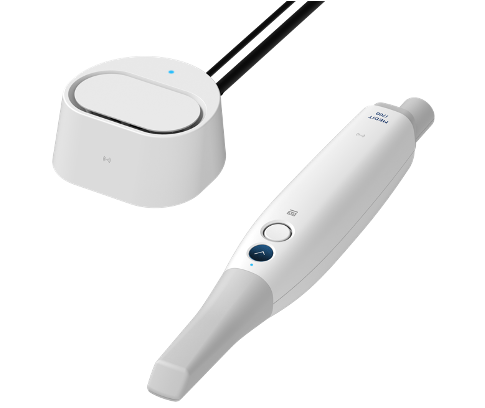

How to Use the Wireless Hub
The i700 Wireless is a wireless device that operates through a wireless module. For this reason, the i700 Wireless handpiece has a transmitter and the wireless hub has a receiver. The i700 Wireless wireless system uses two types of frequencies to transmit data and control the i700 Wireless handpiece.
Power is supplied by connecting the adapter cable to the wireless hub power port. The power turns off when the adapter port is removed.

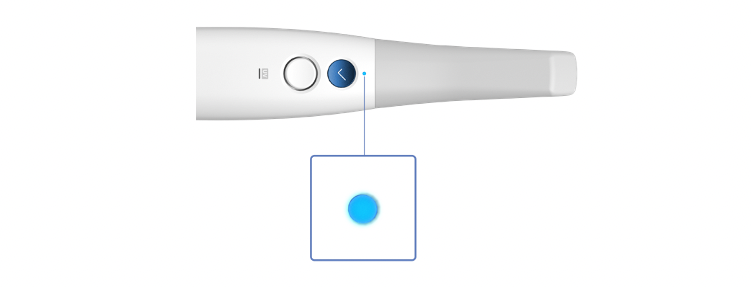

When the i700 Wireless is turned on, it will automatically try to pair with the wireless hub. Both the i700 Wireless handpiece and wireless hub must be powered and placed in a range of each other to pair. When pairing is in progress, the LED on top of the i700 wireless handpiece flashes. When pairing is complete, the LED lights up. You can start scanning when the pairing is complete.
- i700 wireless uses two antenna modules: 60 GHz for data transmission and 2.4 GHz for the control. The actual frequency depends on the local regulations.
- The actual operational range is up to 5 m, and it may vary depending on the environment.
- 60 GHz Frequency: 57 – 64 GHz
- 2.4 GHz Frequency: 2.4 – 2.5 GHz
Power is supplied from the connected PC without using the adapters when connected with a power delivery cable. In this case, the PC must be turned on. If the power delivery cable is removed from the PC, the wireless hub will be automatically turned off and the connection status, such as pairing, will be initialized.

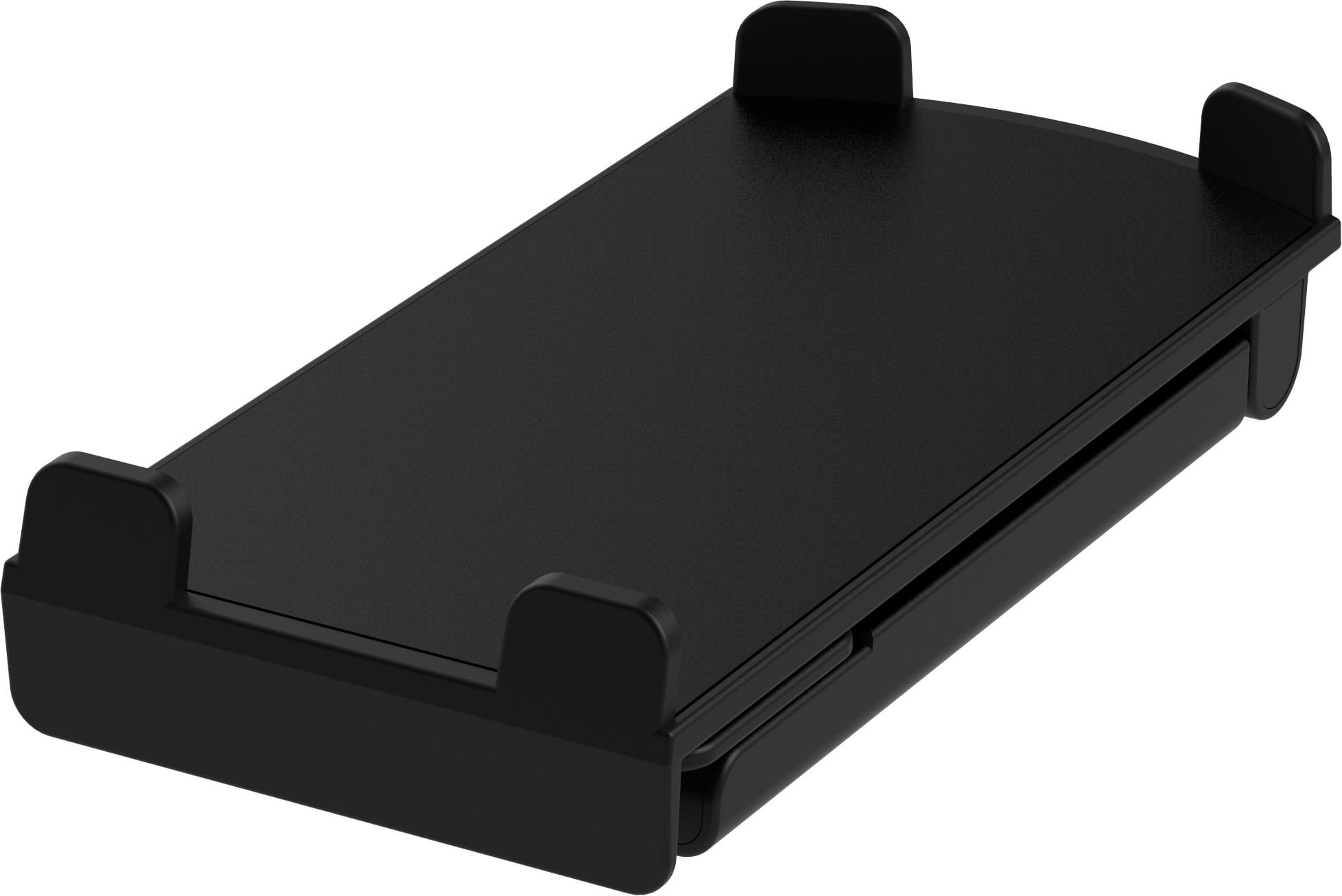

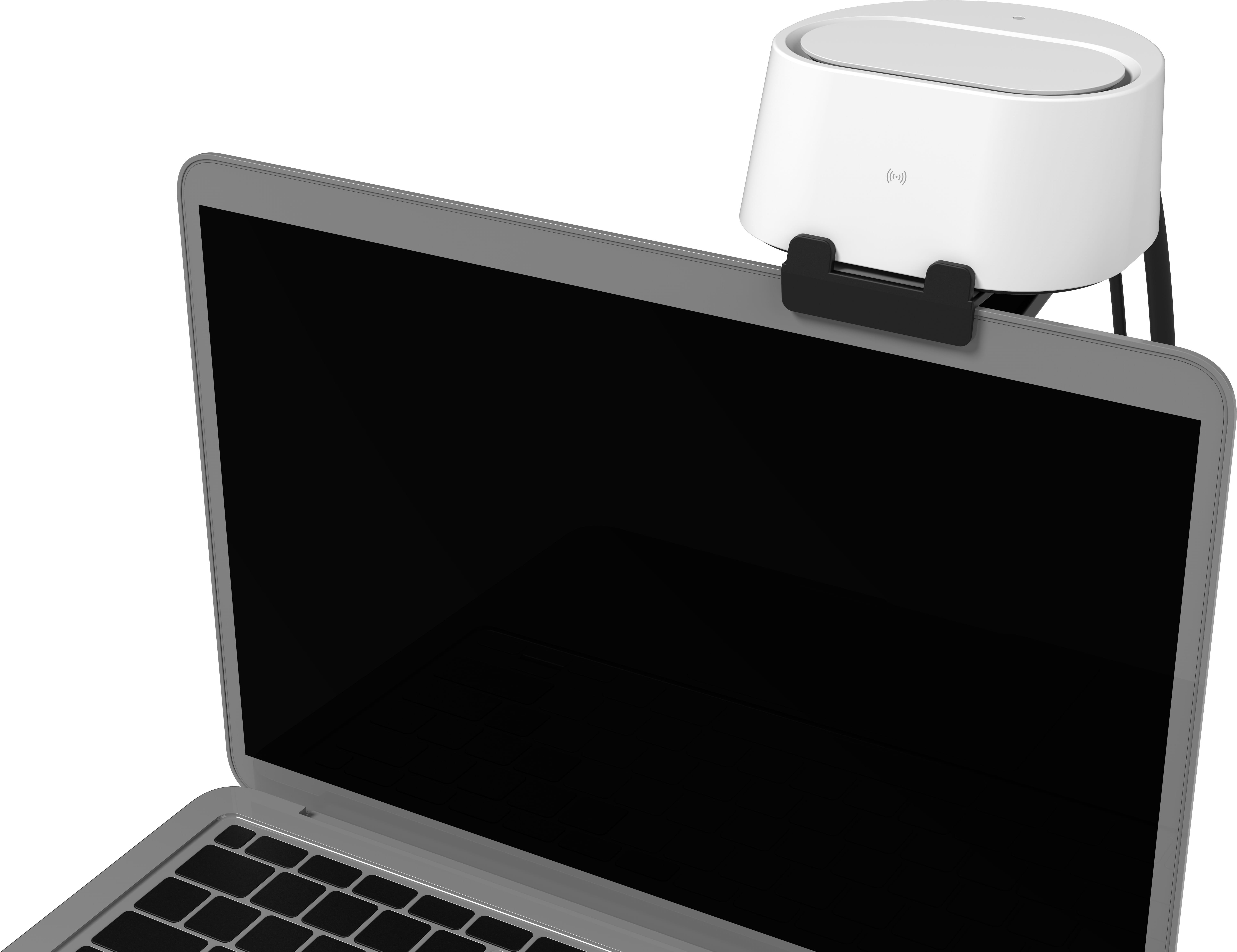

How to use the Monitor Mount (Sold Separately)
How to use the Batteries
Rechargeable Battery
- Li-ion
- 3.6 V, 3100 mAh, 11.6 Wh
- Insert the battery into the bottom of the i700 wireless scanner with the terminal aligned correctly.
-
Battery life lasts up to 1 hour.
Battery life may vary depending on the user environment and the battery cycle count.
Batteries are shipped with a partial charge. Please fully charge the battery prior to initial use.

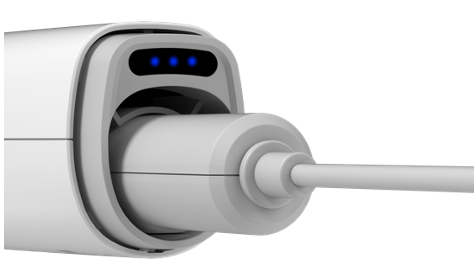

Extension Cable Battery
- The extension cable battery is a cable‐type wired battery that is used instead of a rechargeable battery. No charging is required as power is supplied through the cable.
- Connect the battery-shaped connector to the i700 wireless handpiece and connect the cable to the battery charger terminal.
- Press the power button on the bottom of the i700 wireless handpiece to supply power.

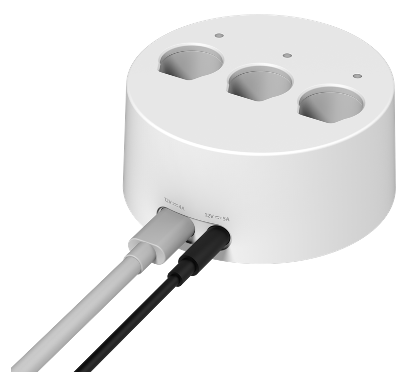

How to Use the Battery Charger
- Connect the adapter to the battery charger power port to supply power. The power turns off when the adapter port is removed.
- Insert the rechargeable battery into the battery charger with the charging terminals oriented correctly.
- The battery charger is only for rechargeable batteries. It takes up to 2 hours and 30 minutes to be fully charged and the charging time may vary depending on the user environment and the battery cycle count.
The LED on the charger blinks in blue when the battery is charging. When fully charged, the LED lights up in blue.

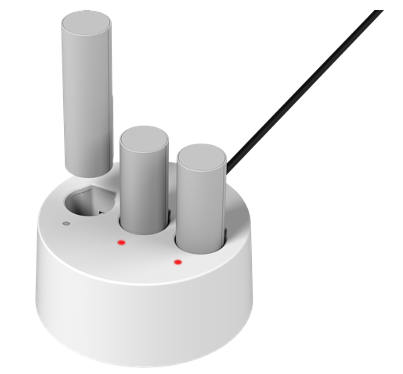

If the battery is not correctly inserted into the battery charger, the LED on the charger will blink in red. In this case, remove the battery from the charger, check both terminals of the battery and the charger for foreign objects, wipe them gently with a soft cloth, and then insert the battery again.

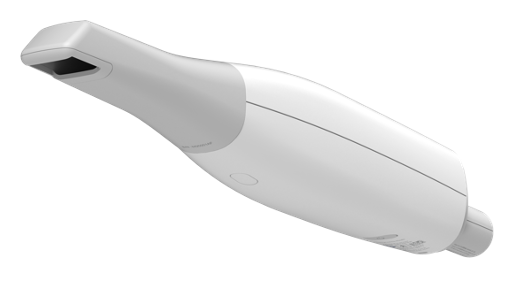

How to Mount the Handle
The i700 wireless body is equipped with a wireless signal transmitter located where the i700 wireless logo is. Depending on your experiences and habits, you may hold the area where the transmitter is mounted. Covering the transmitter area may interfere with the wireless hub's communication. Therefore, a handle is provided to mount on the i700 wireless handpiece for a more comfortable hand-gripping method.

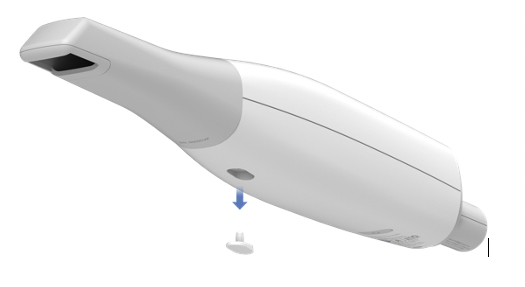

1. Turn over the i700 wireless handpiece to find the silicone body.
2. Remove the silicone with your hand.

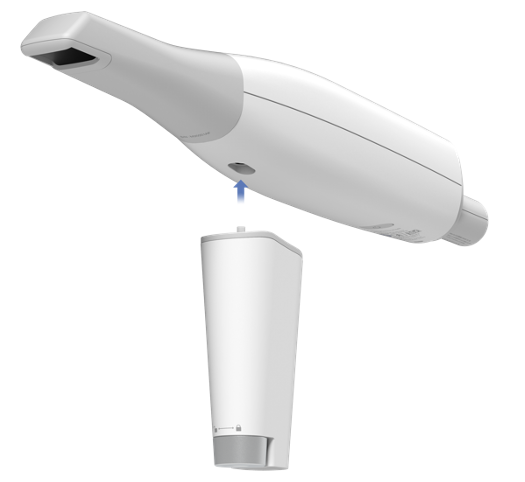

3. Fully fasten the bolts of the handle to the handle mounting hole on the i700 wireless body.

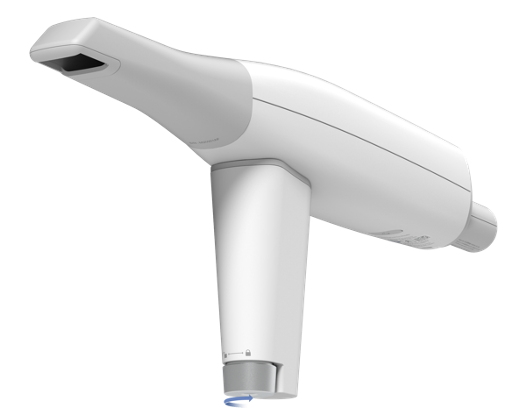

4. Tighten it clockwise using the knob on the handle.
5. You can now use it by holding the handle. If you want to remove the handle, proceed in the reverse order of this instruction.

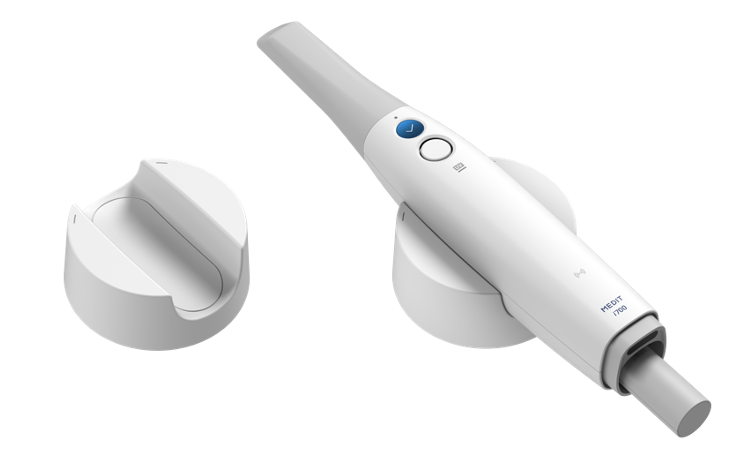

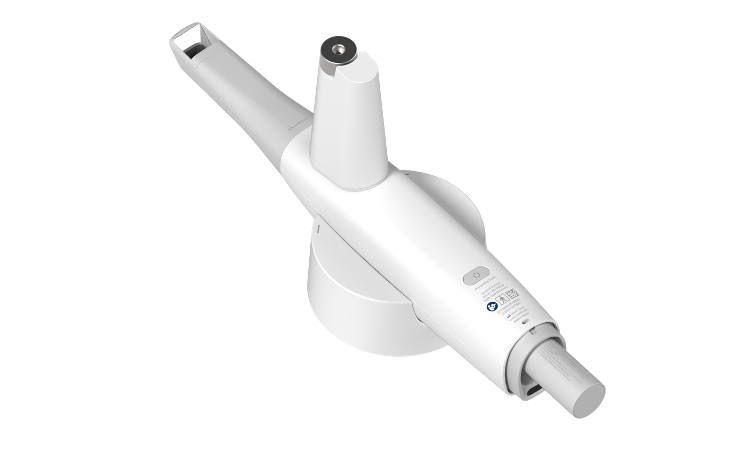

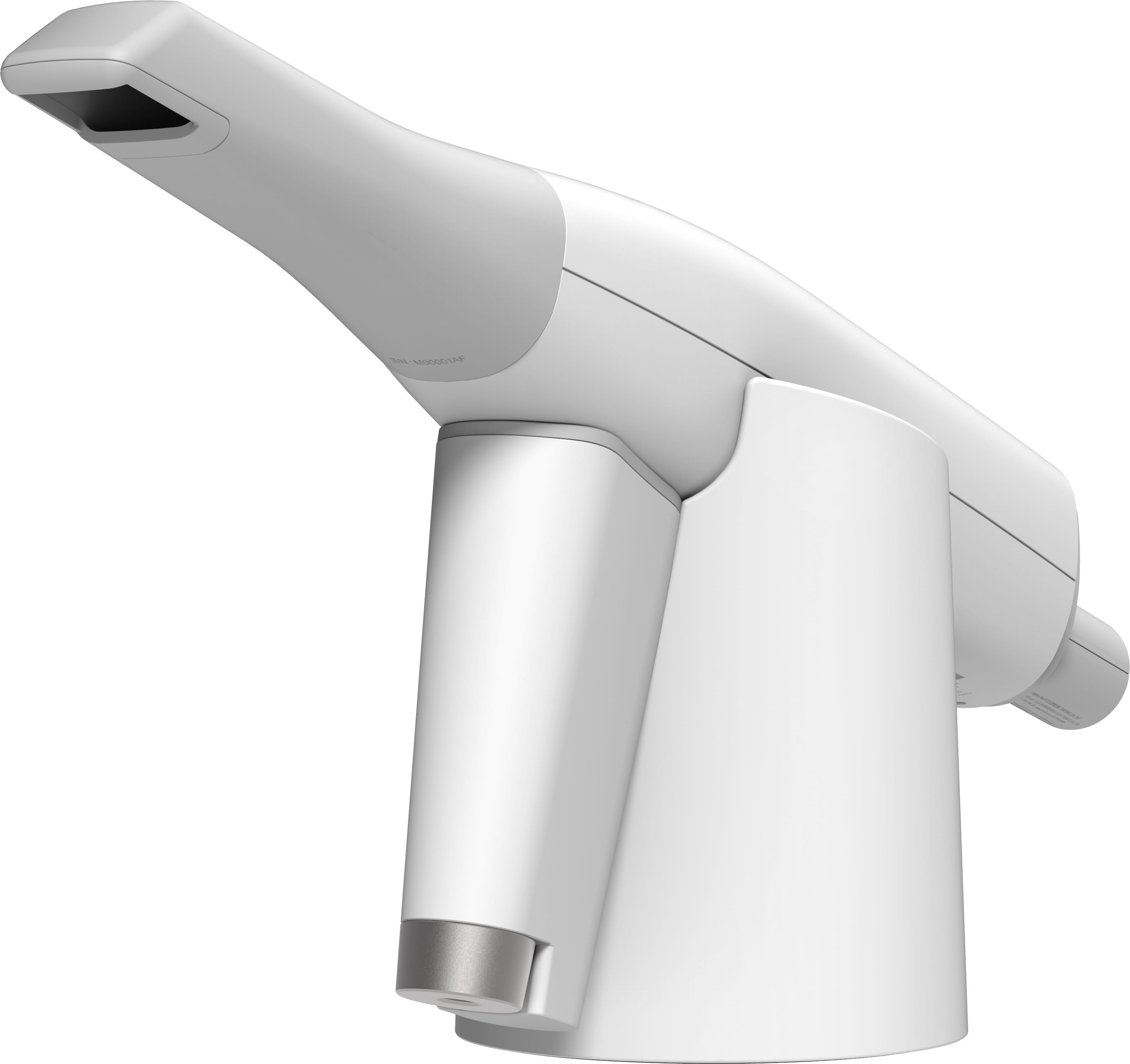

How to Place on the Desktop Cradle
Without the handle
With the handle

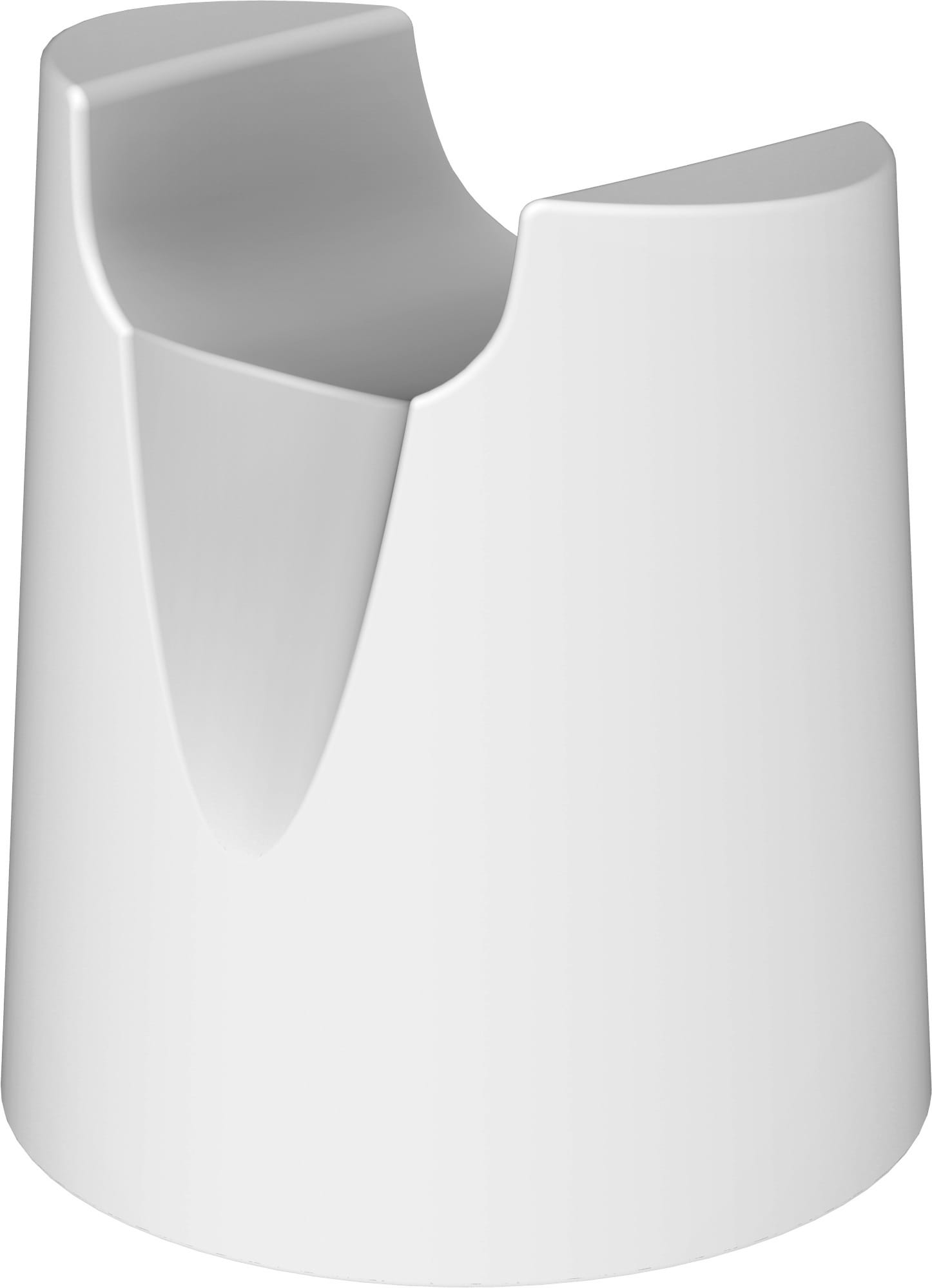

Handle-Fit Cradle (Sold Separately)

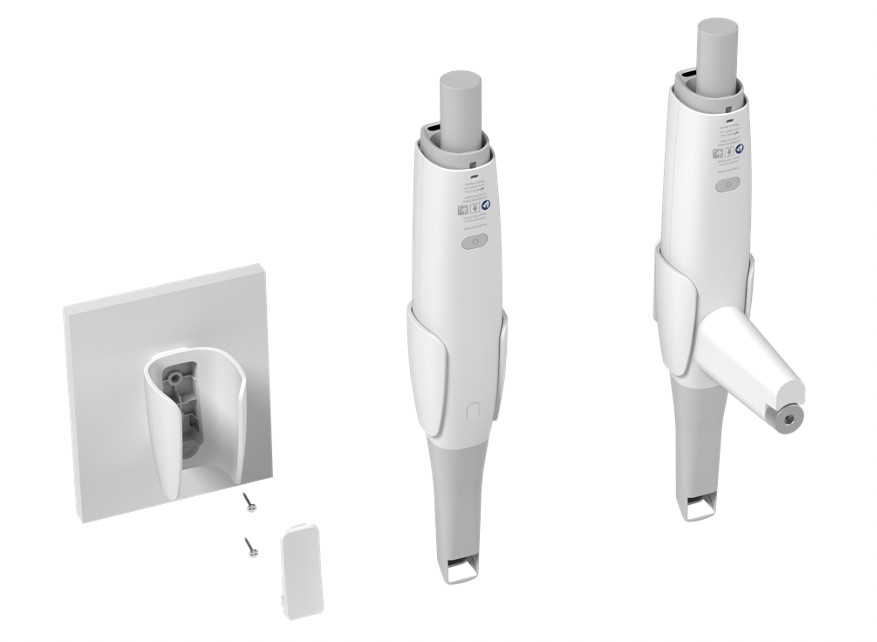

How to Install the Wall Mount Holder
