Affected Scanner Model
[ i700 wireless ]
The following information applies only to the model listed above.
Symptoms
The wireless hub is connected, but the power does not turn on.
Points to Check
Power issues with the scanner can arise due to various causes:
Internal component failure of the wireless hub
Accessory malfunction
Insufficient power from the USB-C port
Troubleshooting
1. Scanner Connection Check
Inspect the connection points based on the scanner connection method to check for poor connections.

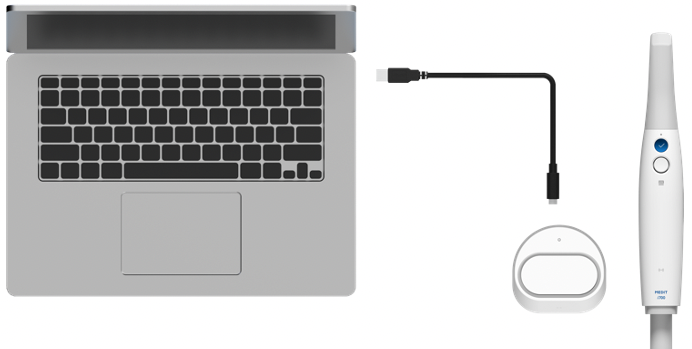

| [ Plug & Scan ] | |
Check the Connection Ensure the wireless hub and PD cable are securely connected and reattach firmly. | |
Check USB-C Port Verify if the USB-C port supports Power Delivery (PD) functionality by checking the laptop manufacturer's website. (Note: While PD is supported on the laptop, there may be compatibility differences between the i700 wireless and USB-C port depending on the laptop model.) Try connecting to another USB-C port that supports PD. If the USB-C port’s data transmission or power output is unstable, it may cause connection issues. Unstable connection can occur if the USB-C port has poor contact. | - |
Change the Connection Method Try connecting using a USB 3.0 cable and power adapter for Standard Scan. | |

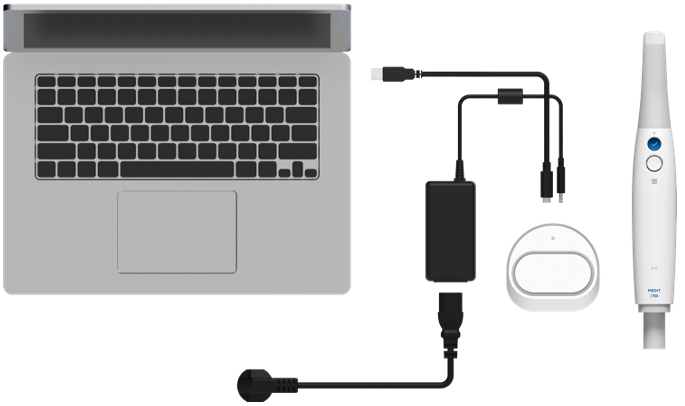

| [ Standard Scan ] | |
Check the Adapter Verify if the green power LED on the adapter is lit to ensure it is functioning properly. | |
Check the Connection Ensure the wireless hub, USB 3.0 cable, and power cable are properly connected and reattach securely. | |
Change the Connection Method Check if the laptop has a Power Delivery-supported USB-C port. If so, attempt to connect using only the PD cable for Plug & Scan. | - |
2. Accessory Cross-Check
Try using different accessories (PD cable, USB 3.0 cable, adapter) to test the connection.
