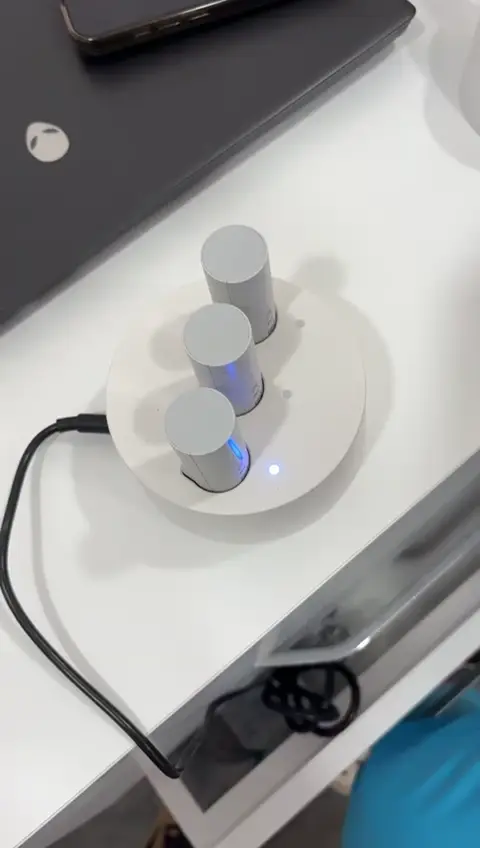

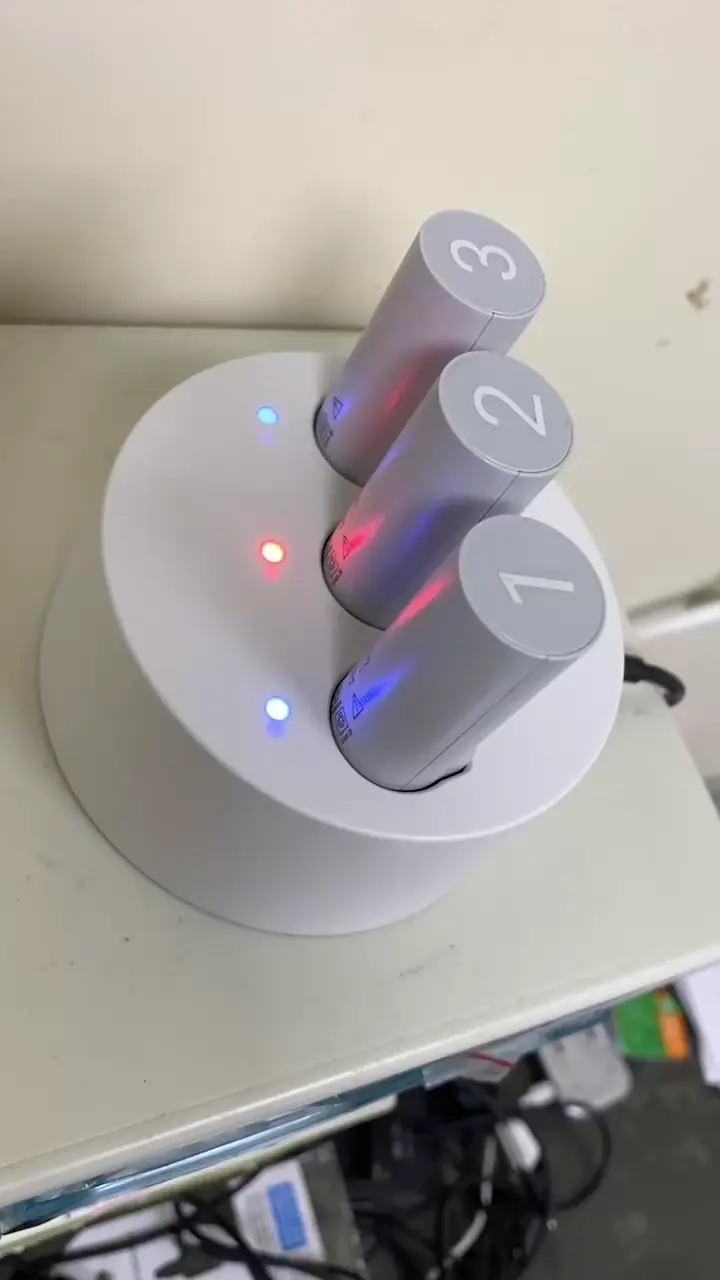

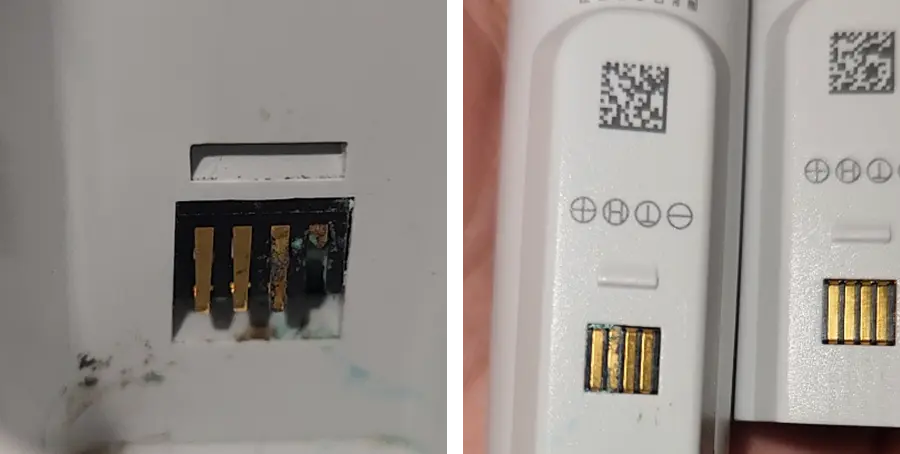

Symptoms
The battery is fully charged to 100%, but the software shows the battery level as 1%.
Troubleshooting
1. Check for battery defect
Try inserting a different battery that is fully charged.
Check if the same symptom appears even when connected using the Extension Cable Battery (wired battery).
2. Submit an inquiry
If the problem persists, the scanner handpiece may be defective and professional assistance is required.
Symptoms
The LED does not light up or lights up red when the battery is charging, and charging does not proceed.
| The LED indicator of the charger port lights up red and charging does not proceed. |
The LED of the charger port does not light up, and charging does not proceed. |
|
Charger port: All normal Battery: Normal, Defective 2 |
Troubleshooting
1. Check the contact terminals
Check for foreign substances or damage on the contact terminals of the battery and charger.
Wipe gently with a soft cloth.
2. Cross-check the charger and battery
Try charging a different battery in the charger port where the LED does not light up or lights up red.
If the LED also does not light up or lights up red for the other battery
→ The charger is considered defective.
If the LED lights up blue normally for the other battery
→ The battery is considered defective.
Symptoms
The battery is fully charged to 100%, but when inserted into the scanner, it is discharged.
Troubleshooting
1. Check the contact terminals
Check for any foreign substances or damage on the contact terminals of the battery and charger.
Wipe gently with a soft cloth.
2. Cross-check the charger and battery
Try charging the discharged battery in a different port of the charger.
→ If there is no issue with charging and mounting on the scanner, the charger is considered defective.
Try charging a different battery in the same port where the discharged battery was previously charged.
→ If there is no issue with charging and mounting on the scanner, the battery is considered defective.
Comments
0 comments
Please sign in to leave a comment.
