i500 Components and Settings

1. i500 Package Overview

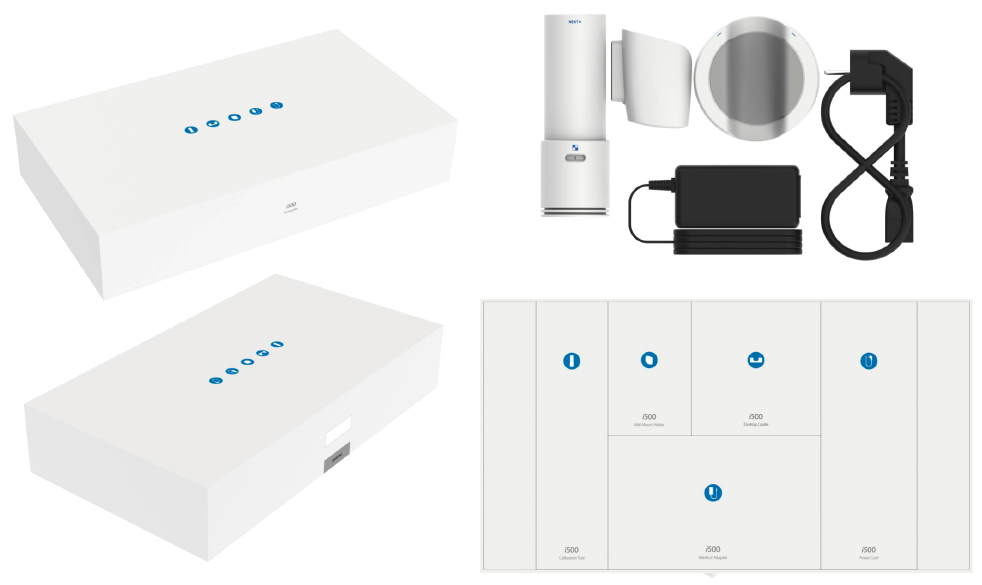

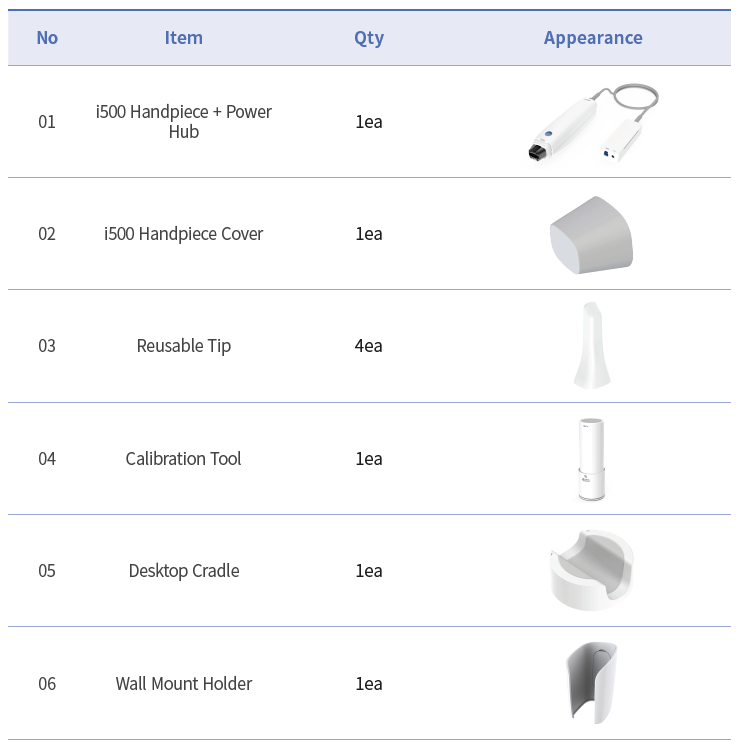

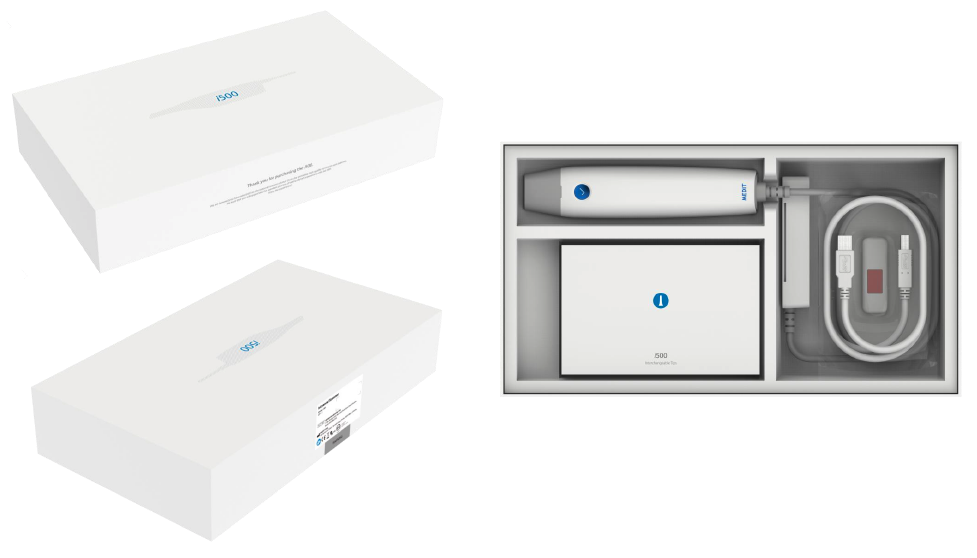

• Main package

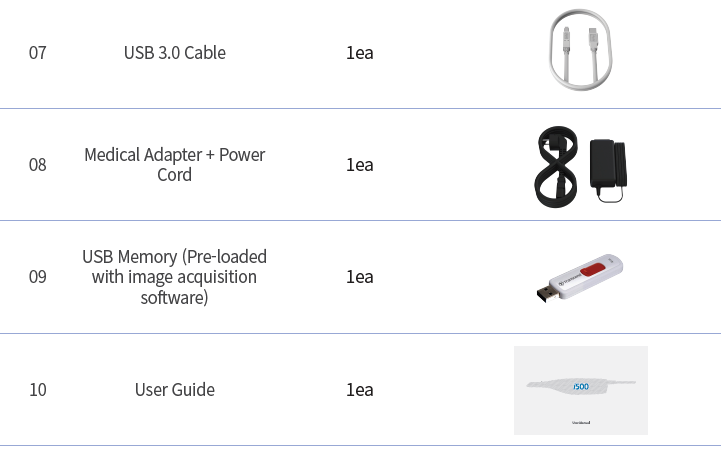

• Accessory package

2. i500 Component Overview

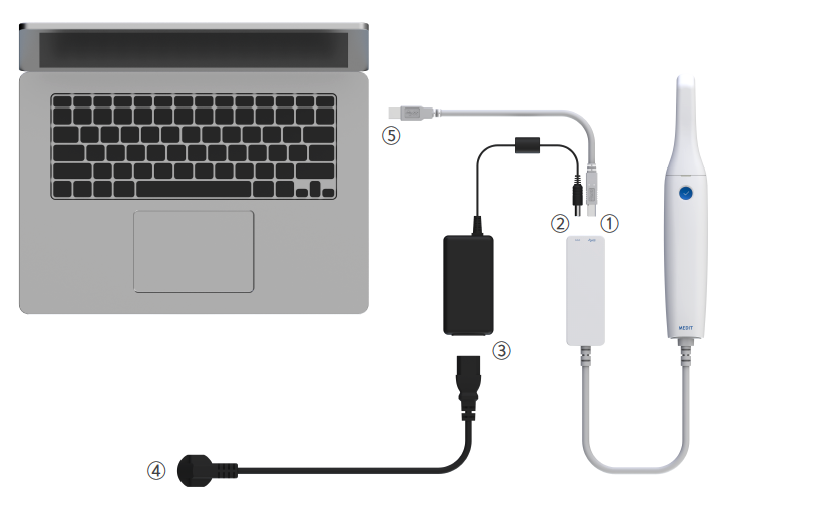

3. Setting up the i500

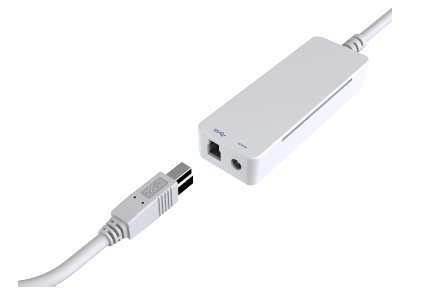

(1) Connect the USB 3.0 Cable to the Power Hub.

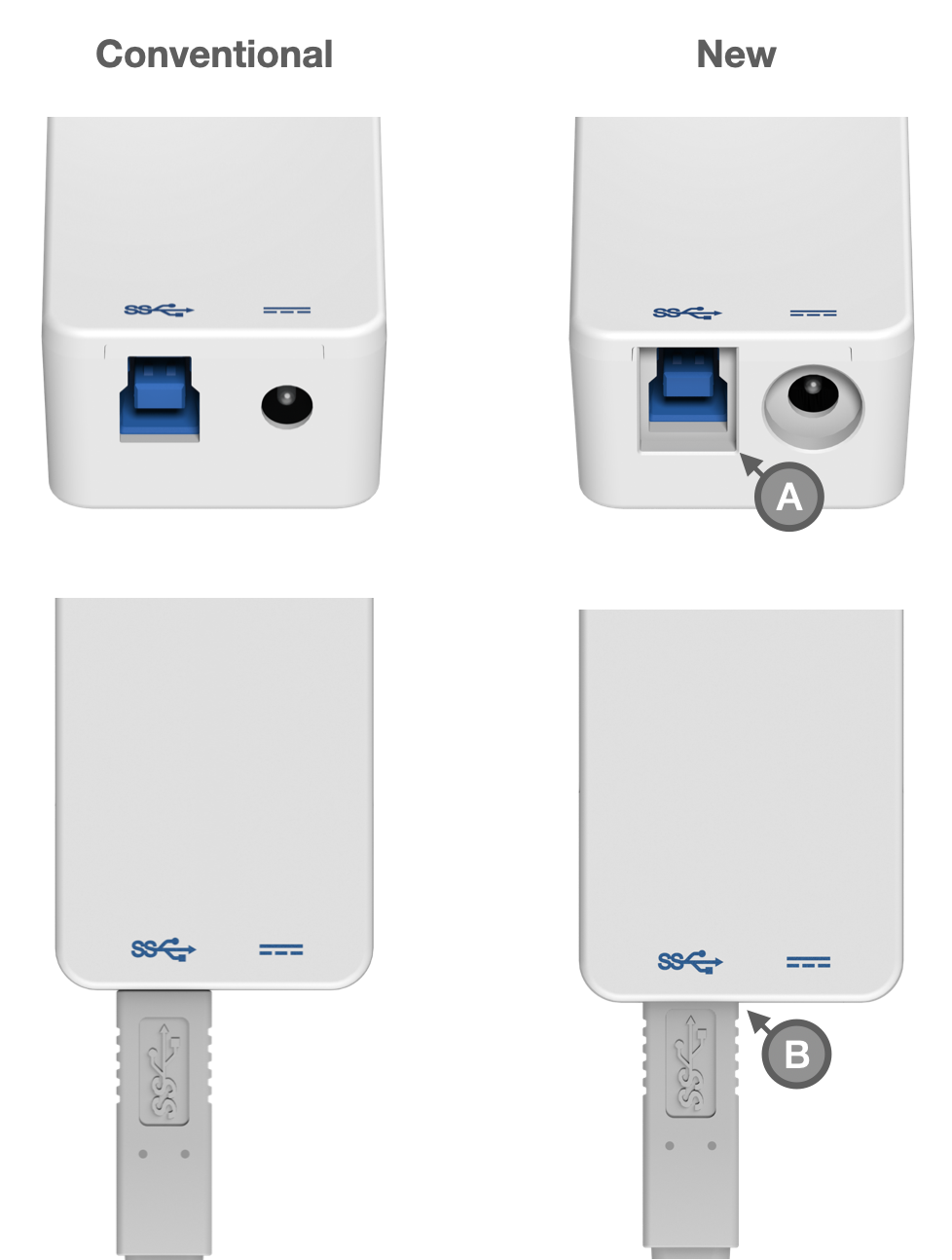

(A) Unlike the conventional i500 power hub, the port entrance of the new hub is about 3mm countersunk.
(B) Make sure the cable is going all the way into the port.

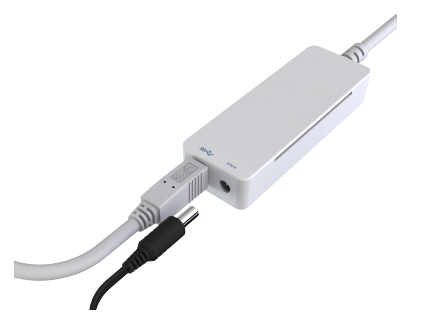

(2) Connect the Medical Adapter to the Power Hub.

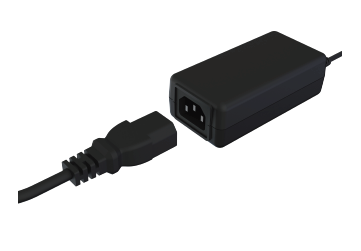

(3) Connect the Power Cord to the Medical Adapter.

(4) Connect the Power Cord to a Power Outlet.

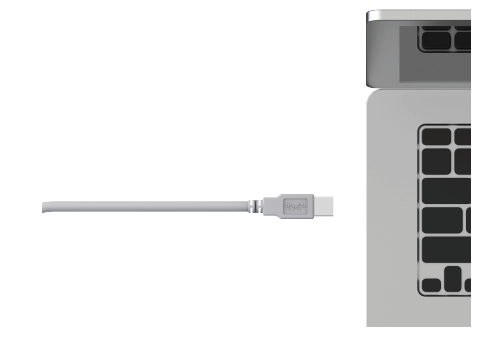

(5) Connect the USB 3.0 Cable to the computer.
