Scanner Power Won't Turn On

Updated

    Affected Scanner Models

    [ All intraoral scanner models (i500, i600, i700, i700 wireless, i900, i900c) ]
    The following information applies to all scanner models listed above.

    Symptom

    The scanner's power button is pressed, but the power does not turn on.



    Points to Check

    The power issue in the scanner can be caused by various factors:

    • Power button failure: i500 / i600 / i700 / i700 wireless
    • Internal scanner component failure
    • Accessory failure
    • Insufficient power from USB-C port: i600, i700 (Plug & Scan) / i900 / i900 classic
    • User error (poor accessory connection)
    • User error (handpiece cover(cap) not removed): i900 / i900 classic
    • Recognition Error of Blue Color Inside M Tip: i900 / i900 Classic



    Troubleshooting

    1. Adapter Check: i500 / i600, i700 (Standard Scan)

    Verify if the green power LED on the adapter is lit to confirm the adapter is working properly.



    2. Scanner Connection Check

    Check the connections for each scanner model to verify if there is poor contact.

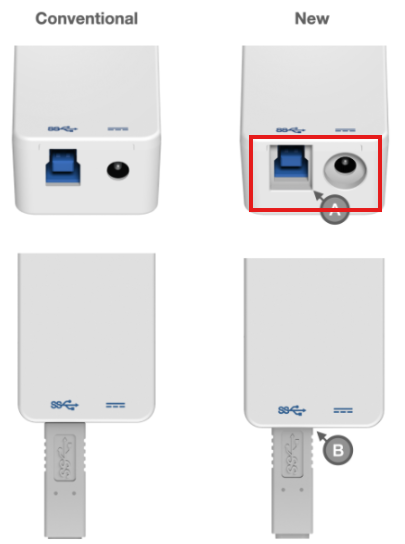

     i500

    1. Connection Check

    Reattach all cable connections.

    		-

    2. USB Cable and Power Cable Check

    Ensure that the connectors are fully inserted into the ports.

     i600, i700 (Plug & Scan) / i900 / i900 classic

    1. Connection Check

    Reattach all cable connections.

    		-

    2. USB-C Port Check

    Verify on the laptop manufacturer's website whether the USB-C port supports Power Delivery (PD) functionality.
    (Even if the laptop specification supports PD, there may be compatibility differences between i600/i700 and USB-C ports on different laptop models.)

    Attempt connecting to a different USB-C port that supports PD functionality.


    If the power output from the USB-C port is unstable, it may cause power issues.

    		-

    3. Change Connection Method i600, i700

    Try connecting using a PD hub, a USB 3.0 cable, and a power adapter for a Standard Scan.

    		-
     i600, i700 (Standard Scan)

    1. Connection Check

    Reattach all cable connections.

    		-

    2. Change Connection Method

    Check if the laptop has a USB-C port that supports Power Delivery. If it does, attempt connecting with the PD cable only for Plug & Scan.

    		-


    3. Power Button Check: i500 / i600 / i700 / i700 wireless

    Verify if you feel a click when pressing the power button. Check if the button is not stuck or malfunctioning.



    4. Battery Check: i700 wireless

    1) Check if the battery is fully charged and if there is any debris on the battery contact points, then reattach it.

    2) Try inserting a fully charged spare battery.

    3) Try using an extension cable battery.




    5. Handpiece Cover(Cap) Check: i900, i900 classic

    Ensure the handpiece cover has been removed.



    6. Medium Size Tip Check: i900 / i900 classic

    The blue color inside the M Tip may be incorrectly recognized as the cyan color of the handpiece cover (cap), which could be causing the issue.

    To verify the problem, try installing a different size tip, such as the Large Tip.

    1) When the Large Tip is installed and works normally → Possible issue with color distortion inside the Medium Tip → Replace with another M Tip

    2) If the Large Tip still does not work → Check the connection accessories (PD cable)



    7. Cross-check Accessories

    Try connecting with different accessories (PD cable, USB 3.0 cable, PD hub).
