1. Requirements
- Windows 10/ Windows 11 (Older Windows versions may also be compatible depending on Service packs/Version)
- An active and stable internet connection for communication with Bite-Finder servers. In restricted environments, ensure that TCP port 6001 is allowed to communicate through the firewall. If necessary, take action in your router management portal.
-
The preview is free of charge, but the service (result export) is a charged service.
To use the service, you will need the license key and credit.
If you are bite finder user and have the software installed on your PC, the app will automatically detect the license key.
2. Register
This service requires Bite-Finder license key.
Log in or register, and receive your license key.
Special promotion for Medit users is available.
Bite-Finder Login/Register Link
( If you are bite finder user and have the software installed on your PC, the app will automatically detect the license key. )
3 . Installation
Run Medit Link and select App Box on left panel.
Search for Bite-Finder in the search bar at the top right.
Click the "Install" button under Bite-Finder Integration.
4. Settings
Go to Work Box on left panel and select a case.
Click the Bite-Finder icon at the top right.
Then, the Bite-Finder workflow will be initiated and user can access settings.
If you are new users, you need to insert the license key.

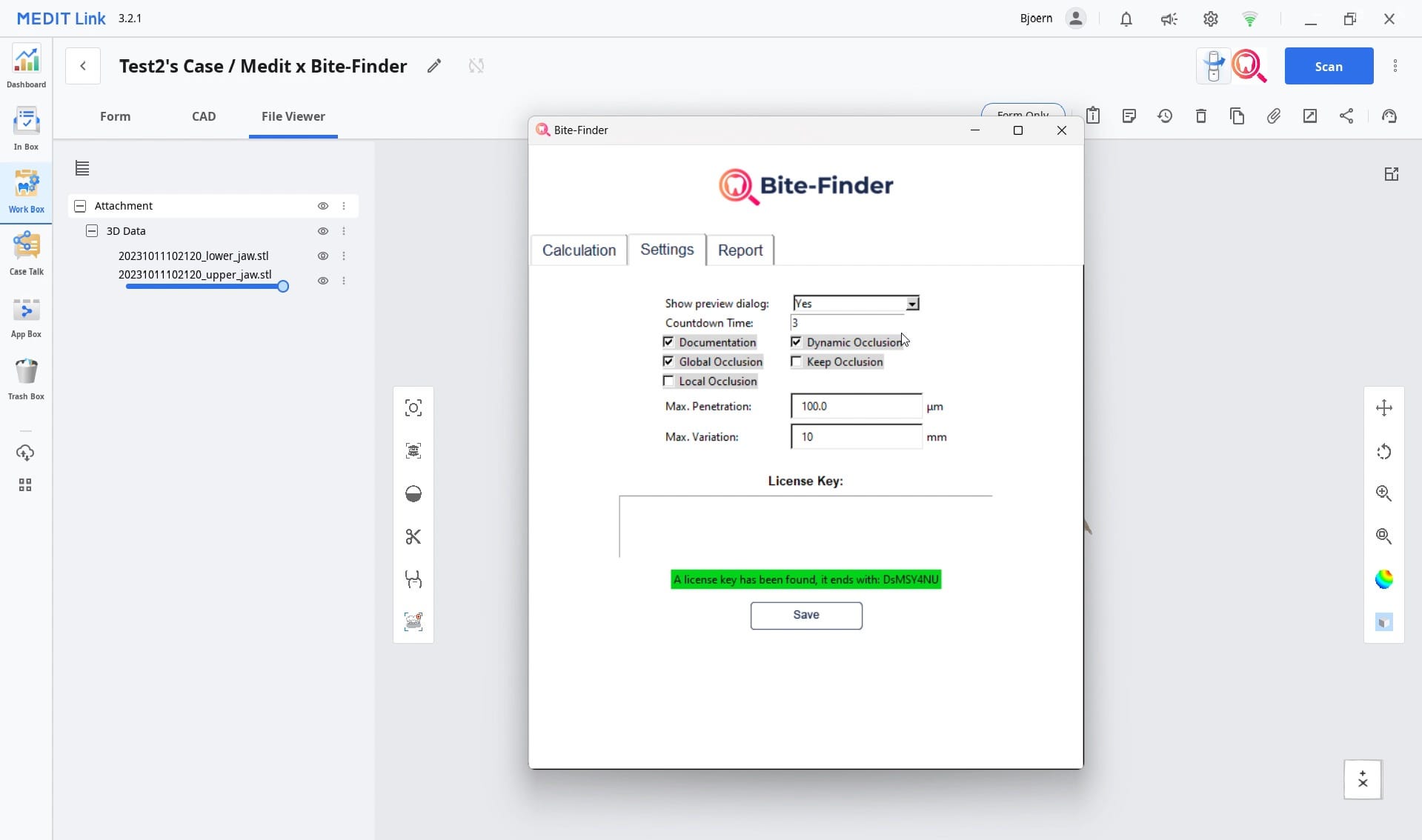

Under the "Settings" tab, enter your license key and click save.
5. Calculating the occlusion of two models

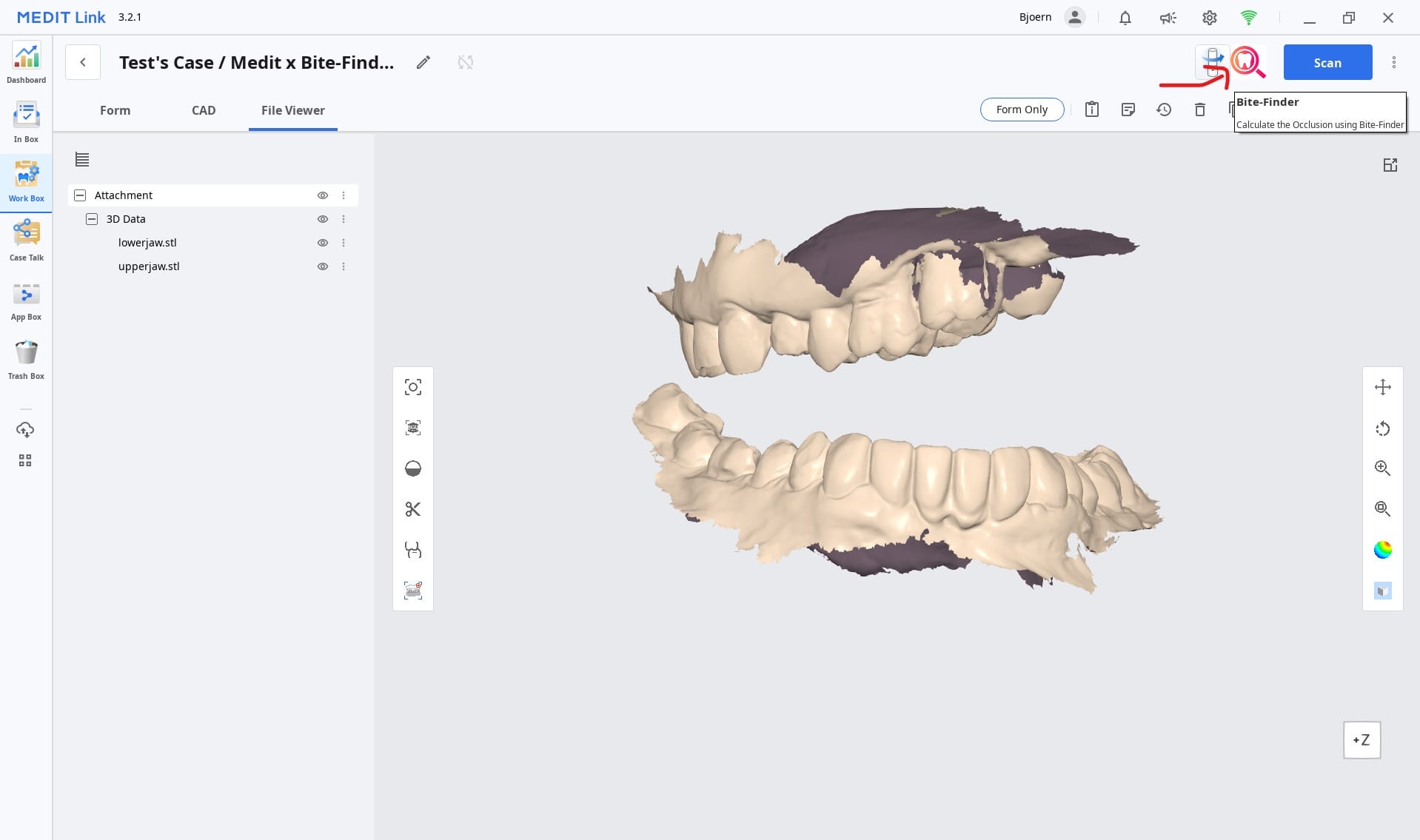

5-1) In work box, click the Bite-Finder icon at the top right.

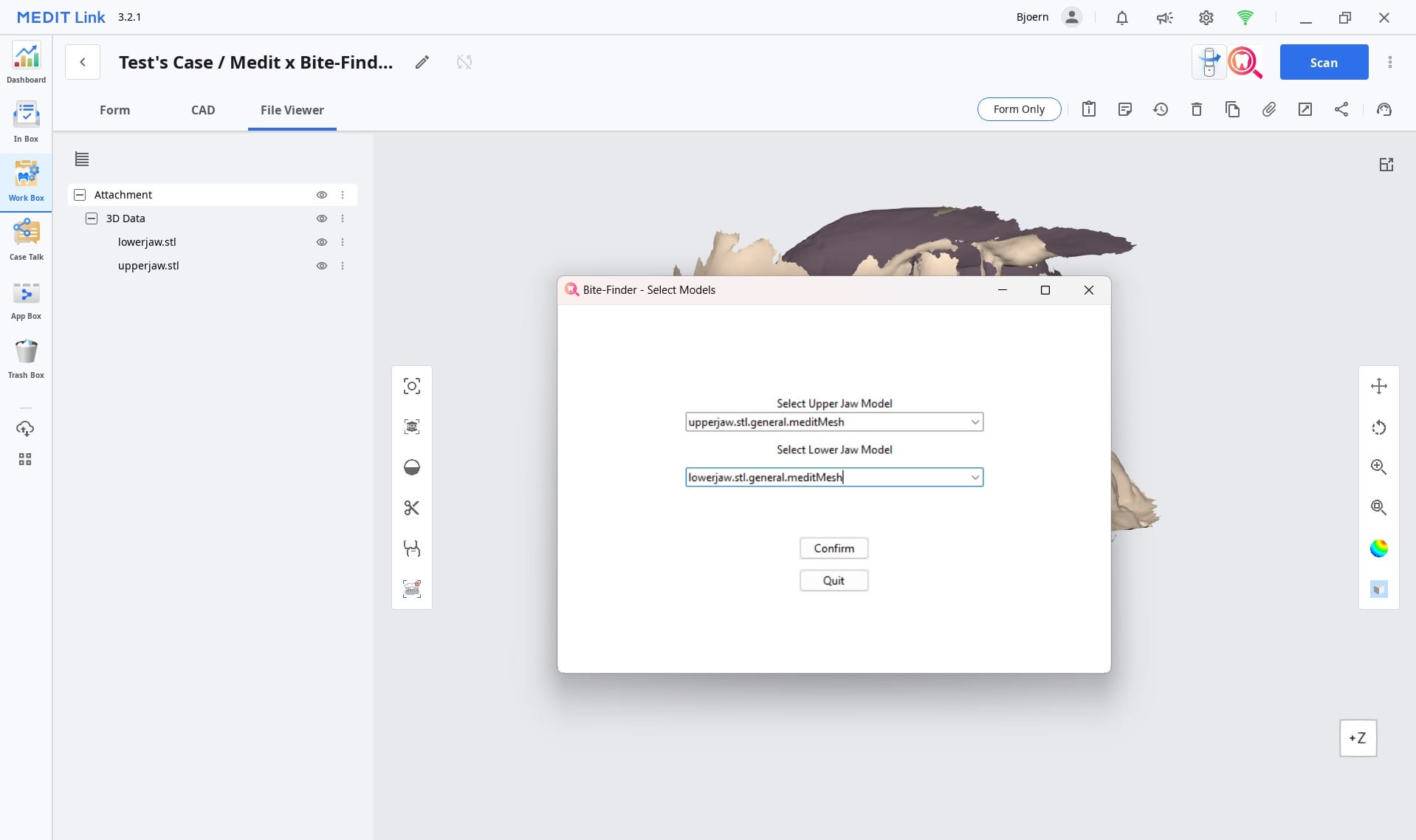

5-2) Select a model for each jaw and click “Confirm.”
Bite-Finder accepts the following file types and most subtypes: obj, stl, ply
Bite-Finder will attempt to automatically recognize if the file is an upper or lower jaw based on its file name if it contains "..upper_jaw.." or "..lower_jaw..".

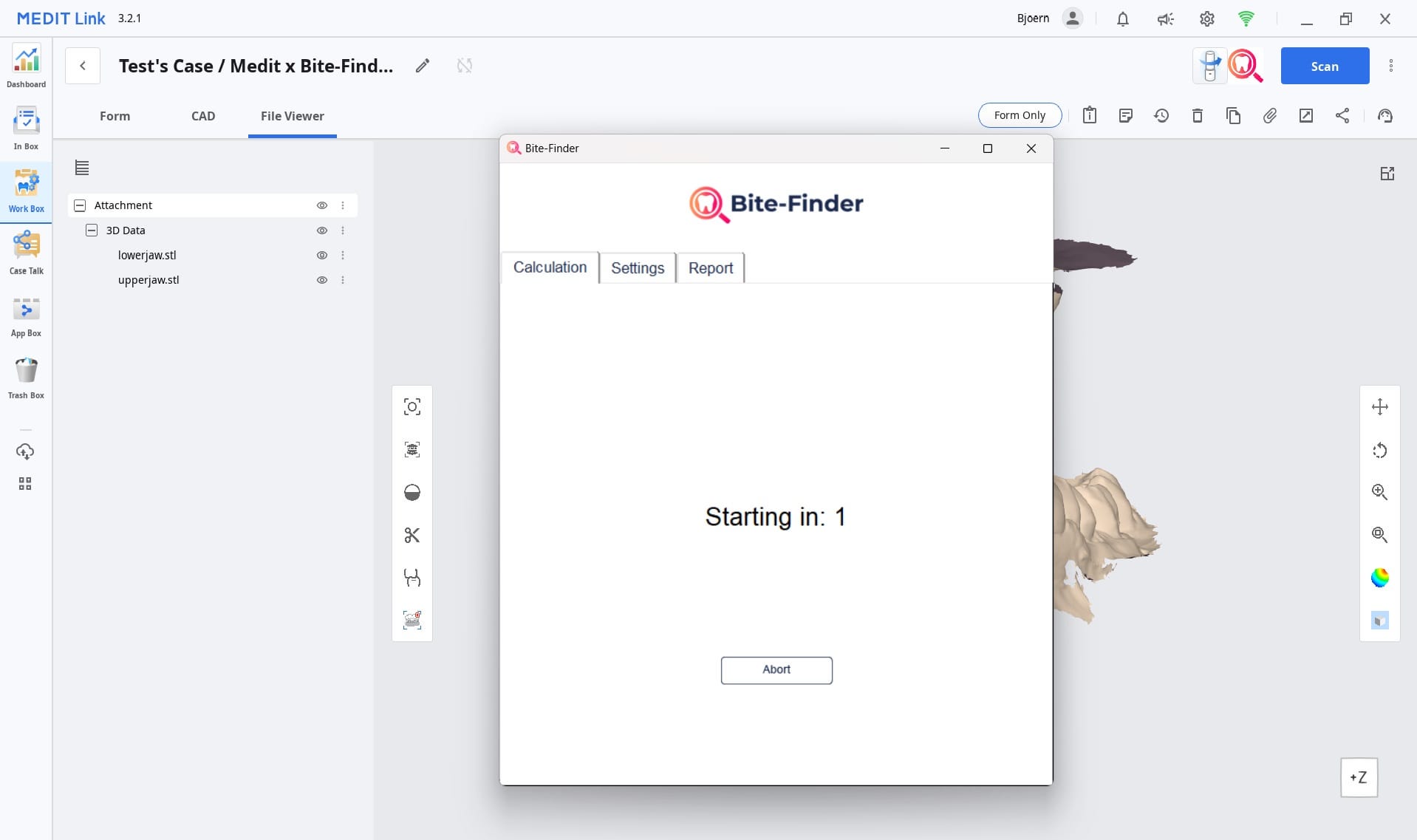

5-3) The calculation will begin automatically after a brief countdown.
After the countdown, Bite-Finder will attempt to upload the models to the Bite-Finder server. The countdown can be aborted. By default, this is set to 3 seconds, but this value can be changed under "Settings".

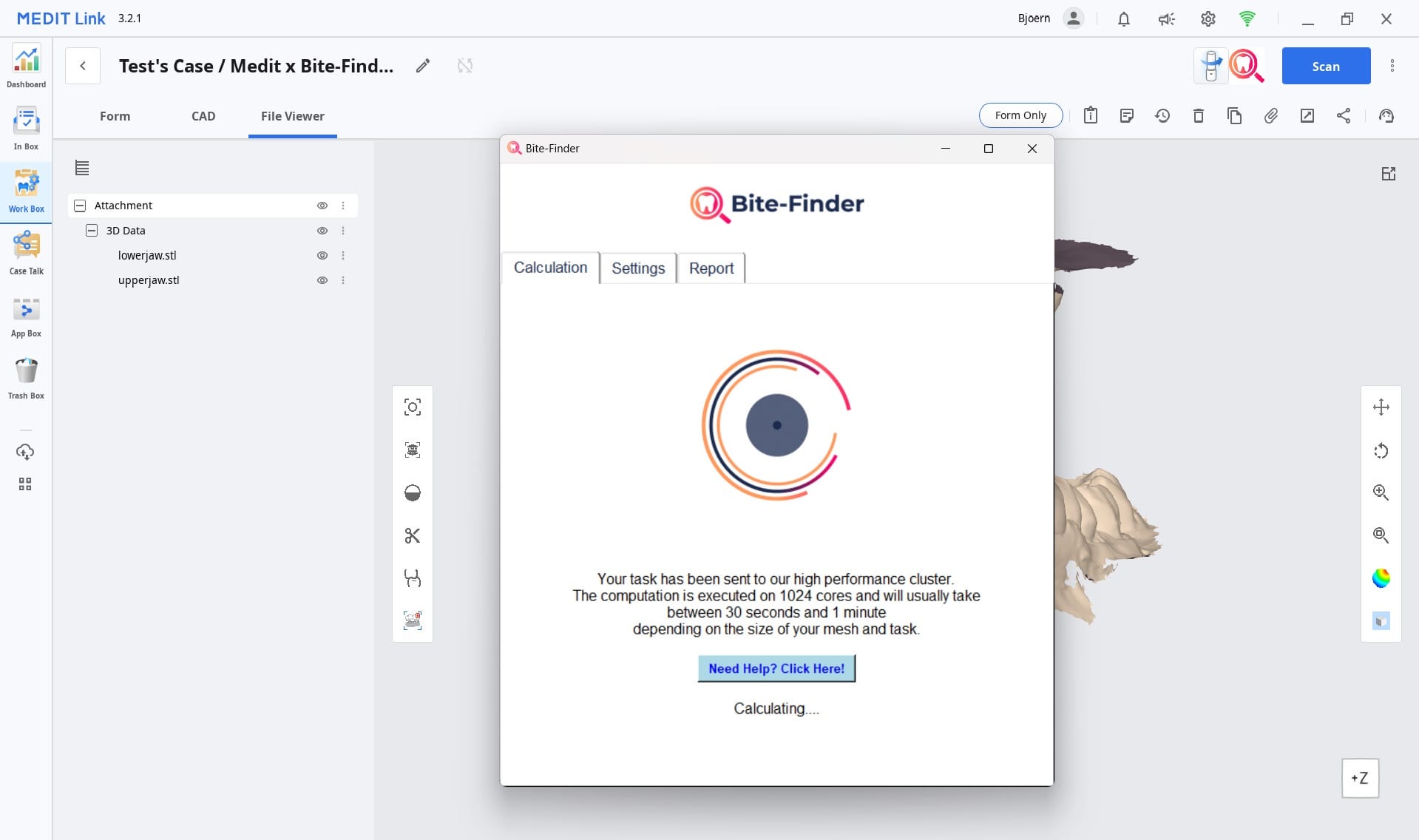

The calculation is performed on the Bite-Finder servers.

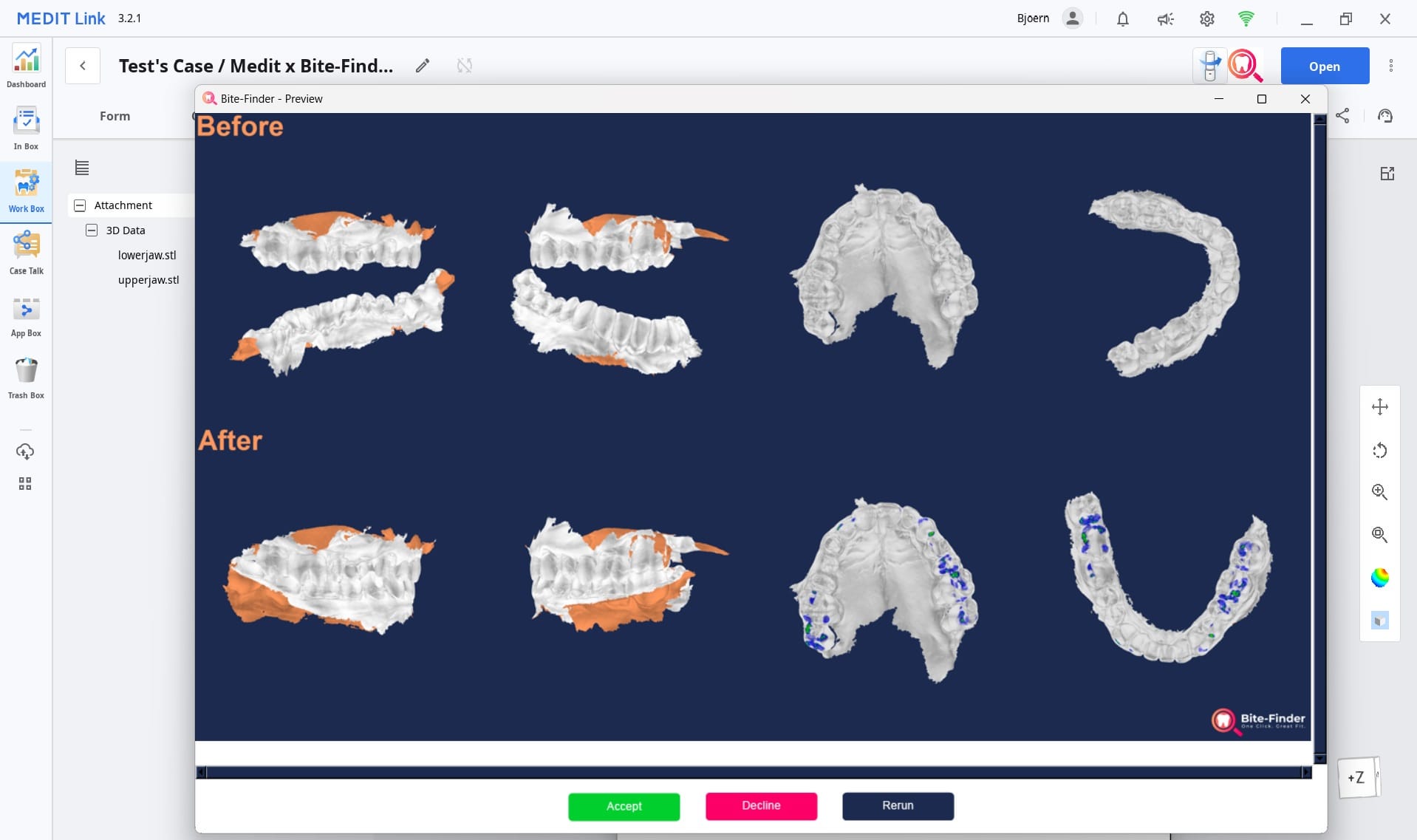

5-4) Once the calculation is complete, a preview image will be displayed.
Accept: Download the calculated model.
(Deduct a credit from your Bite-Finder account.)
Decline: Abort the process.
(No credit will be deducted.)

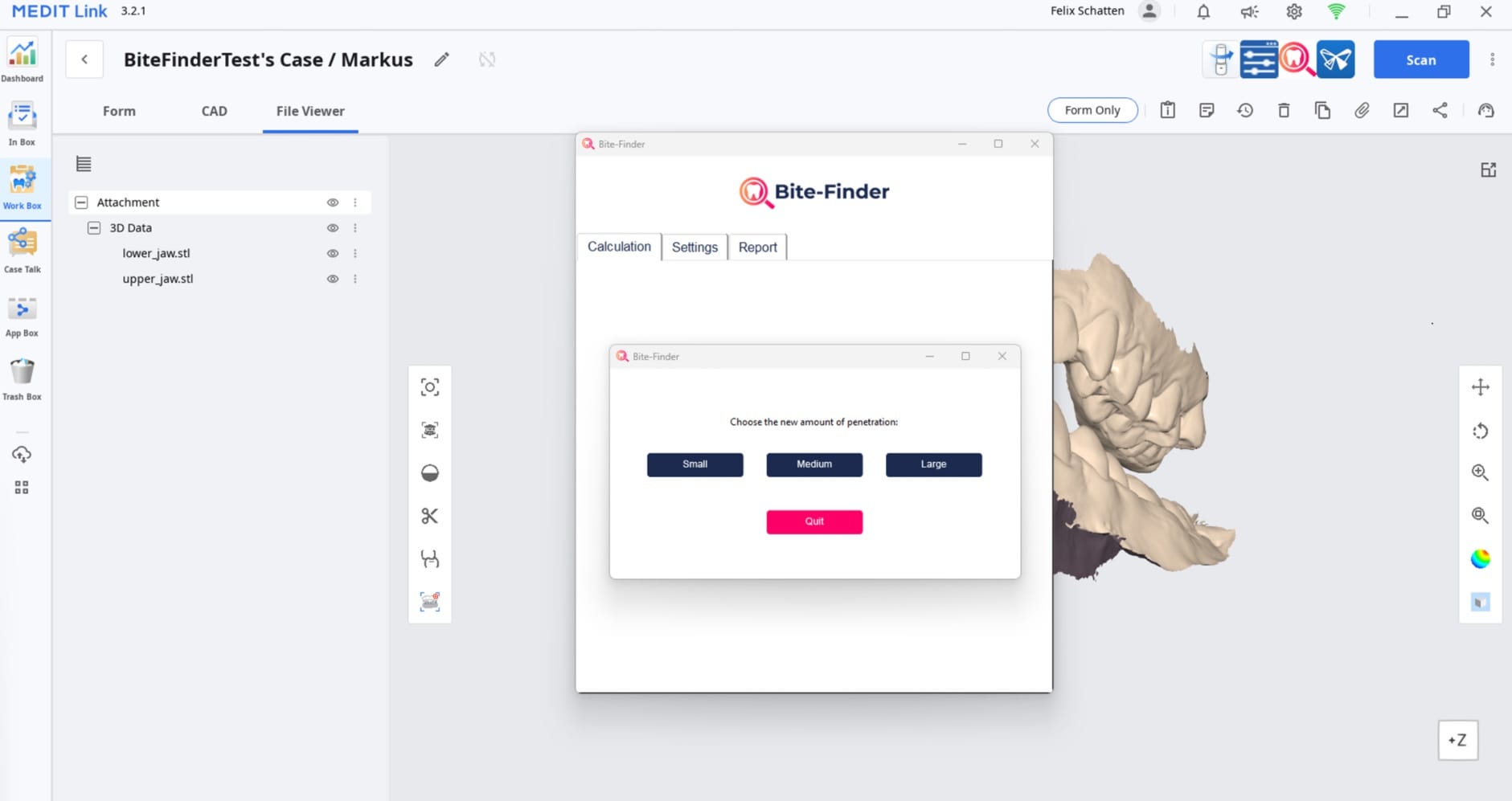

Rerun: Rerun the calculation of the same model with different penetration amount.
(No credit will be deducted.)
Bite-Finder will ask for your permission to create a folder on your desktop. If you agree, all data provided by Bite-Finder will be placed in this folder. If you decline, the data will only be available in the current case.

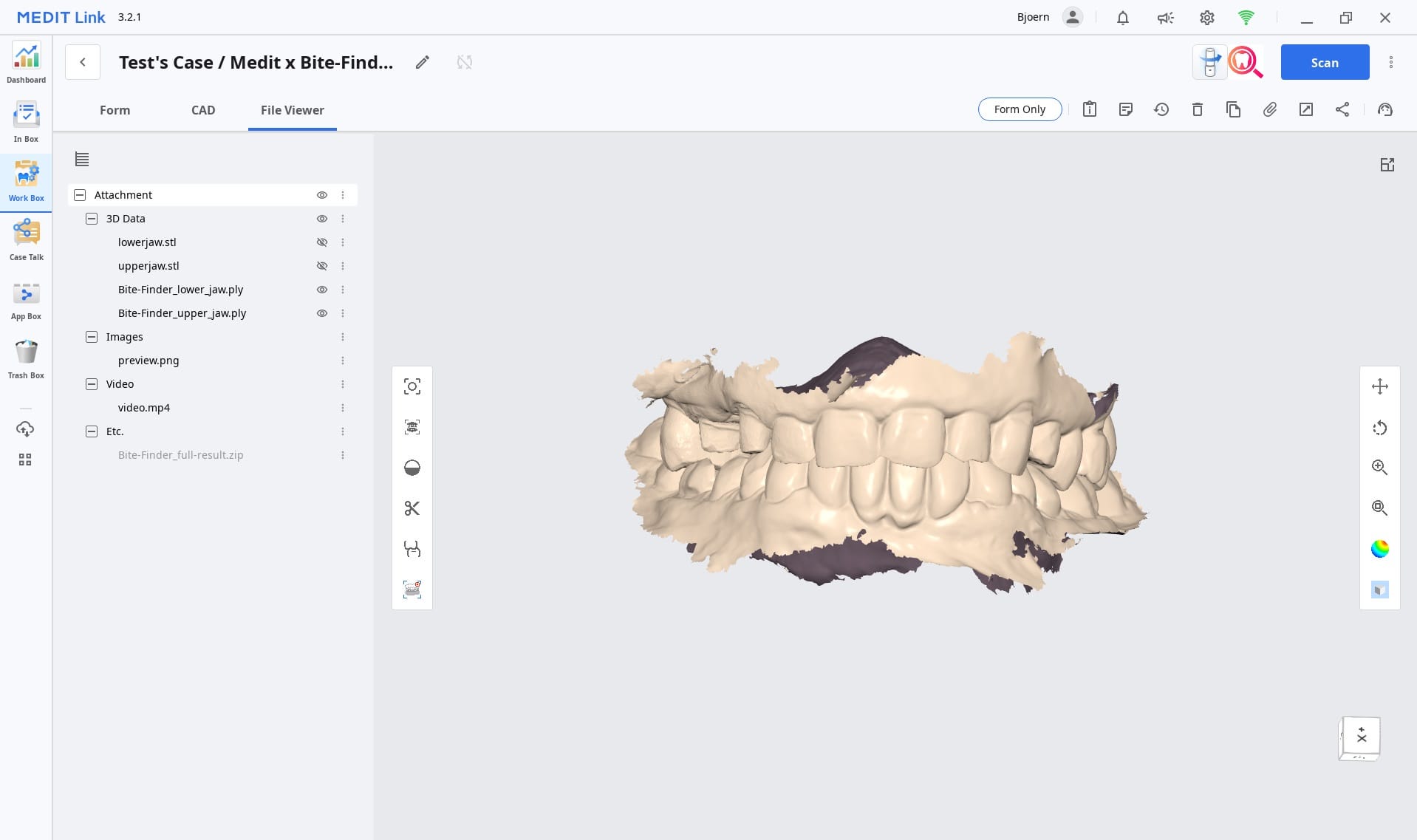

5-5) All files provided by Bite-Finder will be attached to the current case.

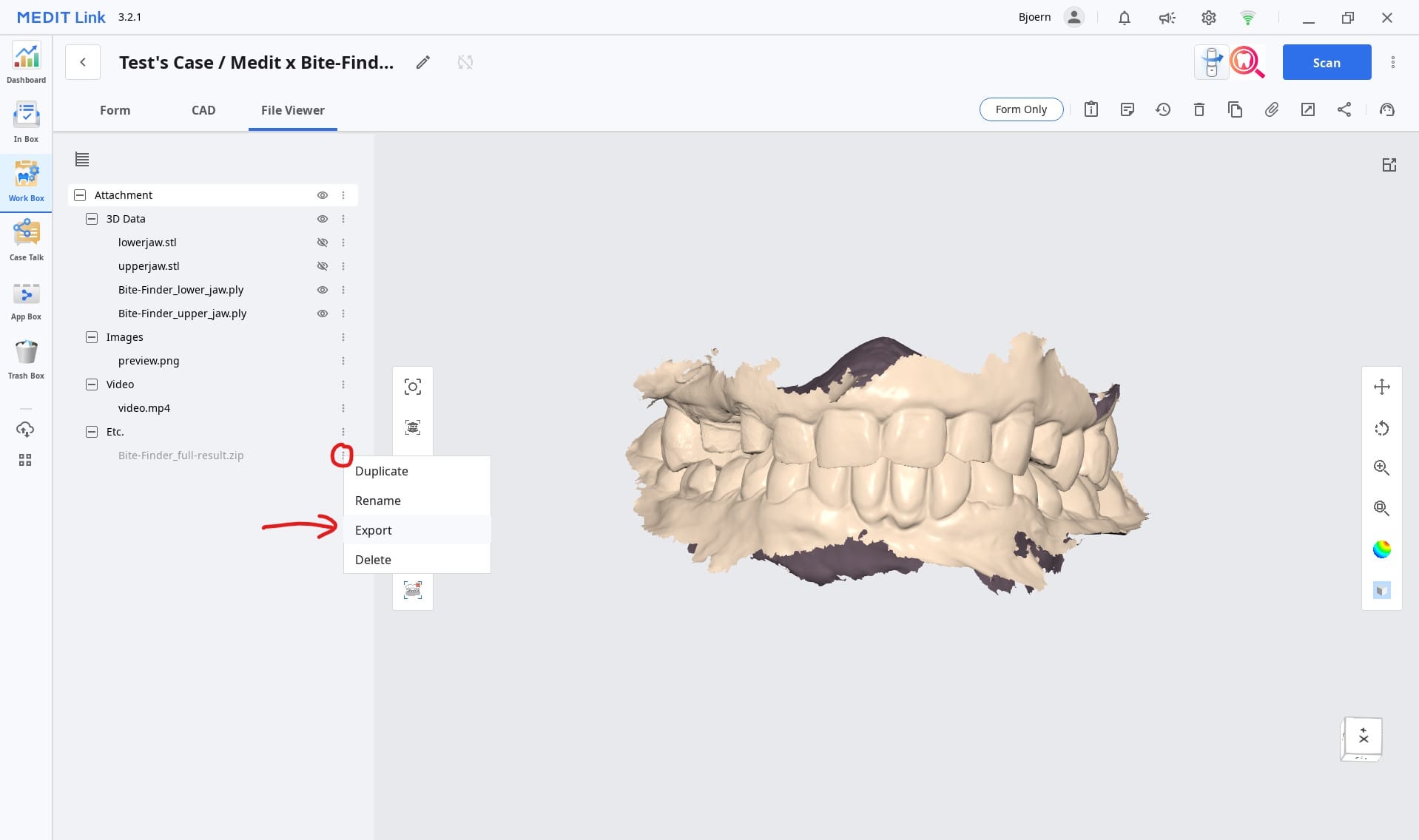

5-6) Bite-Finder result file can be exported by right click the "⋮".
For detailed instructions on how to use Bite-Finder, please refer to the link provided below.
