Preparing Data
User must prepare scan data for at least one arch in a supported file format, such as meditMesh, OBJ, PLY, or STL. The data is either automatically imported from a Medit Link case or manually loaded when the application is launched.
Scan data can be loaded into the project using one of the following methods.
1. Automatic import from a Medit Link case

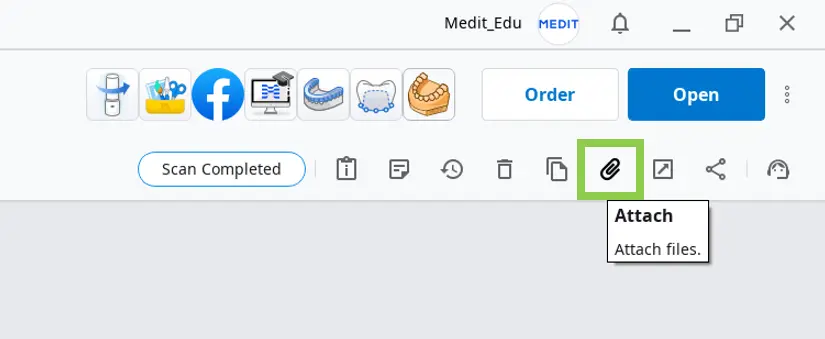

Complete scanning in Medit Scan for Clinics or Labs, or import local data using the “Attach” feature in the Case Detail window. All data available in the case is automatically imported into Medit Splints when the application is launched.
2. Manual import upon launch

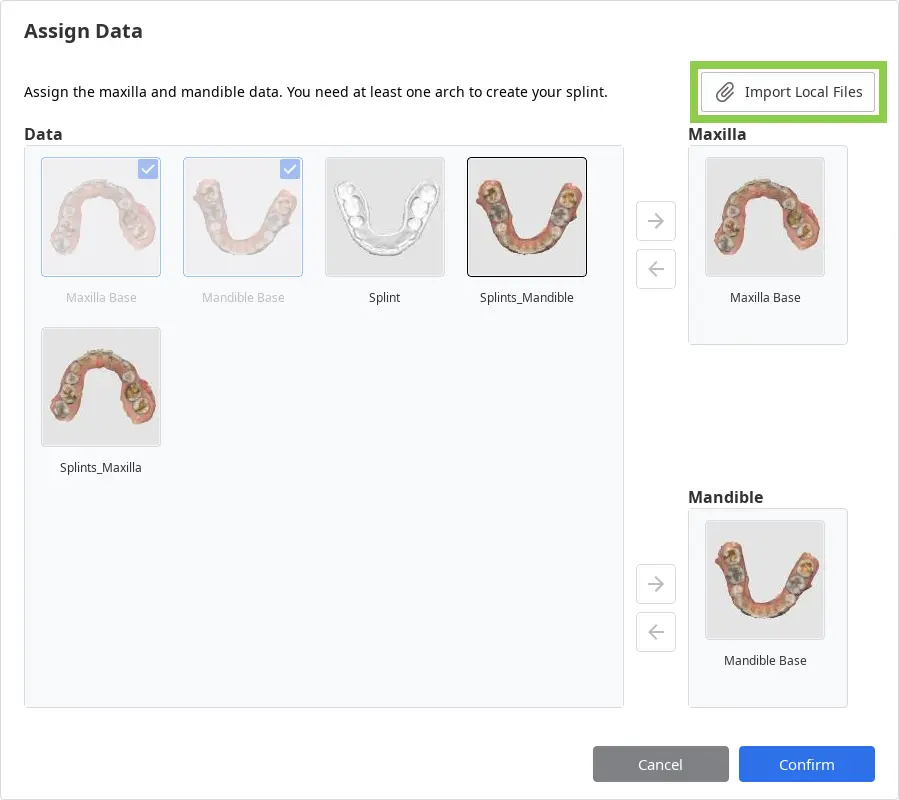

If required scan data is not available in the case, it can be imported from local files after launching the application. Use the “Import Local Files” option in the Assign Data dialog window.

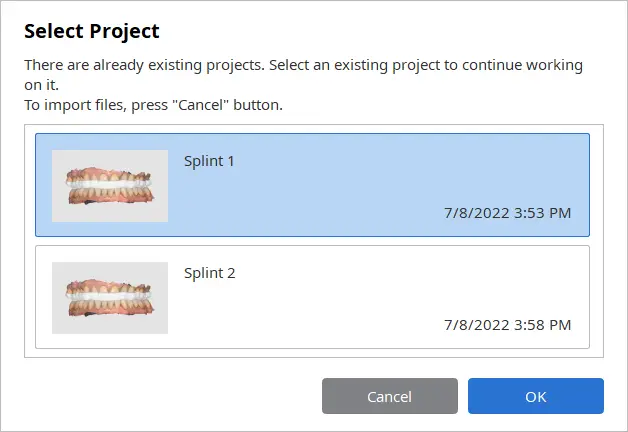

If the application is opened again from the same Medit Link case, the previously saved project can be loaded and continued.
3D Data Control
Users can control the 3D data using a mouse alone or both mouse and keyboard.
3D data control using a mouse
Zoom | Scroll the mouse wheel. | |
Zoom Focus | Double-click on the data. | |
Zoom Fit | Double-click on the background. | |
Rotate | Right-click and drag. | |
Pan | Hold both buttons (or wheel) and drag. |
3D data control using a mouse and keyboard
Windows | macOS | |
|---|---|---|
Zoom | ||
Rotate | ||
Pan |
Saving Data
There are several ways to save the project data.
1. Click “Complete” at the top of the screen to finalize the project and splint design and save them to the Medit Link case.
2. Click “Next” in Label Mode to finalize the project and splint design and save them to the Medit Link case.
3. Click “Menu” in the Title Bar and select “Save As” to save the current project progress.
🔎Note

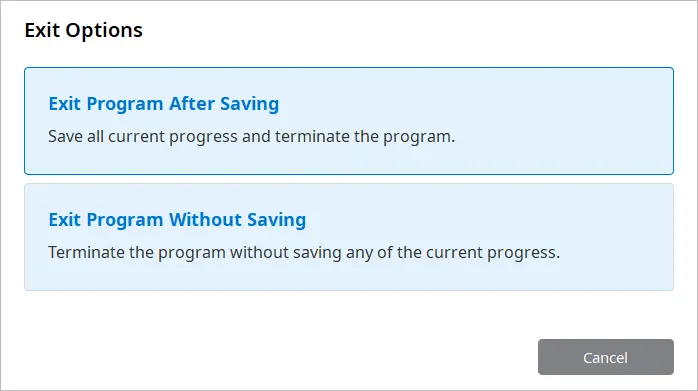

Users can save their work progress for an unfinished project even if they terminate the program before reaching the final workflow step.
