📖 [Splints] Getting Started

Medit Splints Overview

Welcome to Medit Splints, a quick and easy way to create splints in just a few short steps.

Speed up your workflow by using the Auto Creation which harnesses AI power for fast splint creation. Then if required, you can use the suite of editing tools to make any fine adjustments.

There is also Manual Creation mode which will guide you step by step through the creation process.

Intended Use and Disclaimer

Medit Splints is a software application designed solely for the purpose of creating splints using scan data and cannot be used for other purposes.

System Requirements

Windows

macOS

Installation Guide

1. Log in to your Medit Link account and go to the App Box on the left-hand menu.

2. In the Medit Apps tab, find the Medit Splints and click "Install."

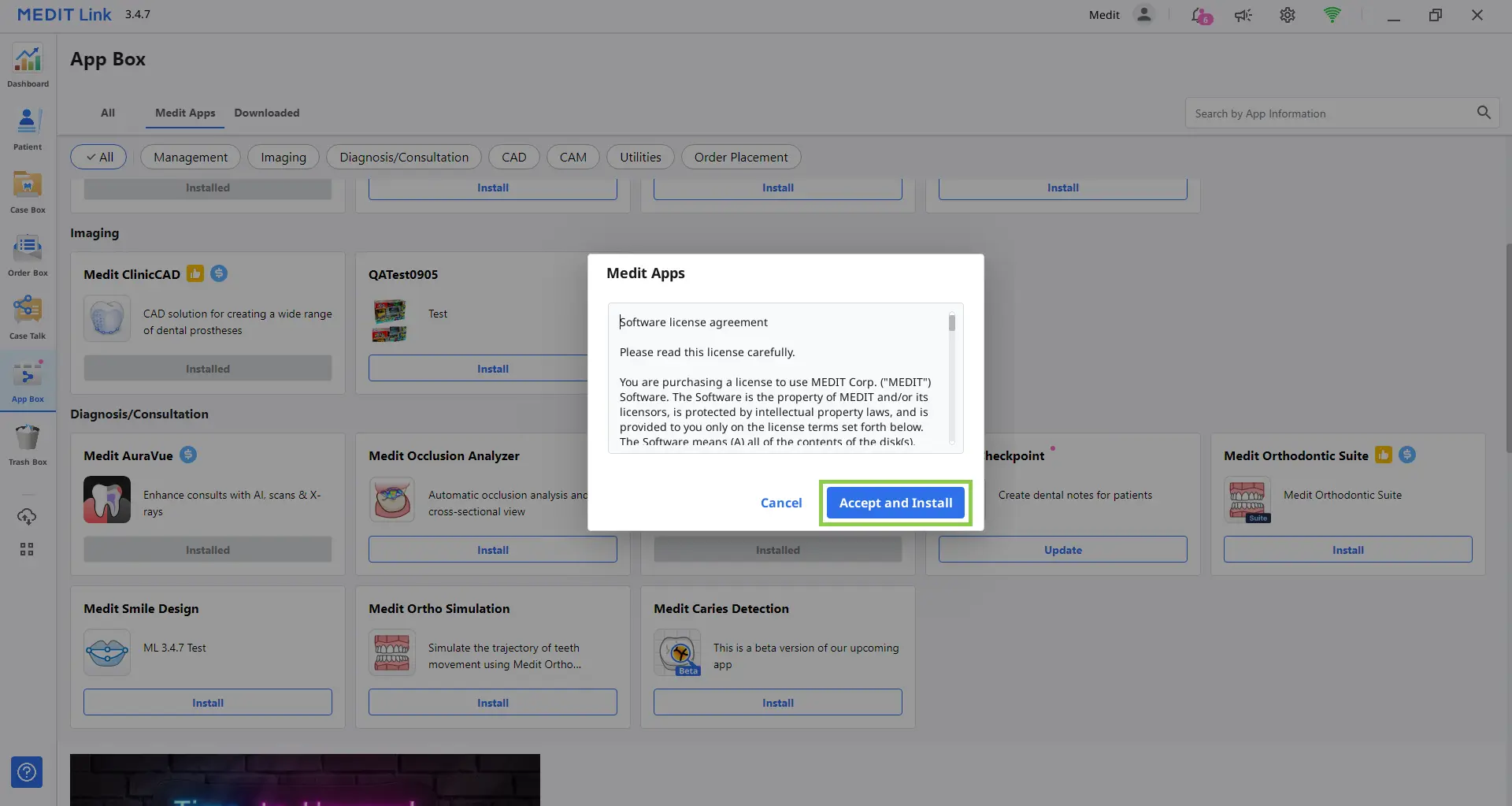

3. Read the Software License Agreement and confirm app installation by clicking
"Accept and Install."

4. The app will be downloaded and installed automatically. It may take several
minutes to finish the installation process.

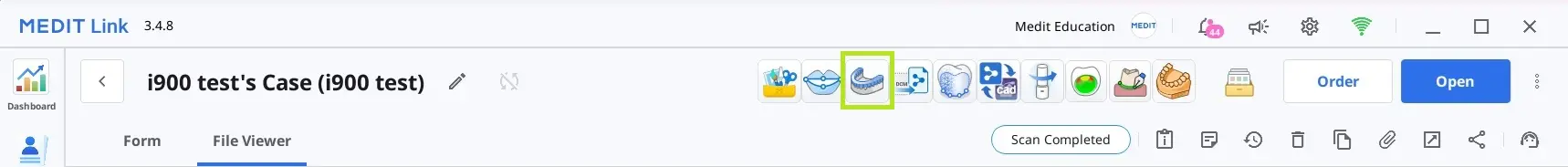

5. Once the app is installed, you can run it from any case in Medit Link by clicking
the app icon in the top right corner of the Case Detail window.

6. To uninstall the program, open App Box and locate the Medit Splints
app. Select the app card to open its details page, then click “Uninstall.”

Running Medit Splints from Medit Link

Follow these steps to run Medit Splints from Medit Link.

1. Go to Case Box (Clinic Account) or Work Box (Lab Account) and select the case you would like to open in Medit Splints.

2. Click the “Medit Splints” icon in the top right corner of the Case Detail window in Medit Link. The icon will automatically appear once you have installed the app.

3. Assign the data once the app has opened.

4. Then, you’ll need to determine specifics for your workflow. Read more about it in the “On Splint Creation” article.
