Flexible multi-die allows you to acquire a set of a model and prepared teeth data simultaneously. You can scan data in one stage and then assign the data to the corresponding stages.
1. Select the "Flexible Multi-Die" from the Scan Strategy and click "Next."

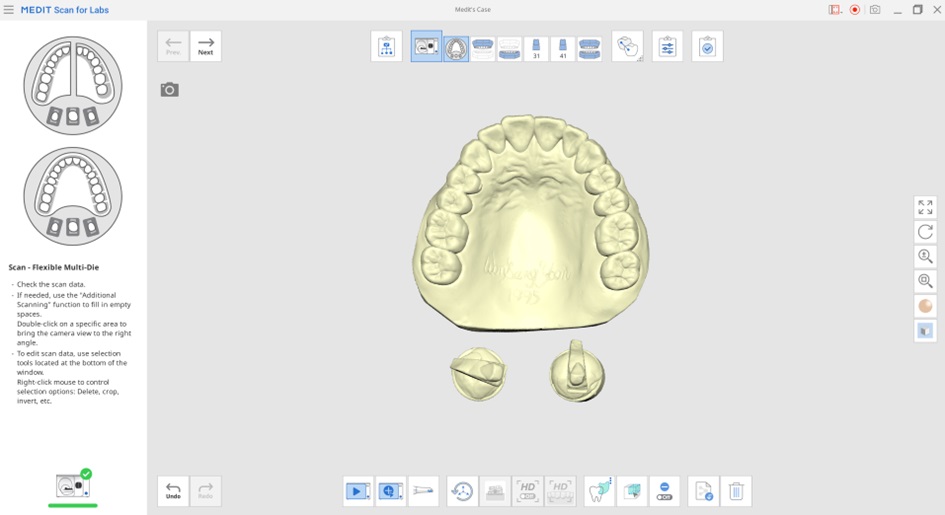

2. Scan all necessary parts at the Flexible Multi-Die stage.

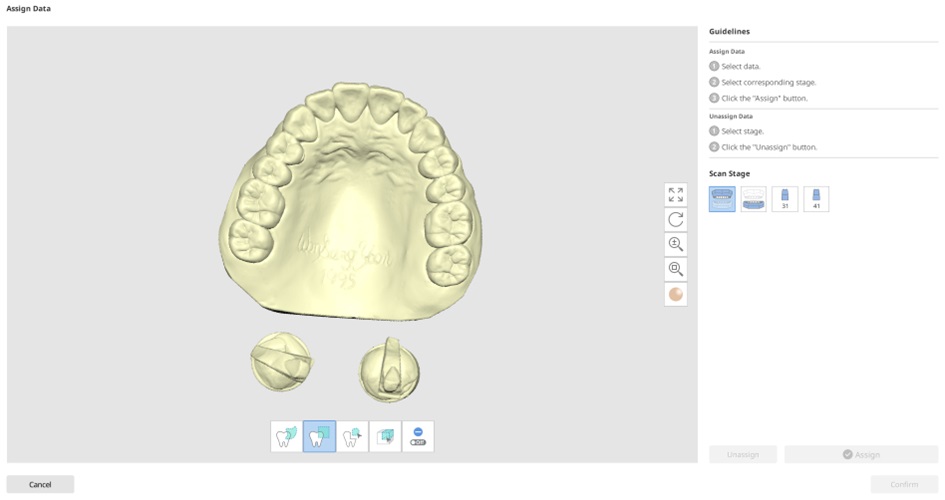

3. Click any of the following stages to select the corresponding data.
4. You can edit the data using the selection tools if needed.

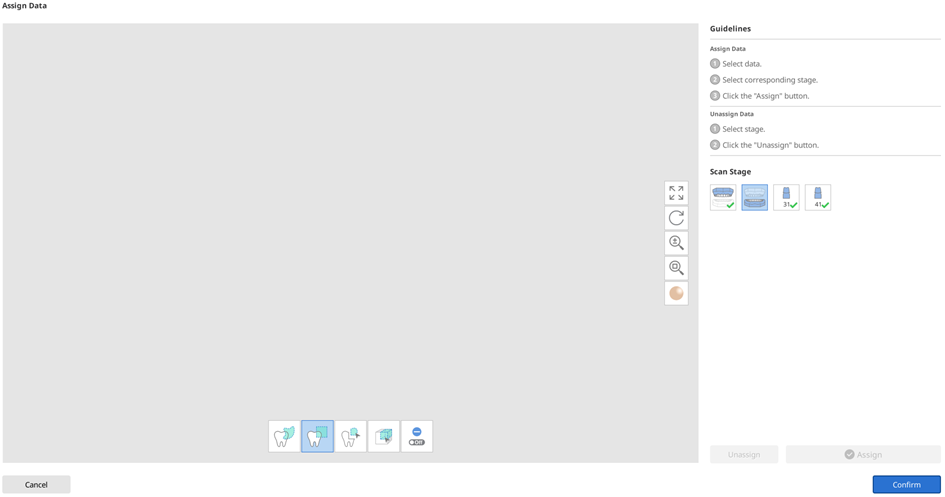

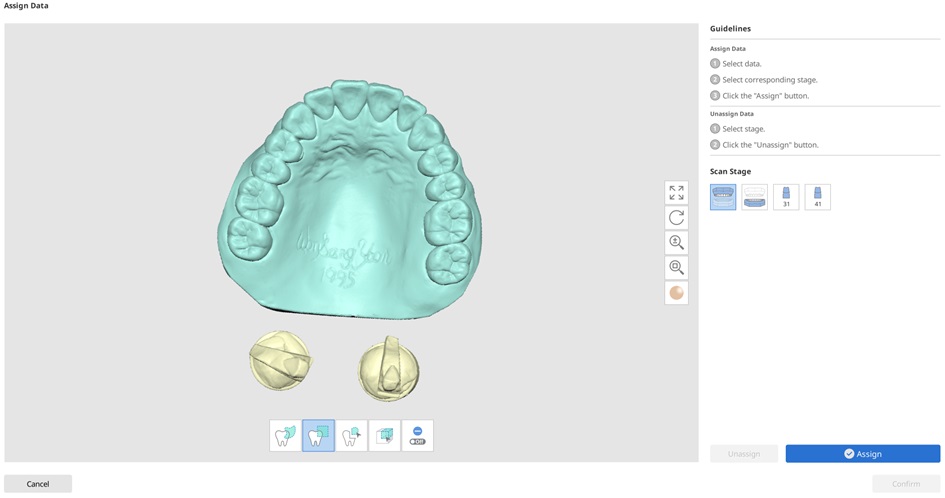

5. Select a scan data and a scan stage to assign the data, and click "Assign."
6. Repeat the assignment process for the remaining stages.

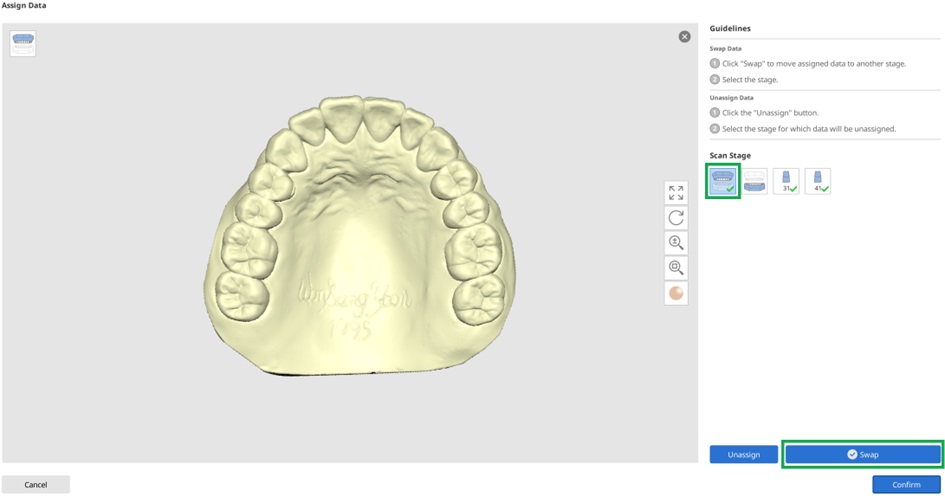

You can preview the assigned data when clicking on a Scan Stage icon with already assigned data as follows.
Click the "Swap" button to assign another data to the stage.
