📖 Post & Core



Here is an example of a post and core case.

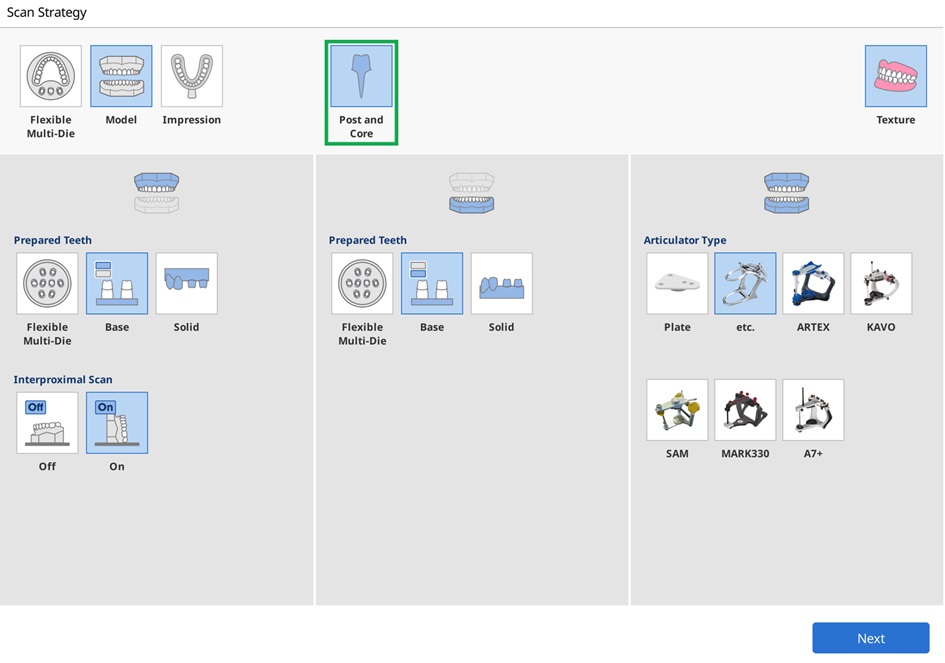

1. Select the "Post & Core" option from the Scan Strategy and click "Next."

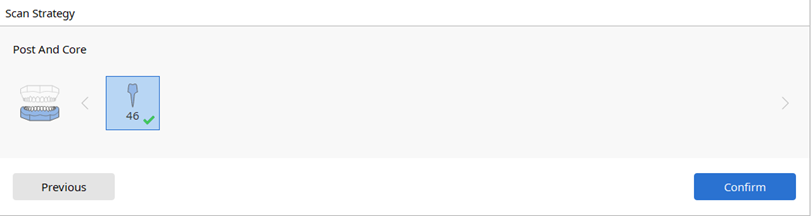

2. Select the teeth for the Post & Core scan and click "Confirm." Please note that the teeth you select must have corresponding impressions.

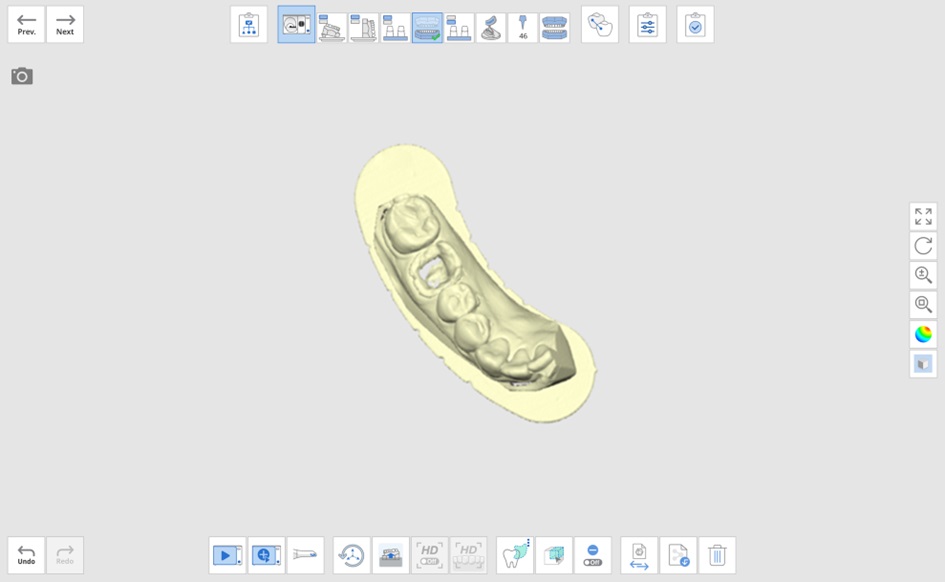

3. Scan the model.



4. Scan the prepared teeth. If you have no trimmed die, scan the model again and trim it to remove the unnecessary parts.

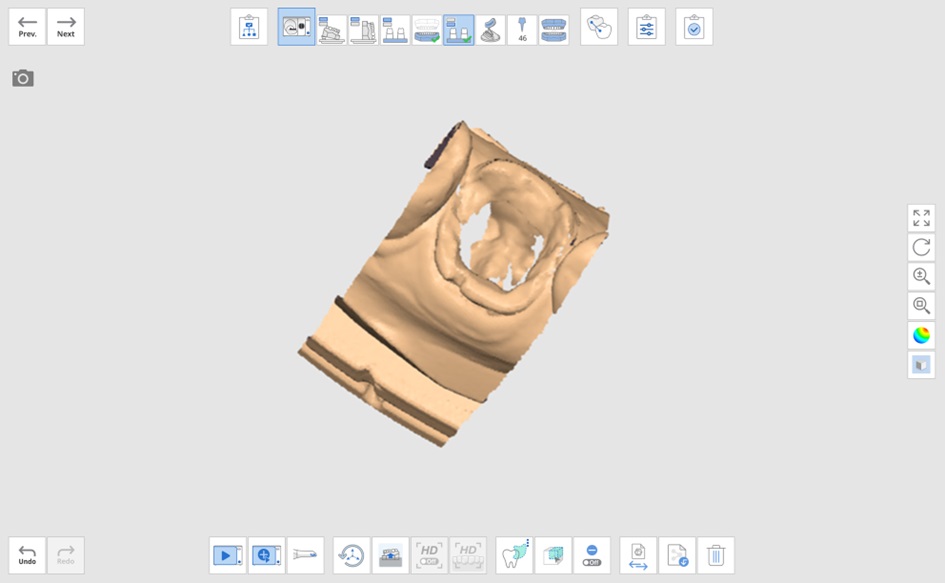

5. Scan the corresponding impression.

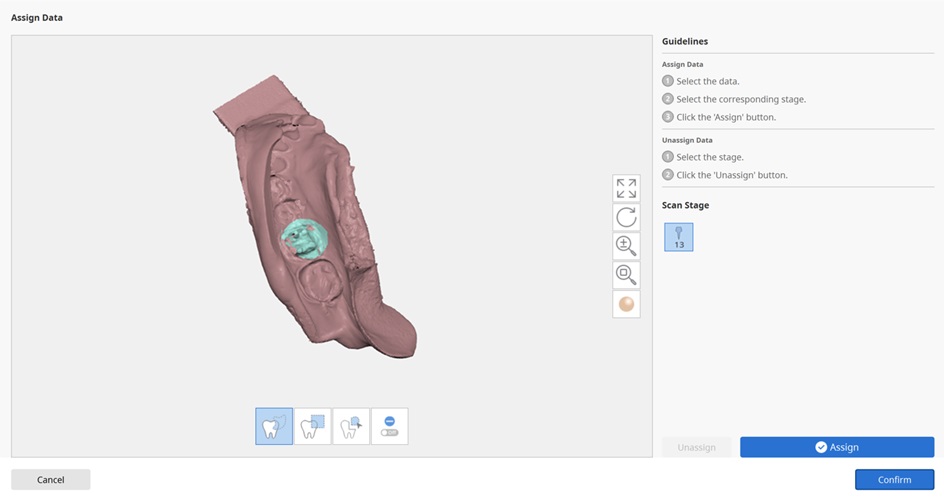

6. Once you move on to the Post stage, you will be asked to assign data for the teeth.



7. After assigning the data, click "Confirm" to align the prepared teeth to the model.

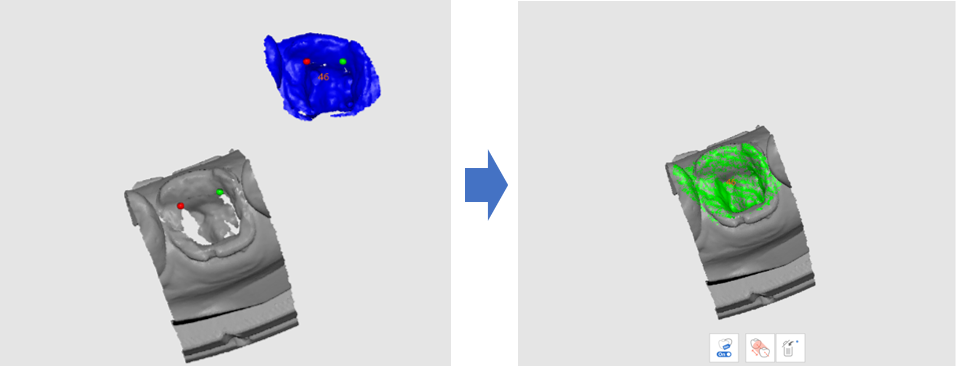

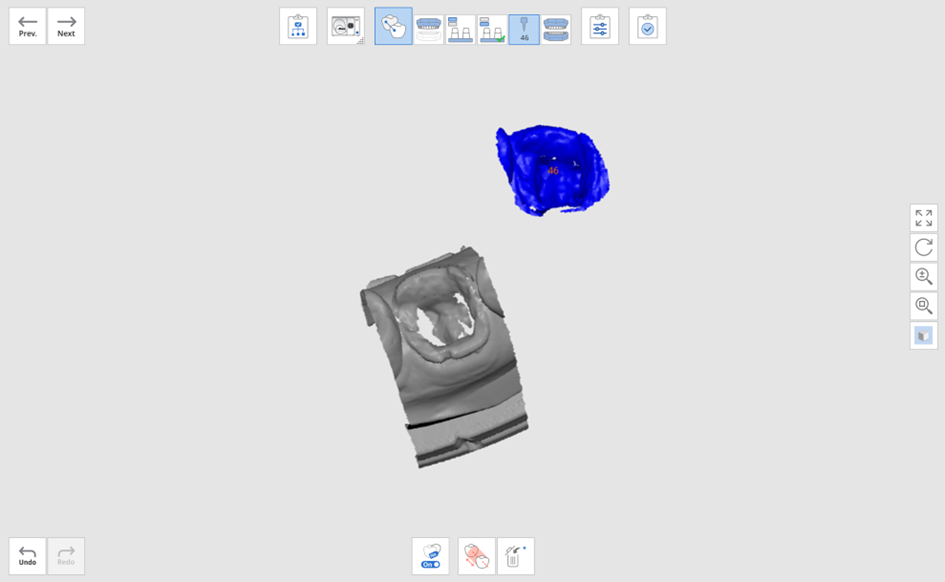

8. Align the model with the impression by clicking up to 3 alignment points on each data.

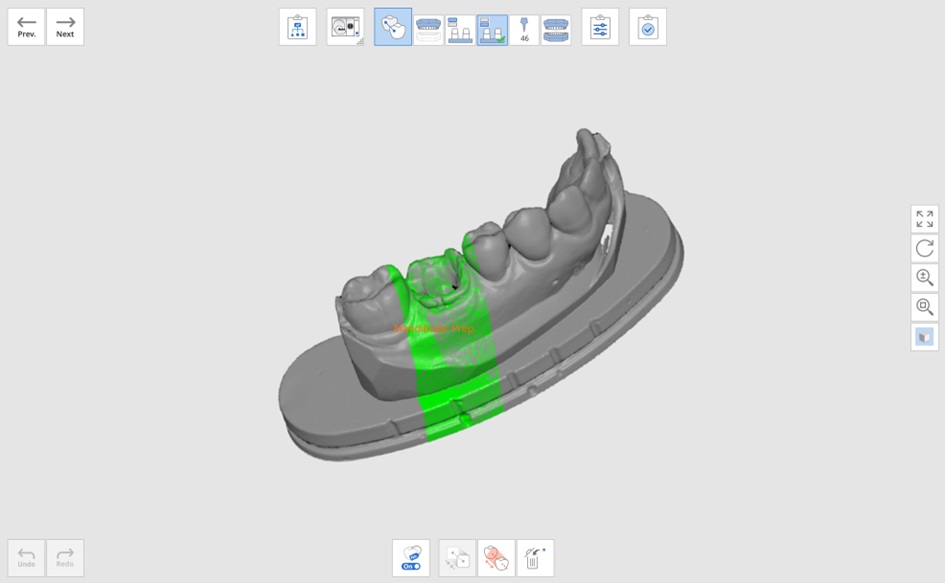

9. The data will be aligned as follows.
