Medit Scan for Labs has an integrated Scan Body Library, which makes it easier and faster to work with the scan body cases.
You can specify which scan body corresponds to each tooth, and the program will automatically insert the library data into the model scan.

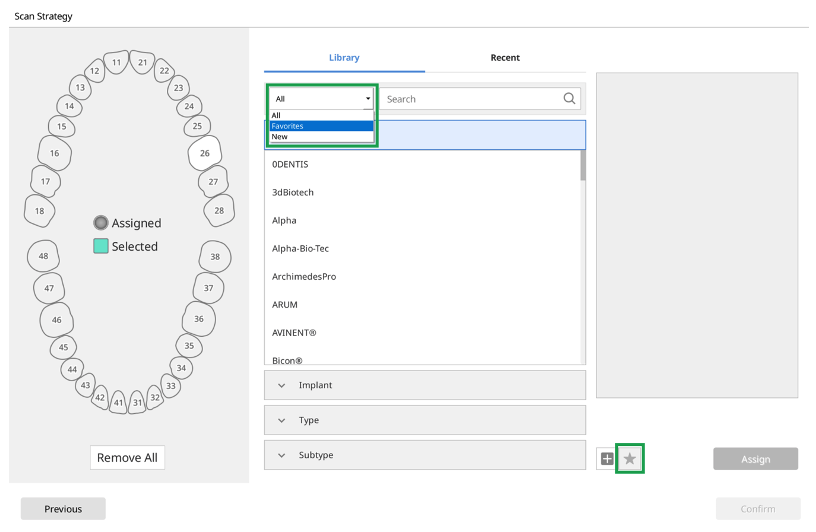

1. Select the "Scan Body Library" option from the Scan Strategy dialog and click "Next."
2. When the Scan Body Library dialog appears, select a tooth number in section A. Multiple teeth can be selected.

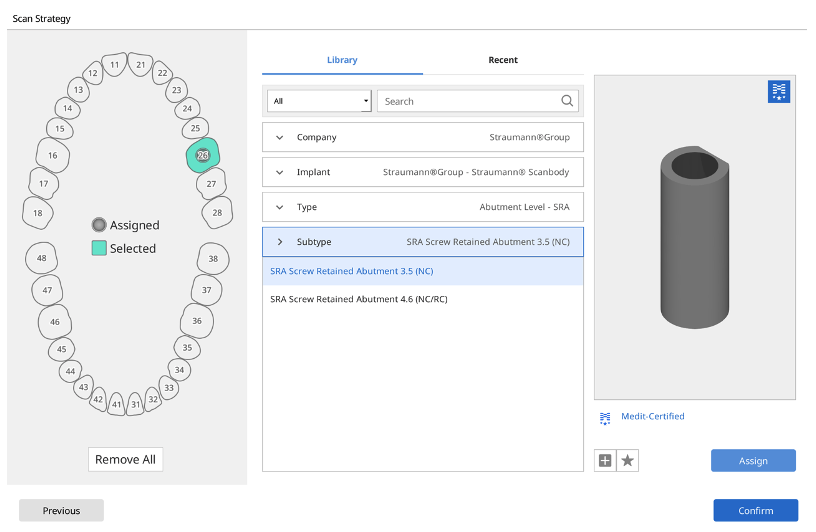

3. Select a corresponding scan body data from the library in section B.
You can import a custom scan body library from your PC by clicking the "+" button in section D.
4. The selected library appears in the preview in section C.
5. Click "Assign" to assign the scan body to the selected tooth number.
¶ Library
- It shows the registered scan body library.
- You can search for the scan body by entering the registered name.
¶ Recent
- It shows your most recently used scan body library.
- You can see the date last used at the top right of the scan body information.
¶ Favorite
- It shows the scan body that is registered as a Favorite in the Library or Recent.
- Add your frequently used libraries to Favorite to access them more conveniently.
- Medit-Certified: This scan body library applies an algorithm optimized for scan body library alignment to minimize the impact of scan errors due to the processing and material of the scan body manufacturer.
