📖 Scanner Calibration

Table Top Scanner Calibration

Calibration is recommended for proper scanning and performance of the device.

Please calibrate the scanner when:

• The quality of scan data has decreased as compared to the previous scans.
• The external conditions, such as device temperature, changed during use.
• It is already past the configured calibration period.



Calibration of T710/T510/T310



1. Turn on the scanner and connect the scanner to the software.

2. Click on the scanner icon at the bottom left to run the Calibration Wizard.

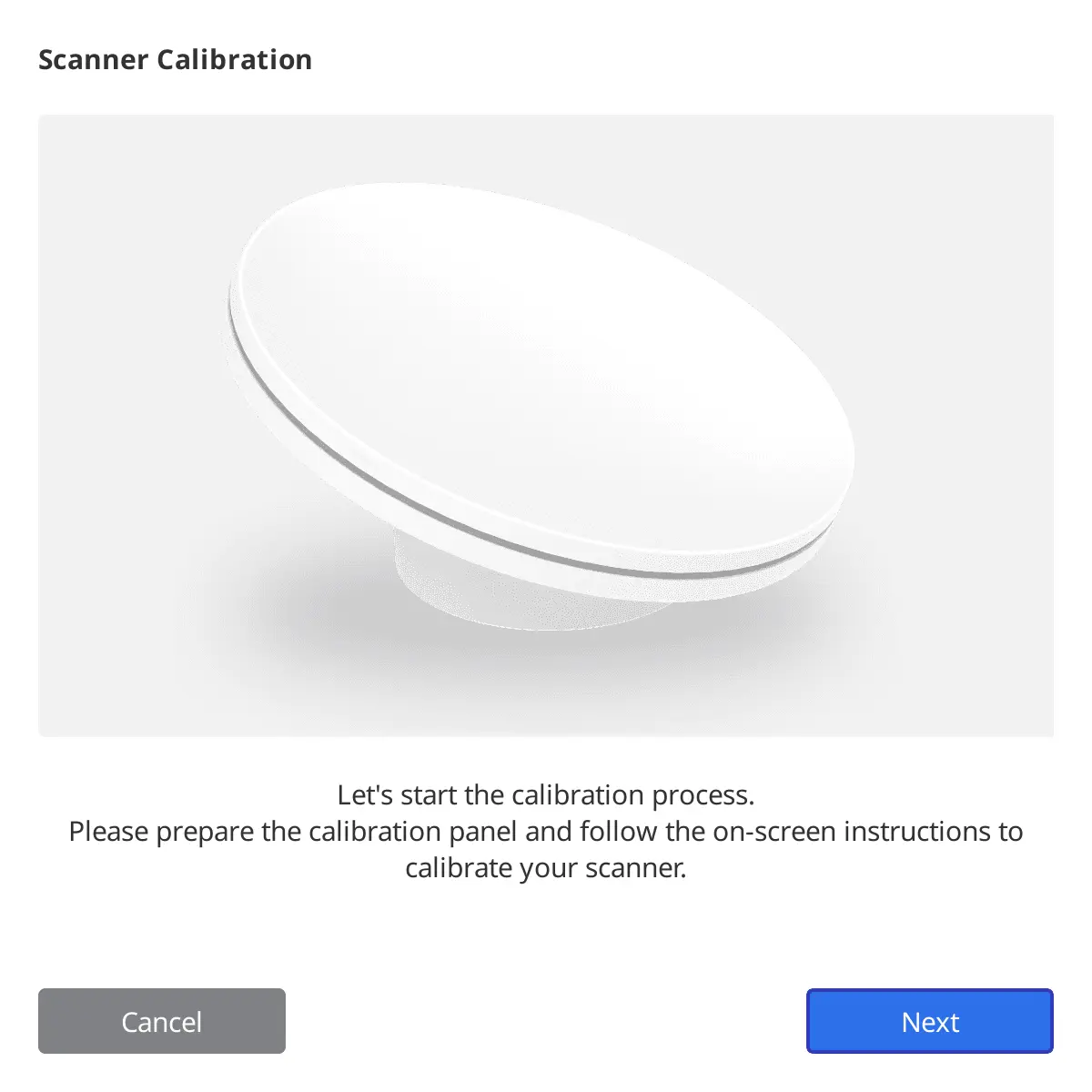

3. Prepare and place the calibration panel.

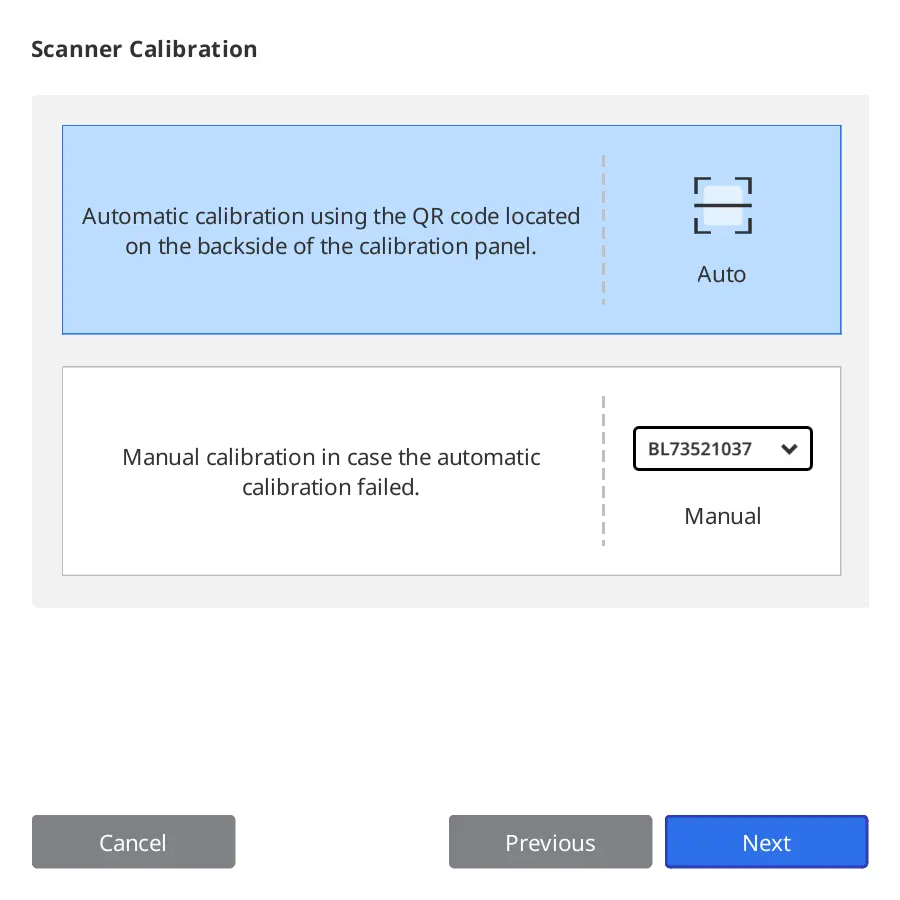

4. Select one of the two calibration options and click Next.

• Auto calibration: Automatic calibration is conducted with the QR code on the back side of the calibration panel.
• Manual calibration: The corresponding PNL file is required to conduct manual calibration.

5. Please enter the serial number of the calibration panel according to the option you chose above.

• Auto calibration:
  • The scanner will scan the QR code on the back side of the calibration panel, and the calibration process starts automatically.
• Manual Calibration:

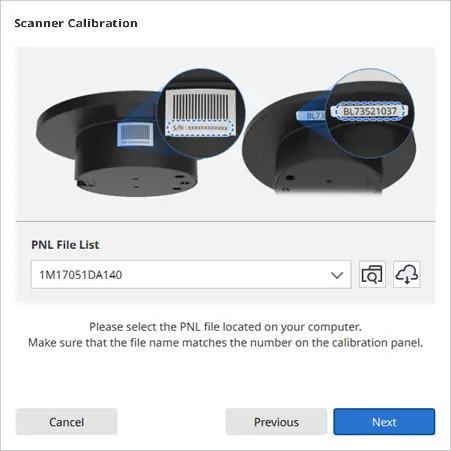

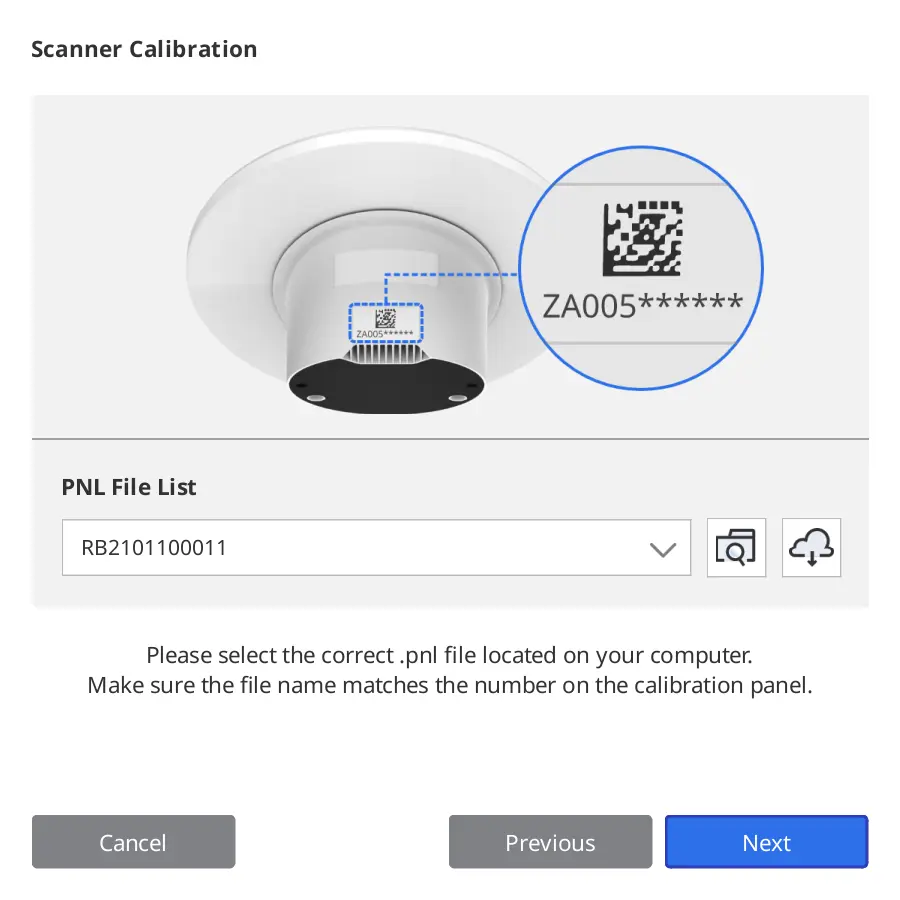

  • Check the serial number on the calibration panel and select the corresponding PNL file from the file list.
  • If you cannot find the serial number on the list, please check if you have a PNL file on the PC or installation USB.
    • If you have a PNL file, click to search for it.
    • If you do not have a PNL file, click  and enter the serial number.

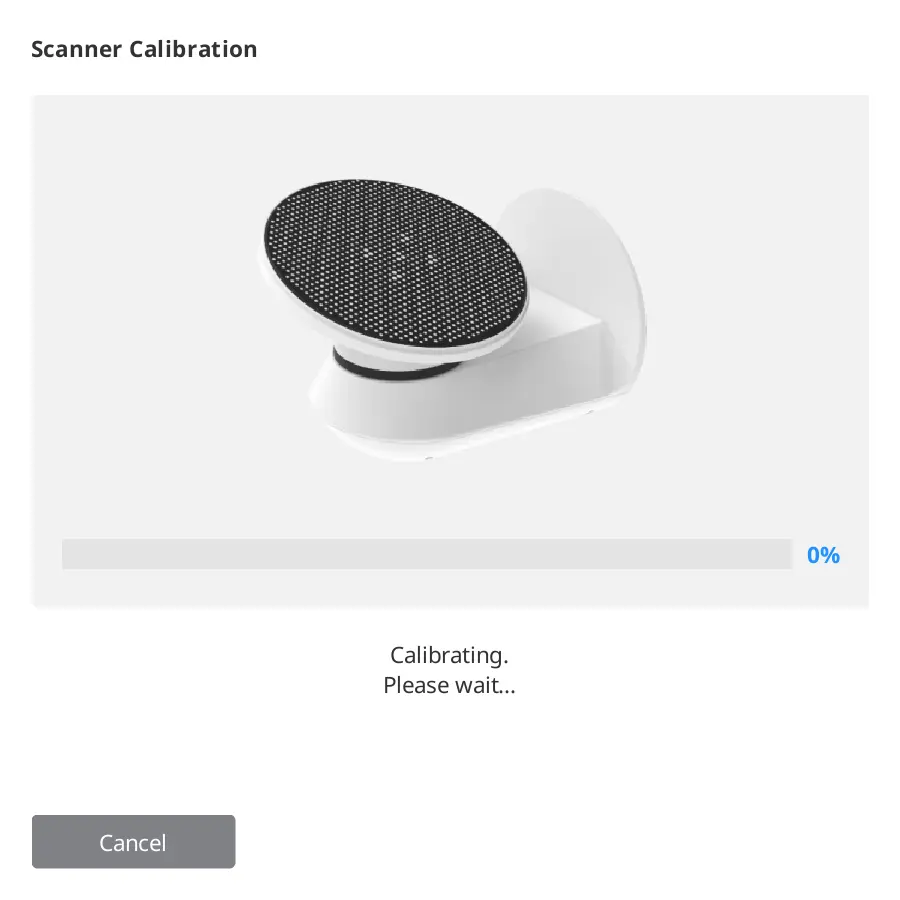

6. The calibration process might take a few minutes. Please do not touch the scanner.

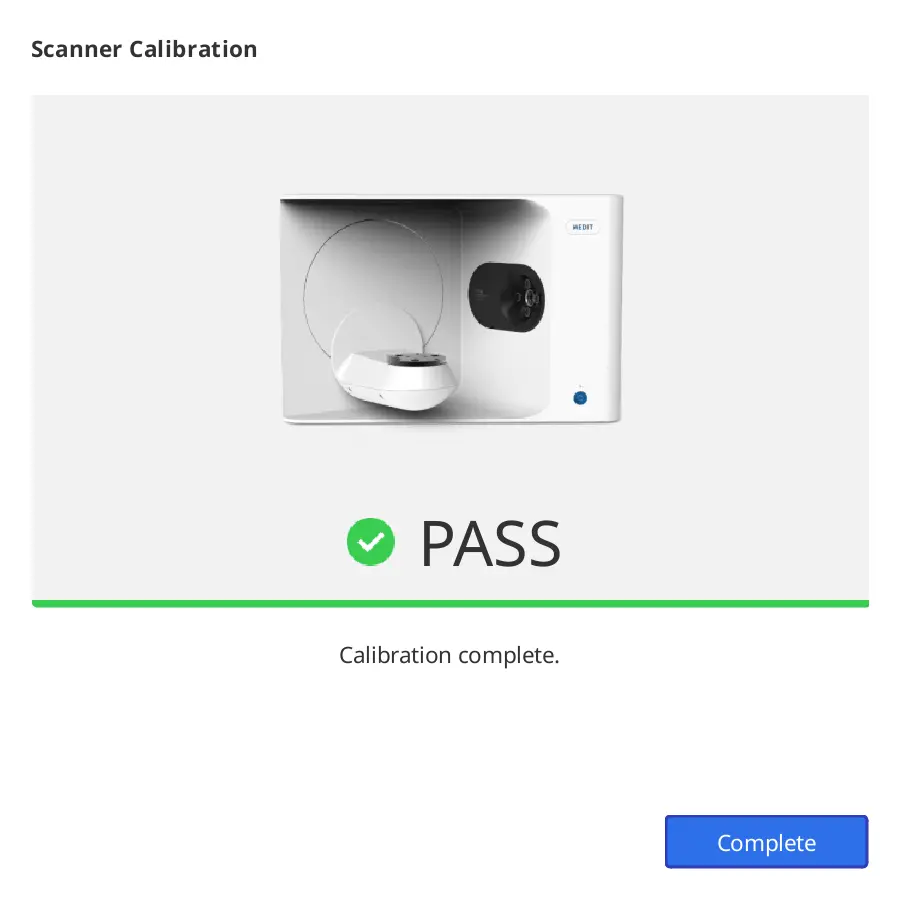

7. Wait until the calibration is completed successfully.



Calibration of T500/T300

1. Turn on the scanner and connect the scanner to the software.

2. Click on the scanner icon at the bottom left to run the Calibration Wizard.

3. Prepare and place the calibration panel as shown on the picture.

4. Select one of the two calibration options and click Next.

• Auto calibration: Automatic calibration is conducted with the QR code on the back side of the calibration panel.
• Manual calibration: The corresponding PNL file is required to conduct manual calibration.


5. Please enter the serial number of the calibration panel according to the option you chose above.

• Auto calibration:
  • The scanner will scan the QR code on the back side of the calibration panel, and the calibration process starts automatically.
• Manual Calibration:
  • Check the serial number on the calibration panel and select the corresponding PNL file from the file list.
  • If you cannot find the serial number on the list, please check if you have a PNL file on the PC or installation USB.
    • If you have a PNL file, click  to search for it.
    • If you do not have a PNL file, click  and enter the serial number.

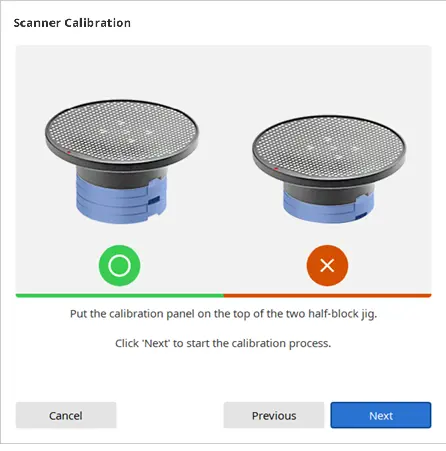

6. Put the calibration panel on top of the two half-block jigs.

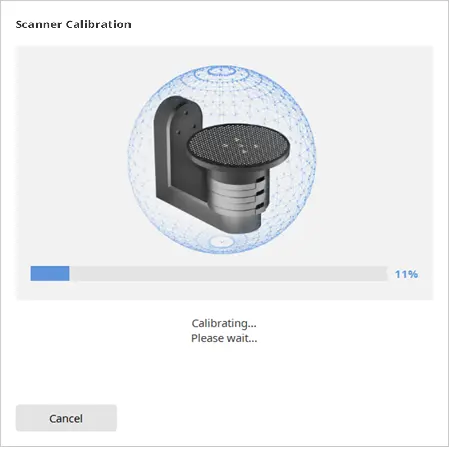

7. The calibration process might take a few minutes. Please do not touch the scanner.

8. Wait until the calibration is completed successfully.



Intra Oral Scanner Calibration



Calibration is recommended for proper scanning and performance of the device.

Please calibrate the scanner when:

• The quality of scan data has decreased as compared to the previous scans.
• The external conditions, such as device temperature, changed during use.
• It is already past the configured calibration period.

Please note that the accuracy of scan data increases if the temperature of the scanner during calibration is similar to that of while scanning.

Let your scanner warm up before calibration to reach the same temperature to the same temperature as during scanning.



How to Calibrate

The following describes how to calibrate based on the i700. Other Medit intraoral scanners, except for the i900, can be calibrated in the same way.

1. Turn on the scanner and connect the scanner to the software.

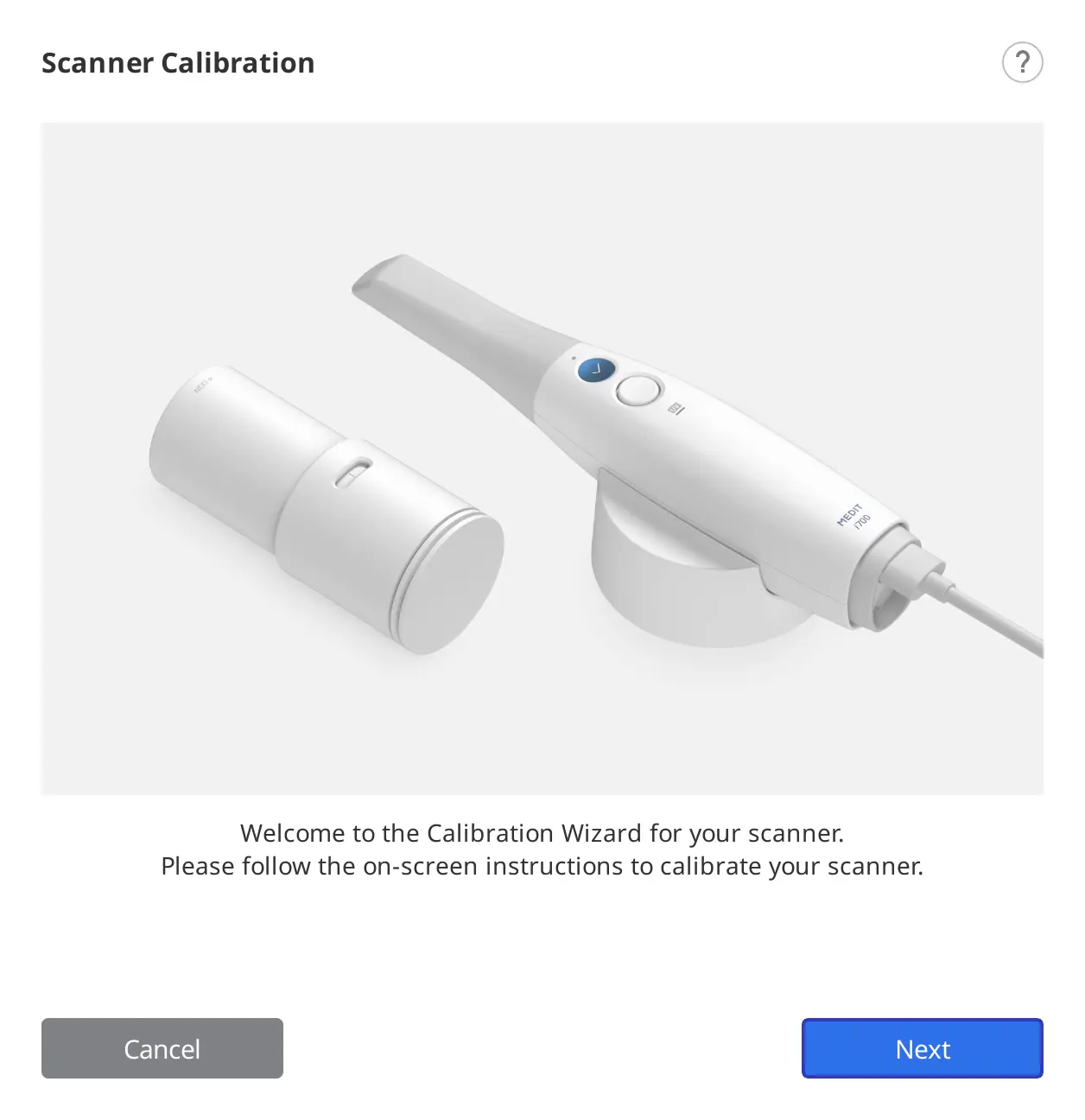

2. Click the "Calibrate" icon at the bottom left corner of the program to run the Calibration Wizard.

3. Prepare the calibration tool and click "Next" to start the calibration process.

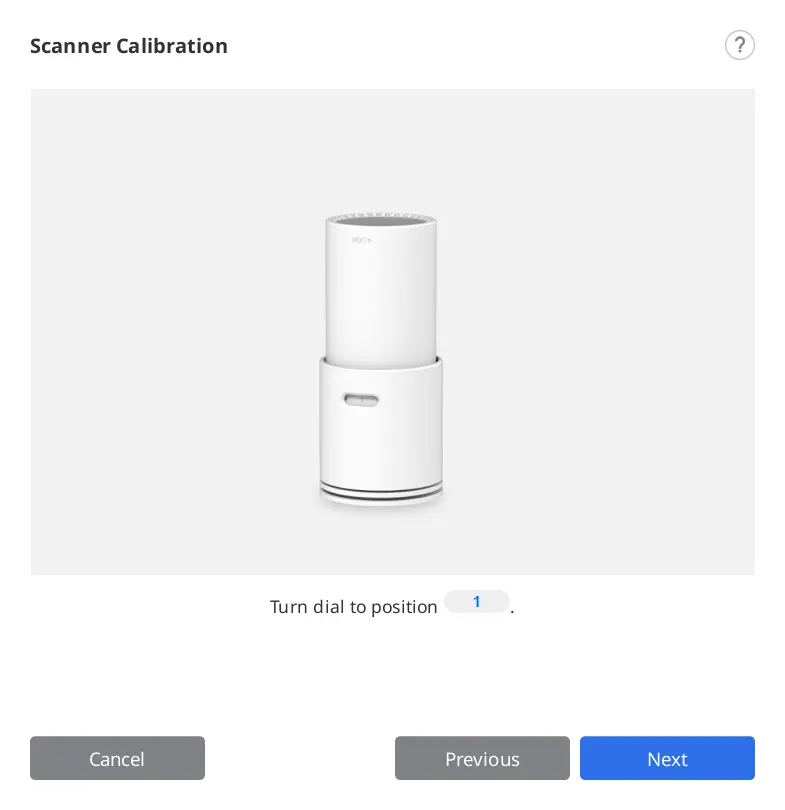

4. Set the dial of the calibration tool to position 1.

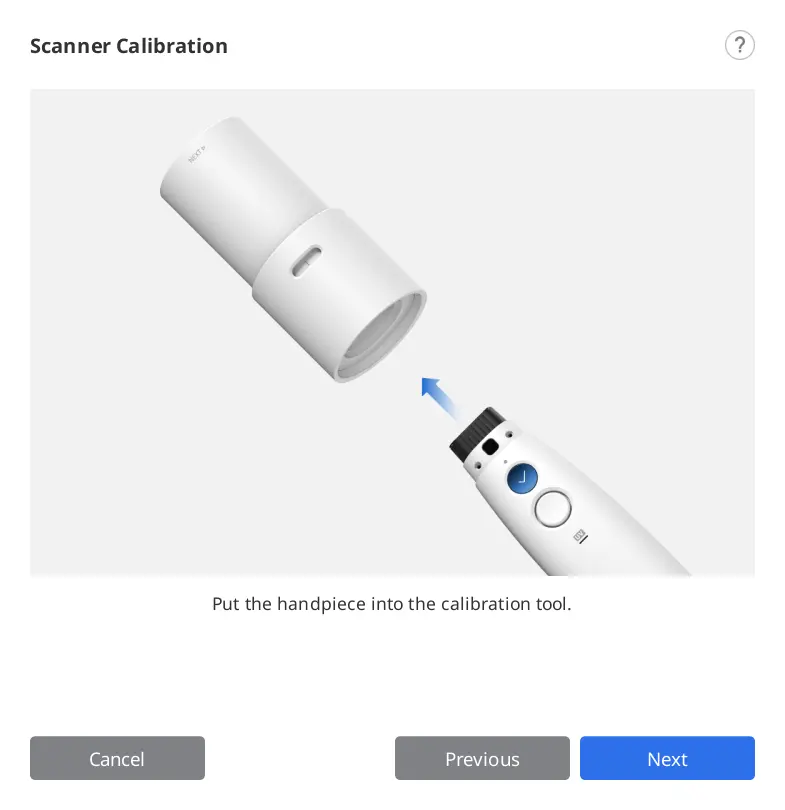

5. Insert the handpiece into the calibration tool.

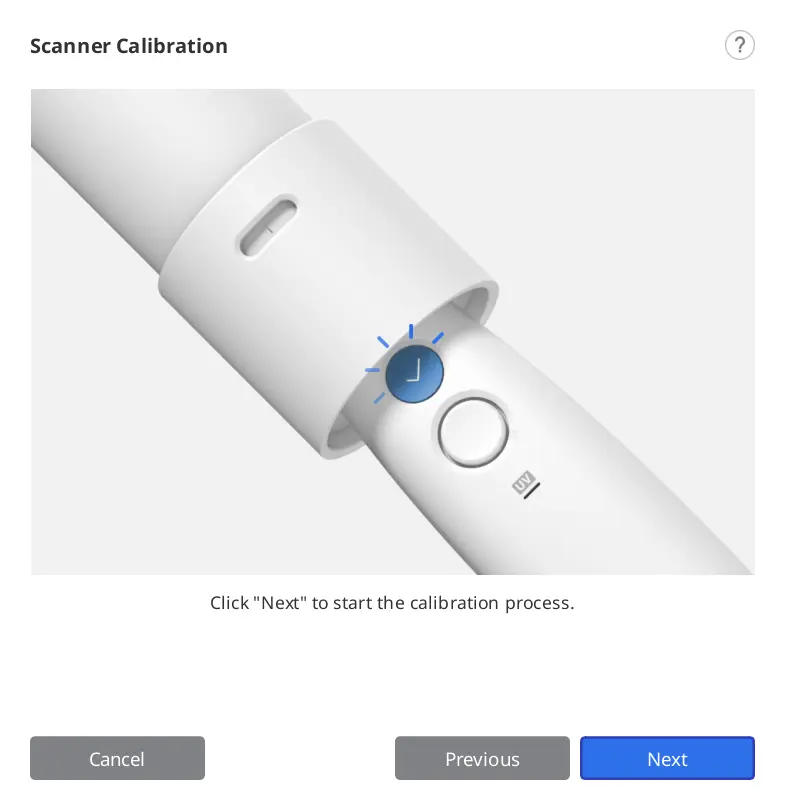

6. Click "Next" to start the calibration.

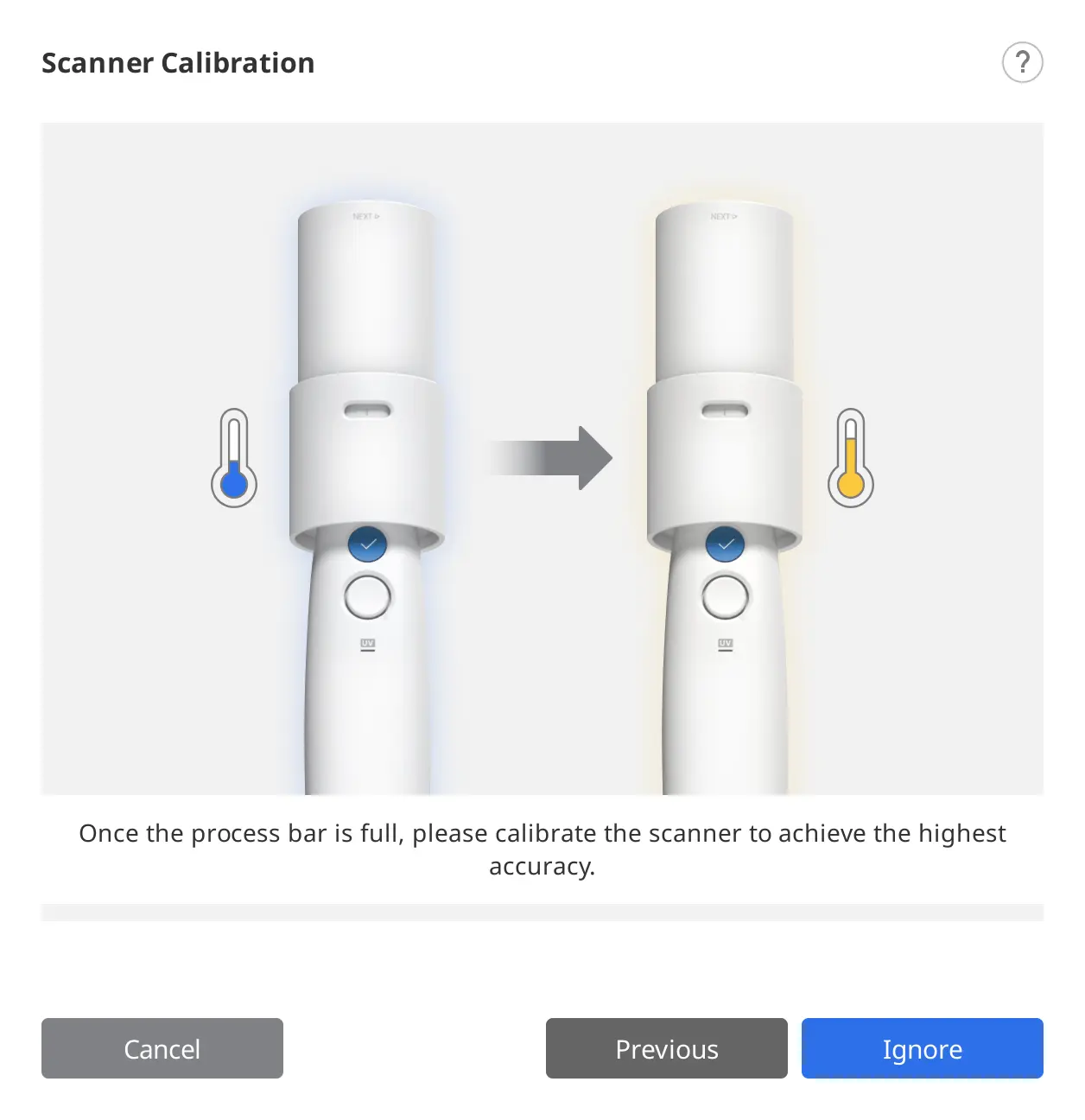

7. If the scanner's temperature is too low, pre-heating will be required to provide the best performance.

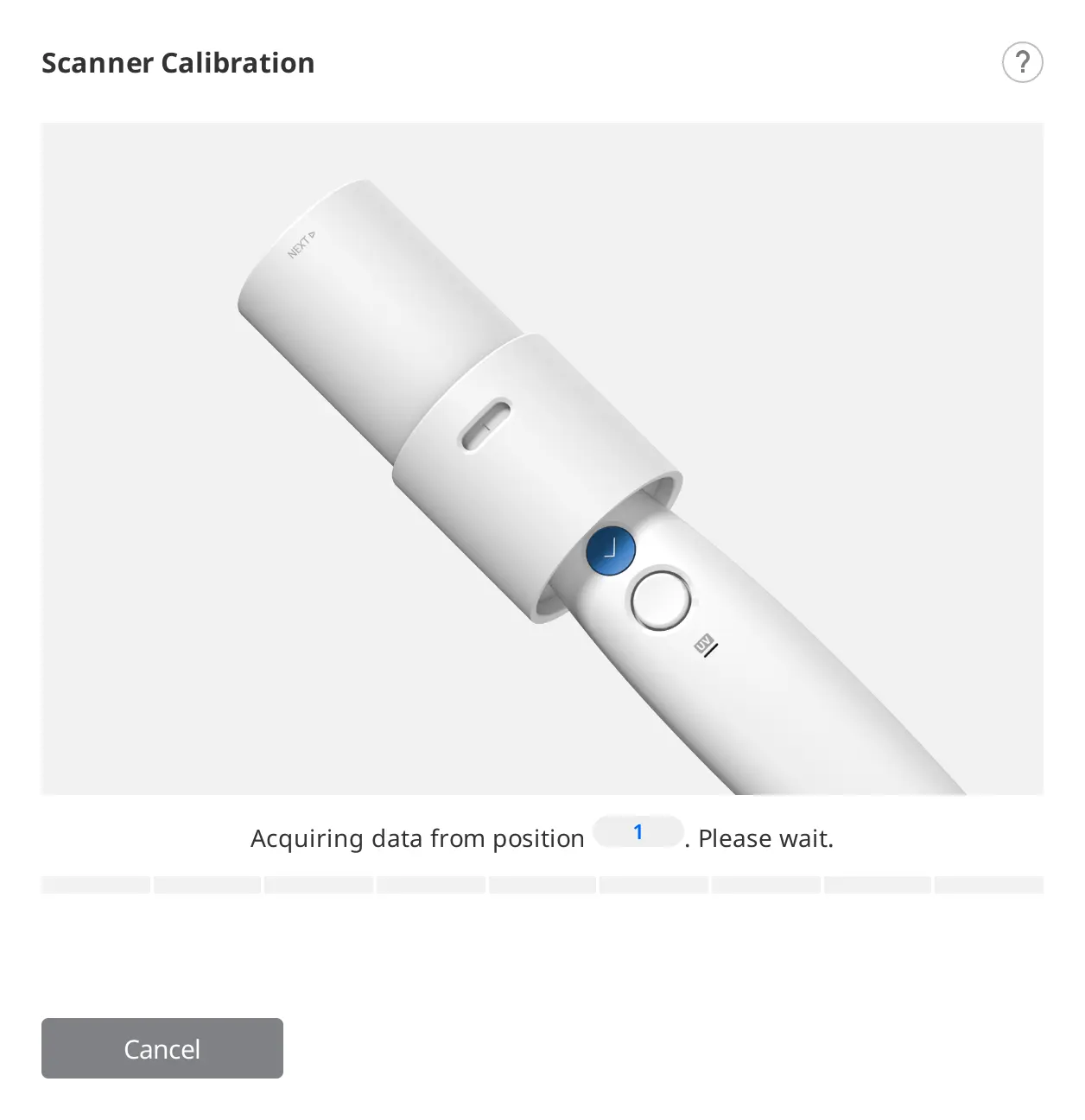

8. If the handpiece is mounted correctly, the system will automatically acquire the data at the correct position 1.

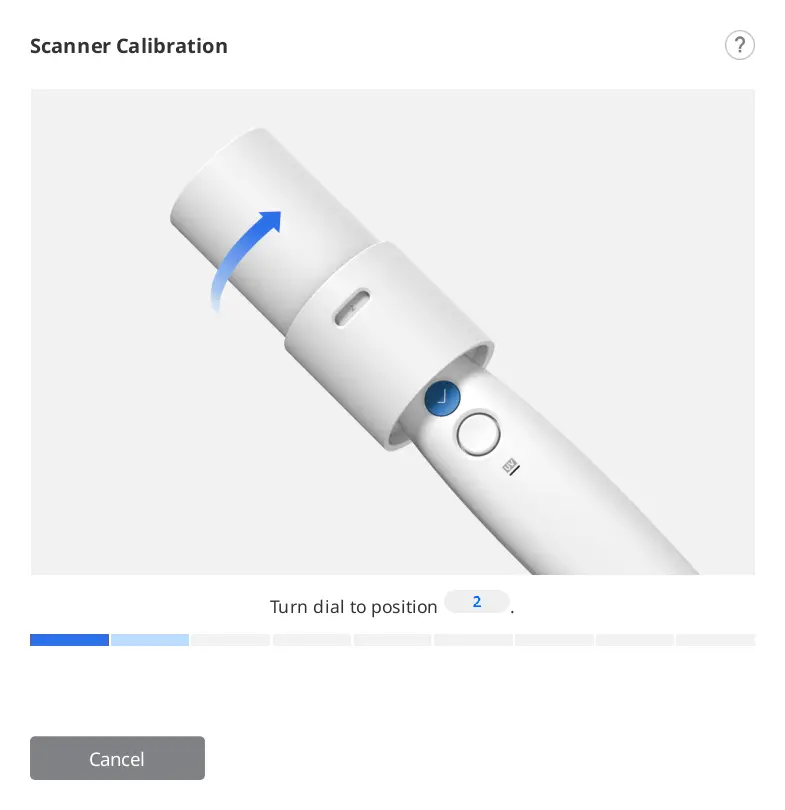

9. After completing data acquisition at position 1, turn the dial to the next position according to on-screen instructions.

10. Repeat the above process for positions 2 to 8 and the LAST.

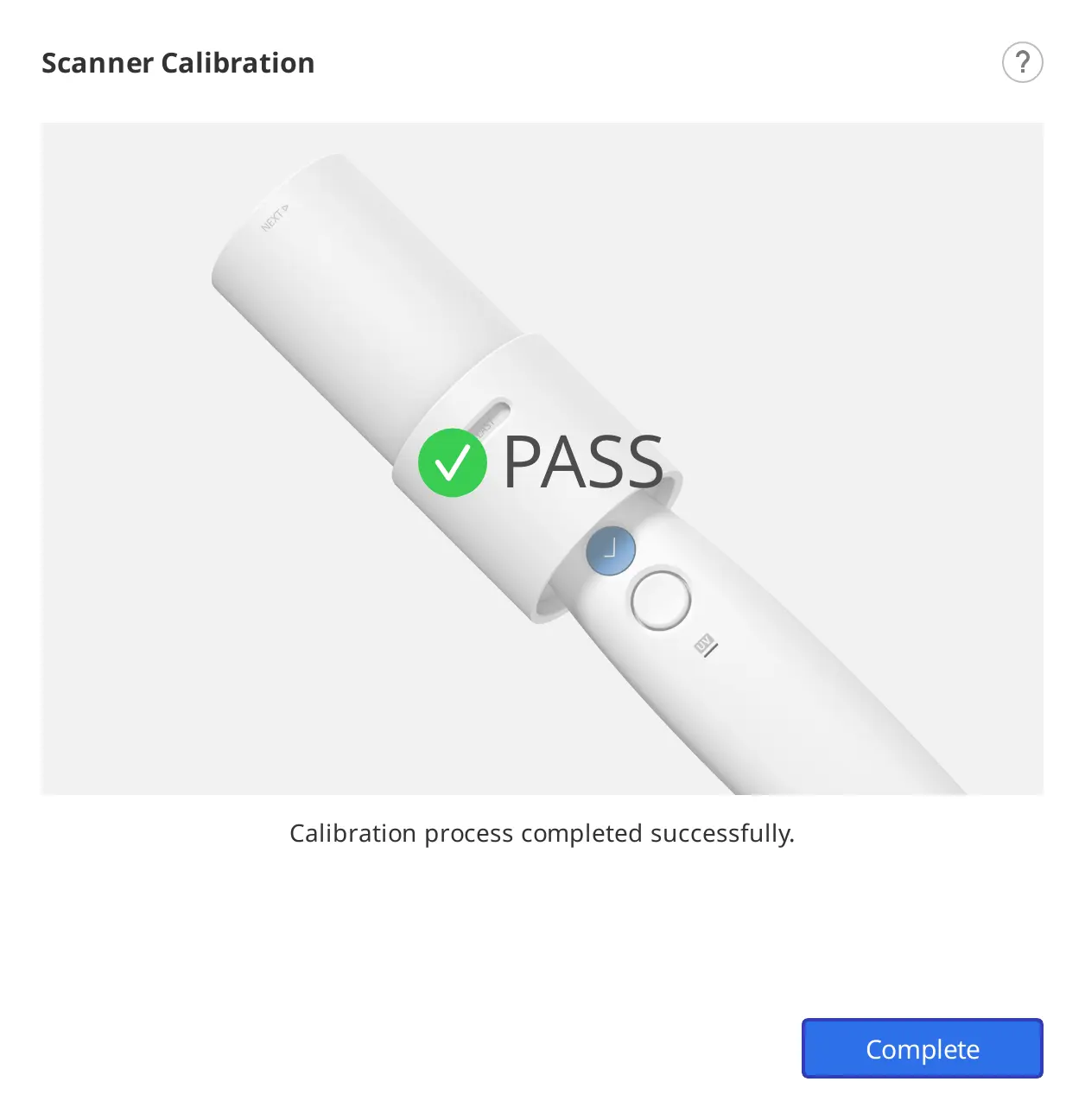

11. After data acquisition at the LAST position completes, the calibration result will be displayed.
