ℹ️ Note
Go to Settings > Program Preferences > Interface and enable the "Expand Model Control Icons" option to show the Pan, Zoom In/Out, and Zoom Fit icons.
 |
Camera View Mode | Change the camera view mode between the "Dynamic View" and "Fixed View" modes. | |
| Pan | Move the model. | ||
 |
Rotate | Rotate the model. | |
 |
Zoom In/Out | Zoom in and out on the model. | |
| Zoom Fit | Position the model in the center of the screen. | ||
Data Display Mode |

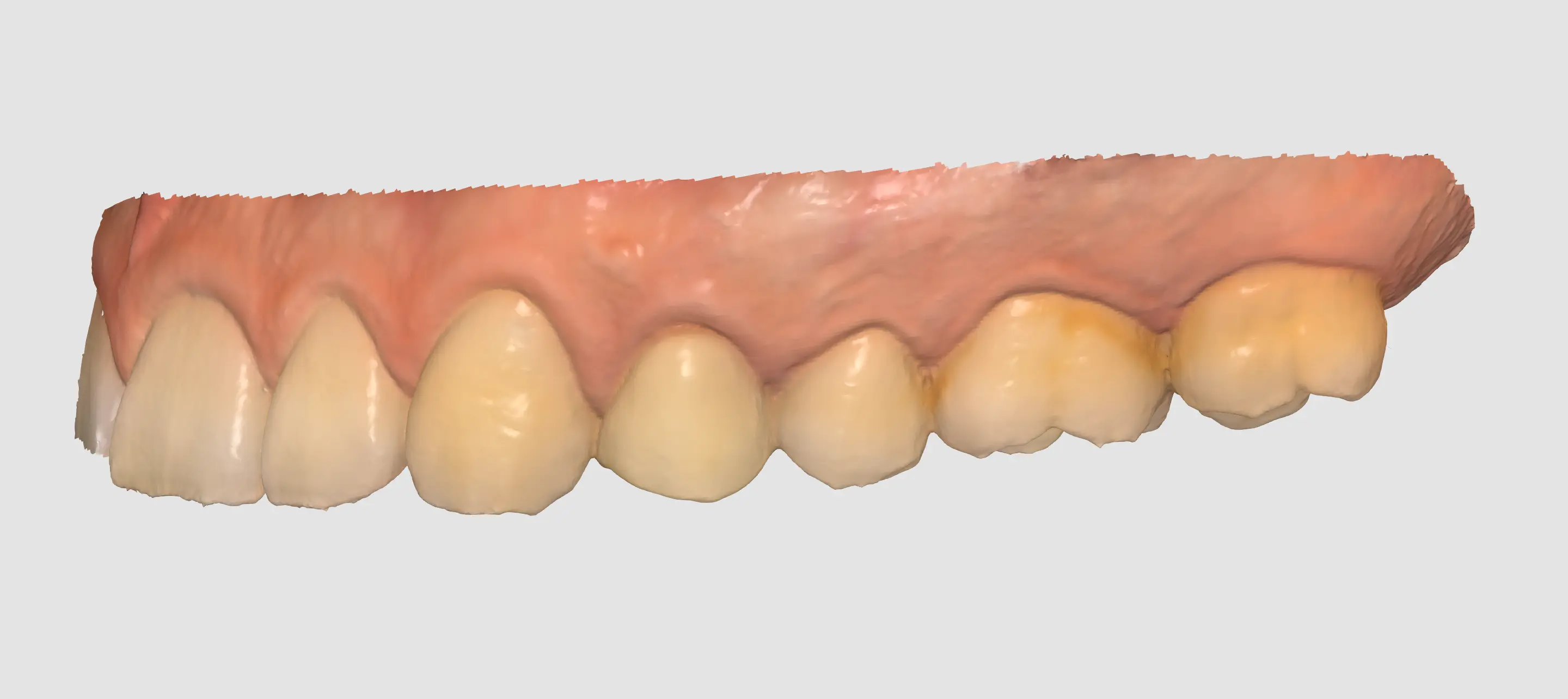

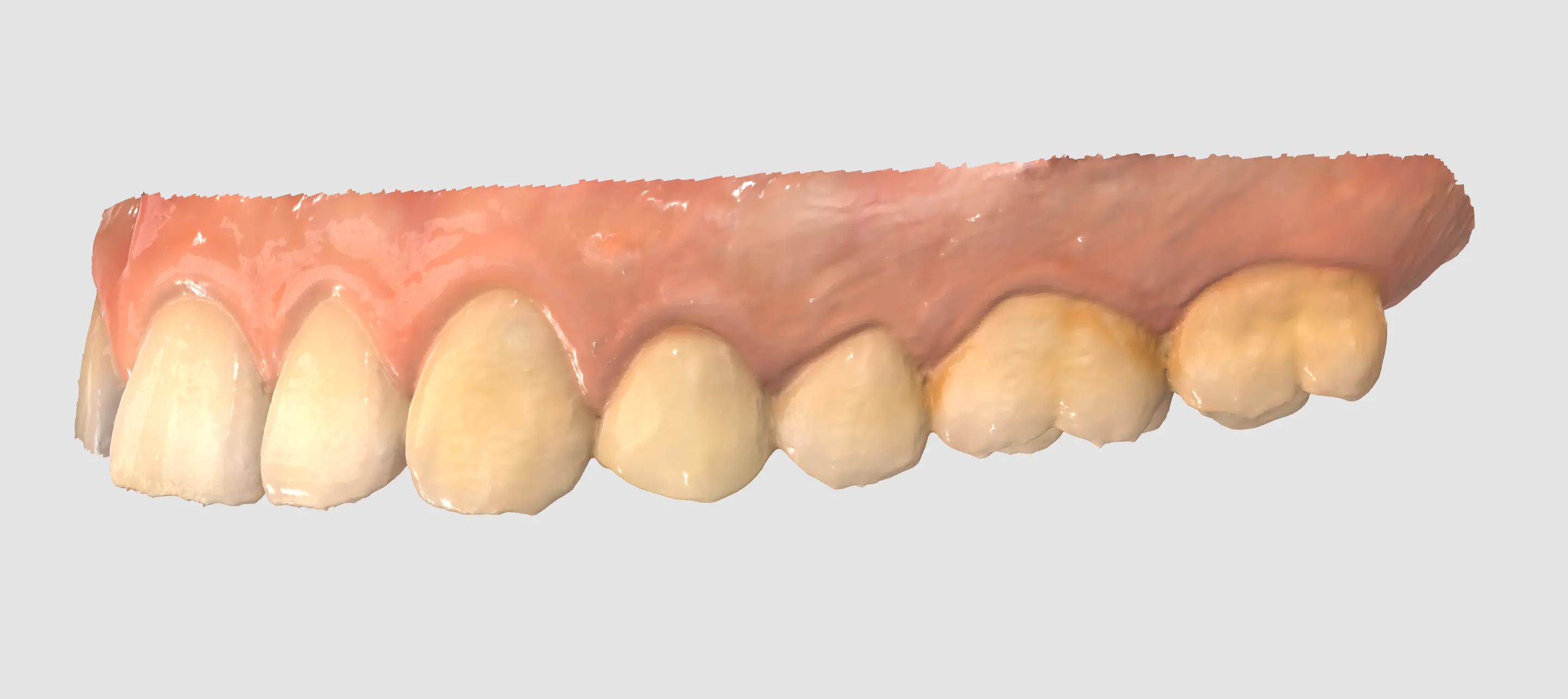

Glossy | See the data in color with glossy finish (PBR rendering). |
|

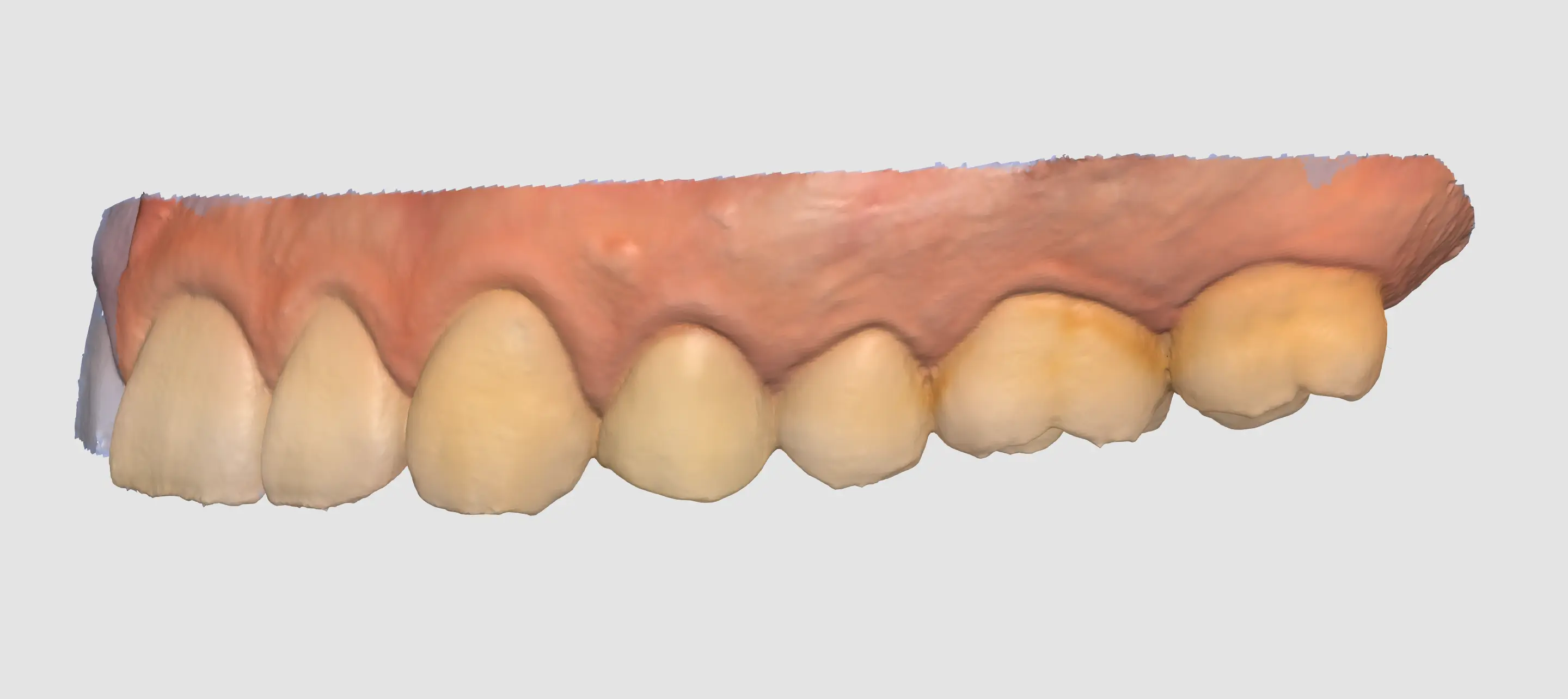

| Matte | See the data in color with matte finish (Phong rendering). |
||

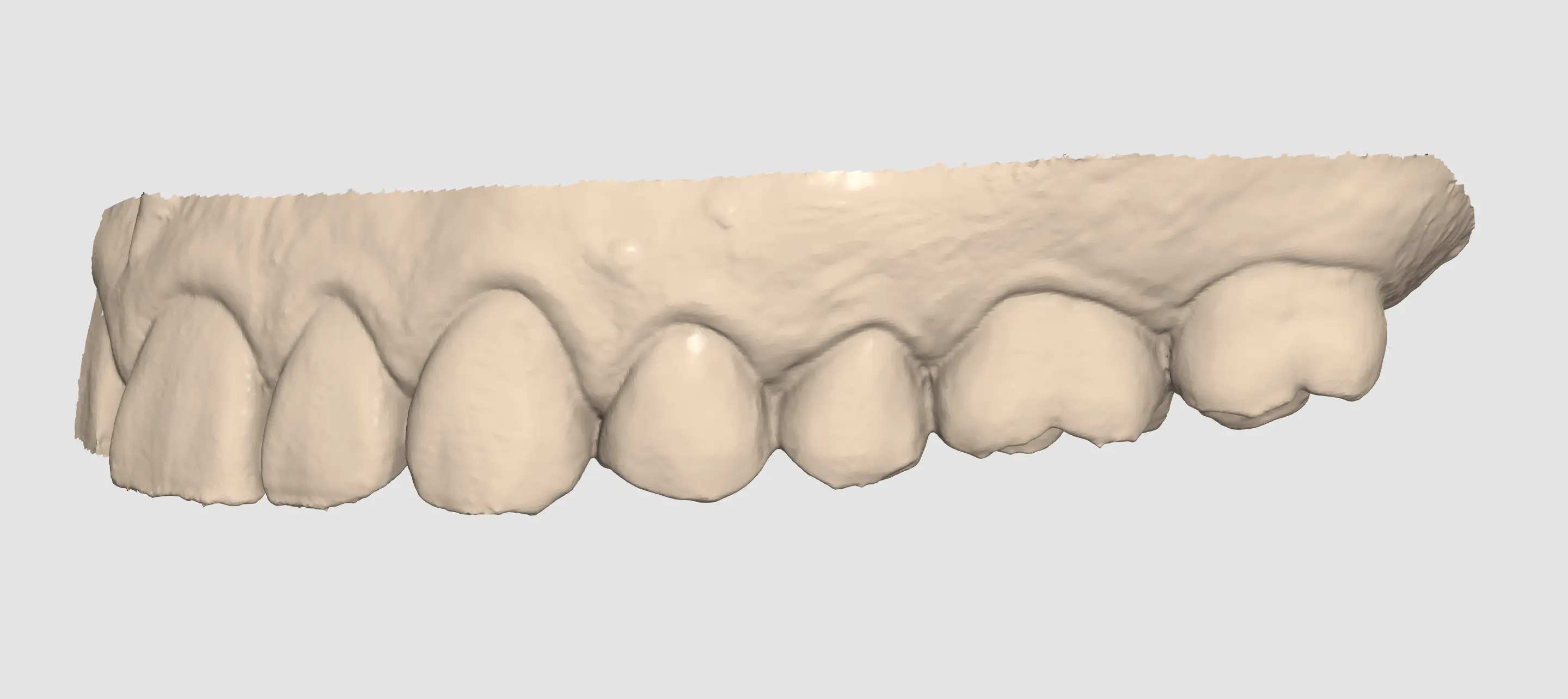

| Monochrome | See the data in one color. |
||

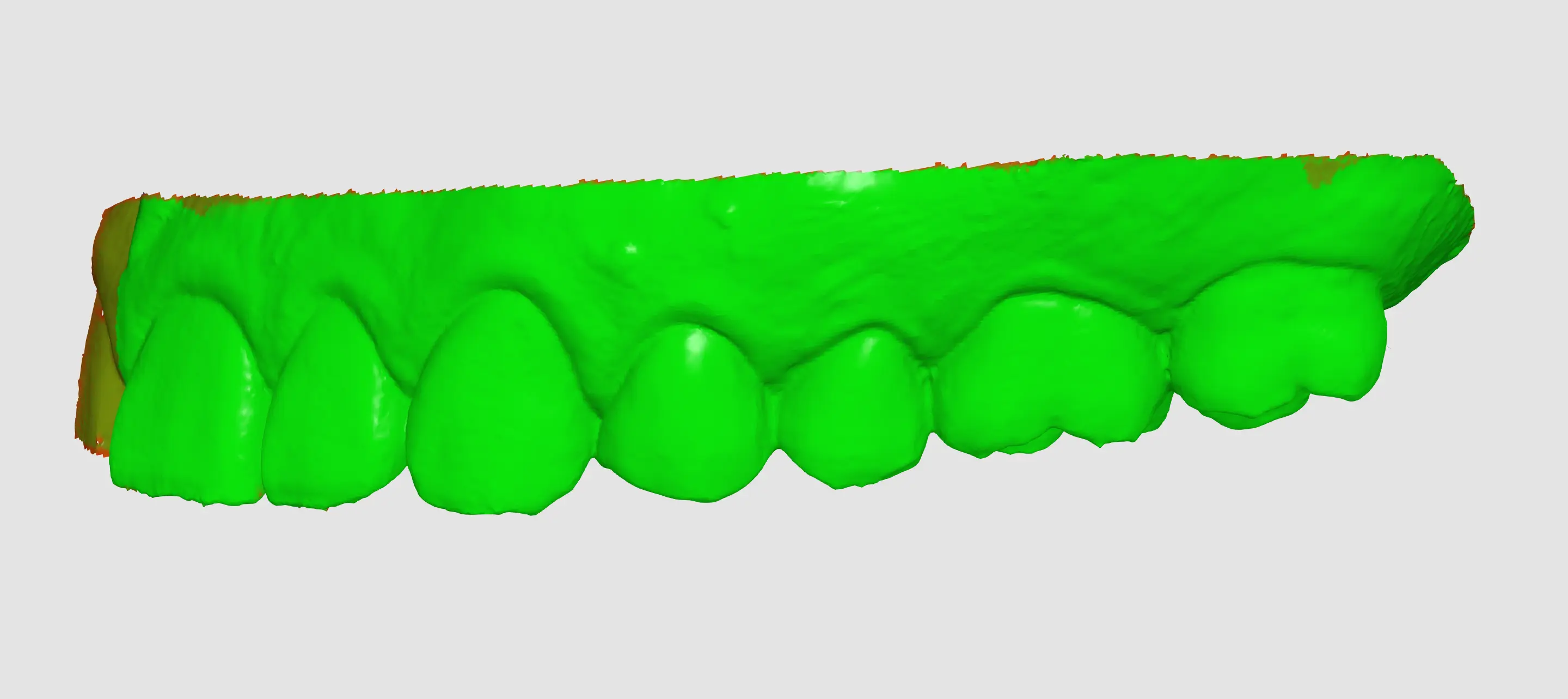

| Reliability Map | Apply red, yellow, and green colors to the model to indicate the reliability of scan data. * Green data indicates high reliability, while red indicates poor reliability. You can perform additional scanning to reduce unreliable areas. |
||
| Matte + Reliability Map | Assist in acquiring better results by allowing reference to the reliability map while also scanning and viewing the simple shading. |
||
 |
Grid Settings (mm) | Grid On | Shows the grid in the background. |
 |
Grid Off | Hide the grid in the background. | |
 |
Overlay On | Overlay the grid over the model. |
|
