📖 Confirm Stage

Confirm

This stage allows users to check and edit the aligned data if necessary.

To edit the data, use the area selection/deselection tools and the "Adjust Occlusion Height" tool.

Adjust Occlusion Height

After scanning the occlusion, you can adjust the bite height as needed. This tool is useful when creating a splint or denture, as you can adjust the height without scanning the occlusion a second time.

1. Complete the scanning of the maxilla, mandible, and occlusion.

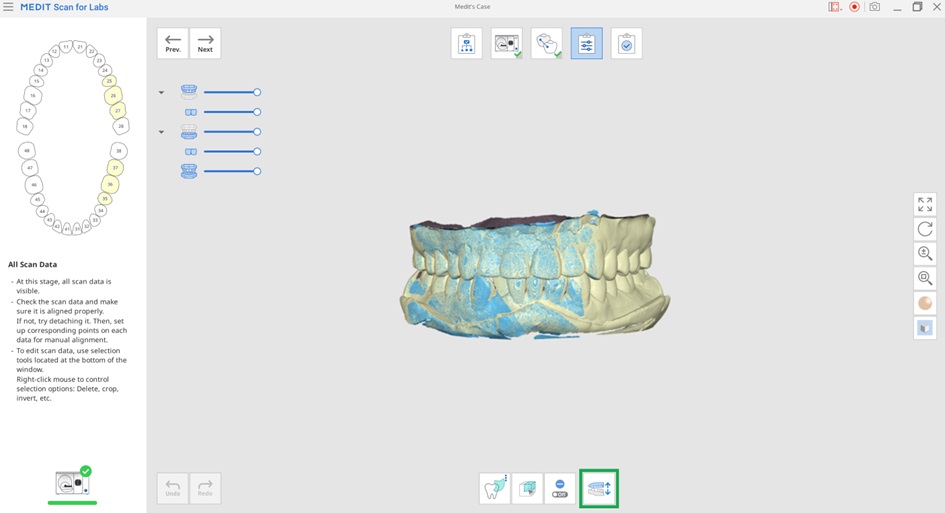

2. Click the "Adjust Occlusion Height" icon at the Confirm stage.

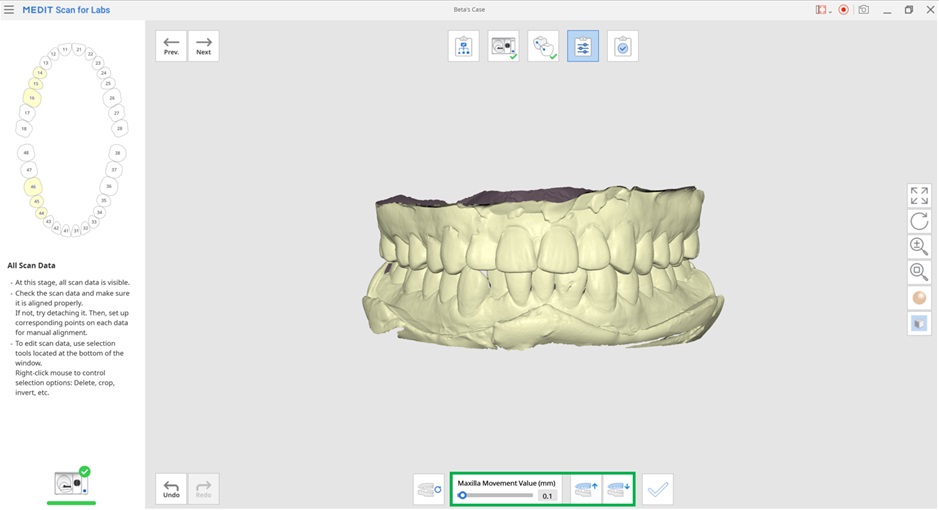

3. Set the "Maxilla Movement Value (mm)" option and move the maxillary data upward or downward.

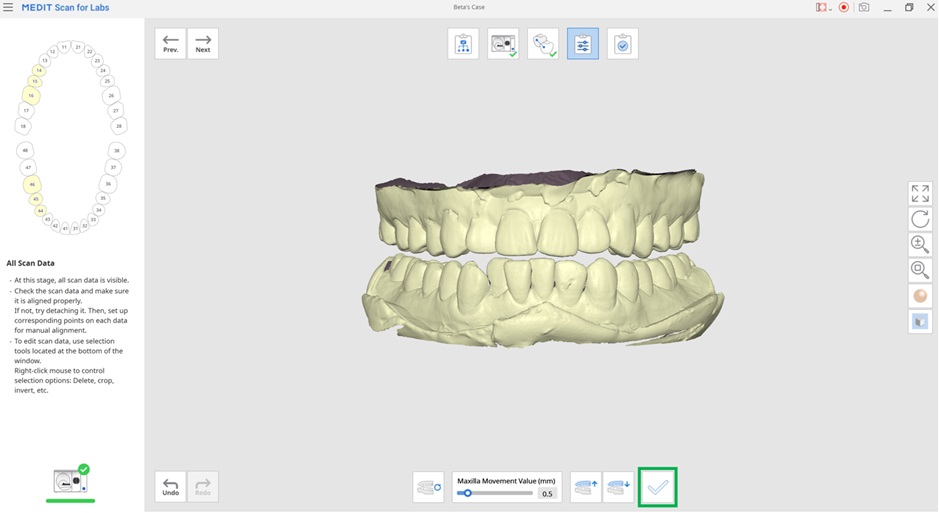

4. Click the "Exit" icon to complete.

Confirm Stage Tools

	Free Selection	Allow you to select an area freely.
	Rectangular Selection	Allow you to select a rectangular region.
	Island Selection	Allow you to select all connected data by clicking on a point.
	Surface-Only Selection	When on, allow you to select only the surface of data using the area selection tools.
	Deselection Mode	When on, deselect the selected area.
	Adjust Occlusion Height	Adjust the occlusion height using the provided tools below.

The following tools are provided when entering the "Adjust Occlusion Height" tool.

	Reset Occlusion Height	Reset the occlusion height of the maxilla.
	Move Maxilla Up	Move the maxilla upwards by the set maxillary movement value.
	Move Maxilla Down	Move the maxilla downwards by the set maxillary movement value.
