🔍 Occlusion Target for Maxilla/Mandible

If your case has preoperative scan data for the maxilla/mandible, the following command options appear in  the Occlusion scan stage.

 Maxilla occlusion data

• Select the occlusion target between the preoperative maxilla and the postoperative maxilla.

 Mandible occlusion data

• Select the occlusion target between the preoperative mandible and the postoperative mandible.

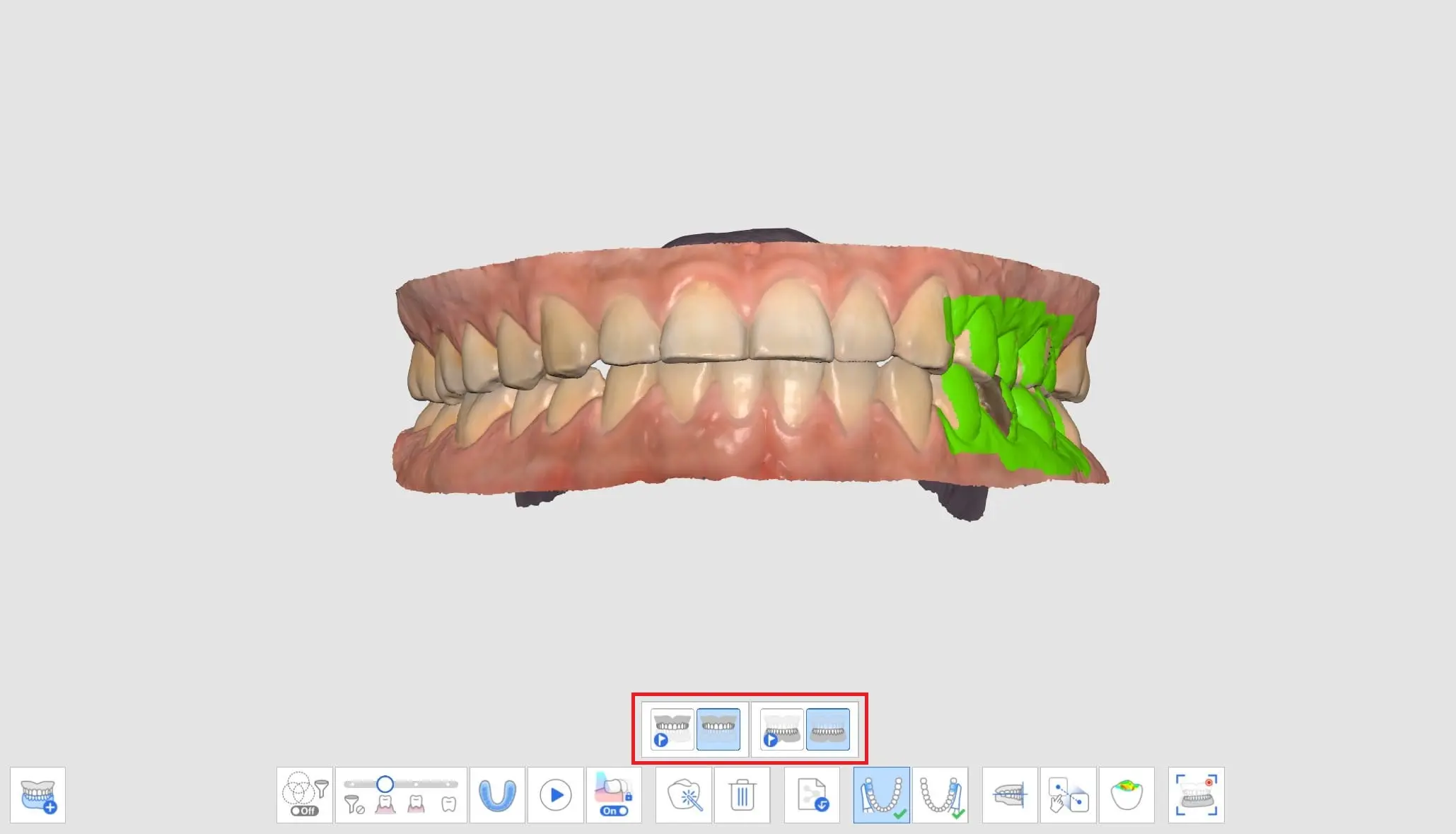

Select the occlusion target.

• : The preoperative maxilla is selected.
• : The postoperative maxilla is selected.
• : The preoperative mandible is selected.
• : The postoperative mandible is selected.

As a result, you can have four pairs of occlusion targets.

•  +  : The preoperative maxilla + The preoperative mandible
•  +  : The preoperative maxilla + The postoperative mandible
•  + : The postoperative maxilla + The preoperative mandible
• + : The postoperative maxilla + The postoperative mandible
