🔍 Manual Alignment (Occlusion)

In most cases, Medit Scan for Clinics successfully aligns the maxilla and the mandible. However, if the case has a deep bite or has no distinctive shapes on the buccal side, the automatic alignment may sometimes be unsuccessful. In this case, you can complete the occlusal alignment using the Manual Alignment feature.

1. In the Occlusion scan stage, enable  Manual alignment.

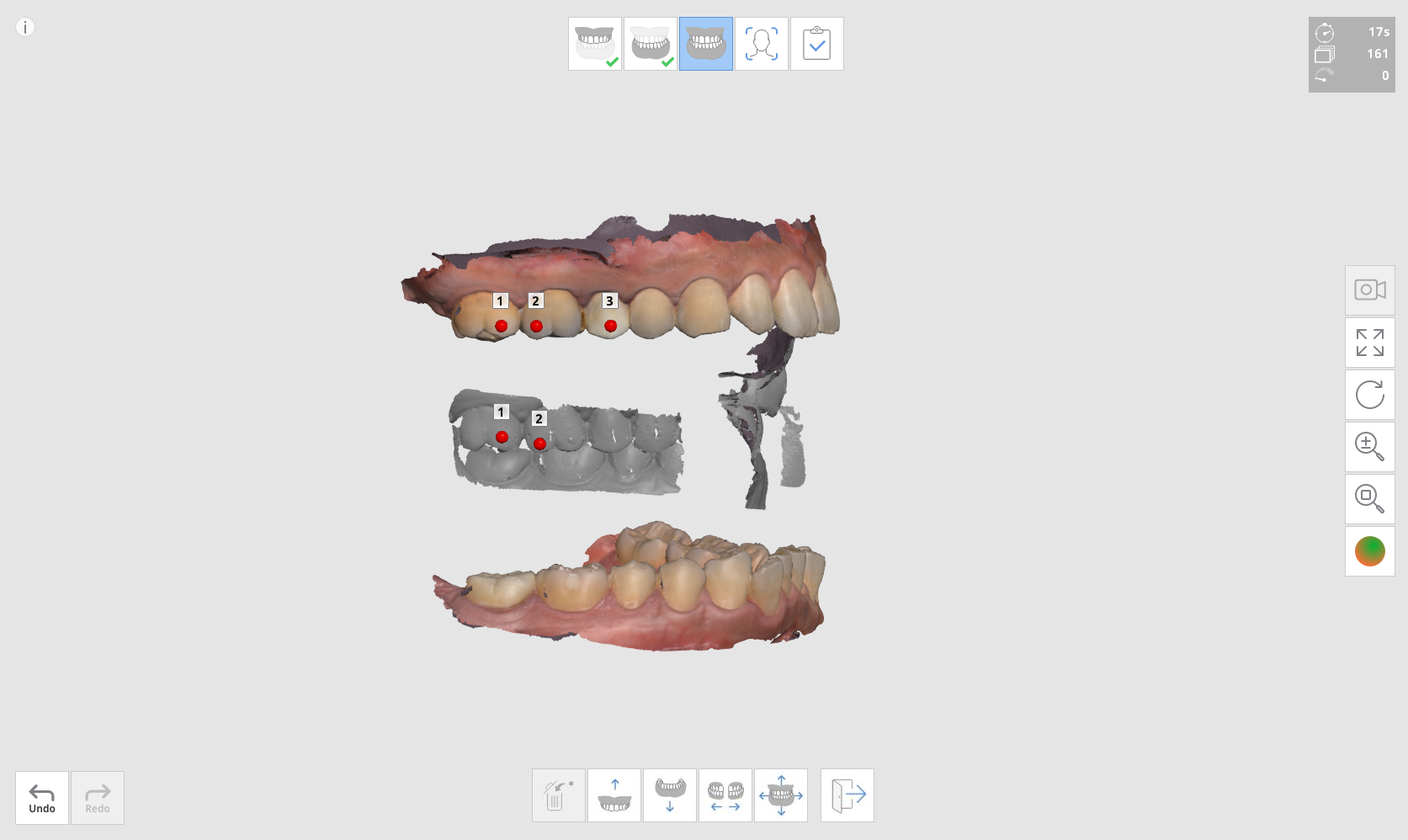

2. Mark a matching point on both the arch and the occlusal scan data.

• In general, 1 or 3 matching points are enough for the alignment, however you can mark as many matching points as you need.

❏ Command options

Remove marker point

• removes a selected marker point.

Detach maxilla

• detaches maxilla and moves it back to the pre-alignment position.

Detach mandible

• detaches mandible and moves it back to the pre-alignment position.

Detach occlusion data

• detaches first and second occlusion data and moves it back to pre-alignment position.

Detach All

• detaches all data and moves it back to the pre-alignment position.

 Undo

• undoes the previous action.

 Redo

• restores any actions that have been previously undone using an Undo.

Exit

• takes you to the previous step.
