📖 Get Result Files

Export Scan Result Files

In addition to sharing results with partners through orders, Medit Link allows you to store your result files in the desired file format using the export function.

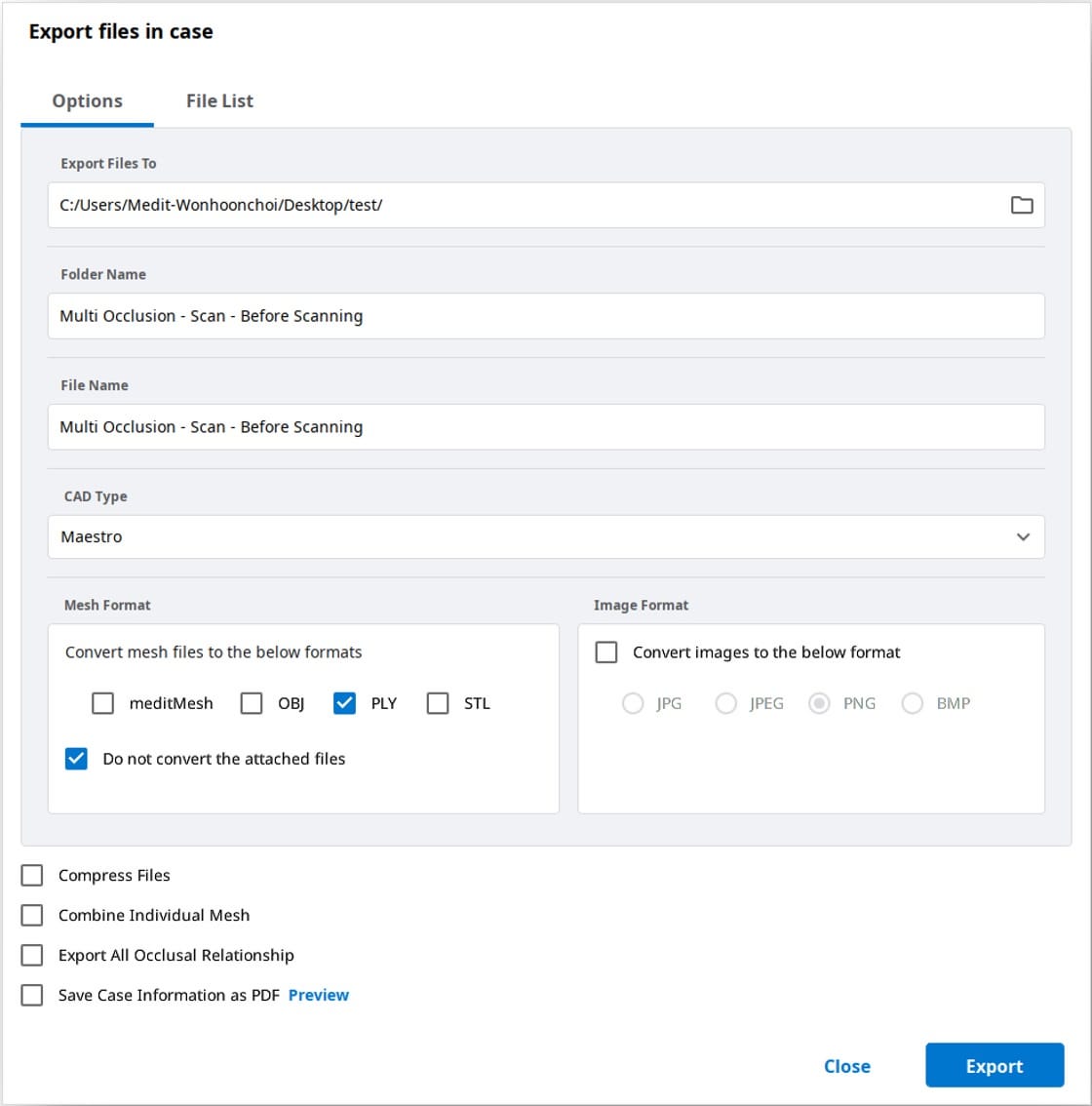

Export Files To	Specify the path where you want to store the result files.
Folder Name	The system creates a new folder and stores all result files in it. The default folder name is set by the naming rule. But you can change the folder name directly. You can define the naming rule on Settings > Export Options > Rules for Folder Name.
File Name	Set the file name for the result. The naming rule sets the default file name. But you can change the file name directly. You can define the naming rule through Settings > Export Options > Rules for File Name
CAD Type	Select the CAD program to be used for your design program. Medit Link will adjust the files based on this selection, allowing you to proceed with the design without any additional axis alignment.
Mesh Format	Specify the format of the mesh file.
Image Format	Specify the format of the exported image files.
Compress Files	Compress all results into a single file.
Combine Individual Mesh	Combine the result of the maxilla or mandible with the individual tooth. Useful when importing several files into a program is not possible.
Export All Occlusal Relationship	When multiple occlusal results are generated from the scan app, you can export all occlusal results at once.
Save Case Information as PDF	Save the case information as a pdf with the result.





Export Result Files from Case List

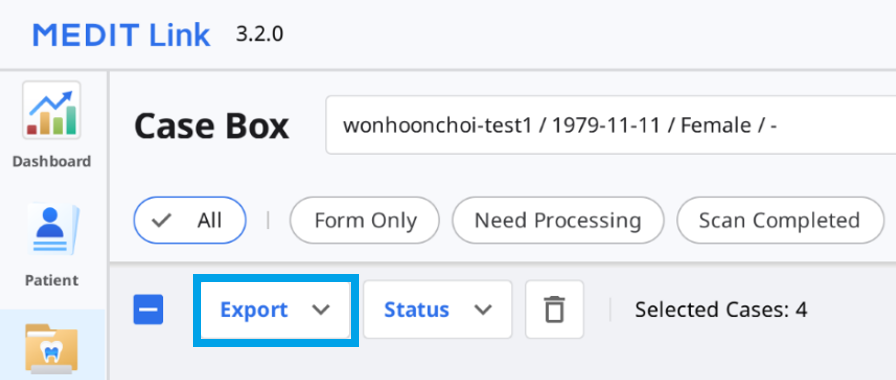

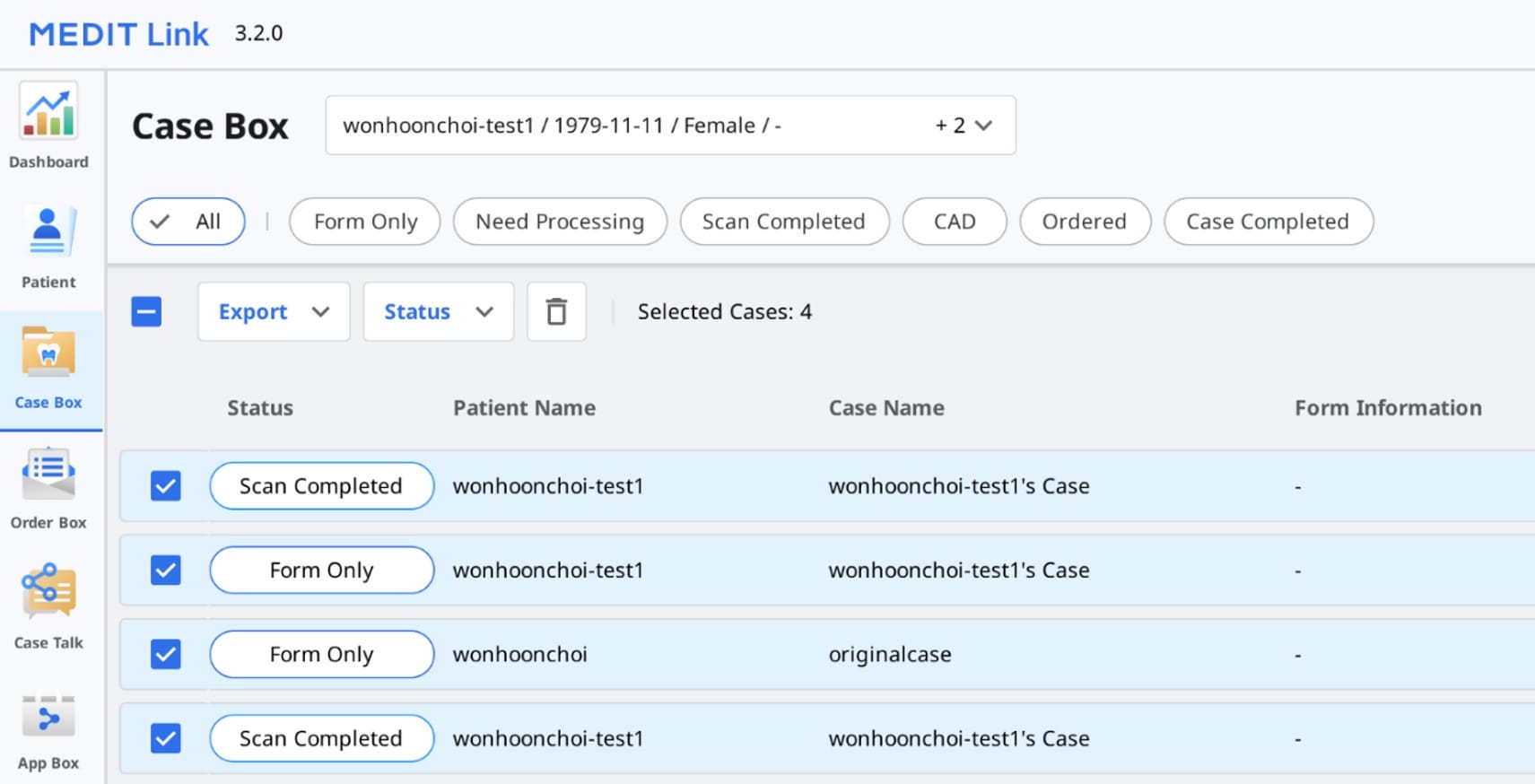

You can export result files of a case or multiple cases simultaneously with the "Export" option above the case list in Case Box and In Box.

1. Go to In Box or Work Box.

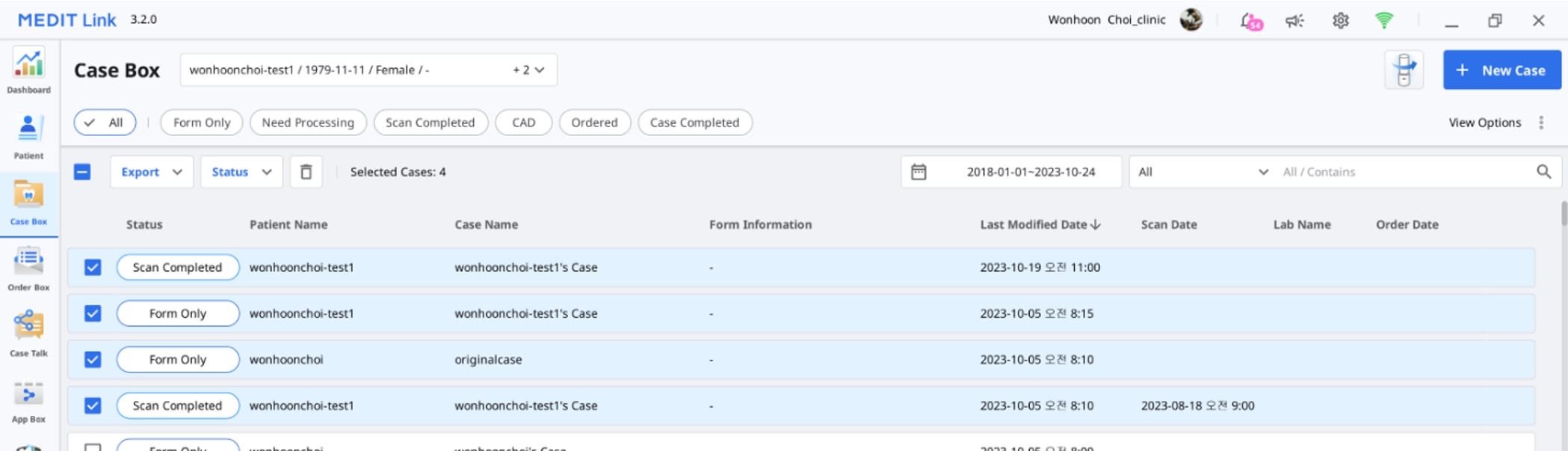

2. Select all cases you want to export result files from the list.

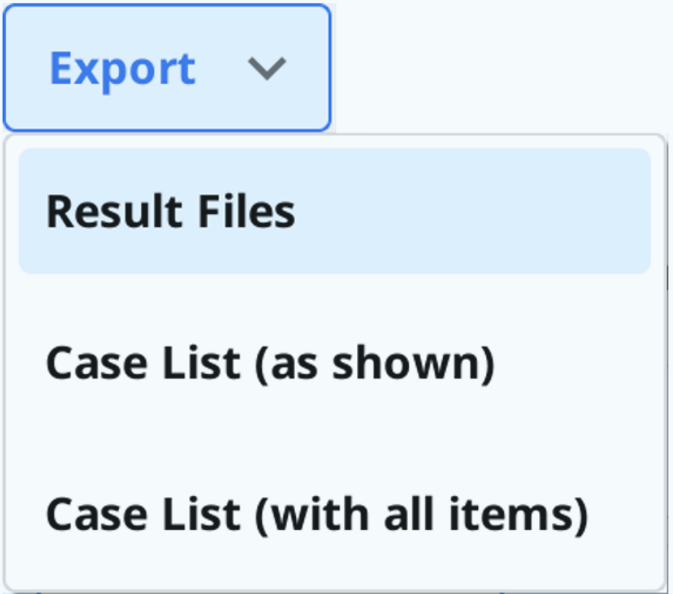

3. Click "Export" and select "Result Files."

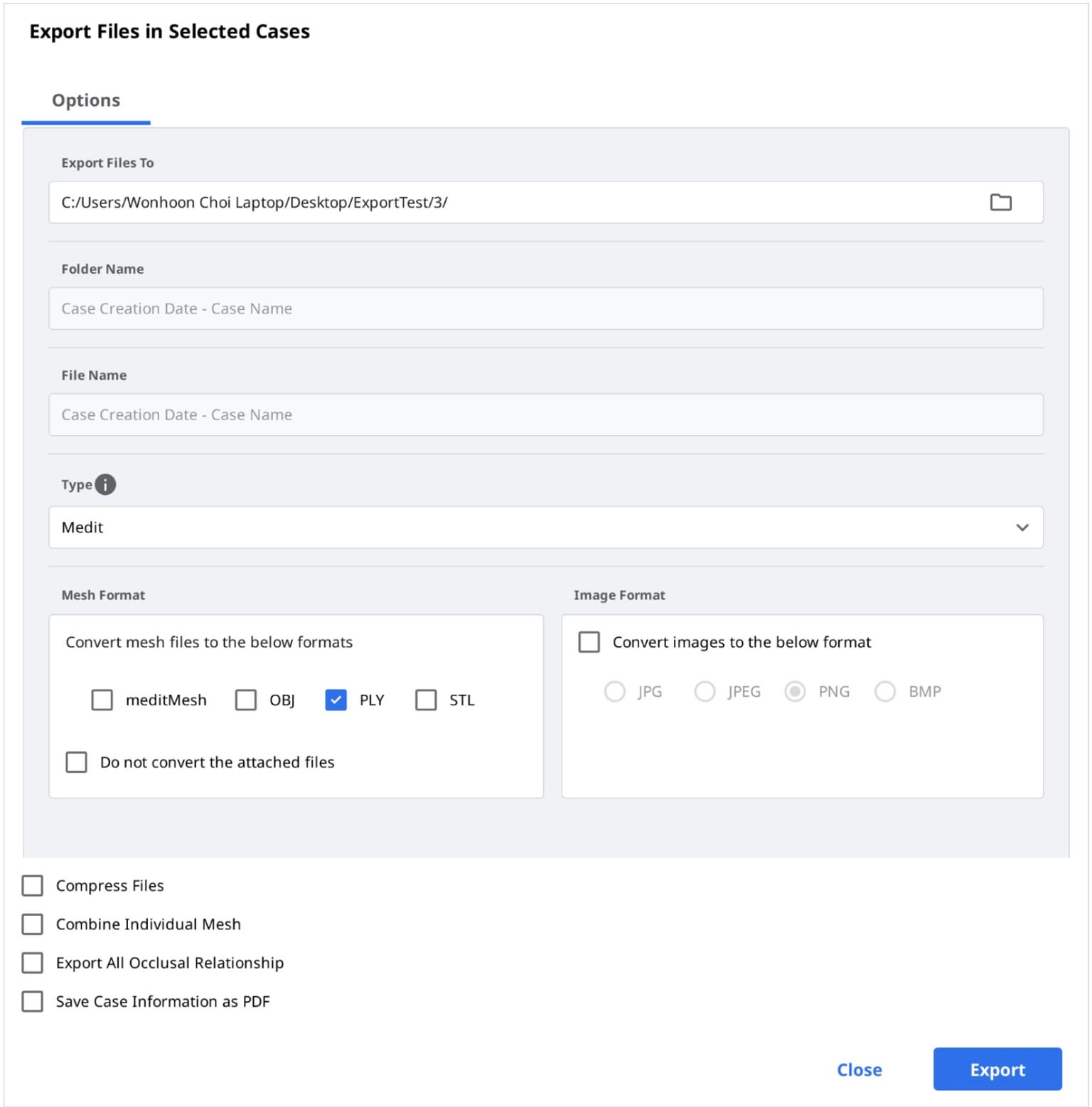

4. Set the destination folder, file type, mesh format, and image format, and select export options on the "Options" tab.

5. Click "Export."

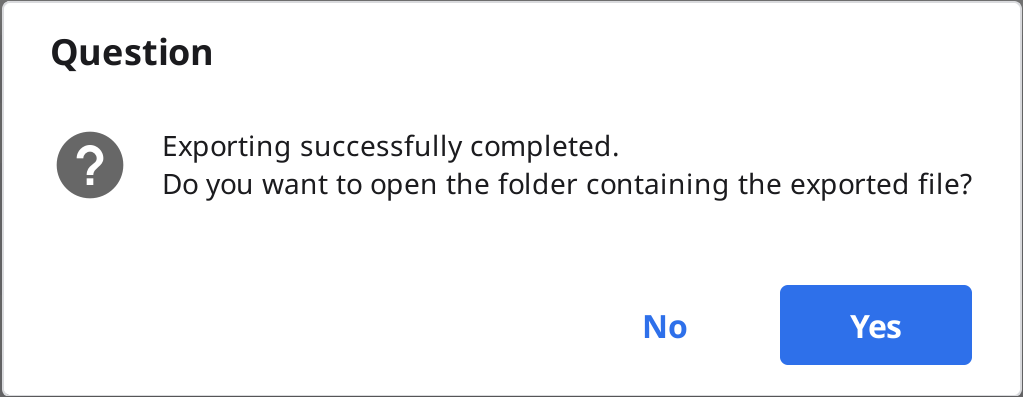

6. Click "Yes" to open the folder where the files are saved.



Export Result Files from File Viewer

You can export scan result files for a case with the "Export" icon on the top right corner of the File Viewer tab.

1. Go to In Box or Work Box.

2. Click to open a case from the list.

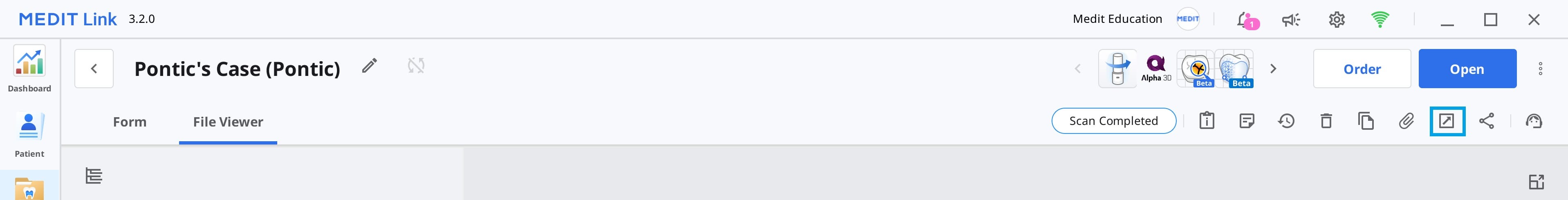

3. Click the "Export" icon on the top right corner of the File Viewer tab.

4. Set the destination folder, folder name, file name, file type, mesh format, and image format, and select export options on the "Options" tab.

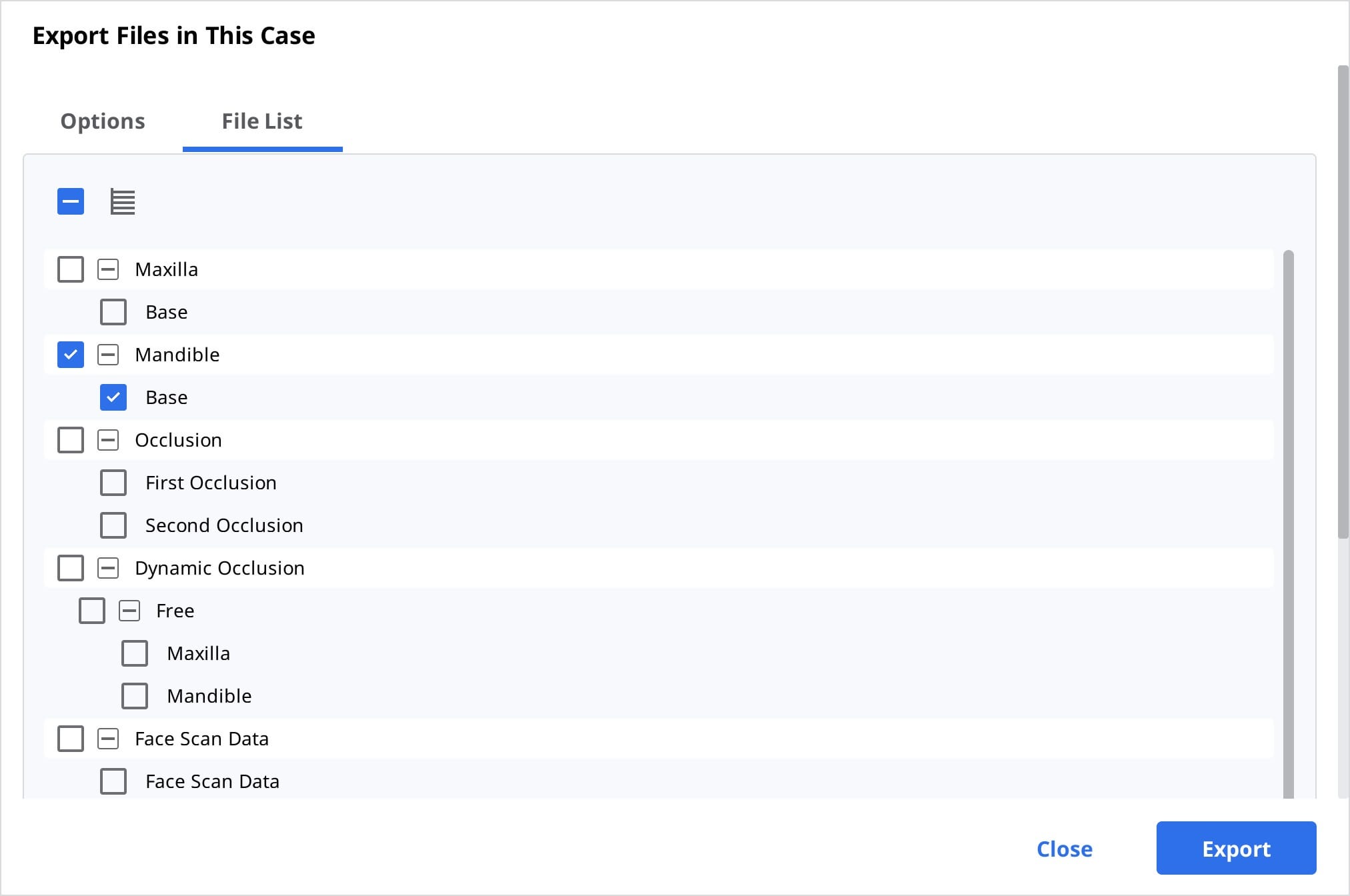

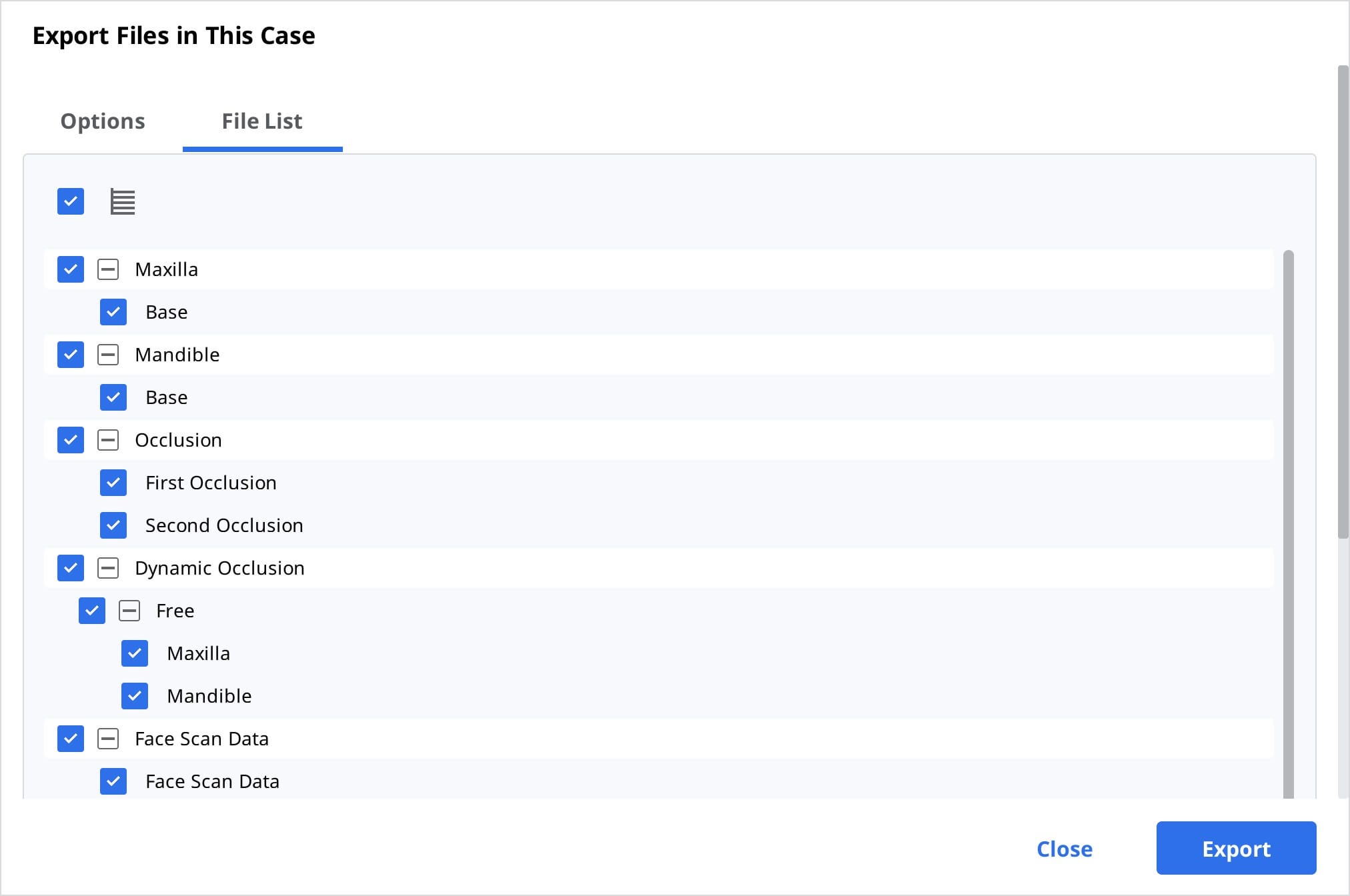

5. In the "File List" tab, you can select the required files for the case by deselecting unnecessary ones.

6. Click "Export."

7. Click "Yes" to open the folder where the files are saved.



Export Result Files from Data Tree

You can export a file or files in a specific data group from the expanded menu in the file viewer.

1. Go to In Box or Work Box.

2. Click to open a case from the list.

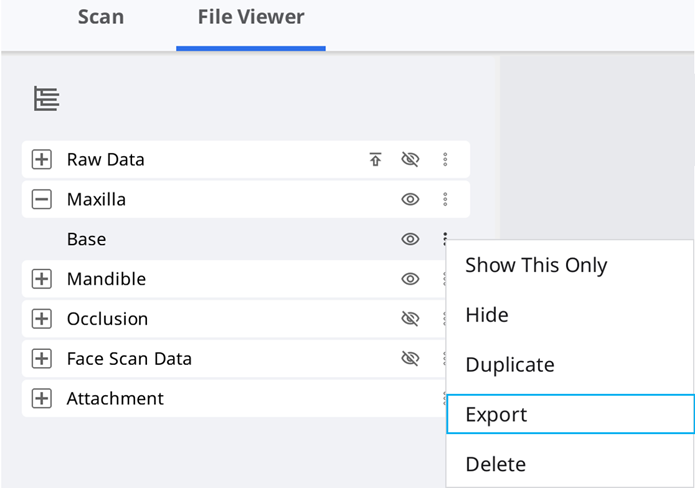

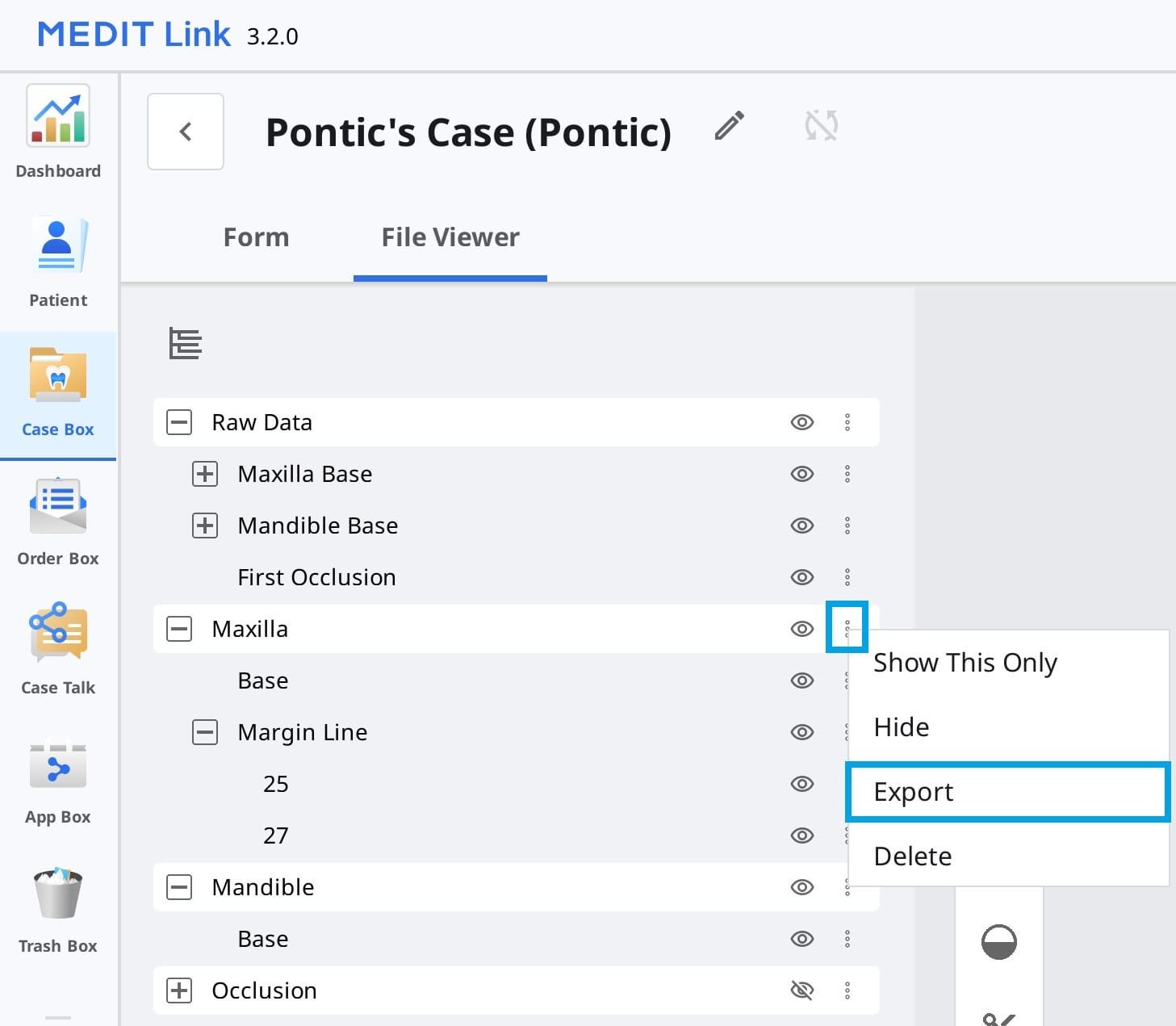

3. Click the three dots icon next to the data group or an entity in the data tree in the File Viewer tab.

4. Then click "Export."

5. Set the destination folder, folder name, file name, file type, mesh format, and image format, and select export options on the "Options" tab.

6. You can see only the files you chose in the data tree are selected in the File List.

7. Click "Export."

8. Click "Yes" to open the folder where the files are saved.



Export Case List as CSV

Medit Link provides the function to export the case list in CSV format.

You can export the case list with basic information and manage cases easily.

1. Go to Case Box, Order Box, In Box or Work Box.

2. Select the cases that you want to export.

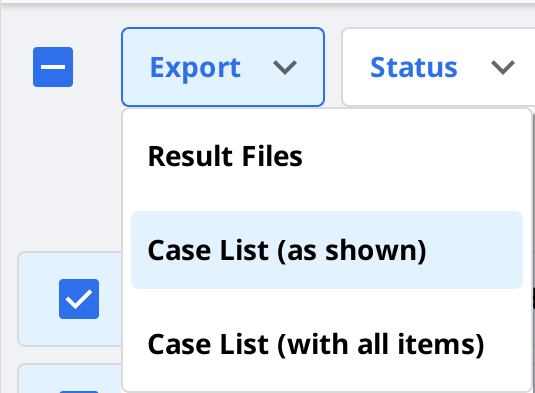

3. Click "Export" and select "Case List (as shown)" or "Case List (with all items)."

4. Define the path and file name, then save the list.

5. The case list is saved as a CSV file.



Export Margin Line

Medit Scan for Clinics provides a function to create the margin line, and Medit Link can transfer the margin line to the CAD program.

Export Margin Line as a Color

In general, Medit Link converts the margin line as color and exports the result with maxilla or mandible together. You can create the margin line in their cad referencing the color information.

Example:

Maxilla

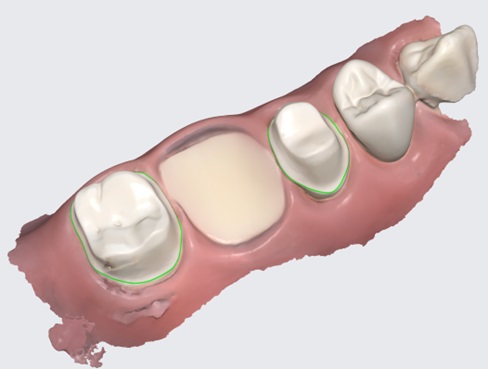

Result with the margin lines as color information

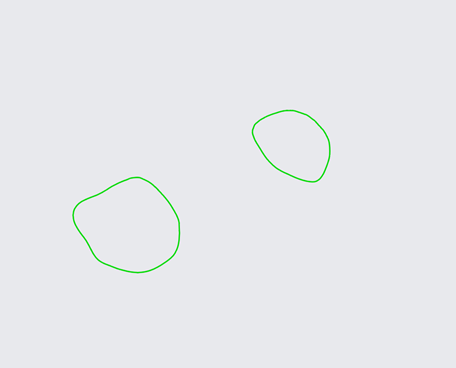

Export Margin Line as a File

In the case of Exocad, Medit Link export the margin line to "~margin.xyz" which can be imported into exocad directly.

You can use this file in exocad without additional work.

Example:

Maxilla	Margin Line
Result with the margin lines as color information	Margin line exported as individual files



Download Files from Medit Link Web

Medit Link provides a download function.

If you want to get the result files without installing the Medit Link application, you can download the files from the Medit Link web service.

The download function is available in the following menu of the Medit Link web service.

• Case Box
• Work Box
• Web Viewer



Case Box/Work Box

You can find the "Download" button at the top right.



Web Viewer

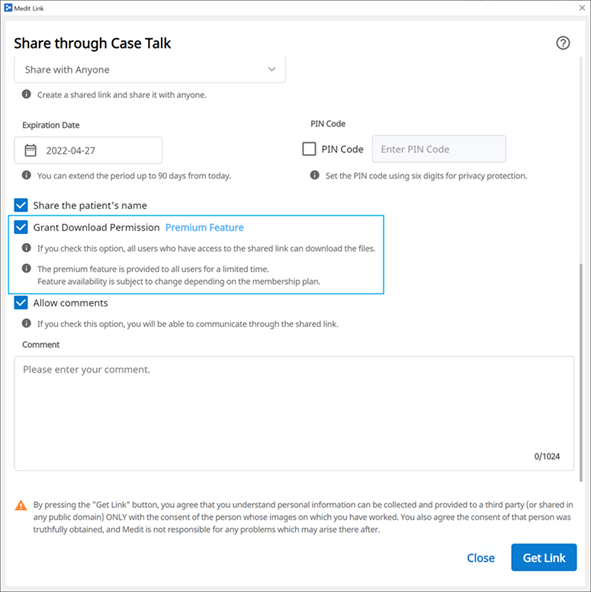

When you share the case using Case Talk, you can set whether to allow downloading or not.

If you check “Grant Download Permission” and share the case, all users who connect to the shared link can download the files.

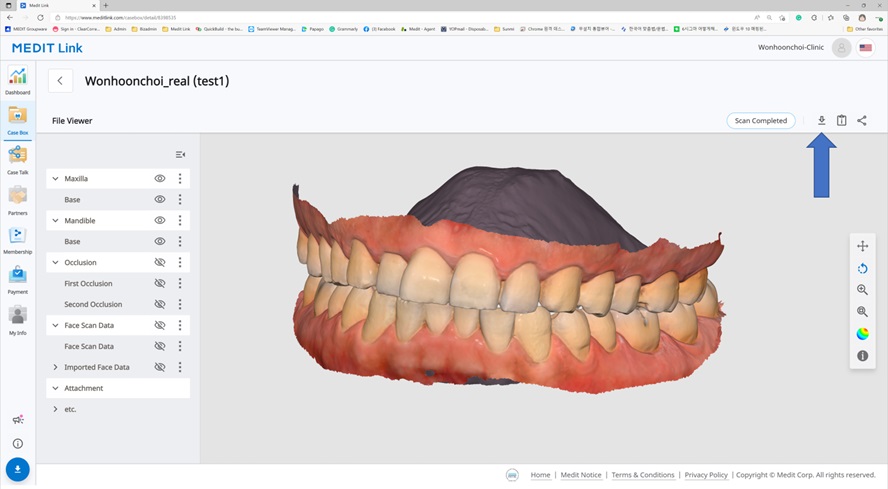

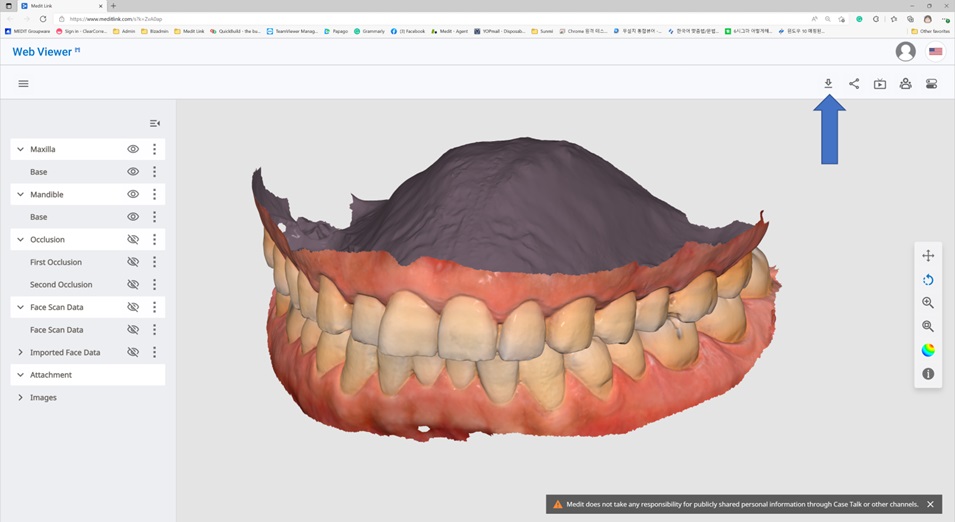

In the Web Viewer, you can find the "Download" icon at the top right.

1. Click "Download."

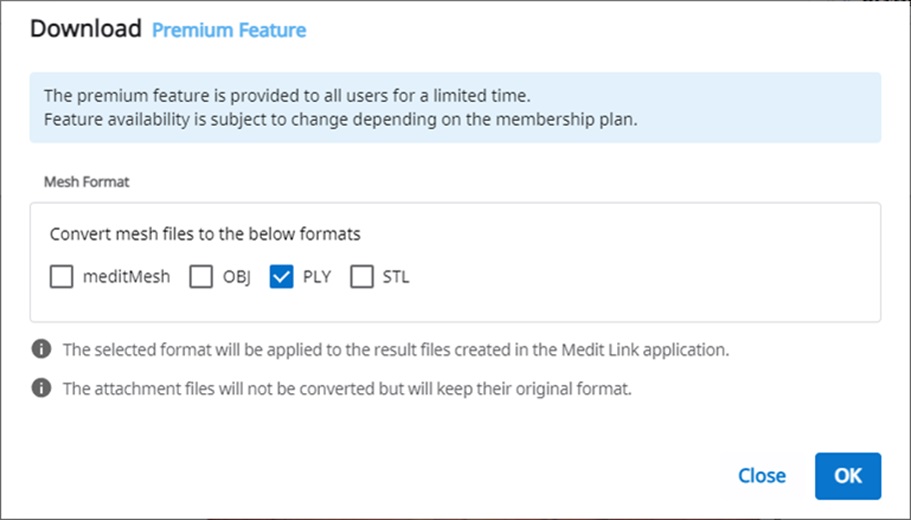

2. Select the mesh format from the download dialog.

3. Then click "OK."
