1. Medit Cart Overview

MEDIT CART is intended to allow users to place items on the top board and store additional supplies in three separate compartments according to their preference.
Users can replace the top shelf with the optional MONITOR ATTACHMENT to mount a monitor and laptop on it.

ℹ️ Note

Intraoral scanners (medical device) must be purchased separately.
Medit Cart is not classified as a medical device.

Features

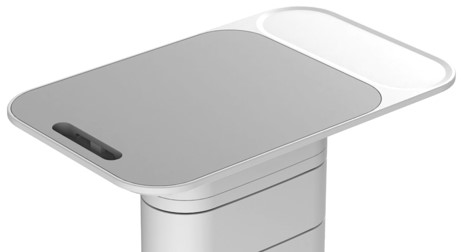

Large Desktop Cradle

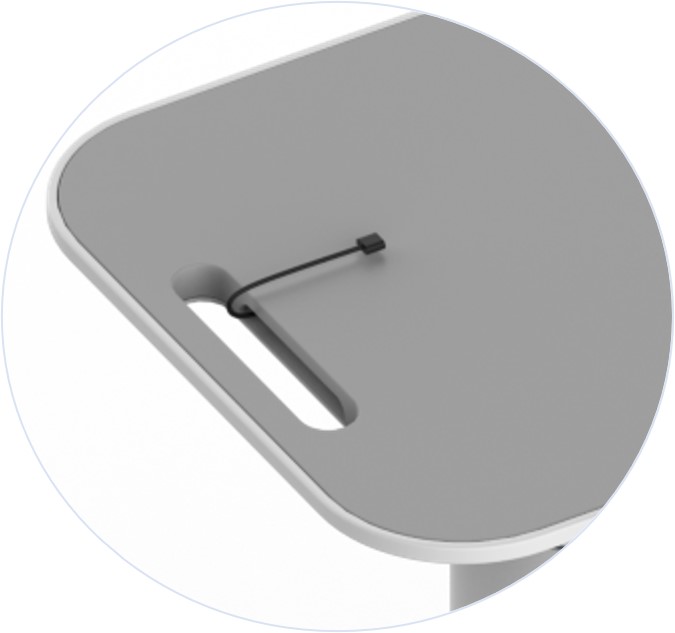

You can place your laptop on this cradle.
Table Size: L650 x W400 mm

Cord Storage Space

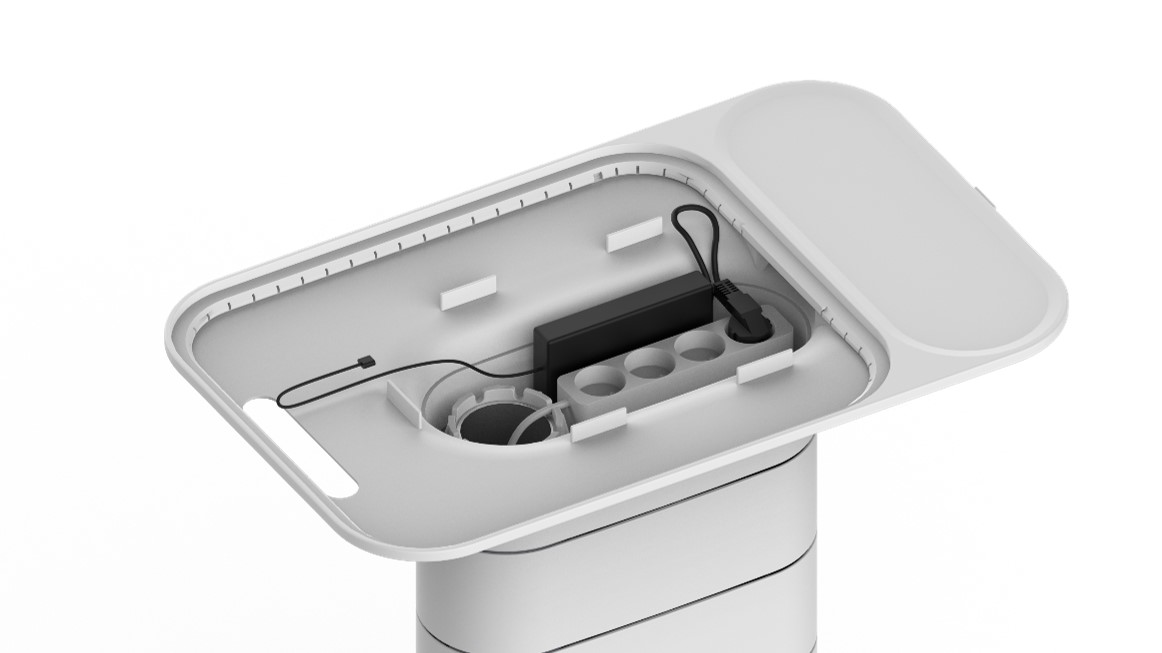

You can hide your laptop and extension cords inside.

Scanner Mount

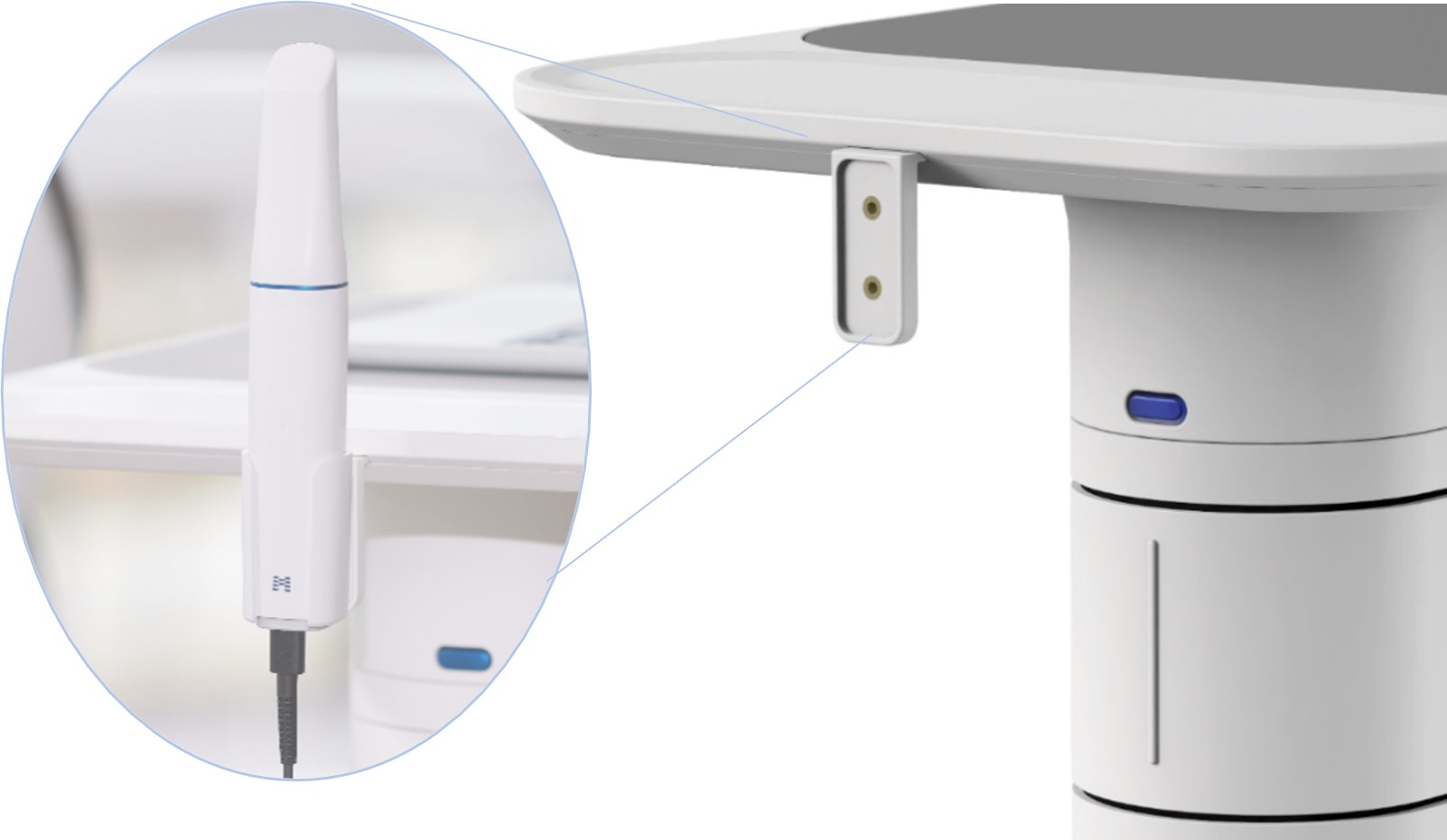

You can mount the intraoral scanner at the side of the cart.
Wall mount holders included in the Medit intraoral scanner package are compatible with this cart.

Storage

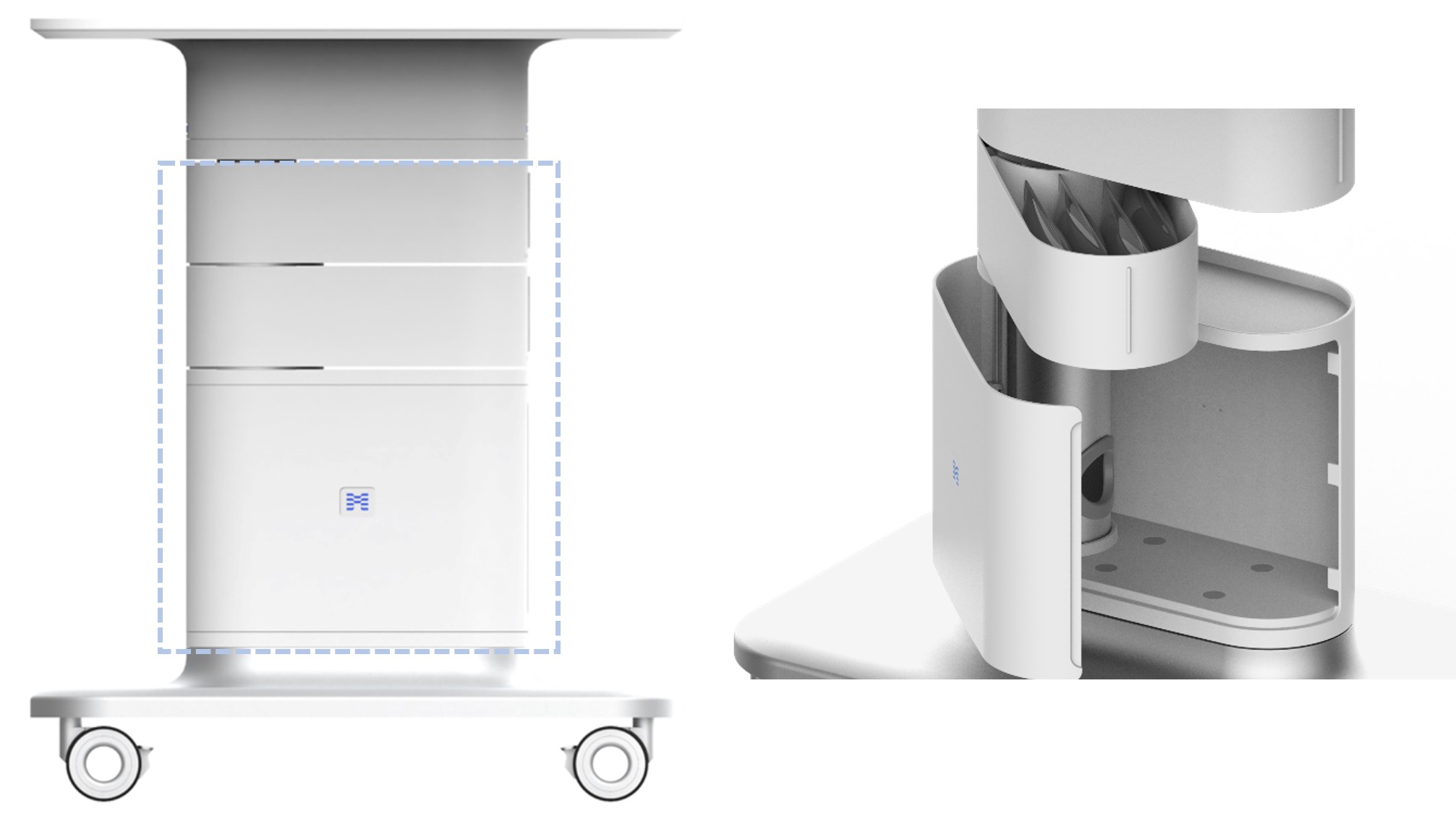

There are three separate storage spaces for extra tips and other materials.
The second level of the cart has enough space to store five tips.

Monitor Attachment

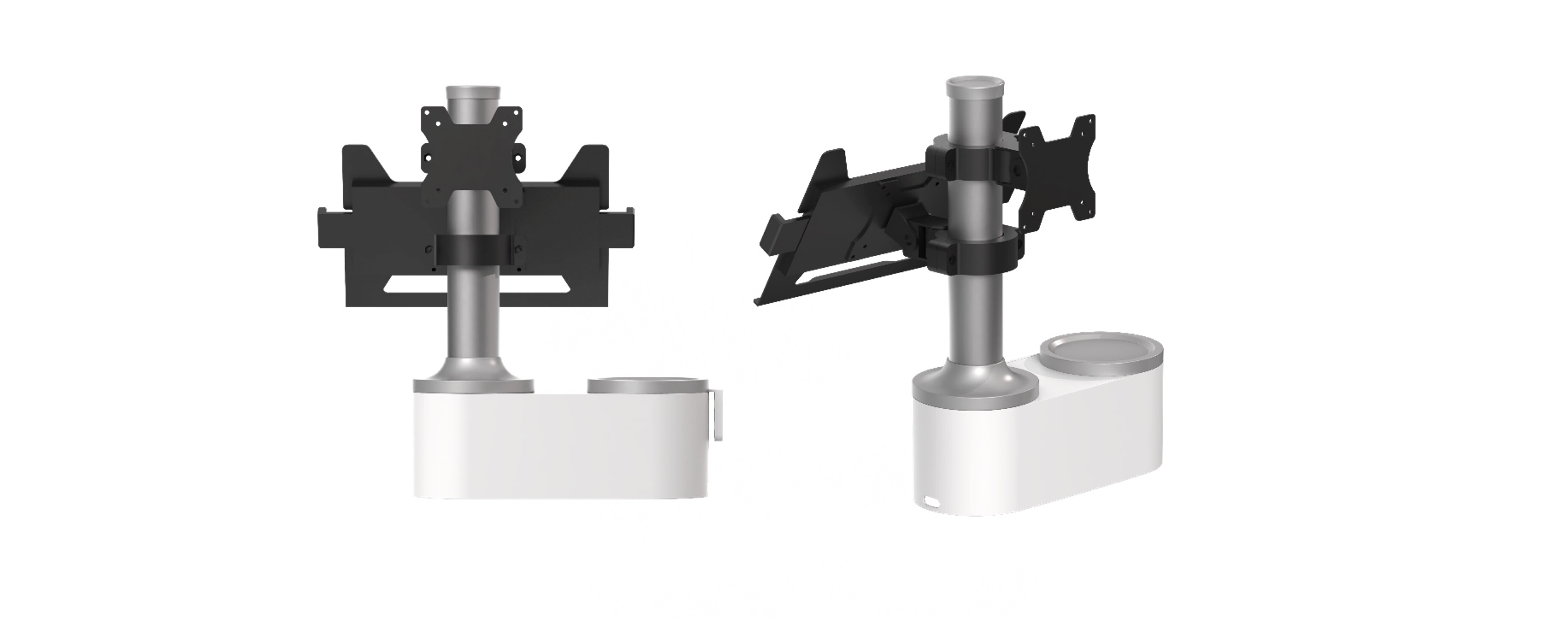

If you prefer using a monitor, you can purchase a monitor attachment.

Monitor Mount.jpg

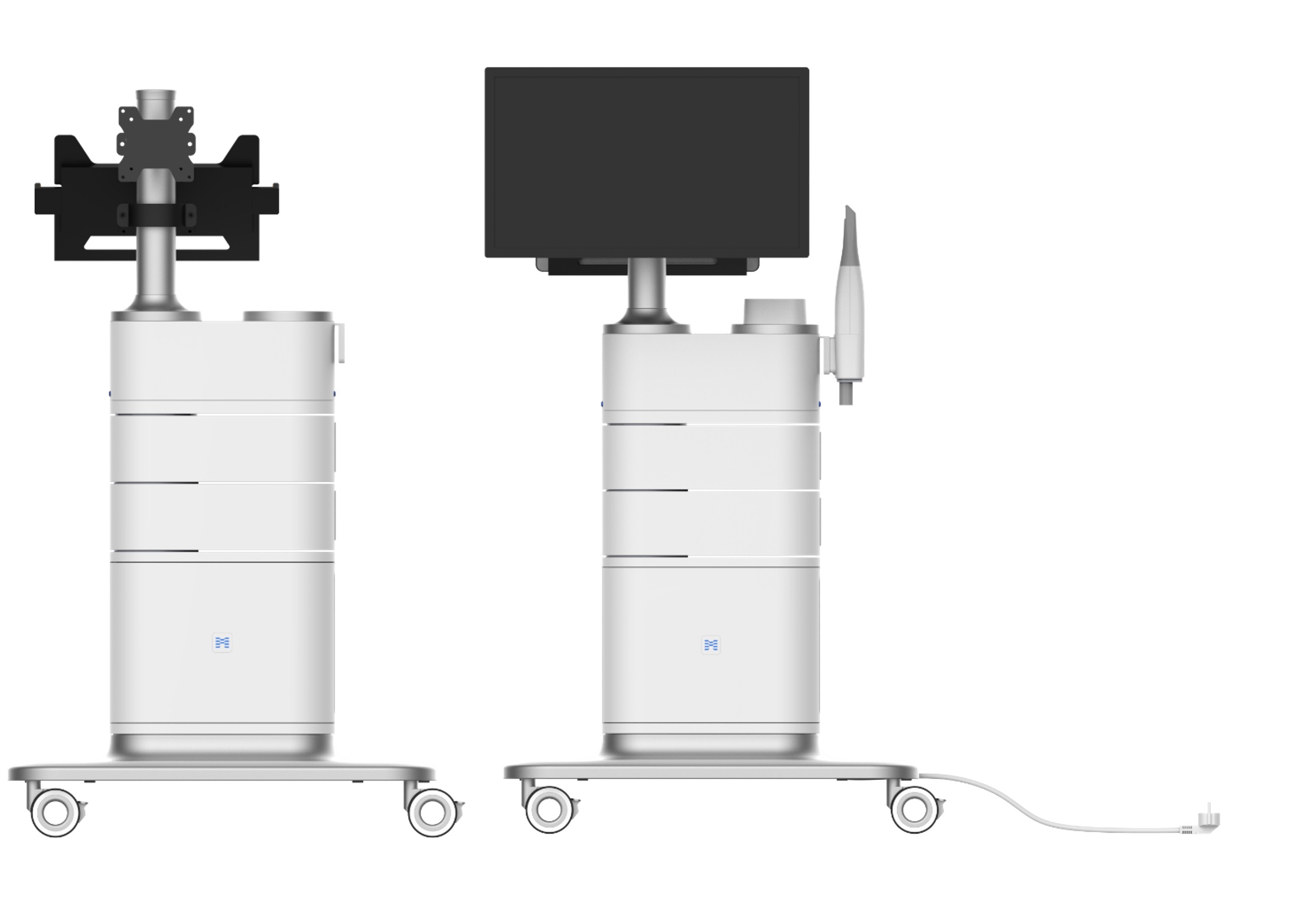

Monitor setup.jpg

2. Specification

Product Name		Medit Cart	Monitor Attachment
Model Name		MCT1	MCT1-MA1
Dimensions (L x W x H)	Hardware	650x400x782 mm	355x145x470 mm
Dimensions (L x W x H)	Package	770x470x675 mm	590x475x240 mm
Weight		25 kg	5.54 kg
Material	Body	Polycarbonate	Polycarbonate
	Base	Aluminum	Not applicable
	Pipe (Inside the Storage Compartments)	Stainless Metal	Not applicable
	Pipe (In the MONITOR ATTACHMENT)	Not applicable	Aluminum
Load Capacity (L x W x H)	Power strip area	200x120x90 mm	200x120x94 mm
	Storage Compartment (Swing-out drawers)	200x130x89 mm	Not applicable
	Storage Compartment (Base cabinet)	220x130x230 mm	Not applicable
Off-the-shelf Products Included	Caster	Ø75	Not applicable
	Clamp	Not applicable	114x114x140 mm
	Laptop holder	Not applicable	310x218x38 mm

3. Installation

Before assembling this cart, carefully review the following instructions carefully to ensure safety and stability.
Once assembled, place the cart on a flat surface and check for stability before use. Regularly inspect and tighten all parts to ensure safe and prolonged use.
Serious injury may occur if the cart tips over, so it is important to follow the assembly steps carefully.

Medit Cart User Guide (PDF)

3.1 MEDIT CART

3.1.1 COMPONENTS

	A: Top Board	B: Cart Base
	C: Storage Compartments	D: Casters
	E: Castle Nut	F: Open-end wrench
	G: Bolts L-wrench	H: Bolts
	I: Caps
	J: L-bracket + 3 Bolts (1 Set) * This bracket and bolt are for spare use. The L-shaped bracket is pre-installed during packaging. * Installing the L-bracket requires two bolts; an additional spare bolt is also provided.
	K: User Guide

3.1.2 ASSEMBLY INSTRUCTIONS

	Assemble the 4 Casters (D) onto the Cart Base (B) using an Open-end wrench (F). Please align the Open-end wrench (F) with the hex nut on the bottom of each Caster (D) and tighten it.
	Place the Storage Compartments (C) on top of the Cart Base (B) as shown in the illustration.
	Open the base cabinet of the Storage Compartments (C). Inside, you will find four holes to fasten the bolts (H) to the Cart Base (B). Please fasten the bolts (H) into each hole with an L-shaped wrench (G). Once tightened, position the Cap (I) on the bolts.
	After fastening the Bolts (H), lay the cart on its side and secure the Castle Nut (E) to the pipe in the Storage Compartments (C) from the bottom. Tightening may feel stiff, but it is essential for the cart's stability. Ensure the axis remains properly aligned. Caution: The castle nut (E) has sharp edges that may cause hand injuries. Always wear gloves during this step.
	After setting the cart upright, secure the Cart Board (A) onto the top surface of the Storage Compartments (C).
	The Cart Board (A) is supported by injection-molded components and blue spring buttons on both sides of the Storage Compartments (C). During assembly, press the blue spring buttons to securely attach the Cart Board (A). The spring tension is designed to enhance the cart's stability, so it may feel somewhat stiff when pressing the buttons.
	Remove the cover of the Cart Board (A) to access the power strip area underneath. Arrange the power strip and route its power cable through the pipe of the Storage Compartments (C) and under the Cart Base (B) to keep them organized. Connect the power cables from your devices to the power strip inside the top board through the gap in the lid handle.
	There are 3 holes on three sides of the top board (A) to install the L-bracket (J). The L-shaped bracket is shipped pre-assembled in the side hole opposite the handle space. If you want to install it on one of the two other sides, unscrew the bolts from the bottom of the Top Board (A) with an L-shaped wrench (G), move the L-shaped bracket (J) to the desired location, and retighten the bolts.

3.2 MONITOR ATTACHMENT

3.2.1 COMPONENTS

	A: MONITOR ATTACHMENT
	B: Clamp & VESA Mount (2 Sets)
	C: Laptop Holder (1 Set)
	D: VESA Mount Bolts & Washers (2 Sets) * Two sets of bolts and washers compatible with the specifications of the VESA mount are provided. Please use the bolts that match the specifications of your monitor to install the VESA mount.
	E: User Guide

3.2.2 ASSEMBLY INSTRUCTIONS

	If the top board, which is included as a standard part of the cart, is already assembled, detach it by pressing the blue spring buttons and pulling out the Top Board.
	Secure the MONITOR ATTACHMENT (A) onto the top surface of the Storage Compartments.
	MONITOR ATTACHMENT (A) is supported by the injection-molded components and the blue spring buttons on both sides of the Storage Compartments. During assembly, press the blue spring buttons to securely attach the MONITOR ATTACHMENT (A). The spring tension is designed to enhance the cart's stability, so it may feel somewhat stiff when pressing the buttons.
	Inside the MONITOR ATTACHMENT (A), there is a space for a power strip. 1) Unlock the round-shaped cover at the top right corner of the attachment by turning it counterclockwise. 2) Arrange the power strip inside and route its power cable through the pipe in the Storage Compartments and under the Cart Base to keep them organized. 3) Connect the power cables from your devices to the power strip inside the MONITOR ATTACHMENT (A). 4) Lock the cover by turning it clockwise.
	After installing MONITOR ATTACHMENT (A), attach the Clamp & VESA Mount (B) and the Laptop Holder (C) to the pipe of MONITOR ATTACHMENT (A) as shown below. 1) Attach the clamp to the pipe, ensuring that the bracket of the joint section, which will connect to the VESA mount is facing downward. 2) Attach the VESA Mount (B) to your monitor and the Laptop Holder (C). Use the appropriate size of bolts and washers from set D for the monitor and from set C for the Laptop Holder (C). 3) Insert the VESA Mount (B) into the joint on the clamp. 4) Use the screws from Set B to firmly tighten the VESA Mount and Clamp (B).

4. MAXIMUM LOAD CAPACITY

MAXIMUM LOAD CAPACITY OF MEDIT CART
The storage compartments have a maximum load capacity of 4 kg, and the base cabinet can support up to 10 kg.

MAXIMUM LOAD CAPACITY OF MONITOR ATTACHMENT
Each clamp (for monitor and laptop) supports a maximum load of 8kg, and the laptop holder itself weighs 700 g. Therefore, the maximum load capacity for a monitor is 8kg, while the maximum load for a laptop is 7.3kg. The recommended laptop size range is from 11.6 to 17.3 inches.
