⭐ System requirements

Updated

    Computer

    The computer used to connect to the intraoral scanner must meet the system requirements for Medit Scan for Clinics. (The computer that meets the requirements of Medit Scan for Clinics satisfies all other requirements as well.)

    The computer used to connect to the tabletop scanner(T-series scanner) must meet the system requirements for Medit Scan for Labs or colLab(old version tabletop scanner software).

    ℹ️ Note

    Please refer to the linked articles for additional information to better understand the following system requirements.

    Essential tips to know before you buy PC

    How to Check Your PC System Information



    Medit Scan for Clinics Requirements

    ⚠️ Caution

    • i500 is only compatible with Windows and is not supported on macOS.
      All other intraoral scanners are compatible with both systems.
    • In fanless MacBook Air models, performance degradation may occur due to heat rather than specifications.
    • To prevent disconnection during the scan, please adjust the following settings.
      Turn Off Battery Saver: Go to Settings > System > Power & battery, and turn Battery saver off.
      Change Screen and Sleep Timeout: Go to Settings > System > Power & battery, expand Screen and sleep, and set both options to Never.
      For detailed PC configuration instructions, please refer to the link below.
      Recommended PC Settings
    • USB-C Port Requirements
      Check if the USB-C port supports Power Delivery (PD).
      If PD is not supported, the i900 scanner cannot be used.
      The i600, i700, and i700w scanners can be used, but the Plug & Scan feature (direct connection without a Power Hub) is not supported.

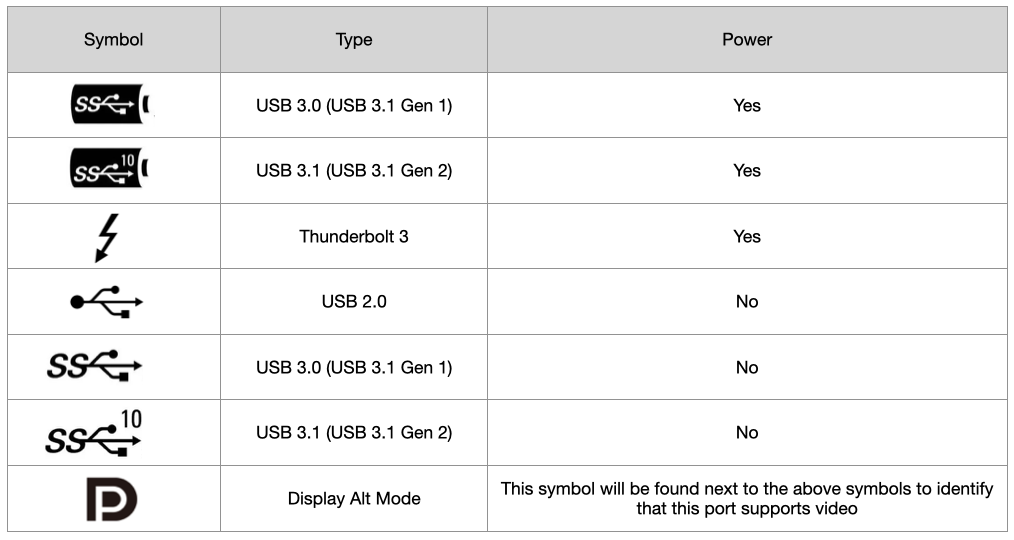

      What are the specifications of the compatible USB-C port?

      For detailed installation instructions, please see the link below.
      i500     i600     i700     i700 wireless     i900    i900 classic    i900 Mobility
      iE

    Recommended System Requirements



    Windows

    macOS


    Laptop

    Desktop

    Laptop/Desktop

    Processor

    Intel Core i7 - 14700HX

    Intel Core i7 - 13700H

    Intel Core Ultra 7 155H

    or higher

    Intel Core i7 - 14700K
    Intel Core i7 - 13700K

    or higher

    M1 Pro
    (10-Core CPU, 16-core GPU)

    M2
    (8-Core CPU, 10-core GPU)

    M2 Pro
    (10-Core CPU, 16-core GPU)

    M3
    (8-Core CPU, 10-core GPU)

    M3 Pro
    (10-Core CPU, 16-core GPU)

    or higher

    AMD Ryzen 7 8745H

    AMD Ryzen 7 7735H
    or higher

    AMD Ryzen 7 8700F

    AMD Ryzen 7 7700X
    or higher

    RAM

    32 GB or higher

    24 GB or higher

    Graphics

    NVIDIA GeForce RTX 5060
    (VRAM 8 GB or higher)

    * only compatible with Medit Scan for Clinics v1.13.3 and above

    NVIDIA GeForce RTX 4060
    (VRAM 8 GB or higher)

    NVIDIA GeForce RTX 3070
    (VRAM 8 GB or higher)

    NVIDIA RTX A3000
    (VRAM 8 GB or higher)

    or higher

    * AMD Radeon is not supported

    -

    OS

    Windows 10 64-bit

    Windows 11
    (recommended for 12th Gen or later Intel Core processors)
    or later

    Sonoma 14
    Sequoia 15

    or later

    Minimum System Requirements



    Windows

    macOS


    Laptop

    Desktop

    Laptop/Desktop

    Processor

    Intel Core i5-14500HX

    Intel Core i5-13500H

    Intel Core Ultra 5-125H

    or higher

    Intel Core i5-14400

    Intel Core i5-13400

    or higher

    M3
    (8-core CPU, 8-core GPU)

    or higher

    AMD Ryzen 5 8640H

    AMD Ryzen 5 7640H

    or higher

    AMD Ryzen 5 8600G

    AMD Ryzen 5 7600

    or higher

    RAM

    16 GB or higher

    16 GB or higher

    Graphics

    NVIDIA GeForce RTX 4050
    (VRAM 6 GB or higher)

    NVIDIA GeForce RTX 3060
    (VRAM 6 GB or higher)

    NVIDIA RTX A2000
    (VRAM 6 GB or higher)

    or higher

    * AMD Radeon is not supported

    -

    OS

    Windows 10 64-bit

    Windows 11
    (recommended for 12th Gen or later Intel Core processors)

    or later

    Sonoma 14
    Sequoia 15

    or later

    ℹ️ Note

    1. We recommend using one PC dedicated to the intraoral scanner as other programs hidden in the background may affect overall scanning performance.

    2. Use PC and monitor certified IEC 60950, IEC 55032, IEC 55024.

    3. The device may not work when using cables other than the USB 3.0 cable provided by Medit. Medit is not responsible for any problems caused by cables other than the USB 3.0 cable provided Medit. Be sure to use only the USB 3.0 cable included in the package.

    4. The content of this page is intended as general reference information for global audiences.
    Approval scope, components, usage environment, installation conditions, and provided offerings may vary by country.
    For the Japanese market, please refer to the latest Japanese-language Instructions for Use (IFU) and User Guide as the primary sources.
    In the event of any discrepancy between this page and the official documentation for Japan, the official documentation for Japan shall take precedence.
    For the latest detailed specifications and sales configurations, please refer to the documents included at the time of purchase, and contact your distributor or service center if necessary.



    Medit Link Web Requirements

    Recommended for Browsers

      Browsers
    PC Chrome, Firefox, Safari, Edge (Chromium)
    Android Chrome, Firefox
    macOS Safari, Chrome, Firefox

    ℹ️ Note

    For optimal use of Medit Link, it is recommended to update your web browser to the latest version. Please refer to the links below for updates for each supported browser.

    • Google Chrome
    • Safari
    • Firefox

    • If your Edge is the (legacy) version, click this link > Download New Microsoft Edge, it will replace the previous (legacy) version on your device.

      💡How to Check Edge Browser Version
      Legacy: Settings > General > About Microsoft Edge
      Chromium: Settings and more > Settings > About Microsoft Edge



    ℹ️ Note

    Medit Link Web also requires the same system requirements as the Medit Link App to function properly.



    Medit Link App Requirements

    System Requirements for Windows



    Laptop & Desktop
    CPU

    Intel Core i5 2.6 GHz or higher
    RAM 16 GB or higher
    Graphics

    NVIDIA GeForce GTX 760 (2GB) or higher / or equivalent AMD video card
    OS

    Windows 10 64 Bit (unavailable in 32 Bit) or later

    System Requirements for macOS

      Mac
    Processor Apple M1 chip (8-core CPU, 7-core GPU, 16-core Neural Engine)
    RAM  16 GB or more
    OS Sonoma 14 or later



    Medit Scan for Labs Requirements

    Medit T-series scanner is designed to use a USB 3.0 connection.

    1.Ensure the scanner is connected via a USB 3.0 port.
    2.Before installing the scan software, please update Windows, graphics card, and USB device drivers. Windows system should be up-to-date to ensure the USB 3.0 port is working properly.

    ⚠️ Caution

    • The T-series scanner system is unavailable for Windows 32 bit and Mac OS.

    Recommended System Requirements

      Laptop Desktop
    CPU Intel Core i7-8750H or higher Intel Core i7-8700K or higher
    RAM 32 GB or higher
    Graphics NVIDIA GeForce GTX 1060 6GB or higher
    OS Windows 10 64-bit / Windows 11 64-bit

    Minimum System Requirements

      Laptop Desktop
    CPU Intel Core i7-8750H or higher Intel Core i7-8700K or higher
    RAM 16 GB or higher
    Graphics NVIDIA GeForce GTX 1060 6GB or higher
    OS Windows 10 64-bit / Windows 11 64-bit



    Medit Link Express Requirements (Mac only)

    System Requirements for macOS

    Chip

    Apple M3 or later  

    CPU

    8-core CPU or higher

    GPU

    10-core GPU or higher

    Memory

    24 GB or higher

    OS

    macOS 15.0 (Sequoia) or later 

    Medit Link Express currently supports only Mac and iPad.



    Medit Apps Requirements

      Windows macOS
    CPU Intel Core i5 2.6 GHz or higher 8-core or higher
    Chip - M1/M2 or higher
    RAM 16 GB or higher 16 GB or higher
    Graphics Card NVIDIA GeForce GTX 1060(2 GB) or higher -
    OS Windows 10 64-bit, Windows 11 64-bit

    Sonoma 14 or later

    AuraVue, ClinicCAD, Orthodontic Suite (MOS), and Splints require macOS Sonoma 14 or later. All other apps require macOS Monterey 12 or later.



    Smartphone

    Medit Link Web Requirements

      Android iOS
    Device Galaxy S7 equivalent or higher iPhone 7 equivalent or higher
    OS Android 7.1 Nougat iOS 11.0
    RAM 3 GB or higher 2 GB or higher
    AP Above Snapdragon 710 A10 Fusion



    Medit M Requirements

      Android iOS
    Devices Galaxy S7 or higher iPhone 7 or higher
    OS Android 7.0 or higher iOS 15.1 or higher
    RAM 3 GB 2 GB
    Storage Space 200 MB or higher
    Network Environment Wi-Fi or mobile data connection

    *The above requirements are subject to change according to Google and Apple policies.



    iPad

    Medit Link Express Requirements

    Device

    Apple iPad Pro 7th Gen or later

    Chip

    Apple M4 or later

    CPU

    10-core CPU or higher

    GPU

    10-core GPU or higher

    Memory

    16 GB or higher

    Storage

    1 TB or higher

    OS

    iPadOS 26.0 or later

    ⚠️ Caution : To maintain a stable connection

    To prevent disconnection during scanning, please adjust the following settings:

    Turn Off Low Power Mode: Go to Settings > Battery, and switch Low Power Mode to Off.

    Change Auto-Lock: Go to Settings > Display & Brightness > Auto-Lock, and select Never.
