Preparing Data

There are two types of data user needs to prepare for the application: 3D scan data and radiographs (X-rays).

3D Scan Data

Only scan data acquired using Medit’s scanning software can be used in the app; only the .meditMesh file format is supported. The program will automatically import the data available in the case and convert it into a web-compatible format (.celeb). Before launching the application, the user must ensure the scan data is available under the “Maxilla” and “Mandible” tabs in the Data Tree.

Note

It is not possible to use cases with pre-attached data or to import data after the program has been launched.

Radiographs (X-rays)

The app supports only the JPG and JPEG file formats. X-ray import methods and analysis limits vary depending on the subscription plan.

Basic Plan	Pro Plan
Import X-rays from a local folder after launching the application. Analysis is limited to a maximum of 50 radiographs per month per Medit Link account.	Import X-rays from a local folder or directly from your Overjet account. No limit on the number of images that can be analyzed. Automatic patient matching is available when the same patient exists in both systems.

⚠️ Caution

Only radiographs of patients aged 22 and older are supported.

3D Data Control

Users can control the 3D data using a mouse alone or both the mouse and keyboard.

3D data control using a mouse (based on Windows)

Note

The use may differ depending on the settings of your browser.

3D data control using a mouse and keyboard

Saving Finalized Reports

Once a report is finalized, it is automatically converted to a PDF and saved to the corresponding case. Please note that finalized reports are not editable.

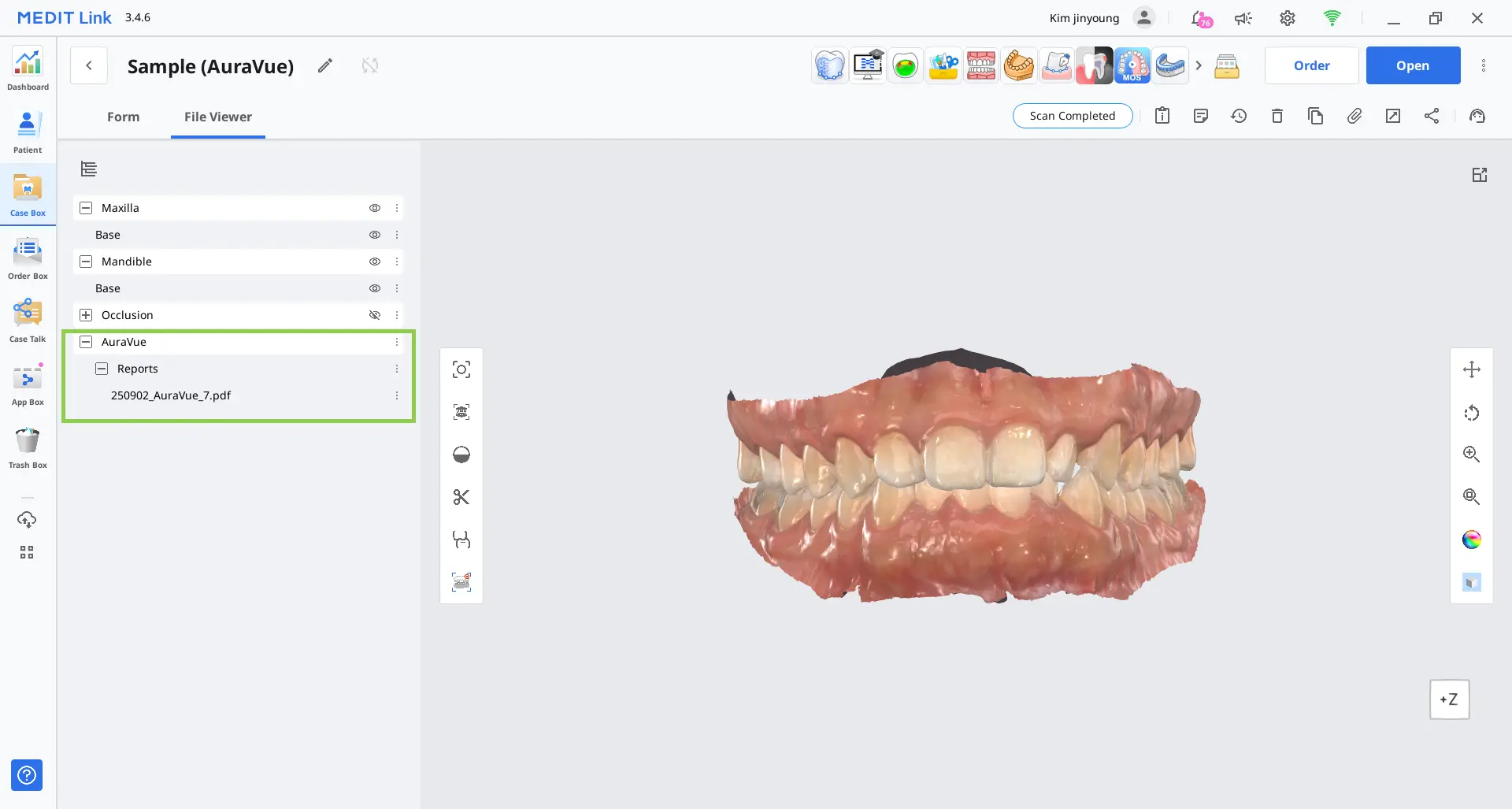

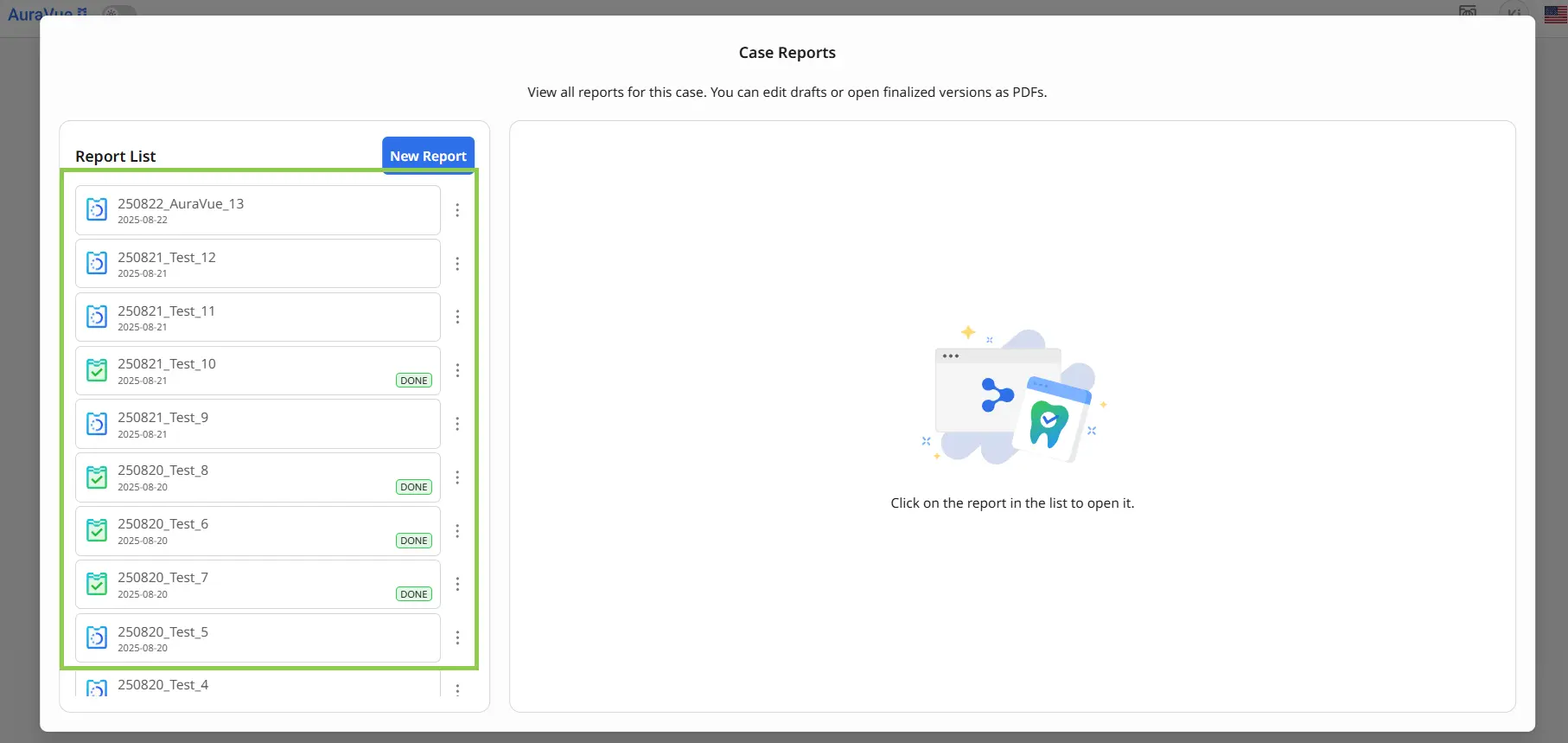

Finalized reports can be accessed and managed either through their corresponding Medit Link cases or by launching the app from the associated case. Draft reports, however, are only available within the program and cannot be accessed externally.
