🔍 xSNAP Guide

xSNAP Launch Promotion

We’re running a special promotion to celebrate the launch of xSNAP within Model Builder!

• Promotion Period: July 1, 2025 - August 31, 2025

During this period, all Model Builder users can use xSNAP free of charge.
You can freely access all features and export your designs without registering a card or starting a subscription.
If you are not a Medit scanner owner, Model Builder remains a paid product even during the promotion period, and a separate subscription or one-time payment is required.
Starting September 1, xSNAP will become a paid feature.

xSNAP Overview

What is xSNAP?

xSNAP is a 3D Articulator system that revolutionizes digital dentistry.
It enables accurate, patient-specific simulation of real jaw movements—including protrusion, laterotrusion, and mediotrusion—overcoming the limitations of traditional articulators.

Key Features

• Multi-directional mandibular movement simulation
• Adjustable condylar path in 8 steps ranging from 10° to 45°
• Two incisal plate options: flat and 30°
• Compatible with both partial and full arch models
• Seamless integration with 3D printers

Benefits on Medit Link

• Industry-first monthly subscription model for xSNAP
  (Most platforms offer annual plans only)
• Auto-attachment of the articulator based on model height and position
• Flexible usage: free during the design stage, payment required only at final export

How to Use

xSNAP is not a standalone application.
It is provided as a paid feature within Model Builder, so you must install the Model Builder app to use it.

Usage Steps

1. Download and launch Model Builder from the App Box

2. Proceed with the standard model creation workflow

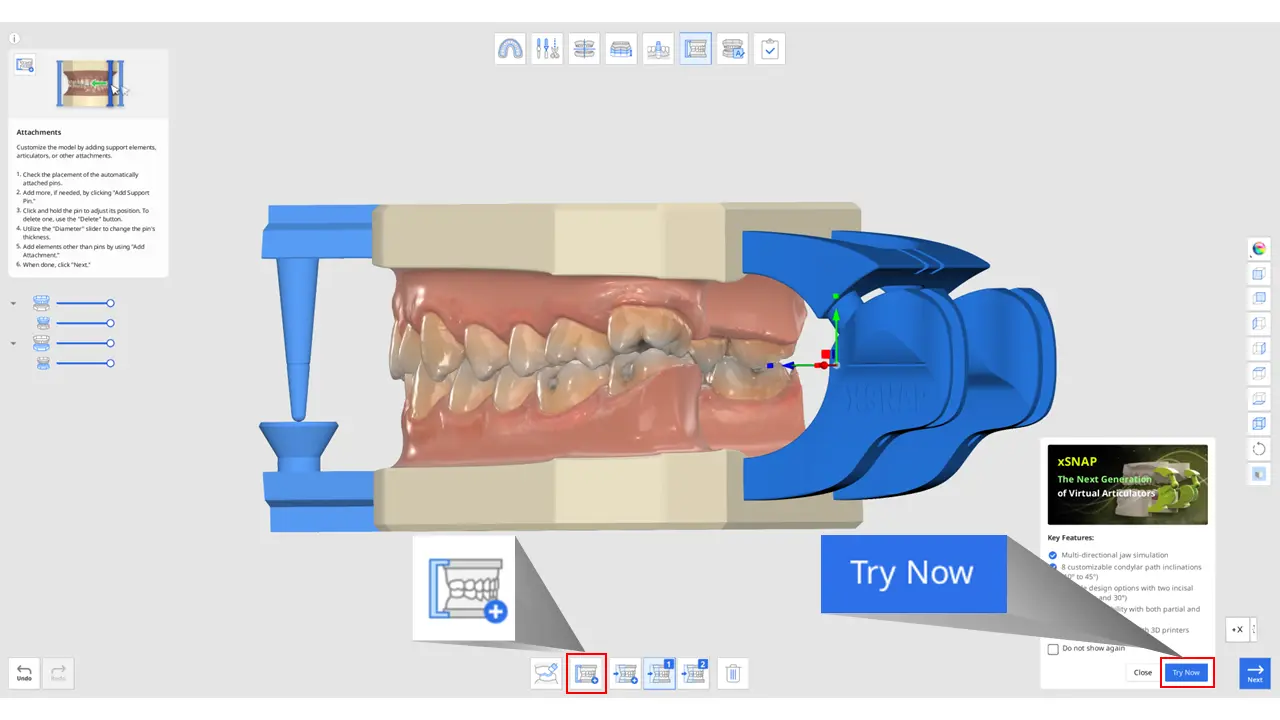

3. At the Attachments stage, click the “Add attachment” button

    or click the “Try Now” button in the xSNAP promotional banner

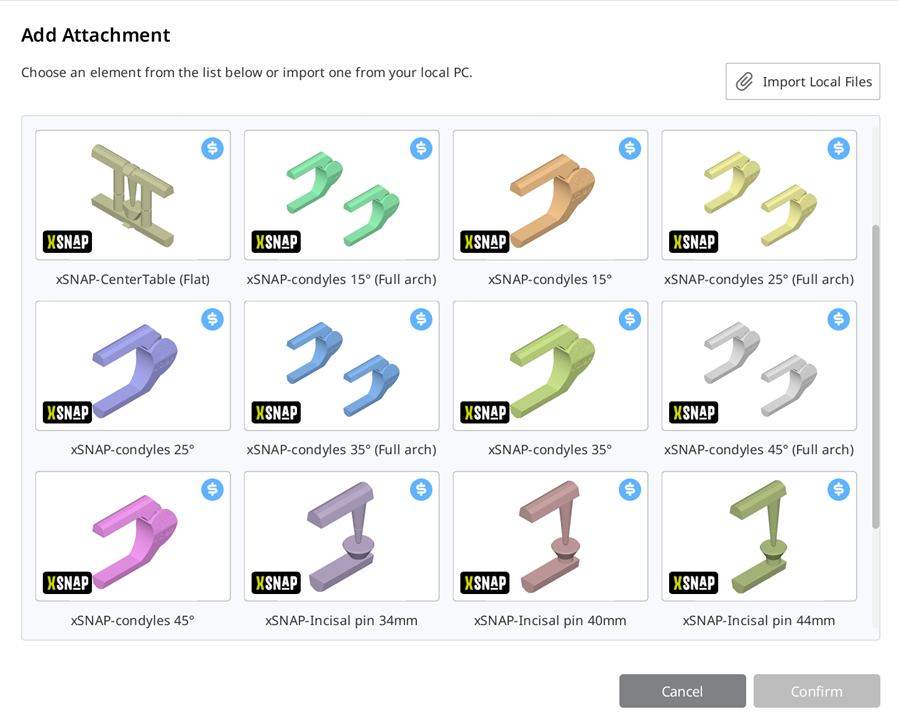

4. In the dialog window, select the xSNAP component
5. When exporting the design, complete your xSNAP subscription payment

Subscription Pricing

Medit offers the industry’s first monthly subscription plan for xSNAP, making it more affordable than traditional annual-only models.

FAQ

Q1. Will xSNAP automatically become a paid subscription after the promotion?

A. No, it won’t convert automatically. You’ll need to manually subscribe if you want to continue using xSNAP.

Q2. If I already subscribe to Model Builder, do I still need to pay for xSNAP separately?

A. Yes, xSNAP is a paid 3rd party solution that requires a separate payment, independent of your Model Builder subscription.

Q3. Can I subscribe to xSNAP without subscribing to Model Builder?

A. No, xSNAP runs on Model Builder and cannot be used on its own.
You’ll need to either subscribe or make a one-time purchase for Model Builder.

Q4. Do Medit scanner users also need to subscribe to xSNAP?

A. Yes, Medit scanner users can use Model Builder for free, so you only need to subscribe to xSNAP separately.
