📖 [DCM Converter] Overview and General Information

❏ What is Medit DCM Converter?

Medit DCM Converter is a software application that converts 3Shape DCM files to a format usable in the Medit ecosystem. Medit DCM Converter can be run from both clinic and lab accounts in Medit Link.

❏ System requirements

Windows

• CPU: Intel Core i5 2.6 GHz or higher
• RAM: 16 GB or higher
• Graphics: NVIDIA GeForce GTX 1060 (2 GB) or higher
• OS: Windows 10 64-bit, Windows 11 64-bit

macOS

• Chip: M1/M2 or higher
• CPU: 8-core or higher
• RAM: 16GB or higher
• OS: Monterey 12

❏ Installation

1. Log in to your Medit Link account and go to the App Box on the left-hand menu.

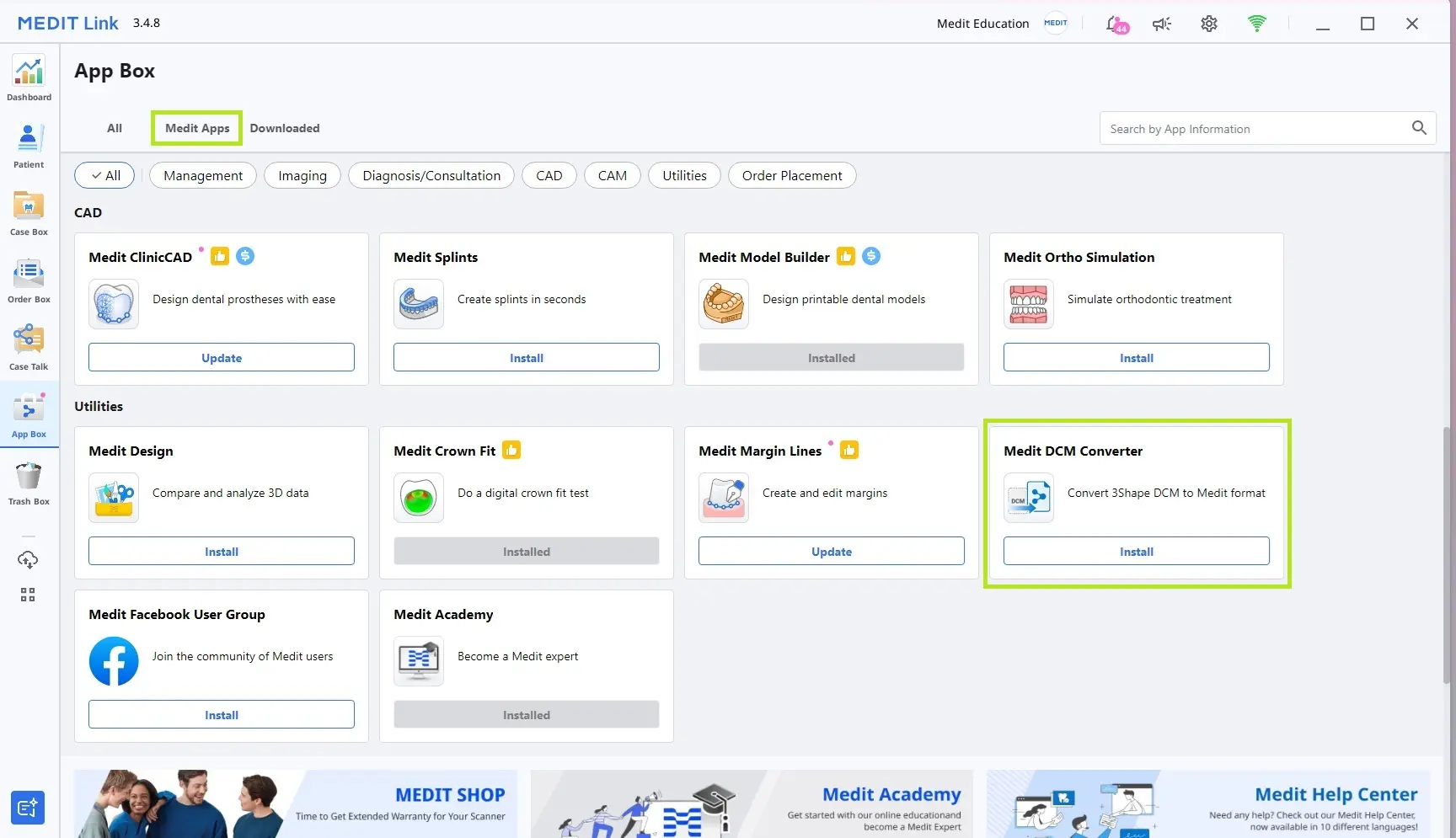

2. In the Medit Apps tab, find the Medit DCM Converter app and click "Install."

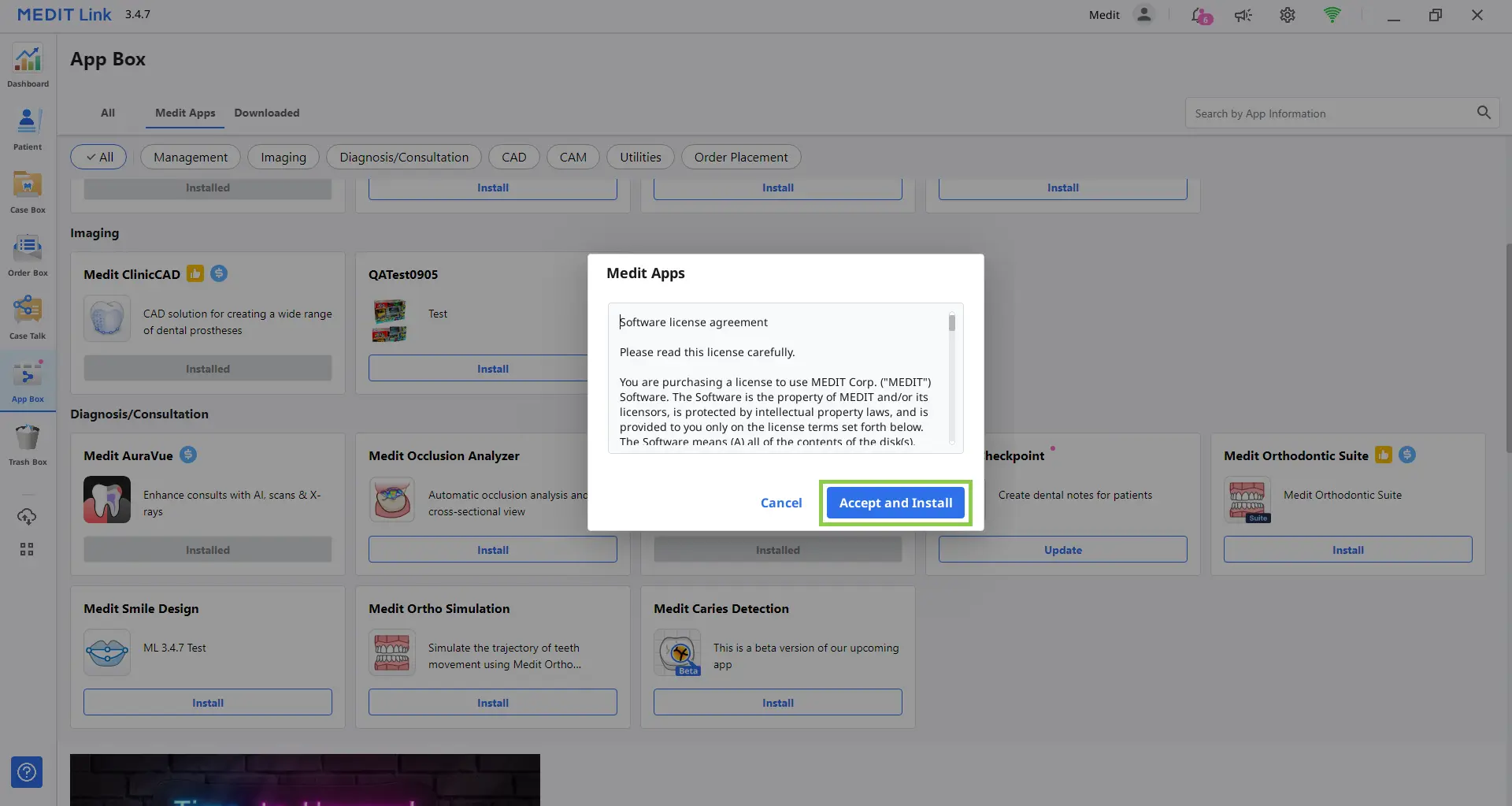

3. Read the Software License Agreement and confirm app installation by clicking
"Accept and Install."

4. The app will be downloaded and installed automatically. It may take several
minutes to finish the installation process.

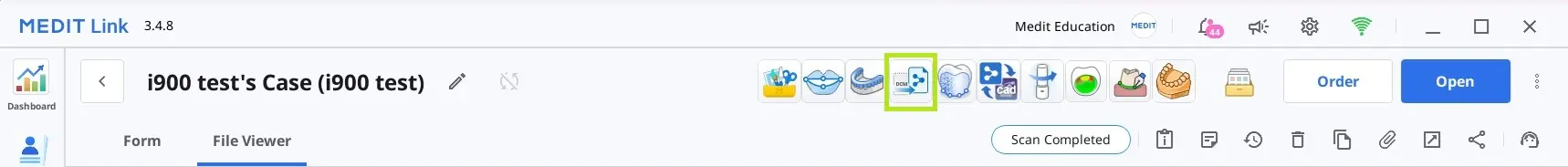

5. Once the app is installed, you can run it from any case in Medit Link by clicking
the app icon in the top right corner of the Case Detail window.

6. To uninstall the program, open App Box and locate the Medit DCM Converter
app. Select the app card to open its details page, then click “Uninstall.”
