📖 Case Talk

Cases created in the Medit Link can be shared with specific people you specify, anyone with the shared link or registered members of Medit Link.

The user can see a list of all shared cases through "Case Talk" in Medit Link App and Medit Link Web.

Shared cases can be viewed via a web browser without installing a separate program, enabling easy communication over the 3D data on various devices.

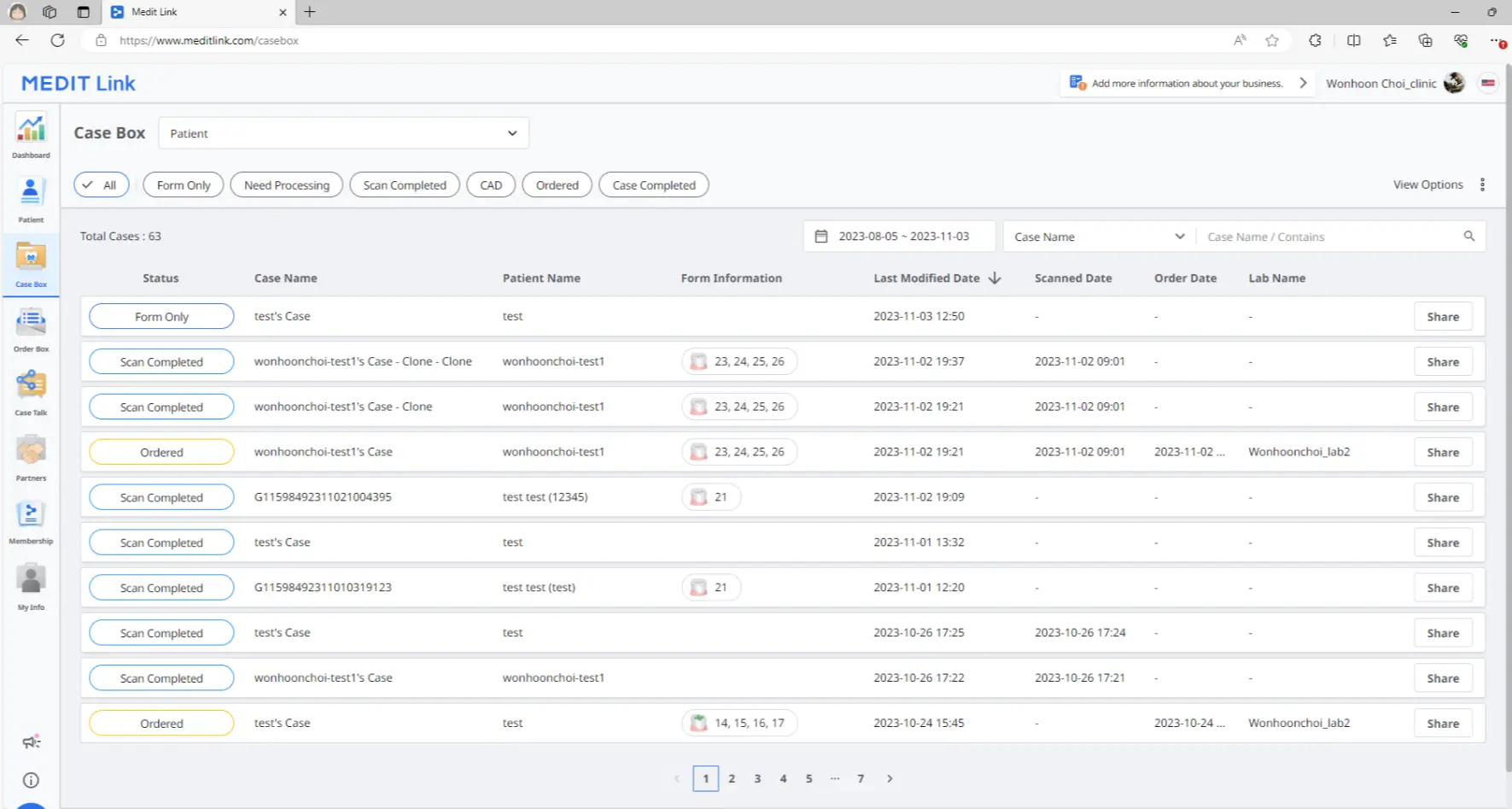

Creating a Case Talk

You can create a shared link to a case that was created in Case Box/Work Box.

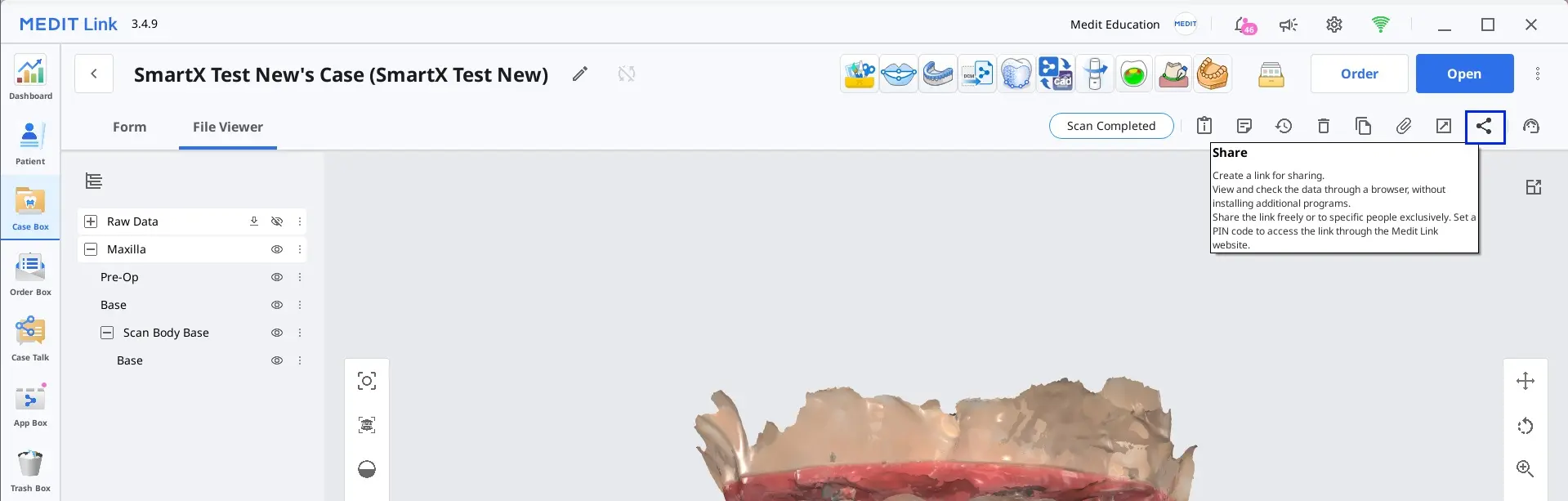

1. Find a case you want to share and click the "Share" button on the right.

2. Select the files you want to share.

3. Set the sharing permission type and sharing options.

4. Click "Get Link" to create a shared link.

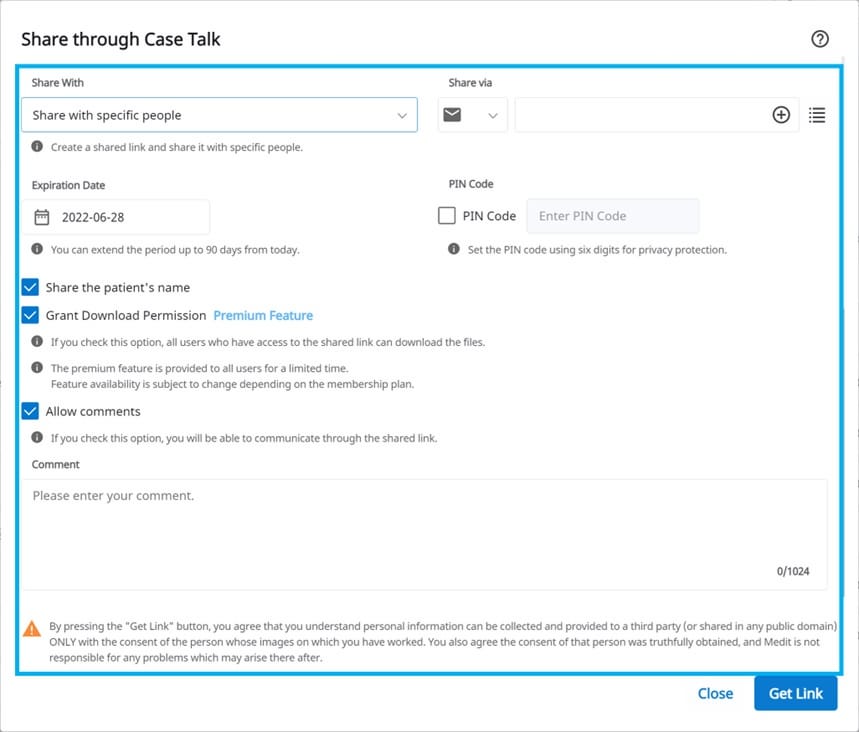

Setting the sharing permission type and sharing options

Share With	Share with anyone Creates a shared link. You can share the files with anyone.  Share with specific people Creates and sends a shared link to specific people.
Share via	If you select "Share with specific people," you can share the link with specific people in various ways. Email Address SMS Partners
Expiration Date	Set the expiration date for the link. After the link expires, the people you shared it with will no longer have access to files. You can extend the expiration period up to 90 days from today.
PIN Code	Set a 6-digit access code to ensure data security.
Share the patient's name	If you check this option, all people with the link will see the patient's name.
Grant Download Permission	If you check this option, all users with the link can download the files.
Allow comments	If you check this option, you will be able to communicate through the shared link. If you uncheck the option, the recipient can only view your comments but will not be able to add their own.
Comment	You can leave a message in the comment section.



Case Talk details

You can see files in the shared case. The following functions are available on the Case Talk details page.

	Download	Download all the files in the case to the local PC.
	Case Information	Show detailed information about the case.
	Share	Modify the share setting.
	QR Code	Share the case with a QR code
	Copy Link	Copy the shared link to the clipboard. The copied link shows the shared files on your web browser.
	Live	Share your screen with the connected users. The screen sharing is synchronized with the connected users.
	Attendees	Show all users who are accessing the shared link.
	Delete	Delete the shared link. The deleted shared link is no longer accessible.

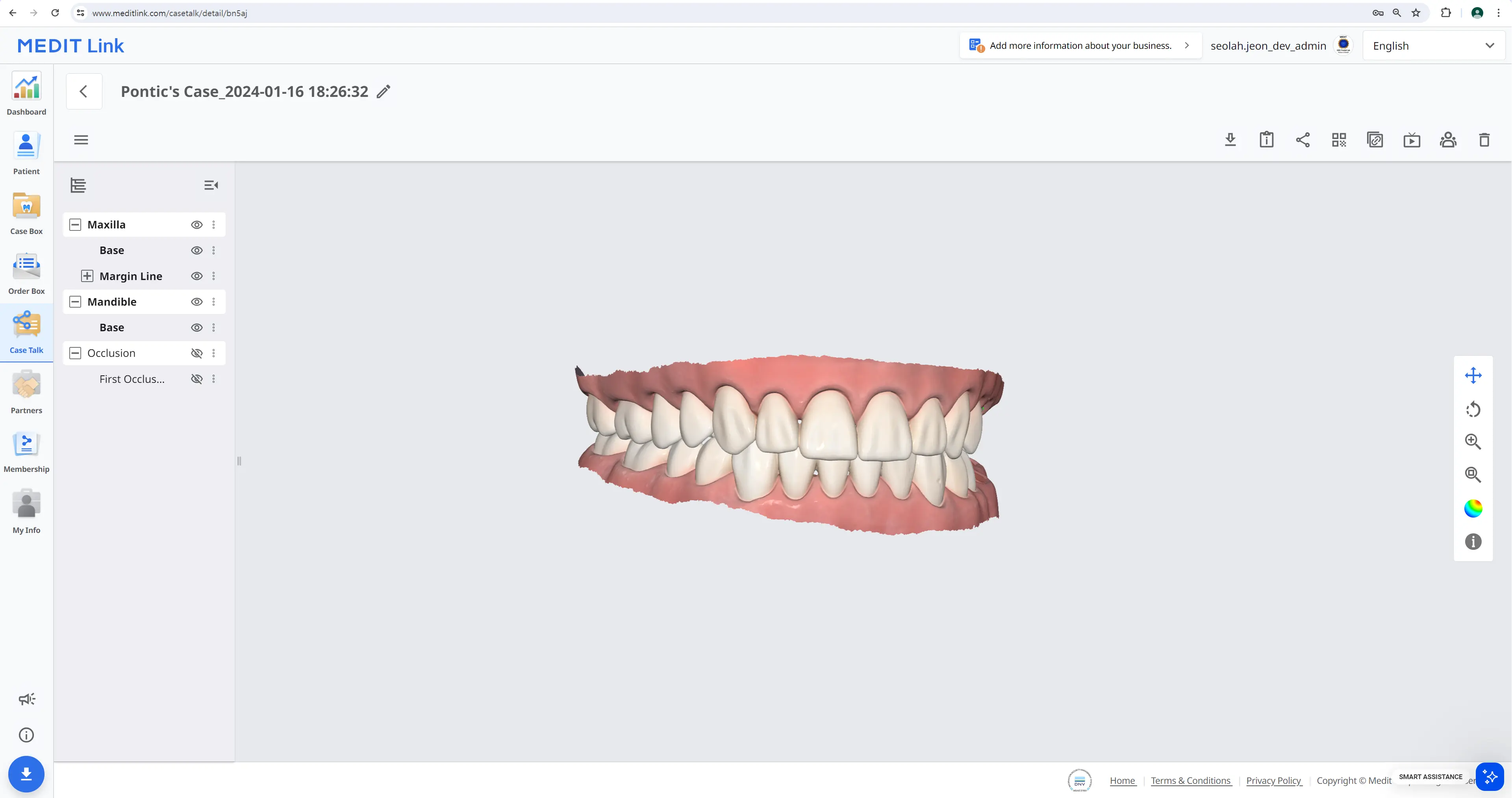

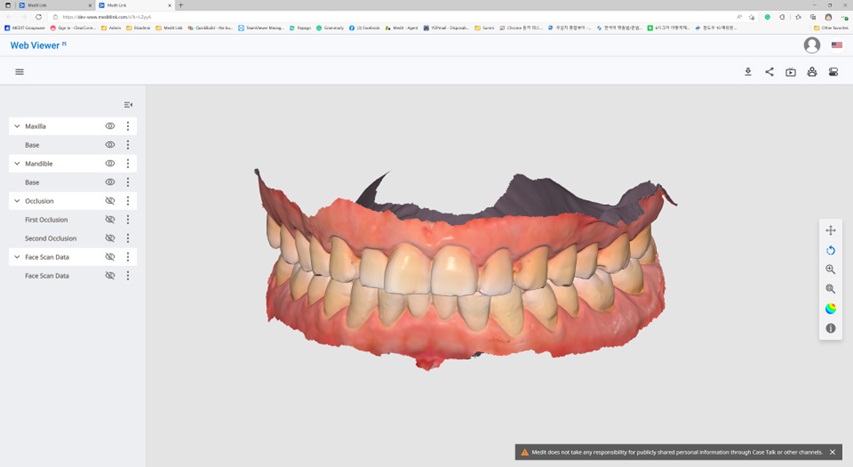

Web Viewer

You can view shared data through Case Talk in a web browser.

It is possible to communicate with the people who have access to the link using annotations and comments.



	Download	Download all the files in this case to the PC.
	Case Information	Show detailed information about the case.
	Share	Modify the share settings.
	QR Code	Copy the shared link to the clipboard. The copied link shows the shared files on your web browser.
	Live	Share your screen with the connected users. The screen sharing is synchronized with the connected users.
	Attendees	Show all users who are connected to the shared link.
	Tooth Labeling	Change the teeth labeling system.





Annotation

You can add annotations to a specified location on the 3D model. Anyone with the link can view the annotations you add.

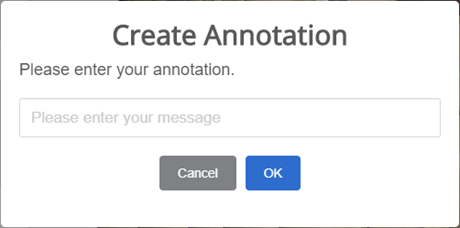

1. Find the menu icon in the top left corner and select the "Annotation" tab. Use the “New Annotation” button to add an annotation anywhere on the data with a click.

2. Type the message, then click “OK” to save it.

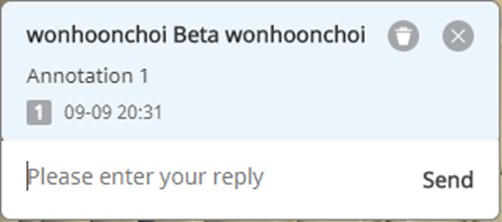

3. You can use annotations as a simple communication channel.
Click the created annotation to enter a reply and hit "Send."



Comments

You can communicate with users who have access to the link through the "Comment" tab in the Web Viewer menu.



Real-time screen sharing

You can share your screen in real-time.

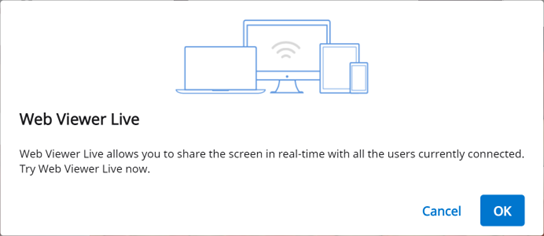

1. Click "Live" to share your Web Viewer screen with the connected users.

2. Click "OK" to start sharing your screen.

3. Other people who have accessed the link must accept the screen sharing.

4. The screen of the user who initiated screen sharing is displayed in sync with the screen of the person who received the request.



Data Tree

All data is grouped and displayed according to attributes in the data tree. You can show or hide data, adjust opacity, and so on.



Data Tree Controls

Show/Hide	Click the 'eye' icon to show or hide data from the view. Control data visibility as a group or individual file.
Opacity	Hover the mouse over a visible element to see the opacity slide bar. Adjust the slider to change the transparency of your data.
Extended Menu	The extended menu is provided on the right side of each Data Tree element. It includes the following options: Show This Only: Hide all other data except for the current one. Hide: Hide the current data.



3D Model Controls

	Pan		Move the model.
	Rotate		Rotate the model.
	Zoom In/Out		Zoom in and out on the model.
	Zoom Fit		Position the model in the center of the screen.

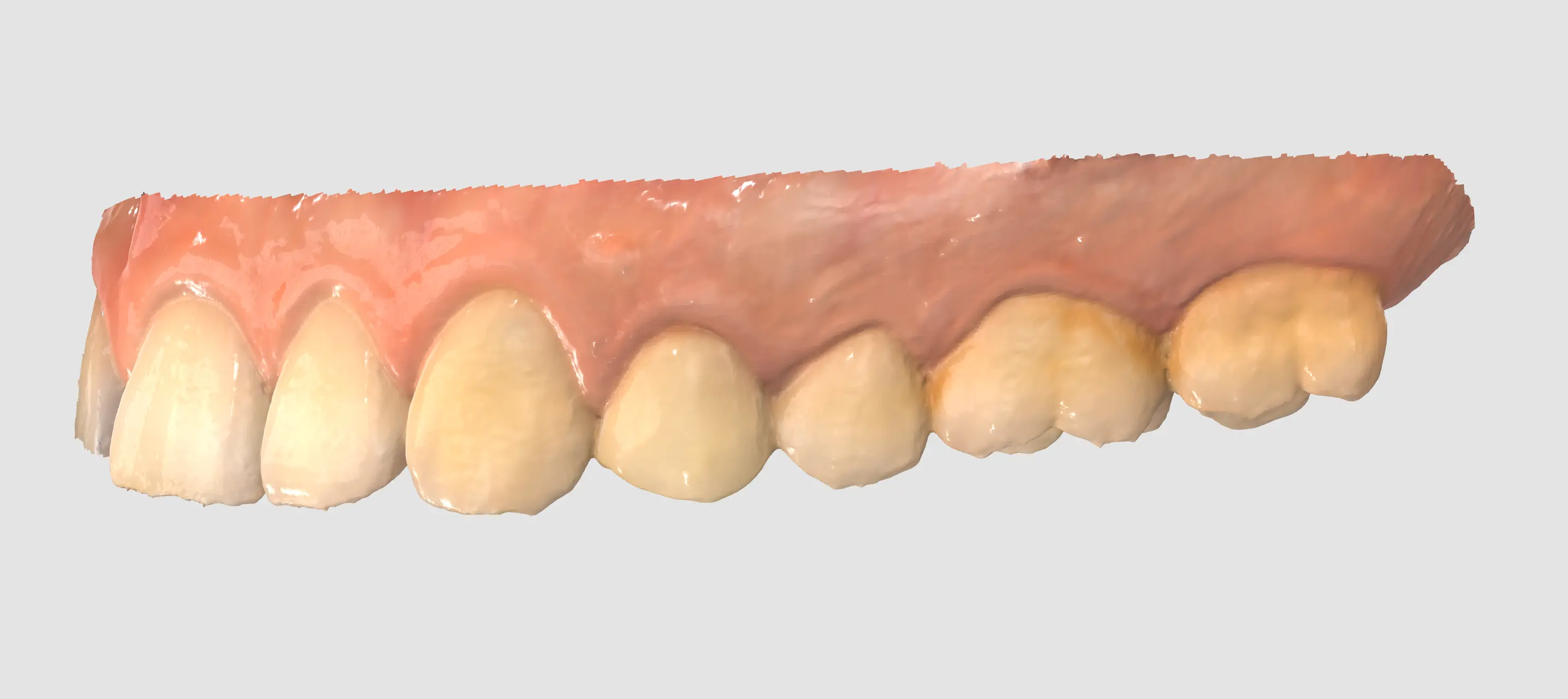

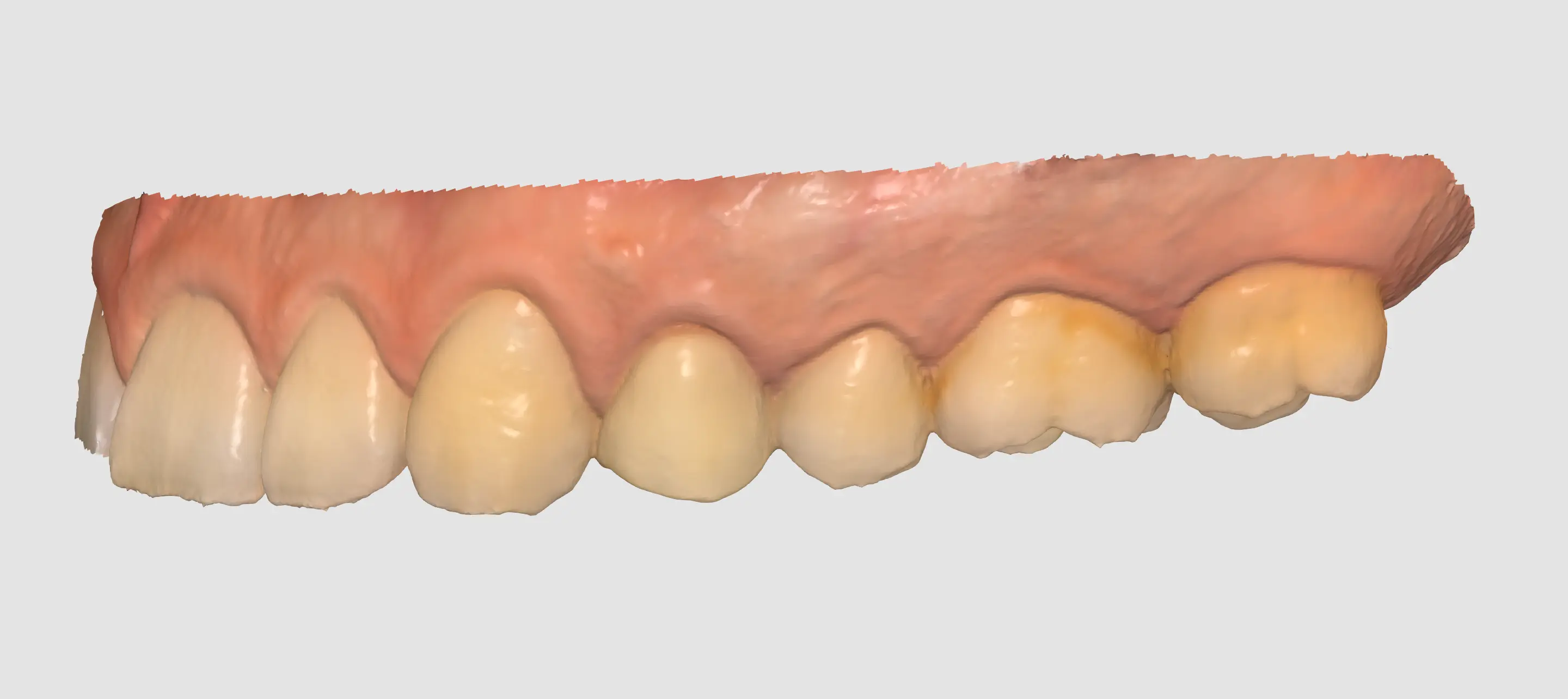

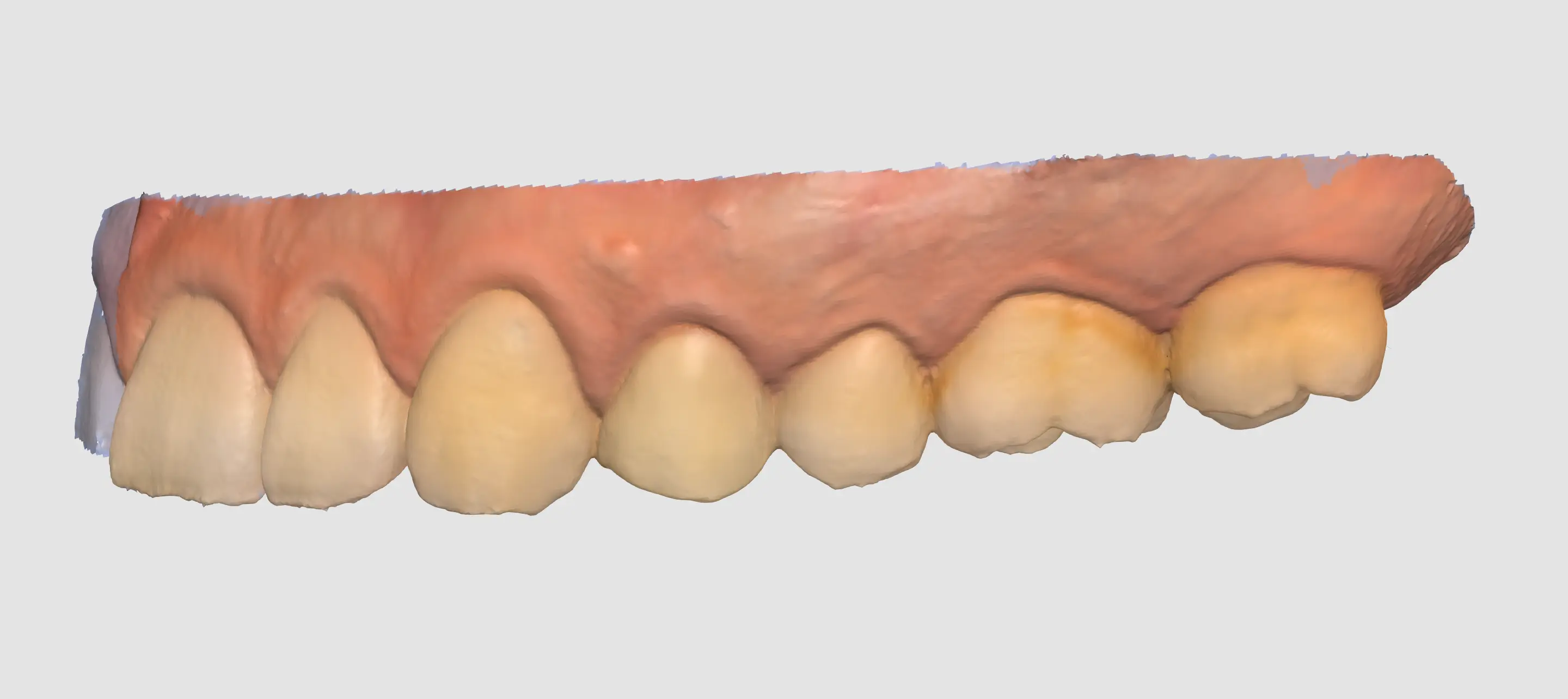

	Model Display Mode	Texture On	Show data in real texture colors.

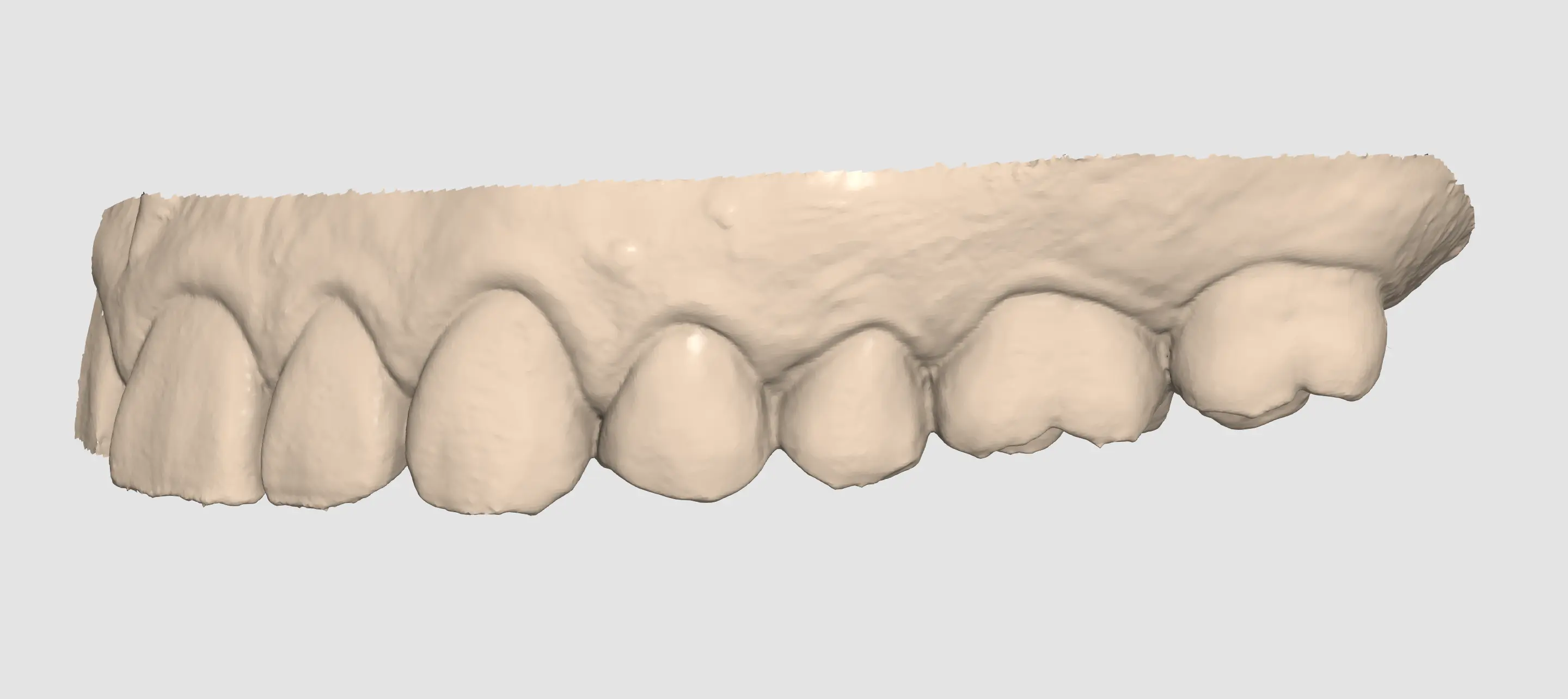

		Texture Off	Show data in a single color.
