3D Data Control
Medit Scan for Clinics supports three data control modes: Rotate, Pan, and Zoom.
- Zoom
- Rotate
- Pan
- Zoom Fit: Double-click the Control button to align the data at the center of the screen.
3D Data Control Using a Mouse
| Image | Description | |
| Zoom |  |
Scroll the mouse wheel. |
| Zoom Focus |  |
Double-click on the data. |
| Zoom Fit |  |
Double-click on the background. |
| Rotate |  |
Drag the right button. |
| Pan |  |
Drag the mouse wheel. |
3D Data Control Using Mouse and Keyboard
| Windows | macOS | |||
| Zoom |  |
 |
 |
 |
| Rotate |  |
 |
 |
|
| Pan |  |
 |
 |
 |
3D Data Control Using Scanner Buttons (i700/i700 wireless)
ℹ️ Note
The Scanner Buttons behavior shown in the video reflects the default settings.

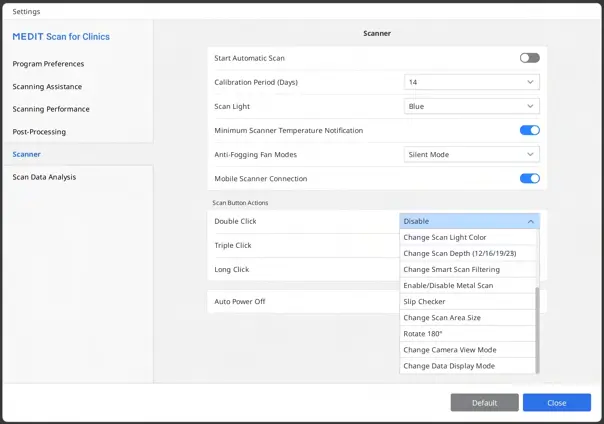

If the Scan Button Actions settings have been changed, the scanner may behave differently from what is shown in the video.
For instructions on how to change the settings, please refer to the link below.
| Image | Description | |
| Switch Data Control Mode | Single-click on the Control button. | |
| Zoom Fit | Double-click on the Control button. | |
| Zoom |
Press up/down on the Control button.
|
|
| Rotate | Press up/down/left/right on the Control button. | |
| Pan | Press up/down/left/right on the Control button. |
3D Data Control Using Touch Interfaces (i900)
ℹ️ Note
The touch interface behavior shown in the video reflects the default settings.

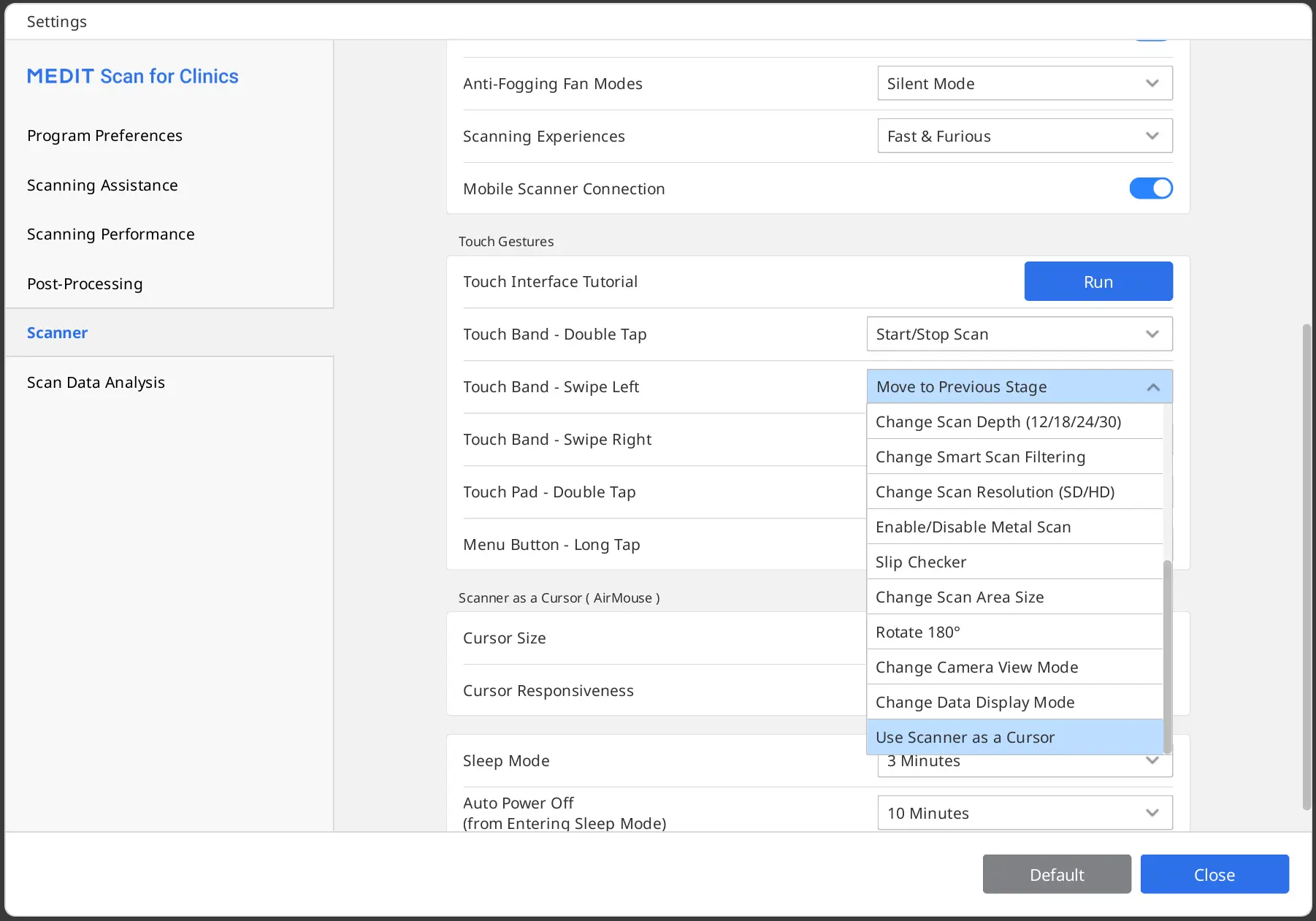

If the Touch Gestures settings have been modified, the scanner may operate differently from what is shown in the video.
For instructions on how to change the settings, please refer to the link below.
| Image | Description | |
| Switch Data Control Mode | Short-tap on the Menu Button. | |
| Zoom Fit | Double-tap on the Menu Button. | |
| Zoom | Tap and drag up/down on the Touch Band. | |
| Rotate | Tap and drag up/down/left/right on the Touch Band. | |
| Pan | Tap and drag up/down/left/right on the Touch Band. |
3D Mouse Support
Medit Scan for Clinics supports using a 3Dconnexion 3D mouse.
3D input device development tools and related technology are provided under license from 3Dconnexion. © 3Dconnexion 1992 - 2013. All rights reserved.
Scanning Operation
Start/Stop with Scan Button (unavailable with i900)
You can start or stop the scan by pressing the Scan button on the scanner.
Start/Stop with Touch Band (i900 only)
You can start or stop the scan by double-tapping the touch band on the scanner.
Start/Stop by Lifting/Putting Scanner (i900 only)
You can get ready to scan by just lifting your scanner or stop scanning by putting it on the cradle.
This feature is only available when the “Start Automatic Scan” option is enabled on Settings > Scanner.
