In this stage, users can preview automatically generated simulations alongside the original data model. The "Simulation Preview" stage serves two main purposes: facilitating patient consultations and conducting simulation analysis.
Patient Consultation
This stage allows users to preview dental models showing both the pre-treatment and expected post-treatment dentition. These visual aids can be beneficial during patient consultations.
Here are some helpful features available in the Side Toolbar on the right that can be used.

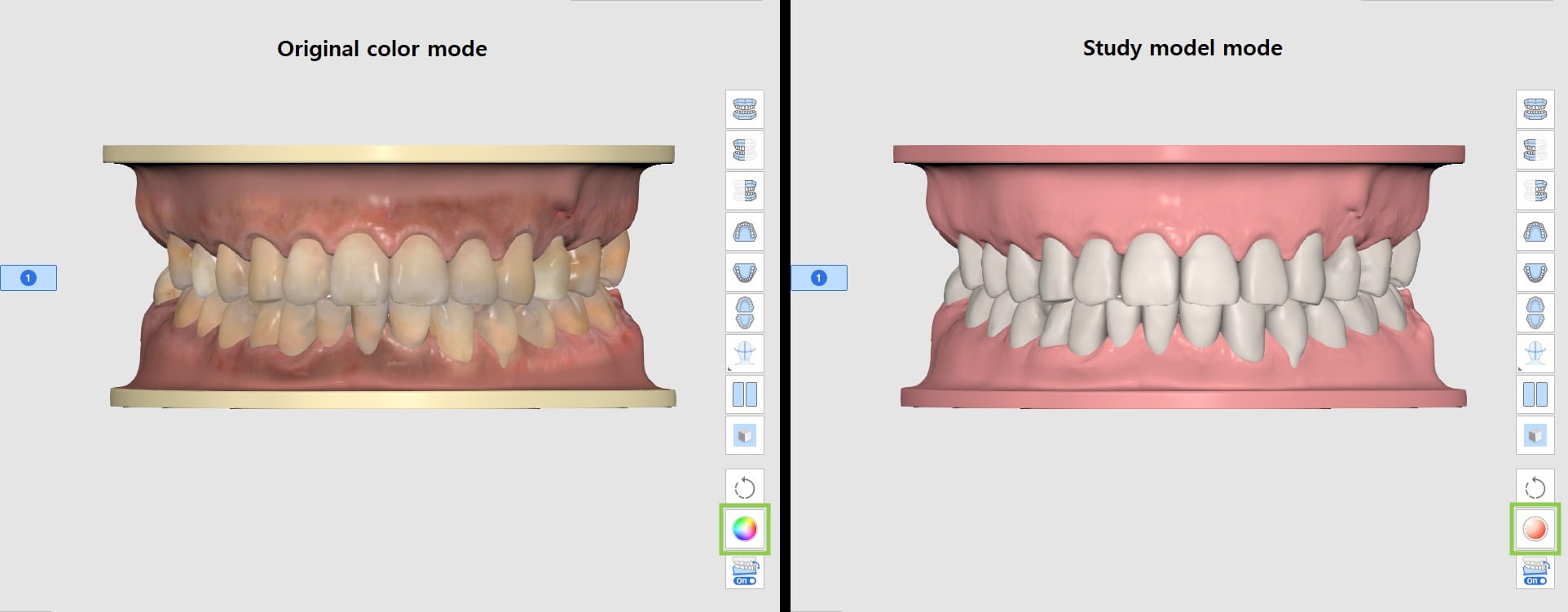

1. Model Display Mode
If the realistic model display makes your patient uncomfortable, you can change to a simplified two-color study display mode.

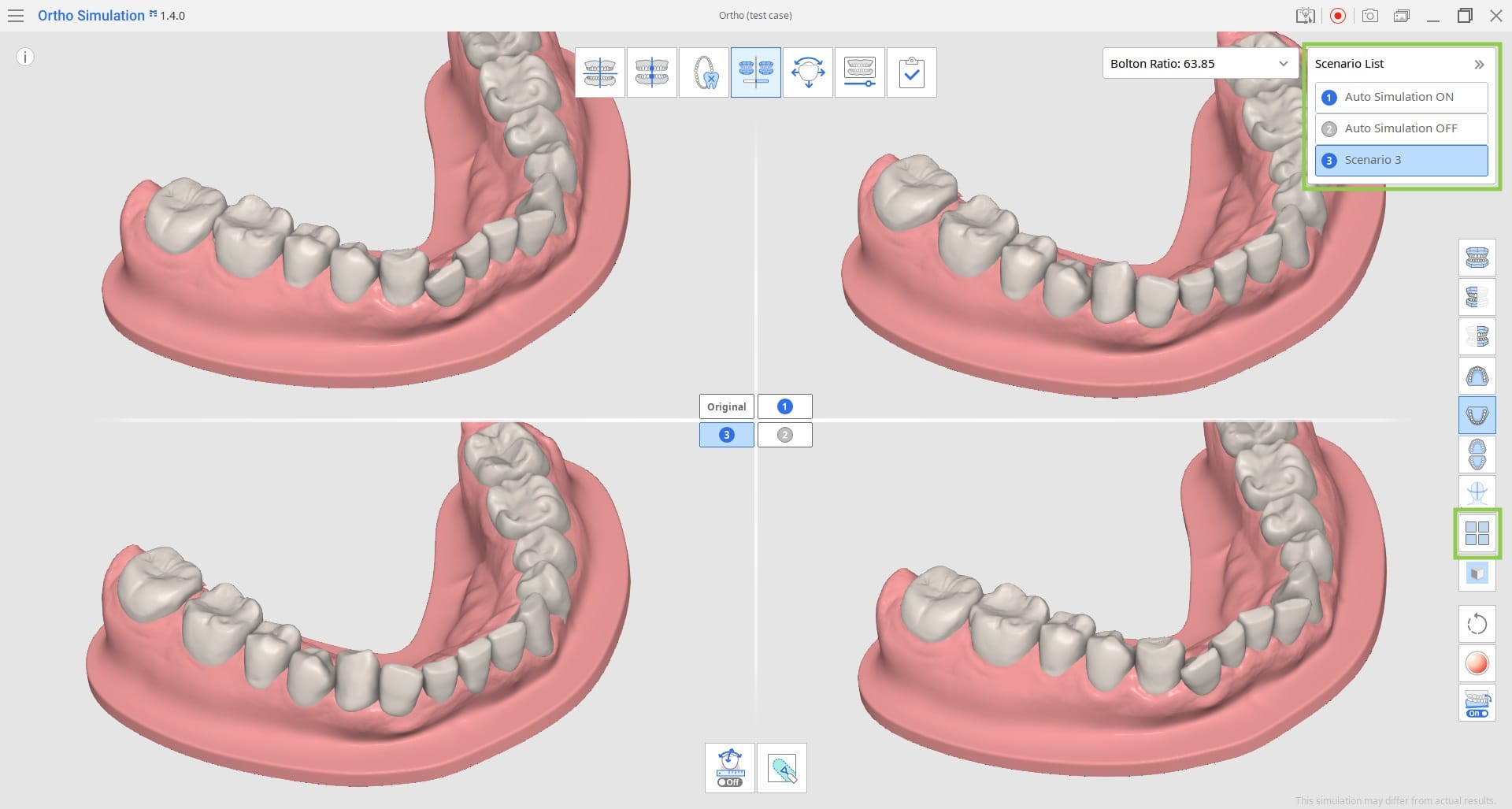

2. Scenario Comparison Mode
You can compare each scenario's simulation individually with the original model by switching between them in the top right corner. Alternatively, you can use "Scenario Comparison Mode" to simultaneously view all scenarios alongside the original model.
Try using the view control features in the Side Toolbar to review the simulation from various angles.

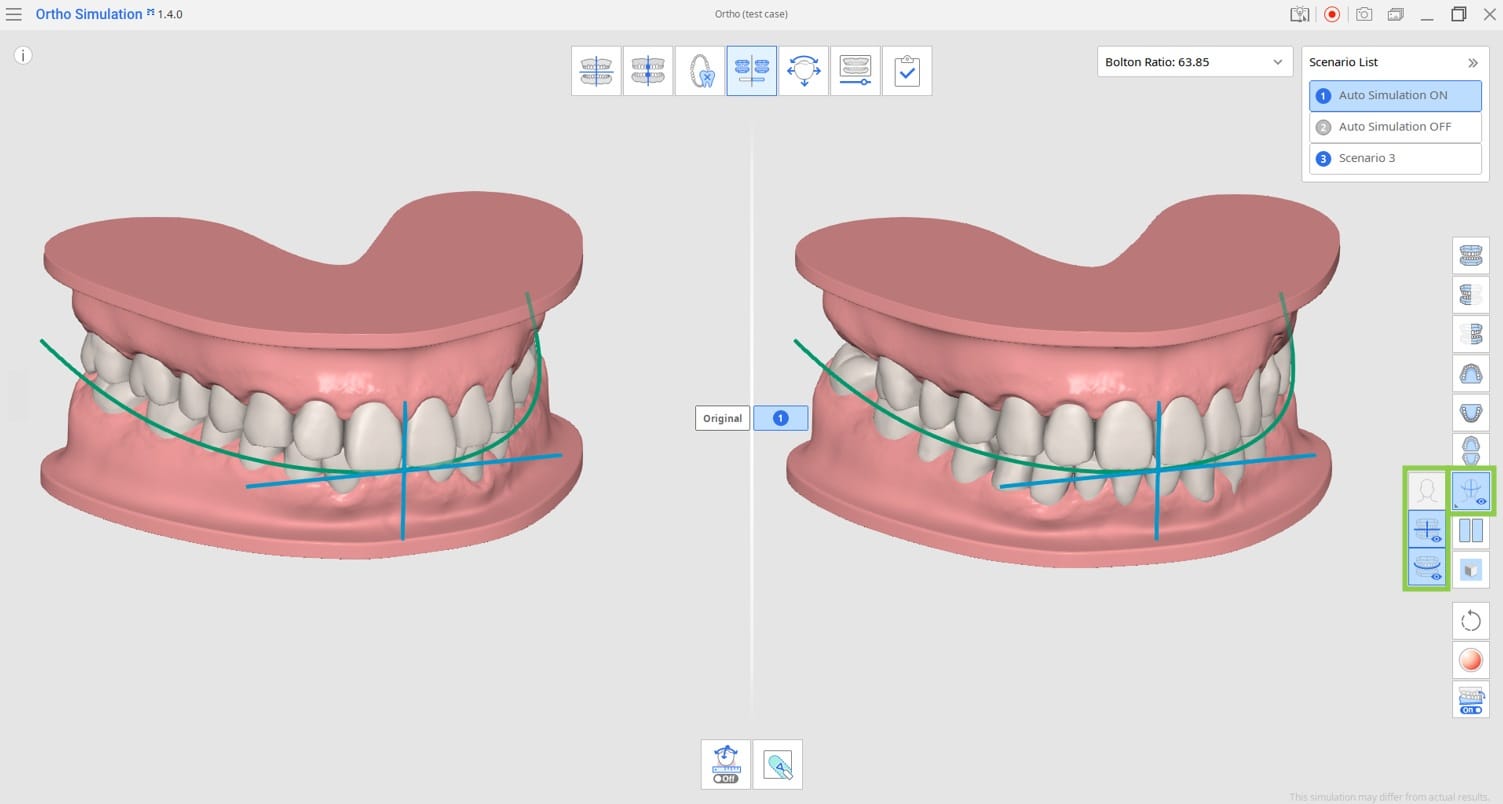

3. Show/Hide Reference Data
You can preview simulations with the reference data: midline, arch line, and face scan data. Click the feature icon in the Side Toolbar and choose what data you want to see.
If needed, the midline and arch line can be adjusted in the next stage.
To reference the face scan data, it must be acquired and aligned in Medit Scan for Clinics. If any is available in the Medit Link case, it will be automatically imported into the app.

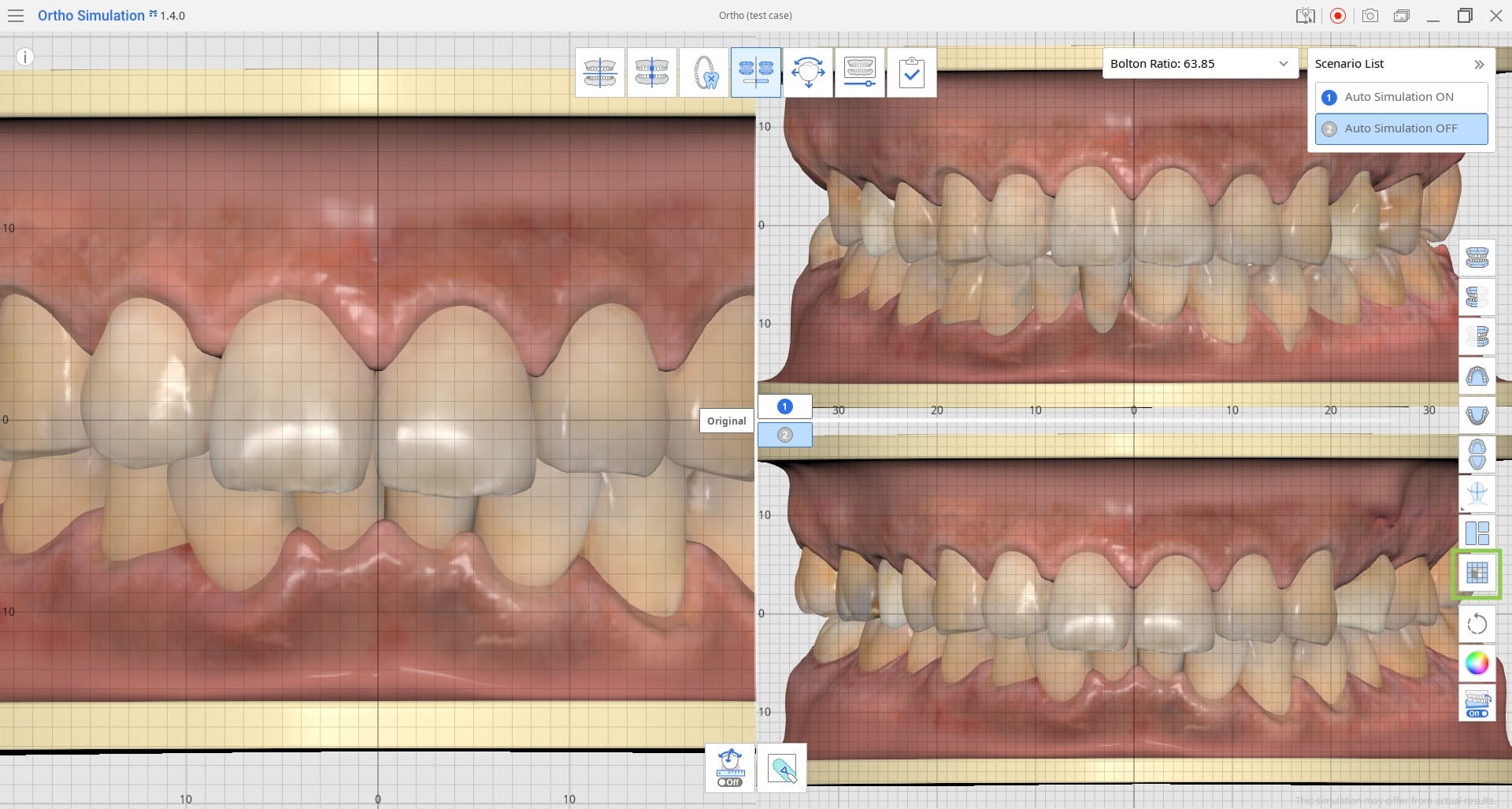

4. Grid Settings
Click this feature in the Side Toolbar multiple times to show, overlay, and hide the grid. The grid utilizes millimeters as a measurement unit.
Simulation Analysis
This stage offers three features for analyzing and examining the simulation: Bolton Ratio, Teeth Movements Data, and Sculpting.

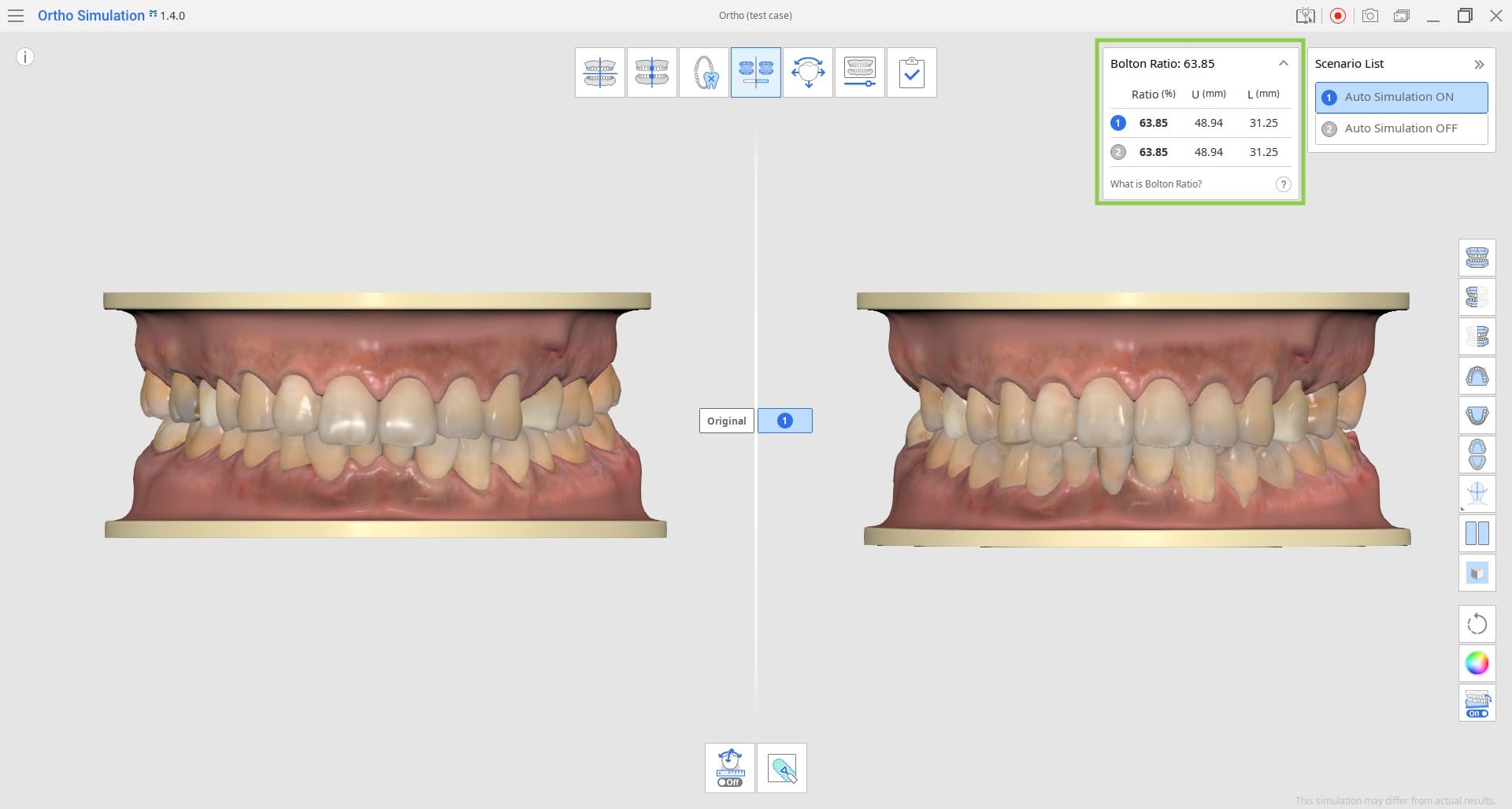

1. Bolton Ratio
The Bolton Ratio is calculated automatically, and the results for the currently selected scenario are displayed in the top right corner. You can expand the widget to see the results for all scenarios.
You can hide the Bolton Ratio widget in the program settings (Menu > Settings).

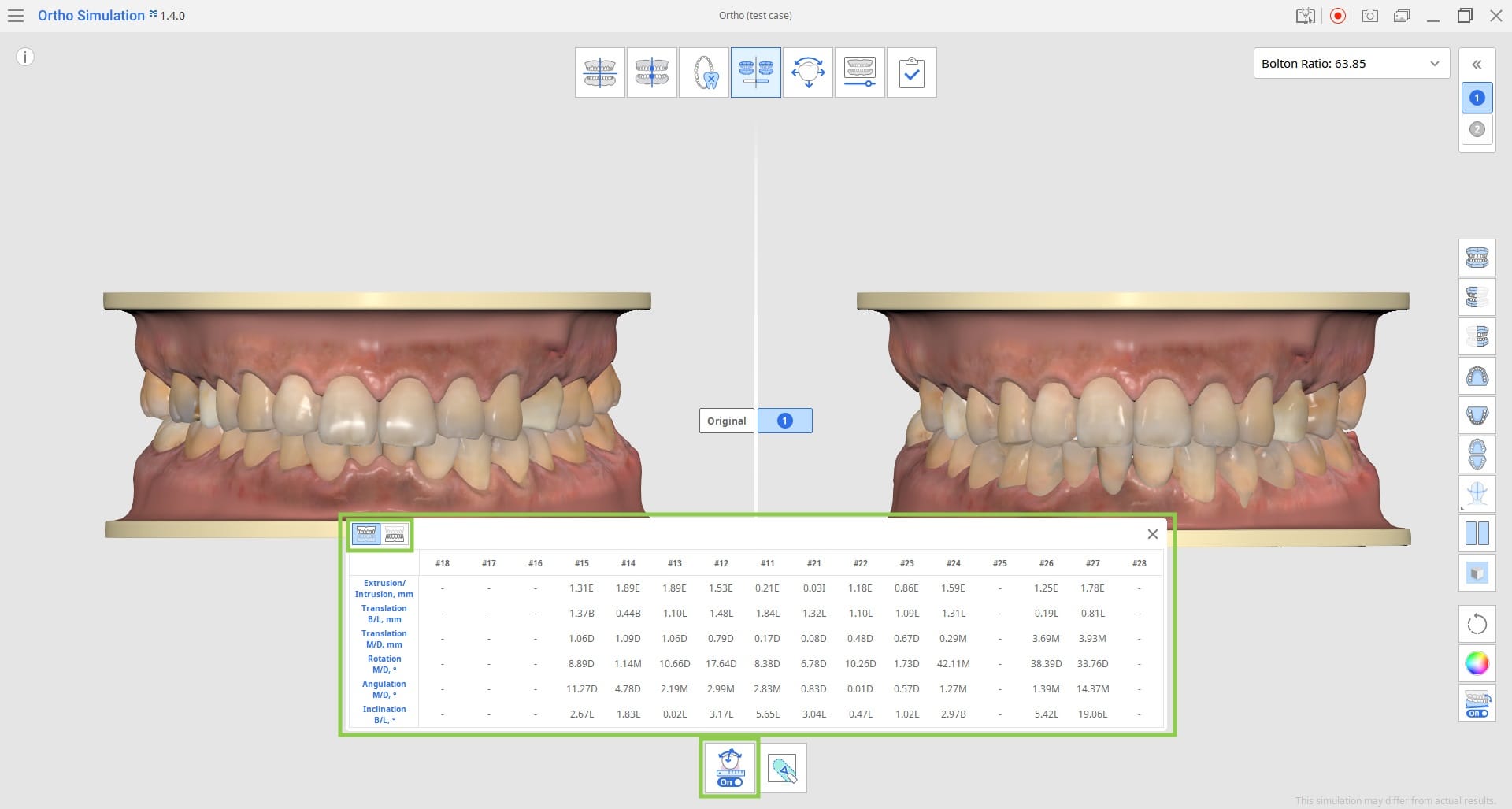

2. Teeth Movements Data
This feature is located in the Toolbox at the bottom of the screen. It shows the calculations for teeth movements in the simulation, allowing you to check the feasibility of the proposed treatment scenario. This data is also helpful when reviewing the expected teeth movement for a patient with planned extraction or consulting patients on orthodontic treatment.
You can copy data from the table. Click and drag to select the cells you need, then press Ctrl+C/Cmd+C.
This data can also be included in an exported Ortho Report.

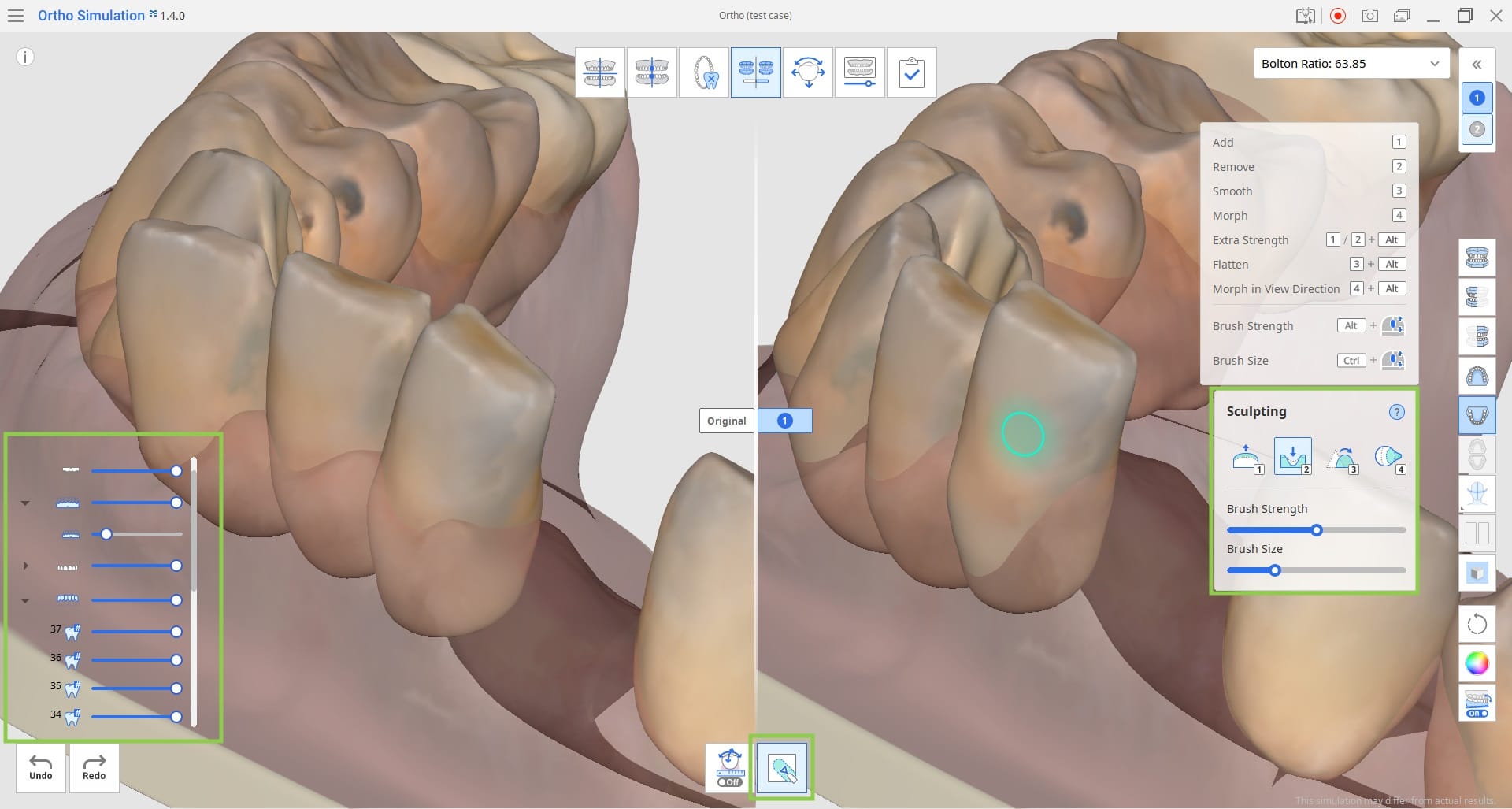

3. Sculpting
The "Sculpting" tool in the Toolbox at the bottom lets you modify gum and teeth data. Changes made to either the original or simulation data are automatically mirrored on the other.
Note that sculpting does not affect the results for the Bolton Ratio.
With this tool, you can add, remove, morph, and smooth data. Adjust the brush size and strength for more control, and use the Data Tree to hide data from the view for greater comfort.
When you're done, click the next stage icon at the top of the screen.
