User interface

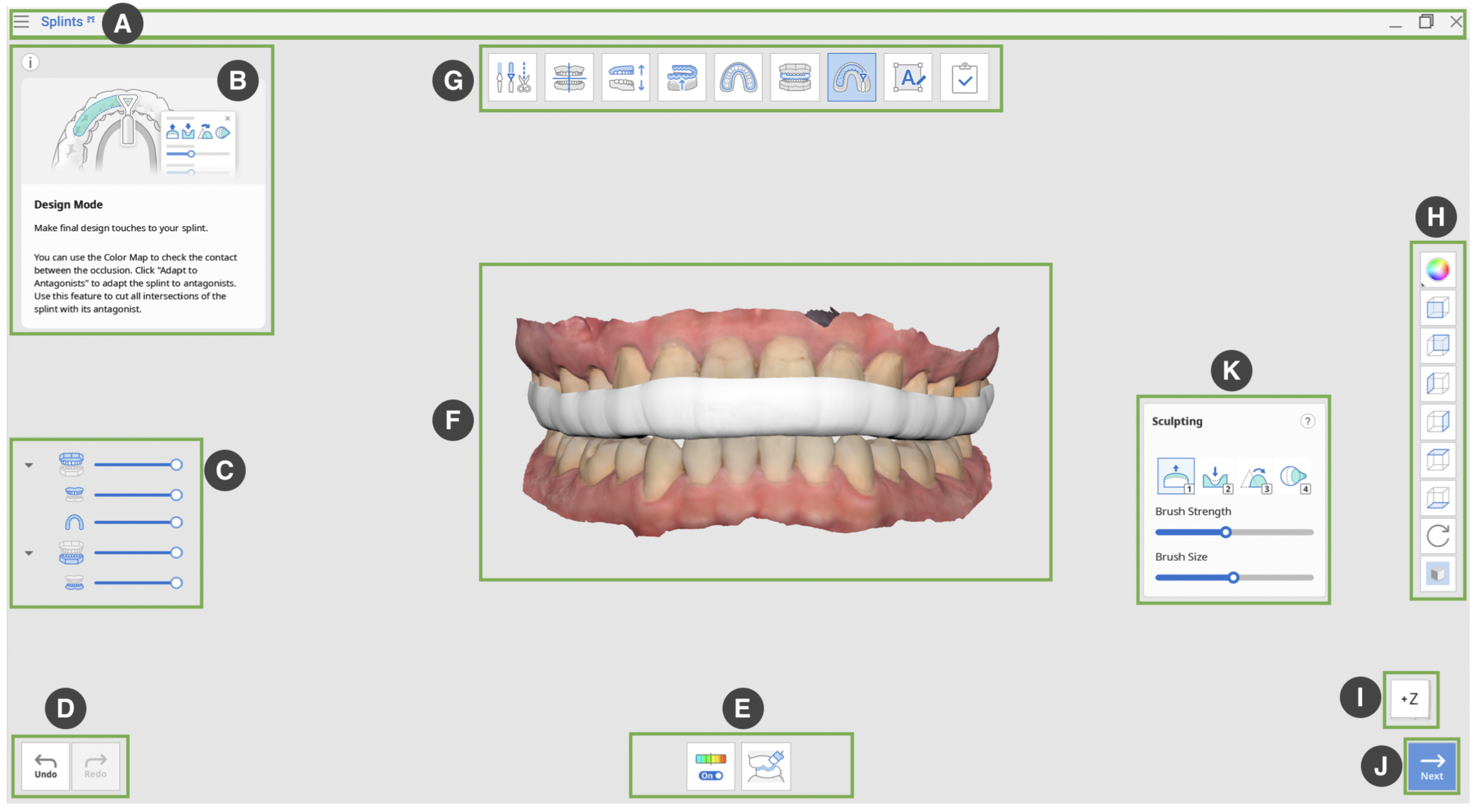

Medit Splints' UI components

A. Title Bar

The following choices can be found in the title bar.

• Menu: The Menu displays information about the application and has tools for controlling data display options.
• Help Center: It includes various details on using Medit Splints.
• Select video recording area: Specifies the area to be recorded for video capture.
• Start video recording: Launch the video recording.
• Screenshot: Take a screenshot of the computer screen.
• Screen capture image manager: Take control of the screenshots.
• Minimize: Reduce the size of the program.
• Maximize or Restore: Maximize or restore the application window.
• Exit: Close the program.

B. Guide Message

C. Data Tree

• The data tree appears on the left side of the window and shows the list of data you are using in groups.
• You can easily control data by hiding, showing, or changing its transparency one by one or as a group.

D. Undo/Redo

• : Undo the previous action.
• : Redo the previous action.

E. Toolbox

F. 3D Data View

G. Modes

: The modes consist of a series of steps and each mode represents the current stage of splint creation.

: You can skip the "Occlusal Adjustment Mode" if the occlusion was scanned in an open state or if there is only one existing dental arch.

: After completing the "Design Mode" stage, you can move on to the "Complete" stage and save your results to Medit Link.

Overview mode: Overview mode: View and examine the data.

Edit mode: Use the various functions to edit and trim data.

Alignment mode: Align the data to the occlusal plane.

Occlusal adjustment mode: Adjust the occlusal relationship.

Inner surface creation mode: Create the splint's inner surface.

Outline designation mode: Define the splint area.

Outer surface creation mode: Create the Splint's outer surface.

Design mode: Design the splint using the tools provided.

Labeling mode: Engrave or emboss the text on the splint.

Complete: Finish the splint and save the results to Medit Link.



H. Side Toolbar

: Side Toolbar provides the tools to change the data display and view options.

Textured: See the data with color information.

Textured with Edges: View the data in colors using edge lines.

Monochrome: View the data in only one color.

Monochrome with Edges: View the data in a single color using edge lines.

Wire-frame: Only see the data as edge lines.

+Z Axis View: See the front view.

-Z Axis View: See the back view.

-X Axis View: See the left view.

+X Axis View: See the right view.

+Y Axis View: See the top view.

-Y Axis View: See the bottom view.

Rotate: Rotate data in any direction.

Grid Settings: Configure the grid display. It controls the grid's position in relation to the model and whether it is visible or hidden(overlay on/off).

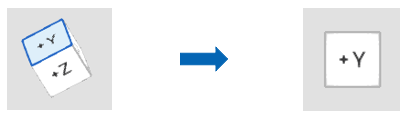

I. View Cube

• The 3D view orientation is shown in the view cube and is updated as the view is rotated in real-time.
• By clicking on a specific cube surface, you can adjust the view to face in a particular direction.

J. Next

• : Apply changes and move to the next mode.

K. Sculpting Tools (enabled in Design Mode)
