Blockout undercut

Blockout Undercut

1. Click on the "Blockout Undercut" icon to open the dialogue window.

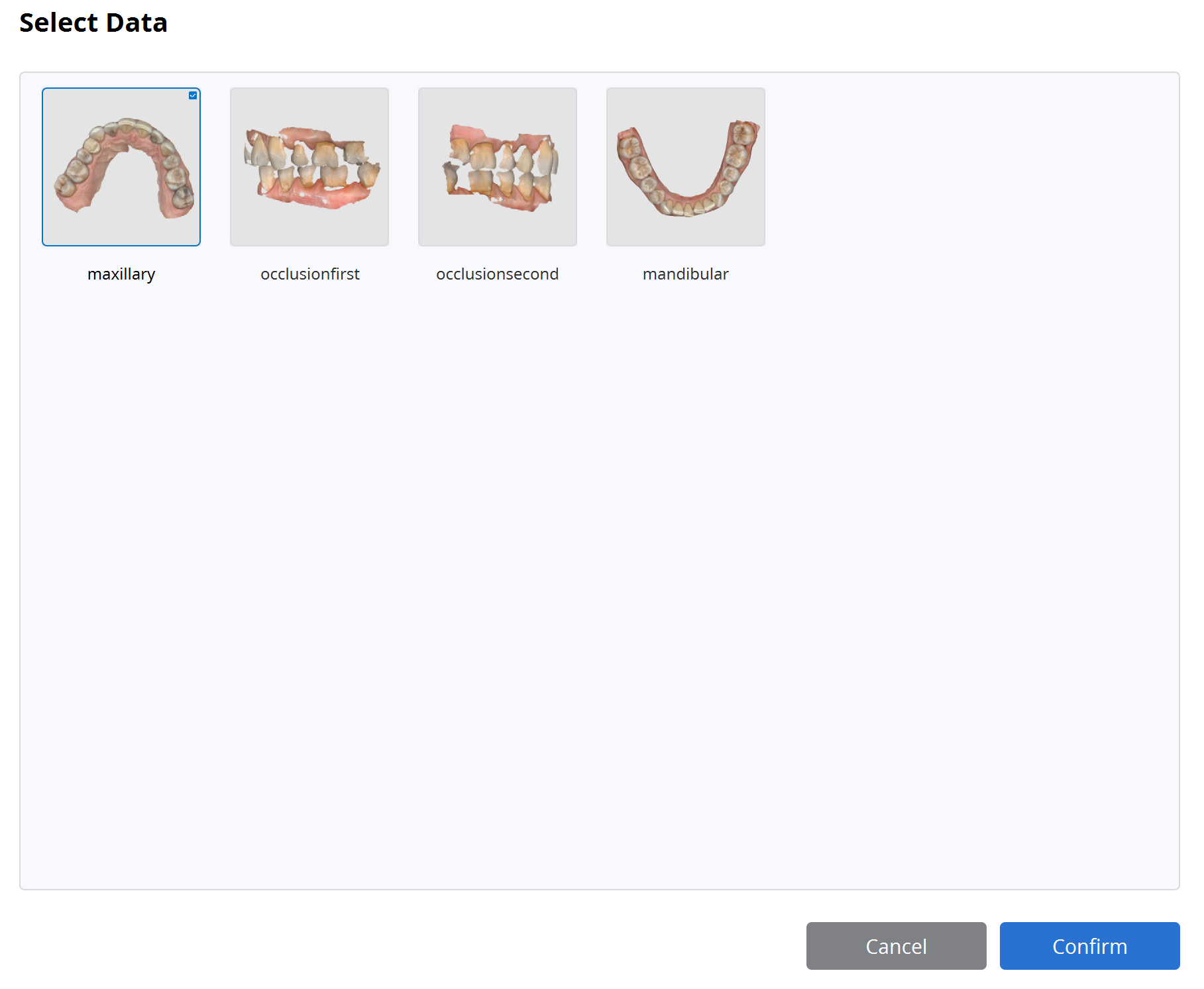

2. Select the data you want to fill the undercut for and click "Confirm."

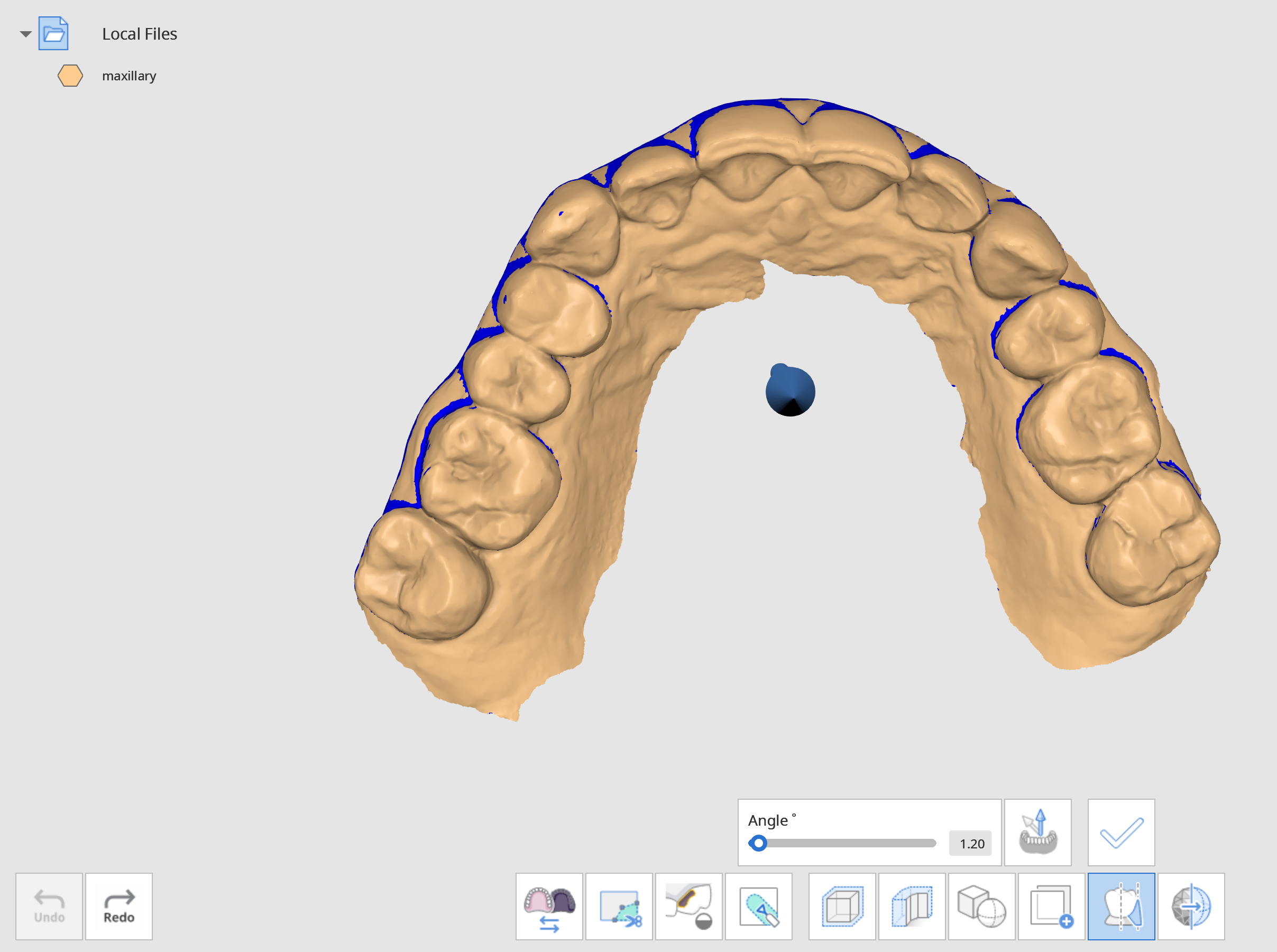

3. We highly recommend adjusting the data to a palatal view so you can see all the teeth. Once you've adjusted the position, you can use "Set Arrow to Your Viewpoint" so the blue arrow directly faces you.

• Adjust and move the arrow so all undercuts can be filled as evenly as possible.

💡 Hints & Tips

• For a successful blockout undercut, adjust the arrow to make sure all teeth are properly covered by the blue.

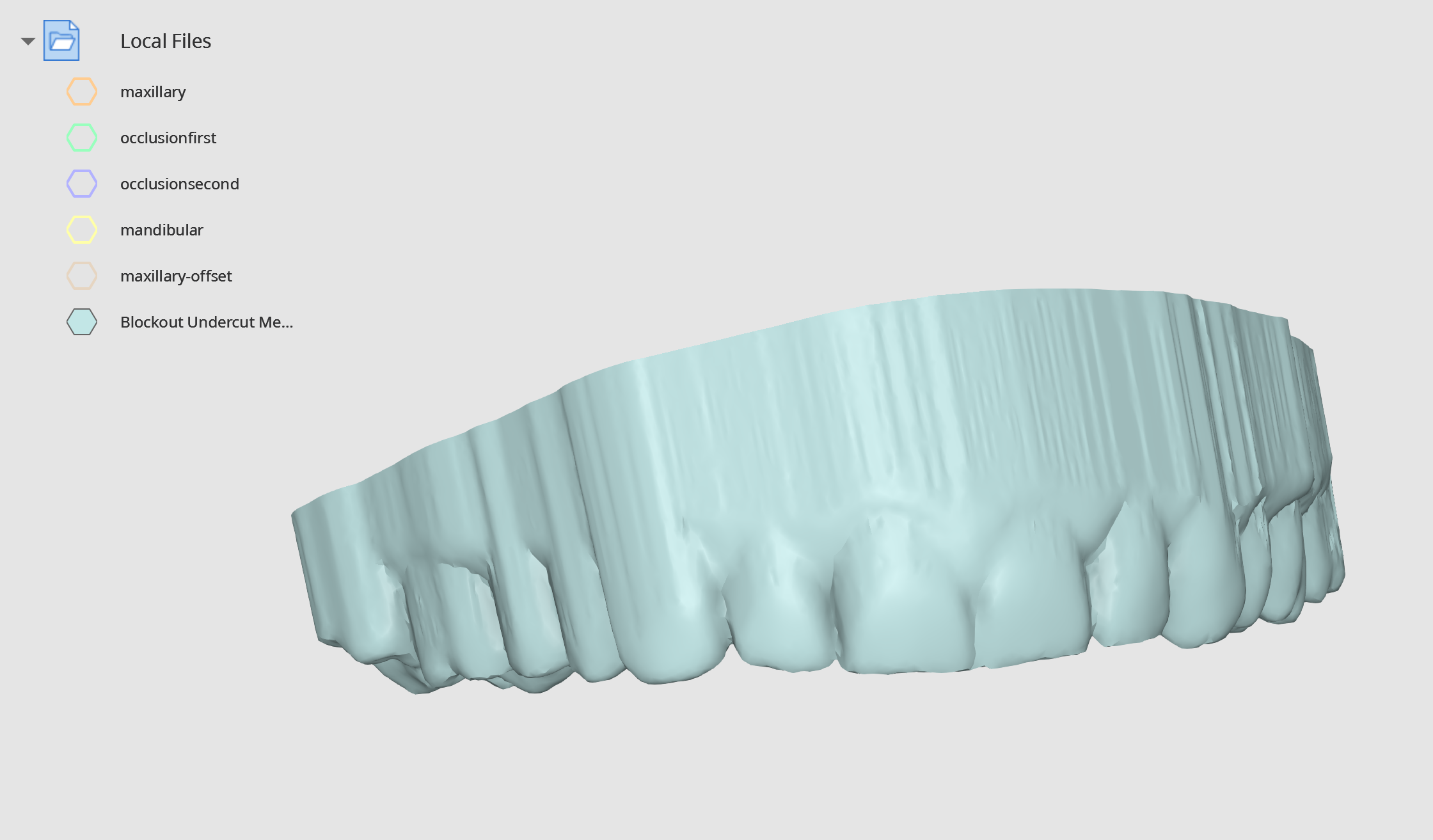

4. Set the angle using the slider or enter a specific number manually. Click "Apply" to apply the changes made.
