Offset

Offset

1. Click on the "Offset" icon to open the dialogue window.

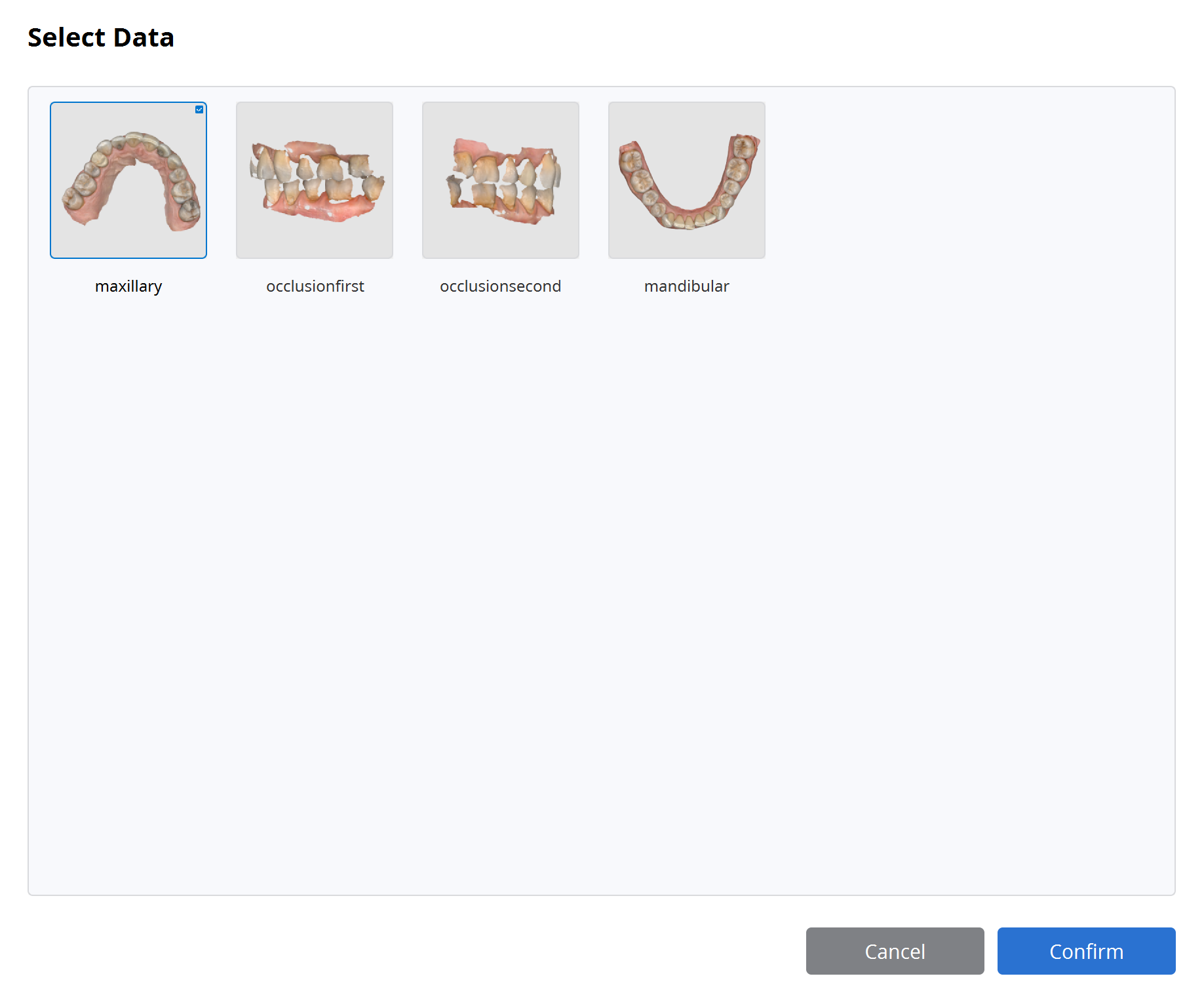

2. Select the data to work on.

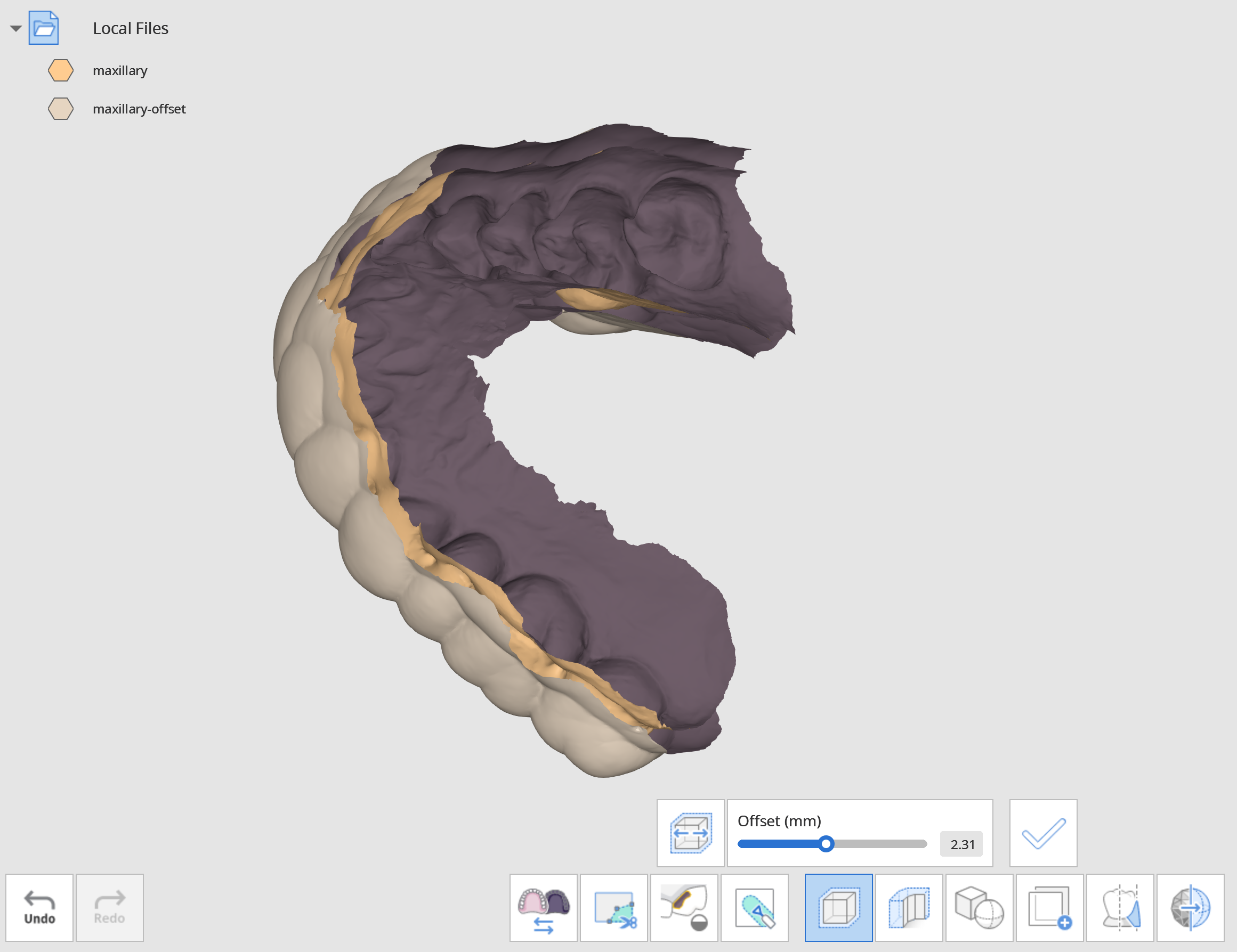

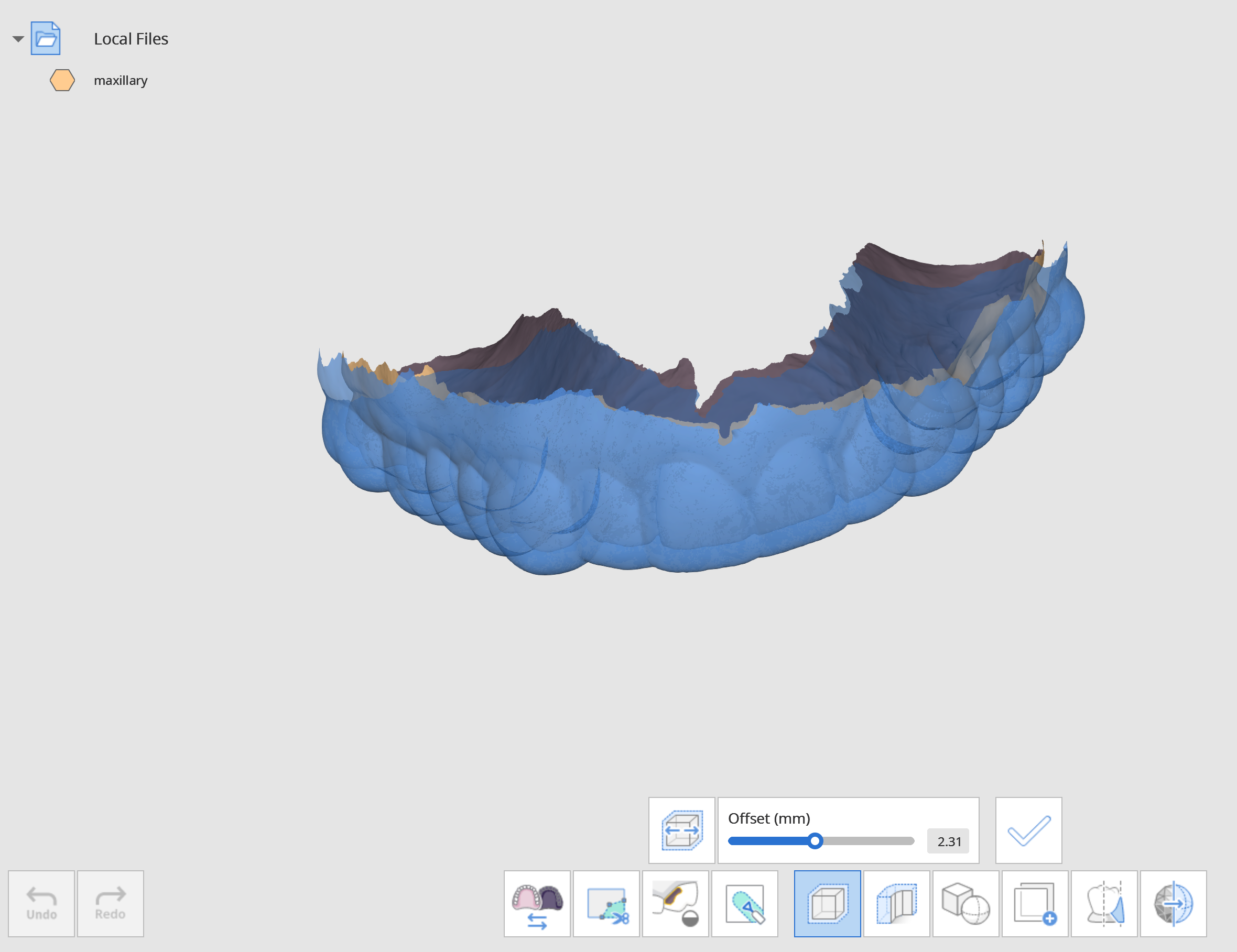

3. Set the offset distance from the existing data using the slider. You can also input a specific number (mm).

• You can also change the offset direction to either inside or outside by clicking on "Inside/Outside" located next to the slider.

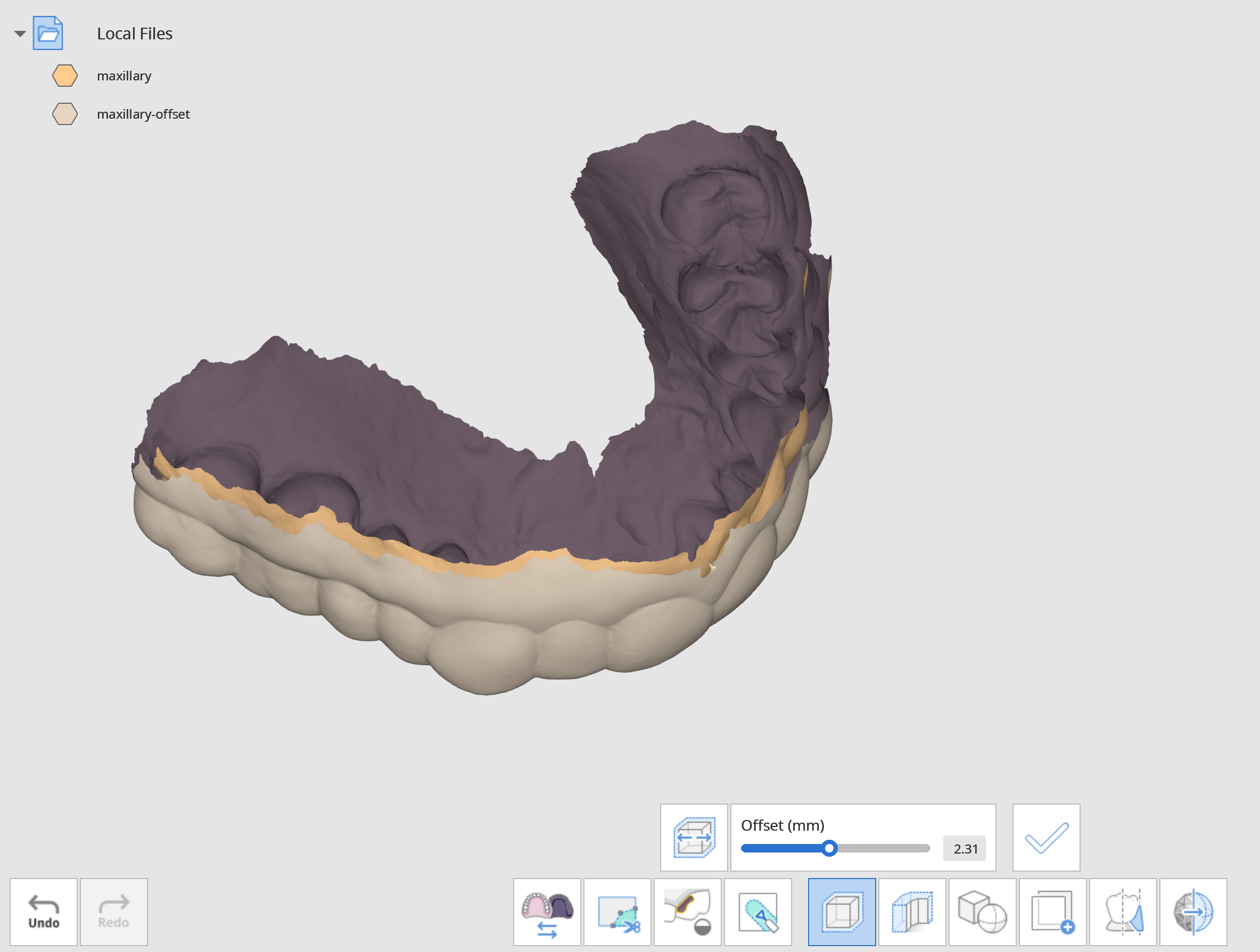

4. Click "Apply" to apply the changes made. This will create a new offset mesh.

💡 Hints & Tips

• Change "Data Display Mode" on the right side to "Monochrome" to see easily spot the changes made.
