Controlling the data mesh's thickness

Thicken

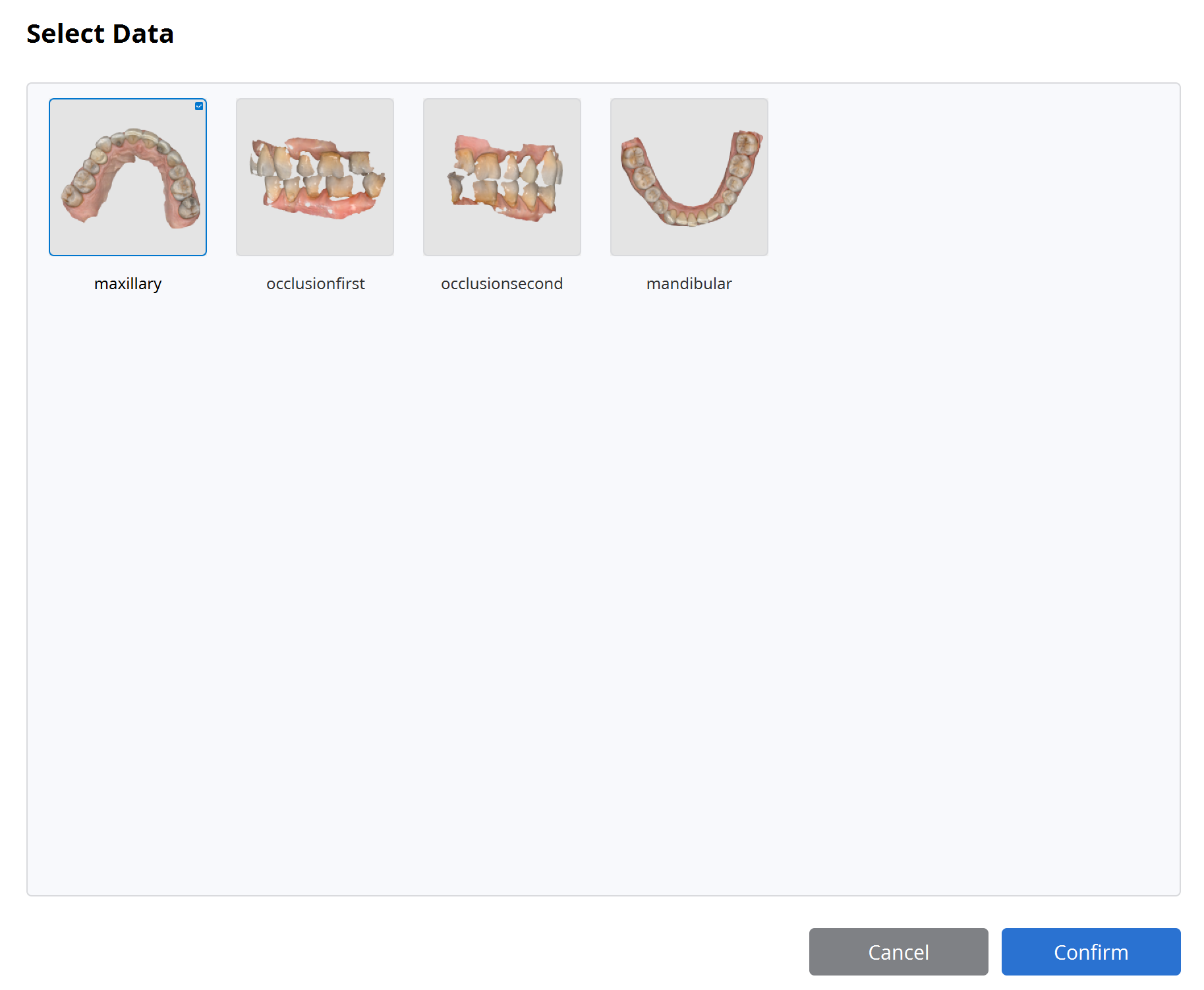

• Click on the "Thicken" icon to select the data. You can click to select individual data or drag to quickly select multiple data at once in the dialogue window.

💡 Hints and Tips

• Trim the data with "Trimming Tools" before thickening for neater edges.

Click "Confirm" to finish your data selection.

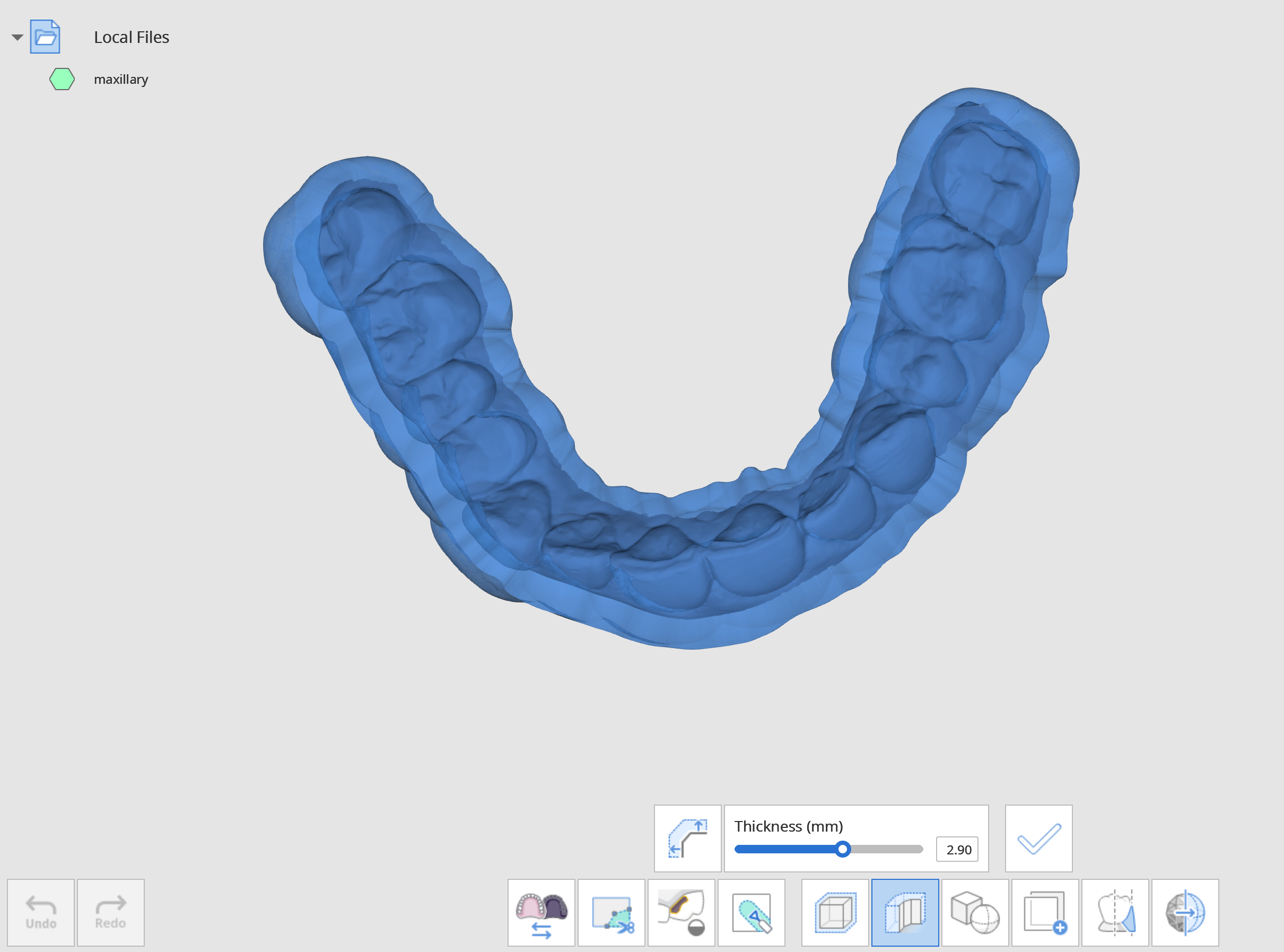

You can control the thickness (mm) of the mesh using the slider below. The thickness can range from 0.00 to 5.00 mm.

• You can also change the thickness direction by clicking on the "Change Thickness Direction" next to the thickness slider.
• Clicking on the icon will change the thickness direction of the mesh to either outside, inside, or both sides; each click will change the direction.

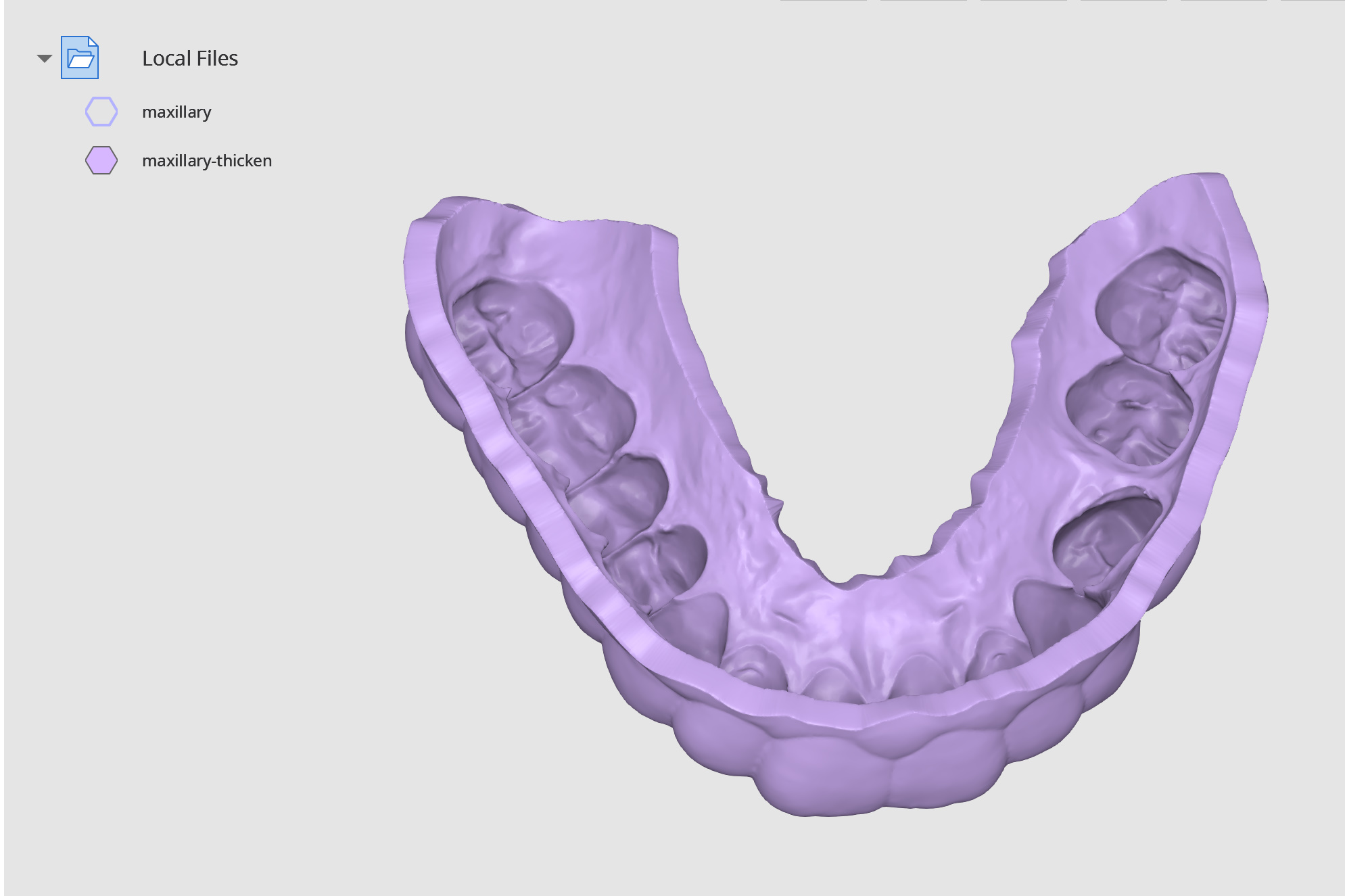

When you are finished and satisfied with the mesh's thickness, click "Apply" to apply the changes made.

💡 Hints and Tips

• Change "Data Display Mode" on the right side to "Monochrome" to see easily spot the changes made.
