Create a margin line

If you have not created a margin line for the prepared tooth in Medit Scan for Clinics, you can draw it manually in Medit Model Builder.

① In Die Creation Mode, click “Margin Line” at the bottom of the screen.

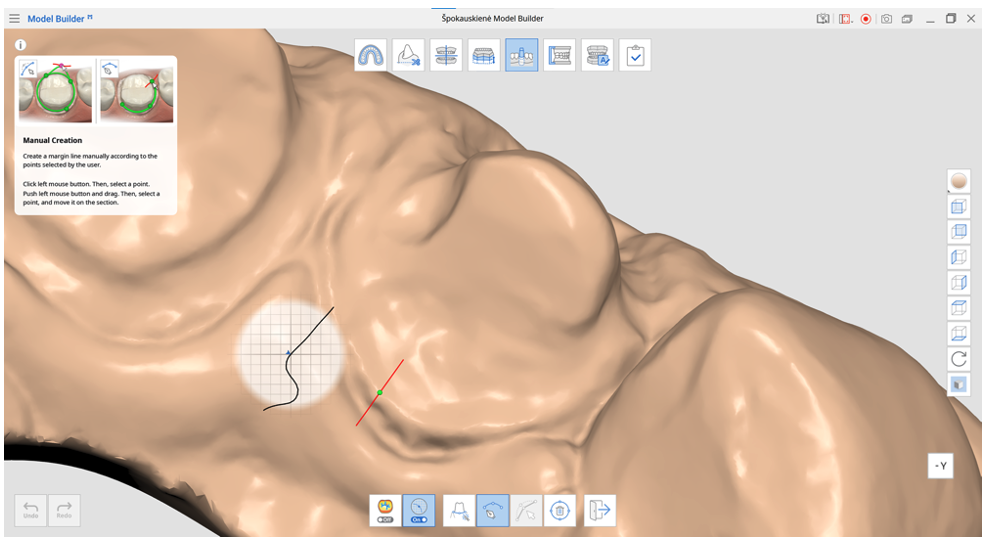

② You can then choose between “Auto Creation” or “Manual Creation.”

③ You can edit or delete the margin line.

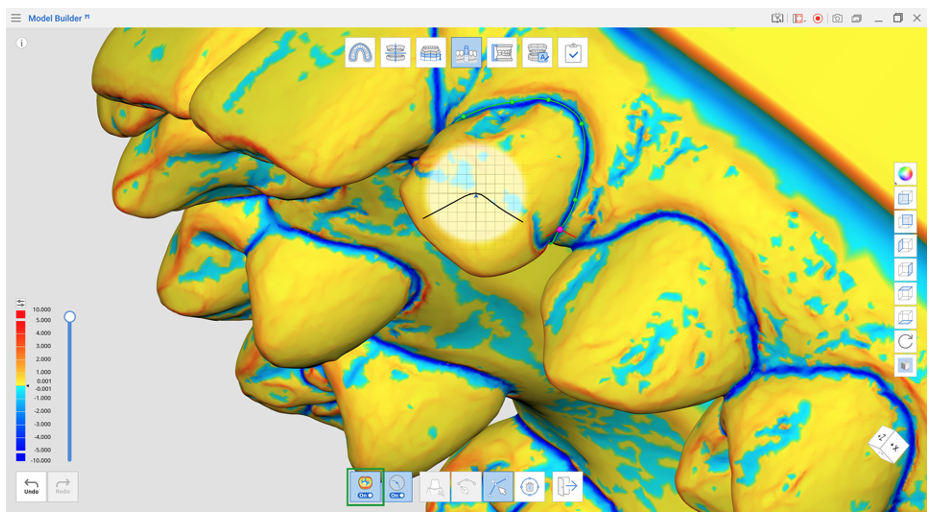

❏ View Curvature

Select the area to specify the margin line. Then check the curvature by turning on the function at the bottom of the screen. The surface curvature of the scan data is displayed in various colors.

If the color is redder, it is more embossed and if the color is bluer, it is more engraved. You can use the color expression interval slider to adjust the color radius.

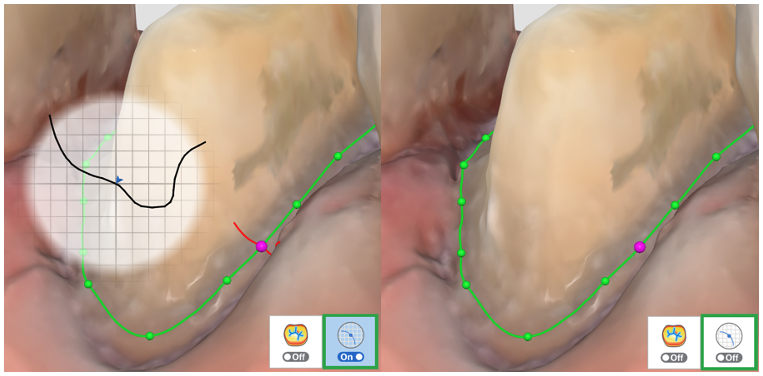

❏ View cross-section

When creating or editing the margin line, this feature shows you the cross-sectional display based on your mouse location.

• This feature can be turned on and off.
• It makes sure that nothing gets covered up when you zoom in close and lets you look at the magnified margin more carefully.
