📖 Modes > Labeling Mode

Labeling Mode allows you to add and manage labels on the model base. The first two labels will be automatically created upon entering the mode.

Toolbox

Icon	Tool	Description
	Add label	Add a label to the base.
	Manage Label #1	Manage Label #1.
	Manage Label #2	Manage Label #2
	Label	Enter the text to appear on the label. ℹ️ Note You can change the default label text in the program settings.
	Font	Choose a font for the label from the list.
	Size	Set the size for the labels.
	Embossing/Engraving (Engraving)	Label the model by engraving.
	Embossing/Engraving (Embossing)	Label the model by embossing.
	Rotate 180°	Turn the selected label by 180°.
	Delete	Delete current label.

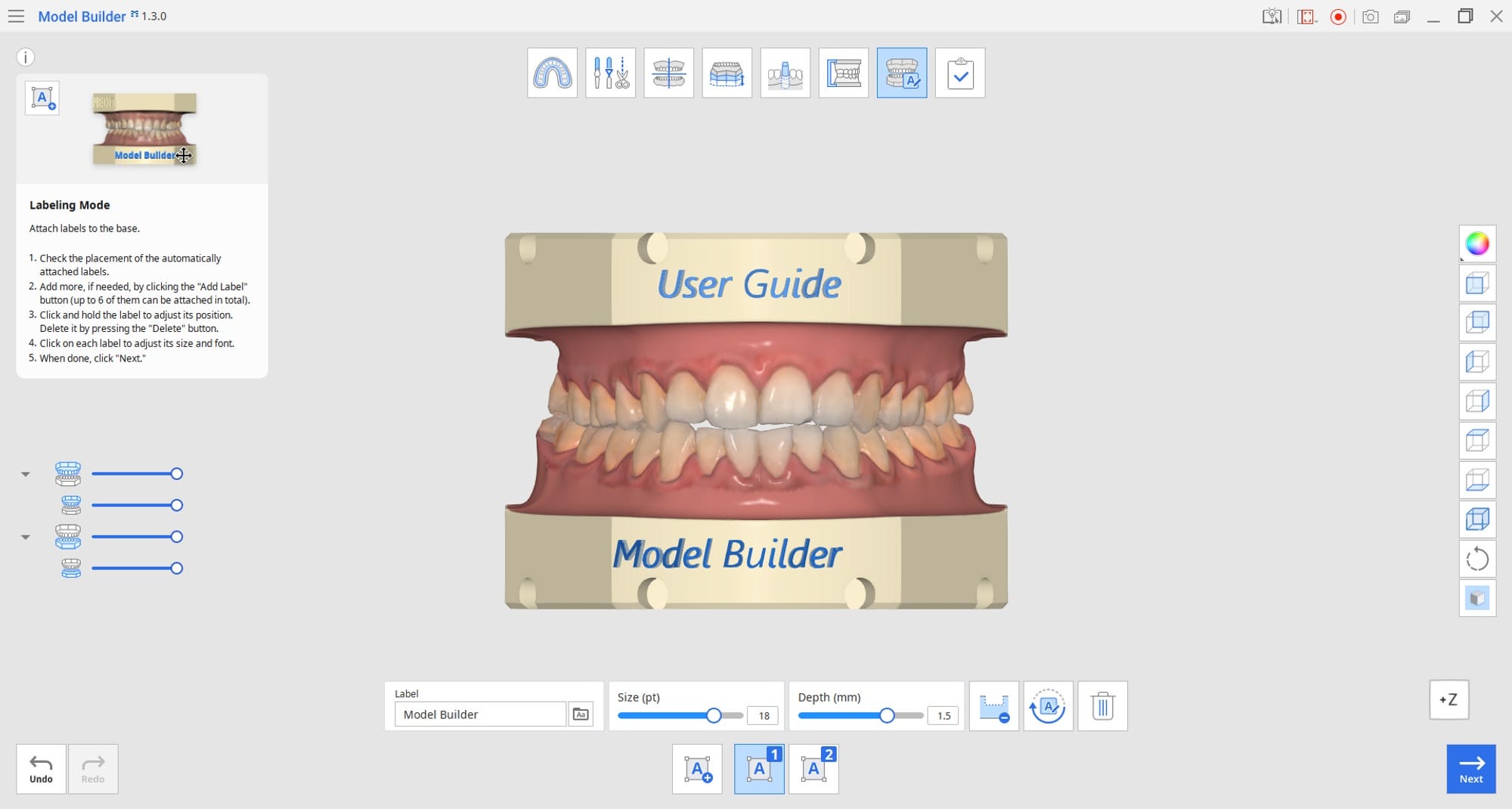

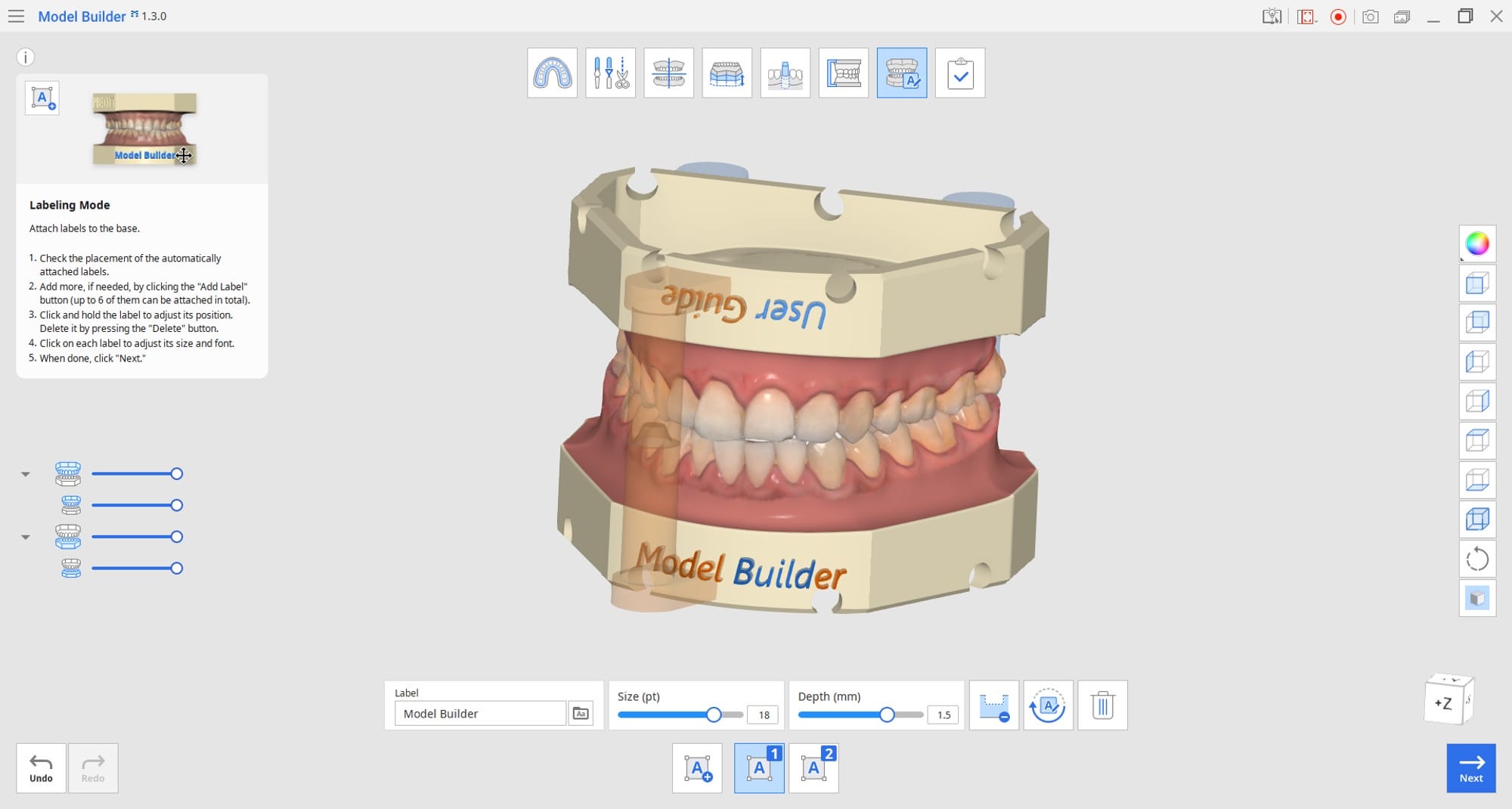

1. Check the placement of the automatically attached labels. If the label and the
articulator are overlapping, they will be displayed in orange. Move the text or go
back to Articulator Mode to adjust the articulators' position.

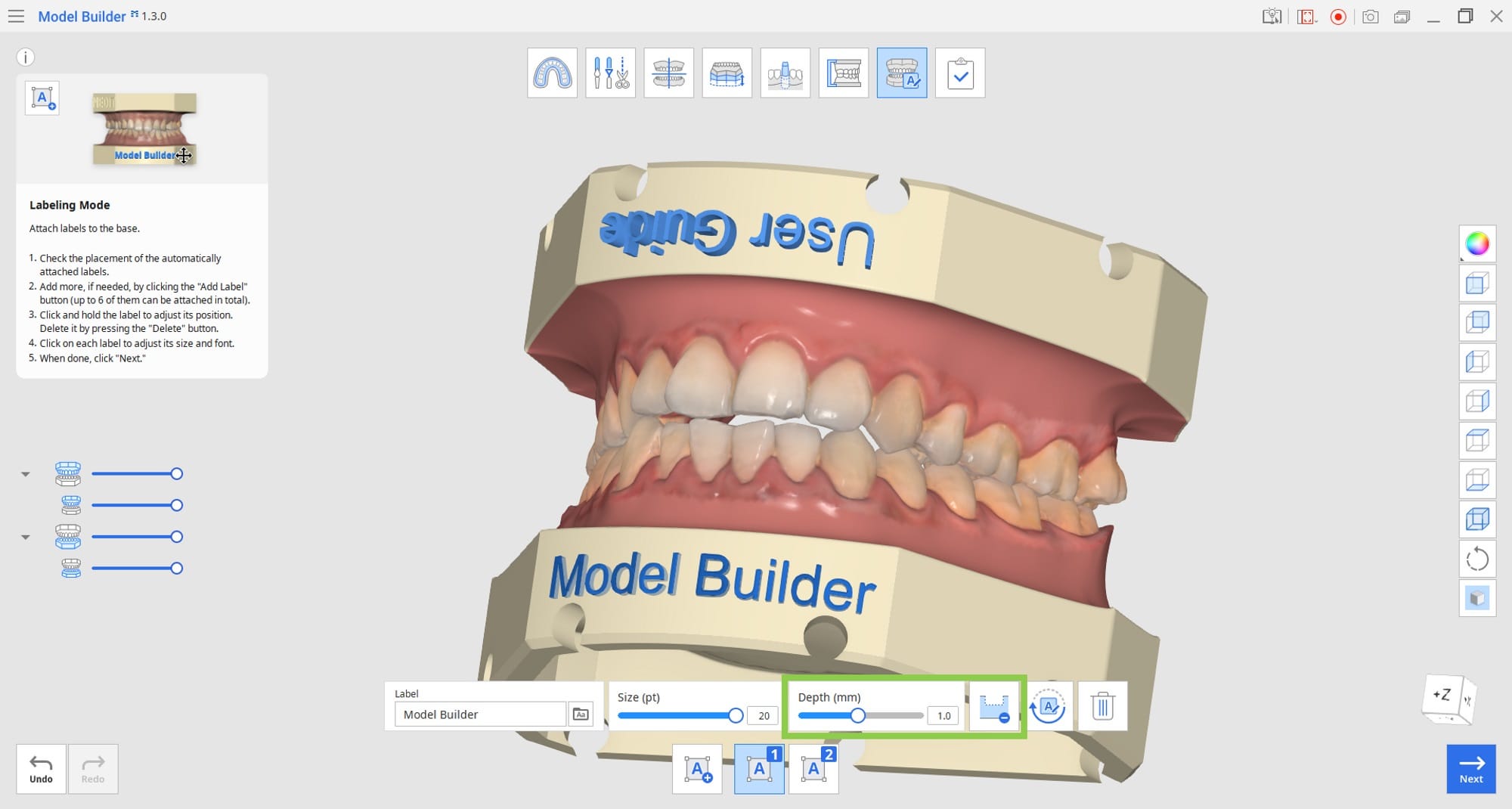

• Add labels to the model by embossing or engraving. You can adjust the
  “Depth” slider or enter a specific value for each label.

2. Add more labels if needed by clicking the “Add Label” button. A maximum of 6
can be created.

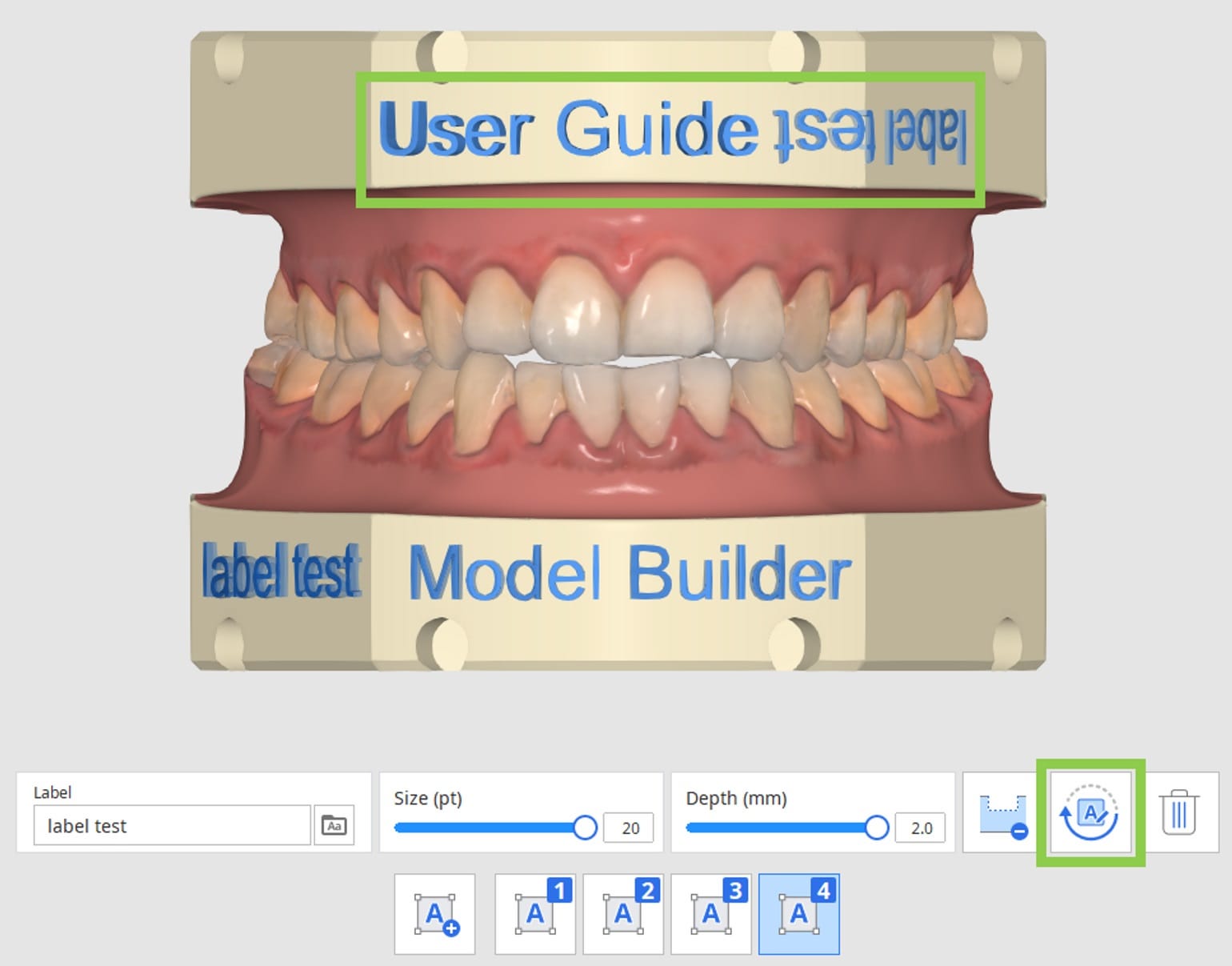

• You can rotate any of the created labels by clicking it and then using Rotate
  180°.

3. Click, hold, and drag each label to adjust its position. To delete any, click the label and then the “Delete” icon.

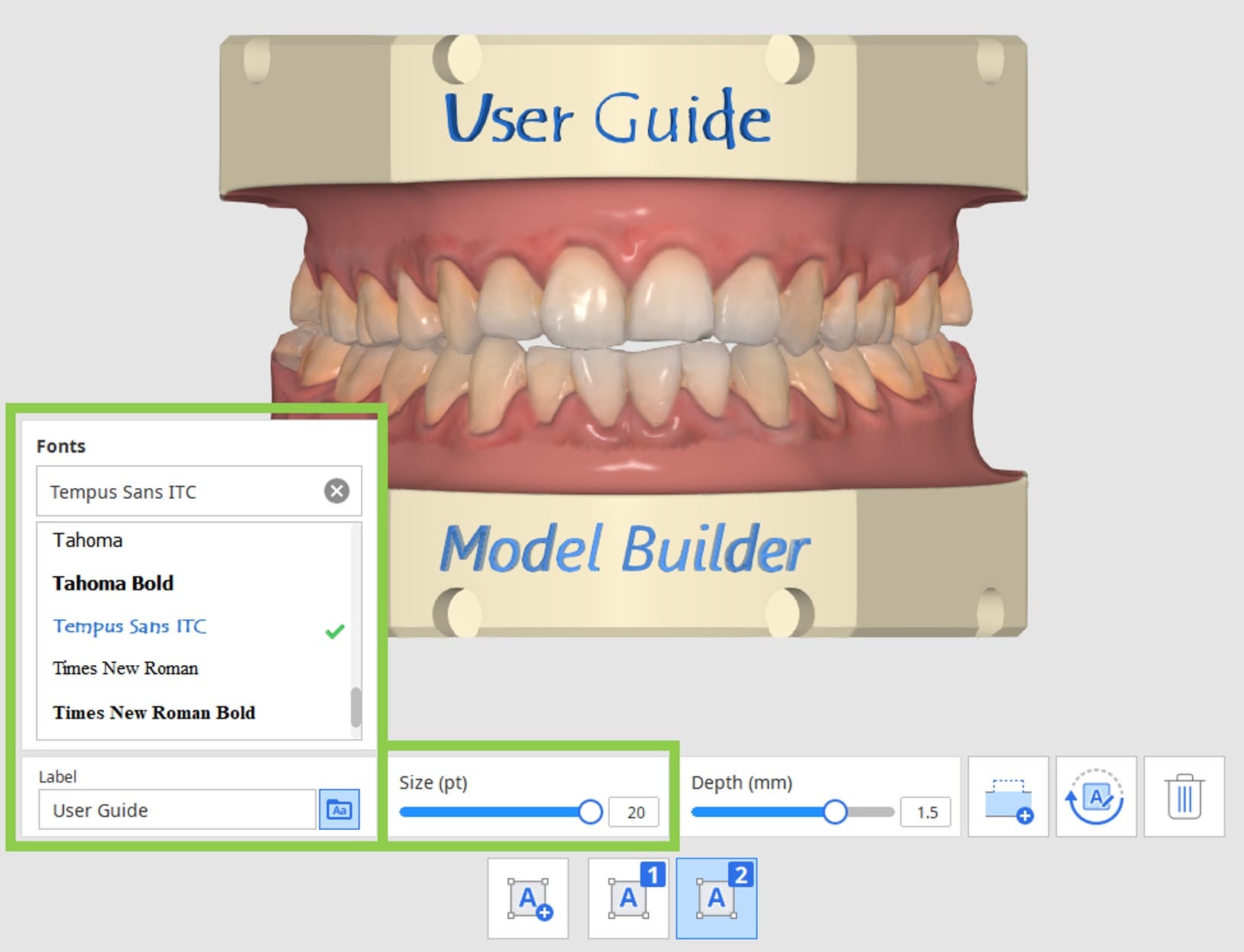

4. The size and font for each label text can be changed individually.

5. Click “Next” in the right bottom corner when finished.
