Consultation Mode helps you visually demonstrate the smile. You can use the template to better define the teeth’s shape, trial different textures and shades or test a braces simulation with ceramic or metal braces.
| Simulation Options | Type | Details |
| Template | Default Texture | Use standard Medit texture. |
| Natural Texture | Replicate the texture and the shade of the person in the image. | |
| Texture Library | Use the custom texture library you imported to Medit Smile Design. Only activated once you import the images. | |
| Braces | Metal | |
| Metal with Colored Elastic Bands | Bands come in 7 different colors: light blue, red, purple, white, green, blue and yellow. | |
| Ceramic | ||
| Teeth Whitening | Whitening Level | Control the teeth’s whitening level. |
ℹ️ Note
All simulation options you work with will be available for comparison in “Preview Options”.
Toolbox
| Option | Description |

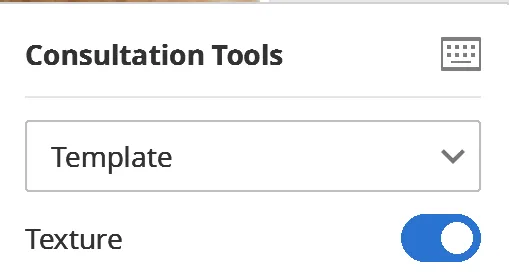

| Choose between teeth template or braces simulation. | |
|

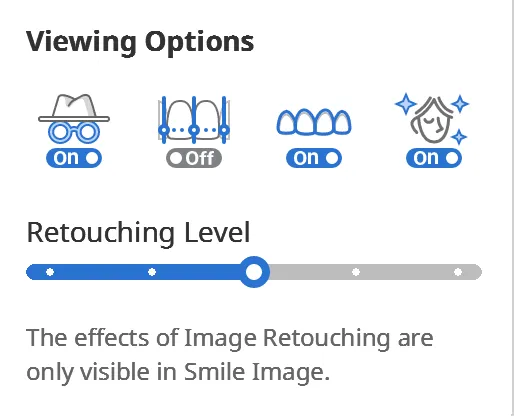

Control the viewing options. Turn on the template outline, anonymize the person in the image, or show the golden proportion when working on the template. |
|

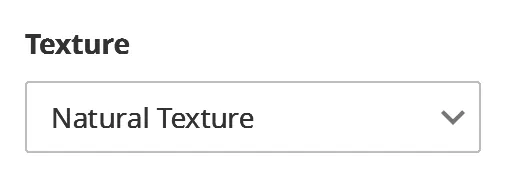

| Select one of the three available options for the texture to fill the template. | |

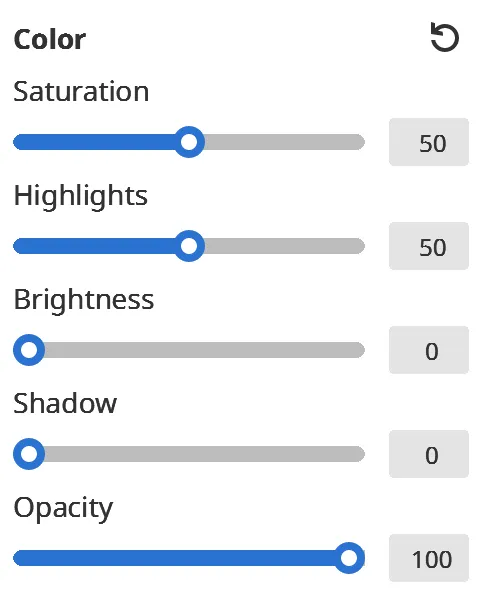

| Adjust saturation, highlights, brightness, shadow and transparency. | |
|

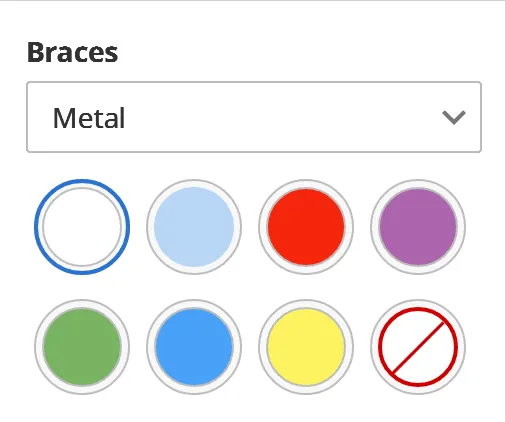

When working on braces simulation, you will be able to choose between metal and ceramic braces using the drop-down menu. Choose a colored elastic band or choose a simulation with no band. (The bottom right option). |
|

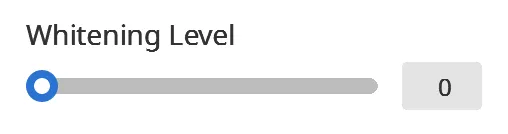

| Use this slider to adjust the teeth’s whiteness. | |

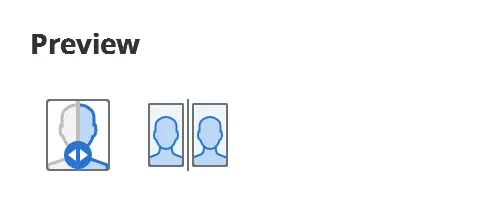

| Use one of the preview options to select and compare various simulation options. |
ℹ️ Note
If you imported both a smile and a retracted mouth image, make sure you are working with the retracted mouth image at this stage. If Not, return to the “Getting Started Mode” and use the “Switch Images” tool.
