Mode > Curvature display

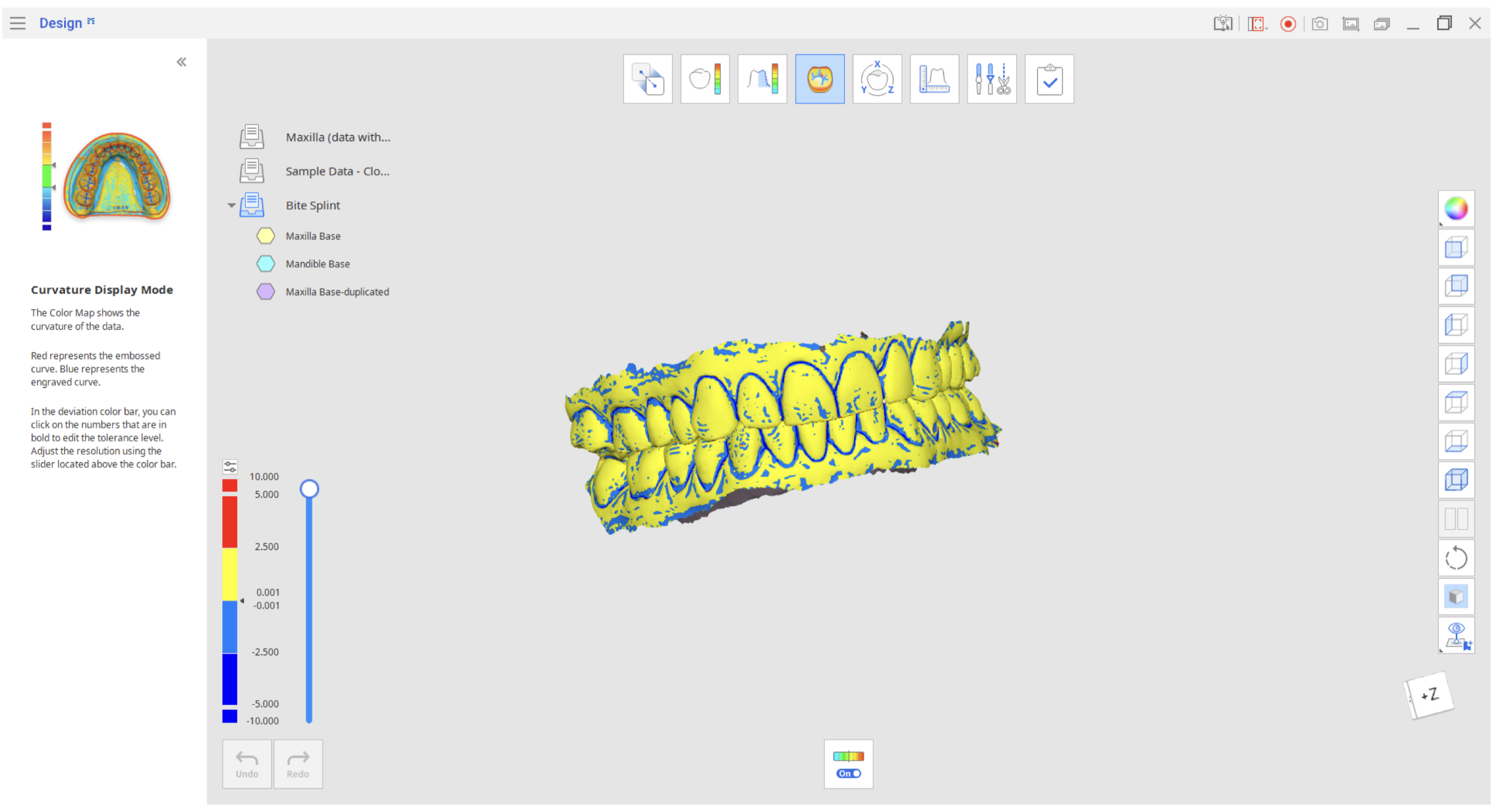

Curvature Display

• Curvature Display Mode allows for analyzing the roundness of the data using a range of colors from red to blue with red meant embossed and blue being engraved.
• The slider located next to the color bar is used to change the resolution.
• Click on the numbers in bold to edit the tolerance level.
