Mode > Overview

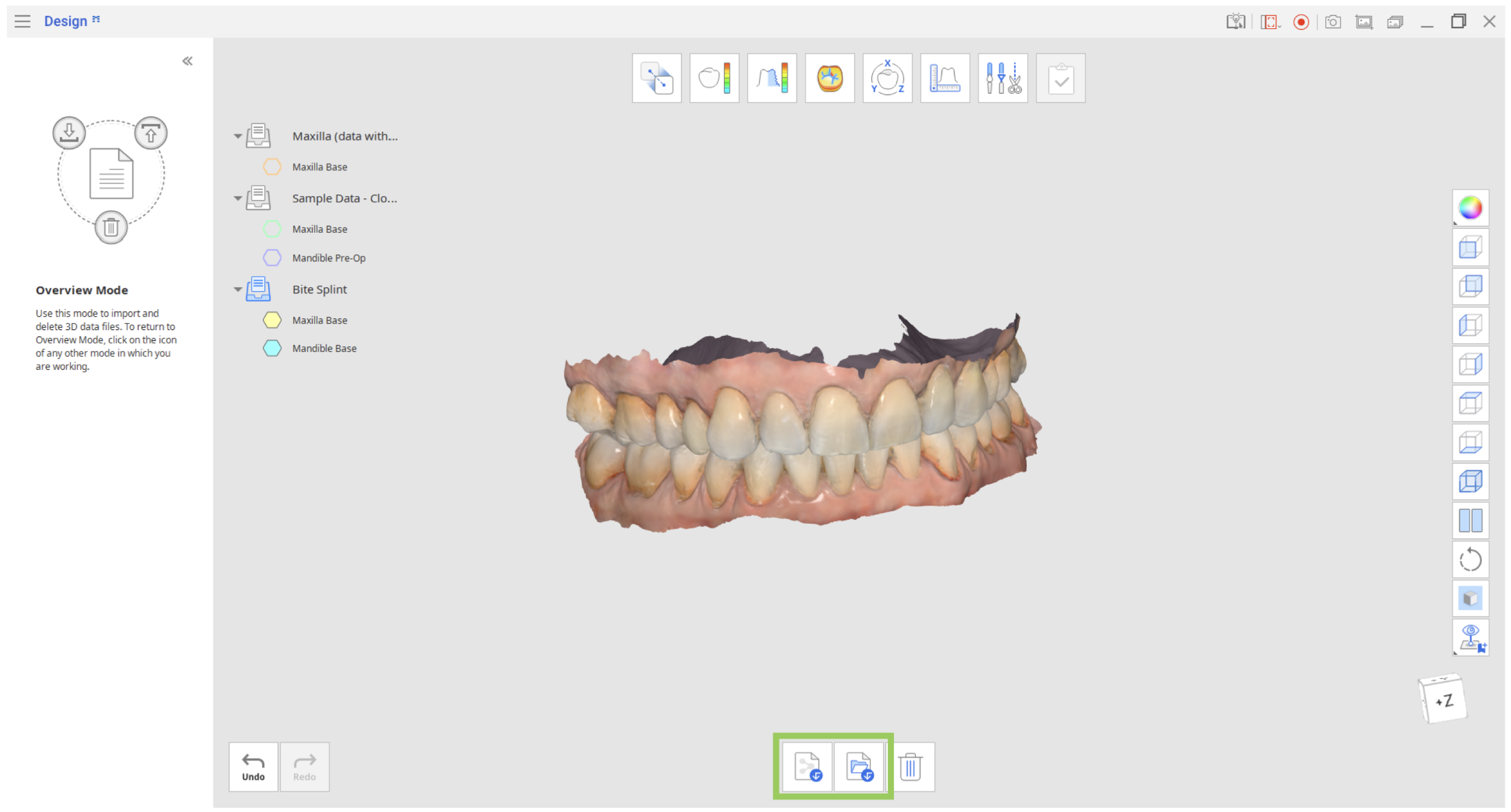

In the Overview mode, you can import or delete data.

❏ Toolbox

• Import Medit Link files: imports files from Medit Link.
• Import local files: Import local 3D files saved on your computer in .obj, .ply, .stl, and .meditMesh formats.
• Delete data: allows to select the data to delete.

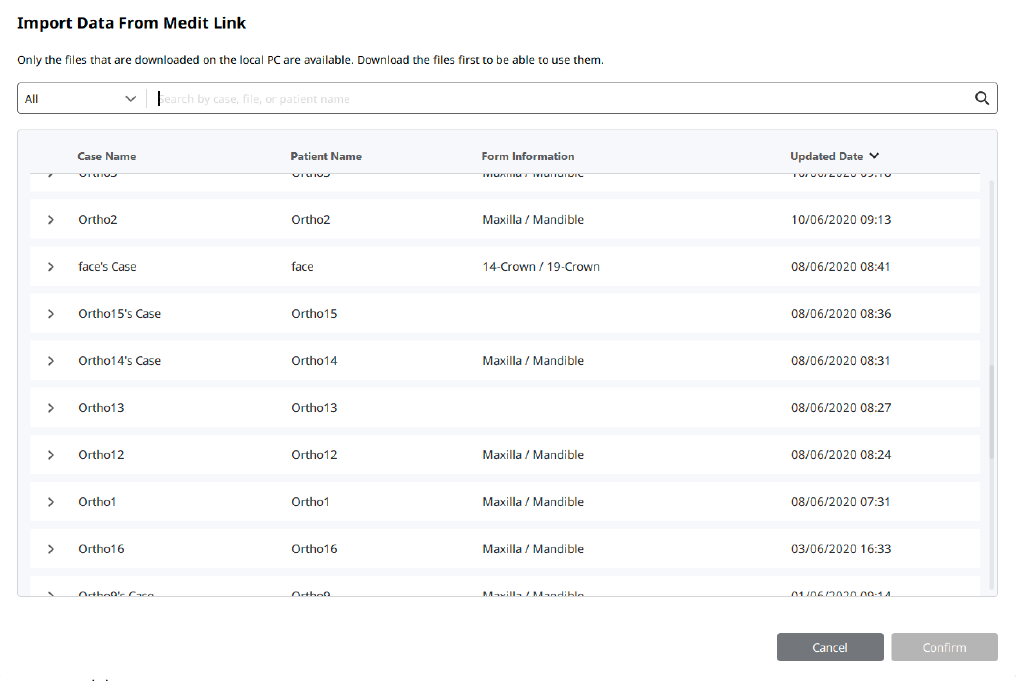

❏ How to import 3D data from Medit Link

• Click the "Medit Link Import Files" button.
• Choose the 3D data files from your existing Medit Link cases. You can choose the files that belong to different cases and compare them together or as separate sets.

💡 After importing the files, you can control view options of different sets of data using Data Tree.

• You can choose multiple files to use in Medit Design.
• You can import additional files at any time while working with the data by returning to the Overview mode and clicking the "Import Medit Link Files" button.

❏ How to import 3D files directly from your computer

• Click the “Import Local Files” button.
• Choose a file from File Explorer in any of these formats: meditMesh, .obj, .ply, .stl.
• Alternatively, you can import local files by dragging and dropping them into the window.
