Creating dentalProject

❏ In the CAD tab, after creating the form information for the case, hit the CAD button and then a dentalProject file is created to open the exocad program.

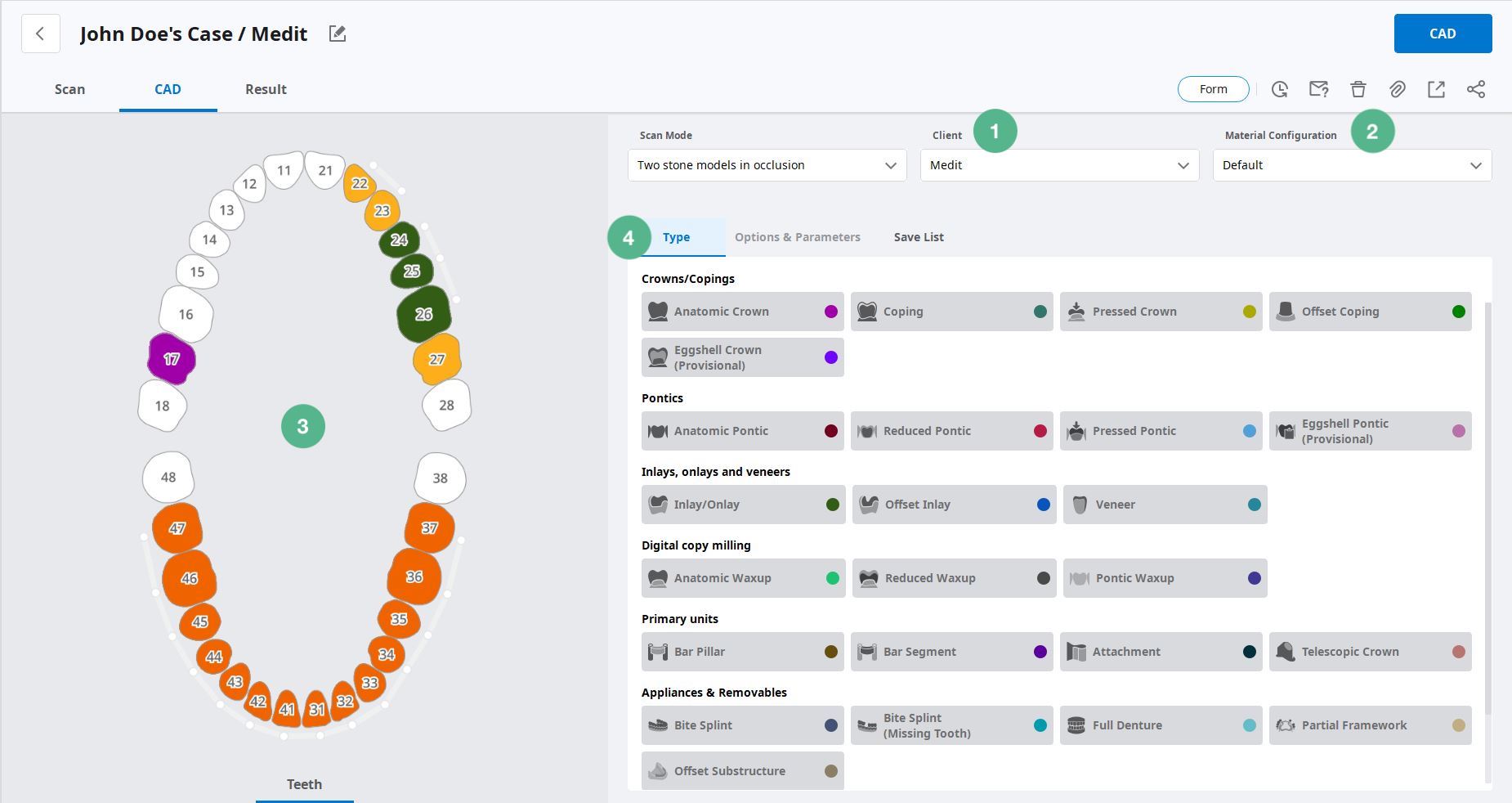

(1) You can add a new client and manage existing clients by Material Configuration.

• A client is automatically added by accepting the client's order through Work Box.
• If a new order comes in from the same client, the system automatically loads Material Configuration saved for the client. Therefore, you can easily create [.dentalProject] file without repeating the same configuration process.

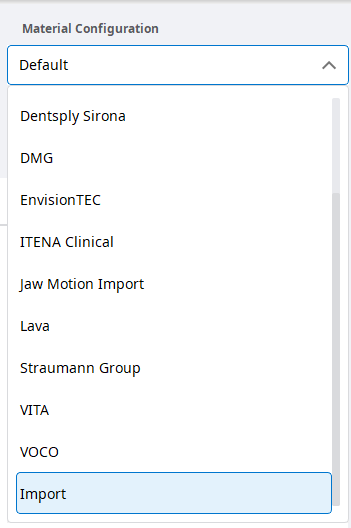

(2) For material configuration, it suggests the same list as in exocad dentalDB.

(3) You can select tooth and scan mode.

• Depending on the material configuration, options may vary.
• For an ordered case, treatment information is automatically configured referring to the form information.
• Adjacent teeth and antagonists are automatically configured according to the treatment tooth number.

(4) It shows the list of treatment type that is same with the dentalDB 2019.

• The treatment type can be selected after choosing a tooth.
• After selecting the treatment type for a tooth, the detailed parameter can be configured.
• Only after at least one parameter is configured, you can save [.dentalProject] file, scan, or start the CAD work.

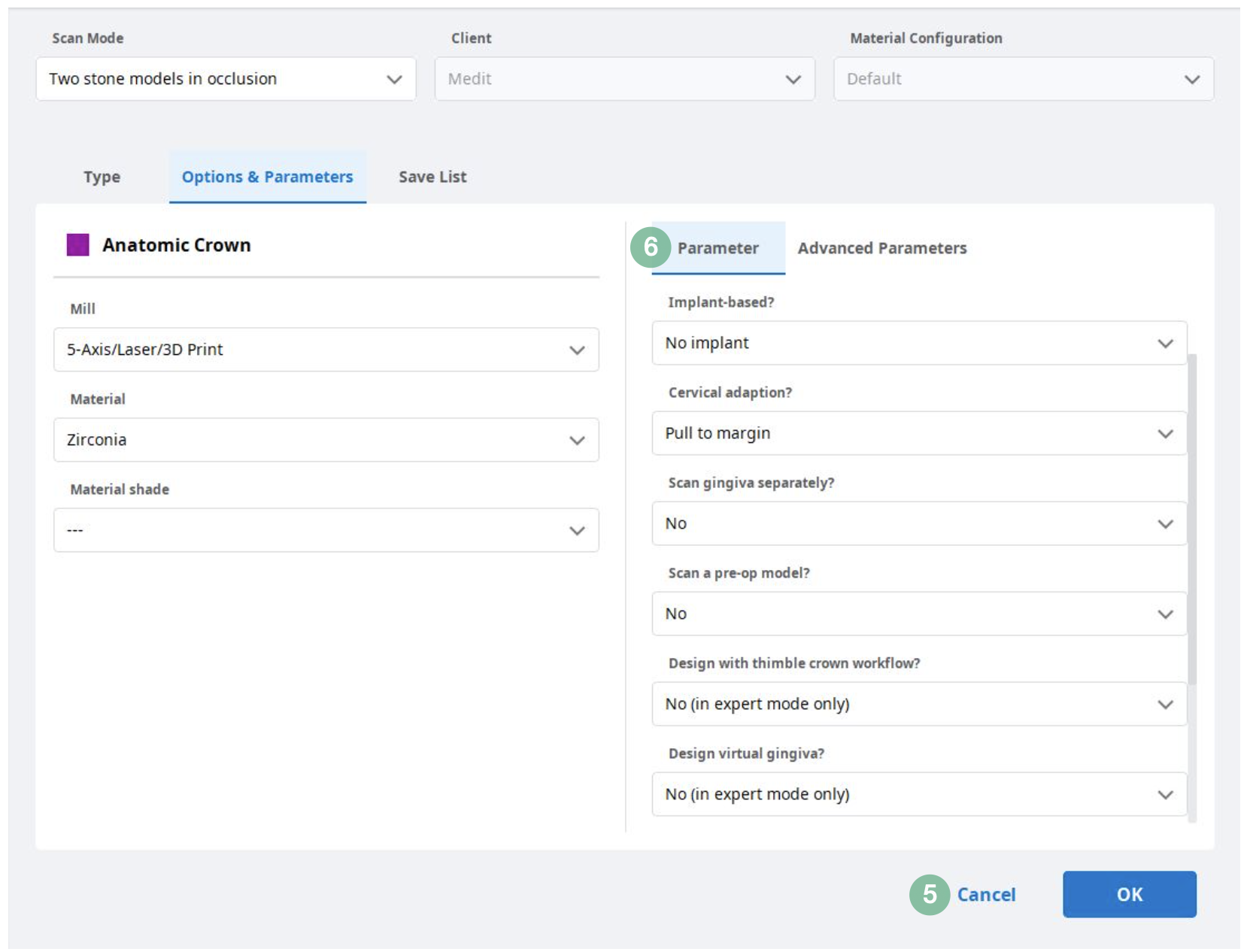

(5) After configuring the treatment type by tooth, you're not allowed to change material configuration and client. If you need to change those, click Cancel.

(6) After configuring the treatment type by tooth, you can configure the detailed parameter. The parameters that were changed from the default value are highlighted in blue.
