After the bar structure is selected in the exocad program, you can launch colLab Scan to scan the case.
- To acquire the gingiva under an implant bar, colLab Scan arranges two scan stages: with the bar structure and without the bar structure.
1. Create a Bar structure project in exocad DentalDB and launch the colLab Scan program.

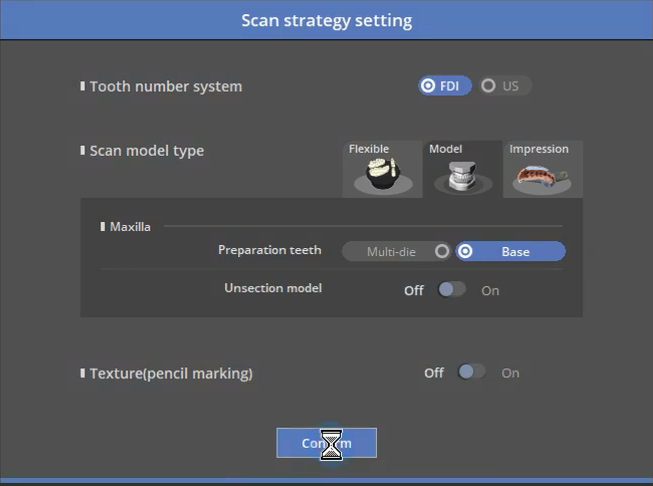

2. Complete the scan strategy setting, and click Confirm.
- Scan model type > Model
- Maxilla > Base
3. Insert the model, the implant bar of which is detached, to the scanner. Adjust the scan depth, and start scan.
4. The scan is complete.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.
5. Next, insert the model, the implant bar of which is attached, to the scanner. Adjust the scan depth, and start scan.
6. The scan is complete.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.
7. Align both scan data.
8. The alignment has been completed.
- Remove unnecessary scan data by using editing tools, and then click Next to start the merging process.
- Check the merged scan data, and click Exit to save and complete the case.
