1. Create form information by entering tooth type, option, and notes, and then click Save & Scan.
2. Complete the scan strategy setting, and click Confirm.
- Scan model type > Flexible
- Flexible multi-die > Scan body > Shortage
- Flexible multi-die > Align scan data > Base
3. Insert the model, in which the scanbodies are not placed, to the scanner. Adjust the scan depth, and start scan.
4. Scanning the base model has been completed.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.
5. Referring to teeth numbers appearing on the screen, mark all teeth on the scan data, and click Confirm.
6. Insert the model, in which the scanbodies are not placed, to the scanner. Adjust the scan depth, and start scan.
- In this case, scanbodies are placed in the tooth 13 and 16.
7. Scanning the base model and the scanbodies has been completed.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.

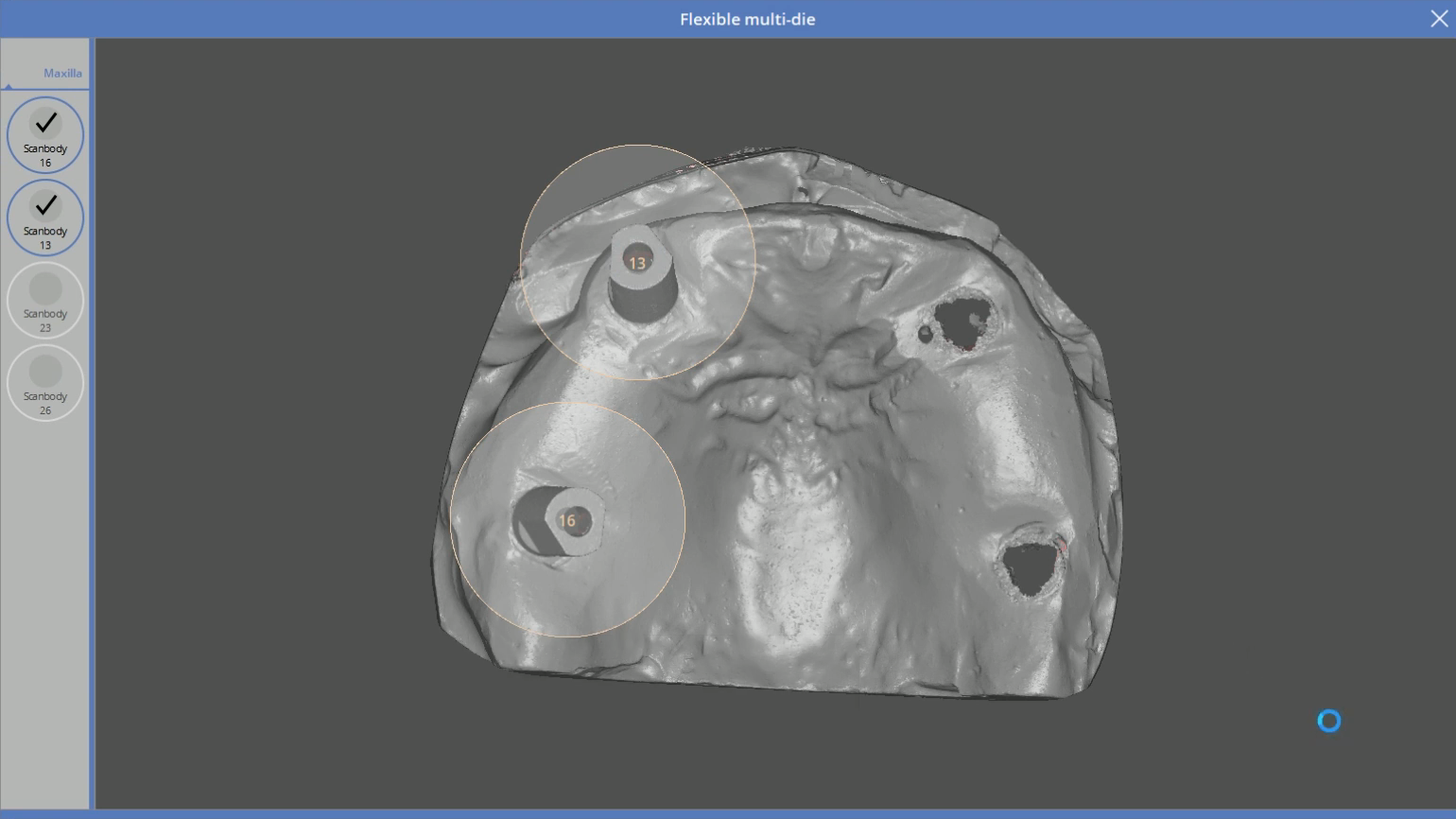

8. Referring to teeth numbers(tooth 13 and 16) appearing on the screen, mark all teeth on the scan data, and click Confirm.
9. Insert the model, in which the scanbodies are placed into the teeth that scanbodies are not previously placed, to the scanner. Adjust the scan depth, and start scan.
10. Scanning the base model and the scanbodies has been completed.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.

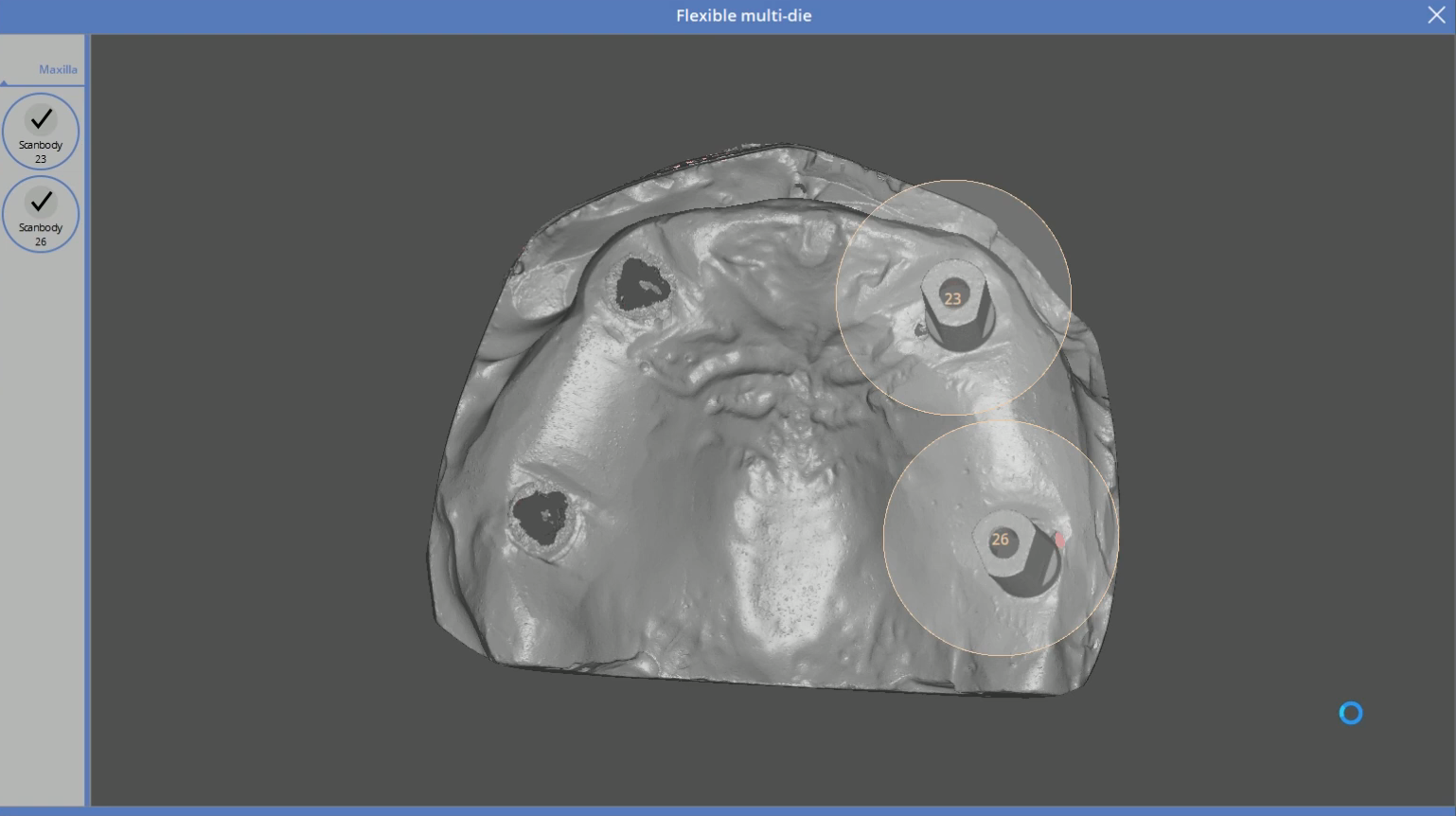

11. Referring to teeth numbers(tooth 23 and 26) appearing on the screen, mark all teeth on the scan data, and click Confirm.
12. The alignment is complete. Click Next to start the merging process.

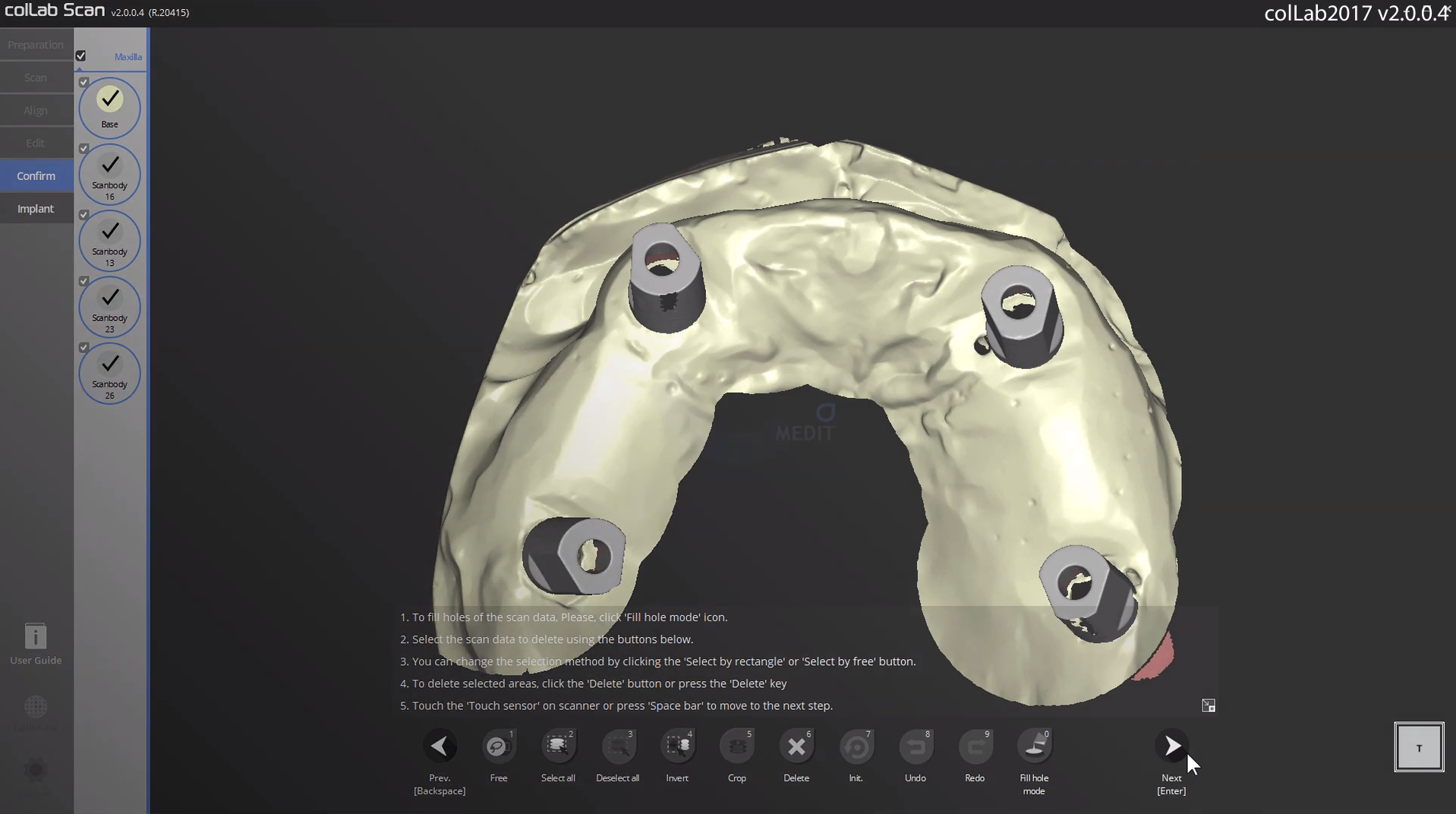

13. Check the merged scan data, and click Exit to save and complete the case.
