1. Create form information by entering tooth type, option, and notes, and then click Save & Scan.
- Basic structure > Bar pillar
- Gingiva scan > Yes
2. Complete the scan strategy setting, and click Confirm.
- Scan model type > Model
- Scanbody and base model > Together
3. Insert the model, in which the scanbodies are placed, to the scanner. Adjust the scan depth, and start scan.
4. The scan is complete.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.

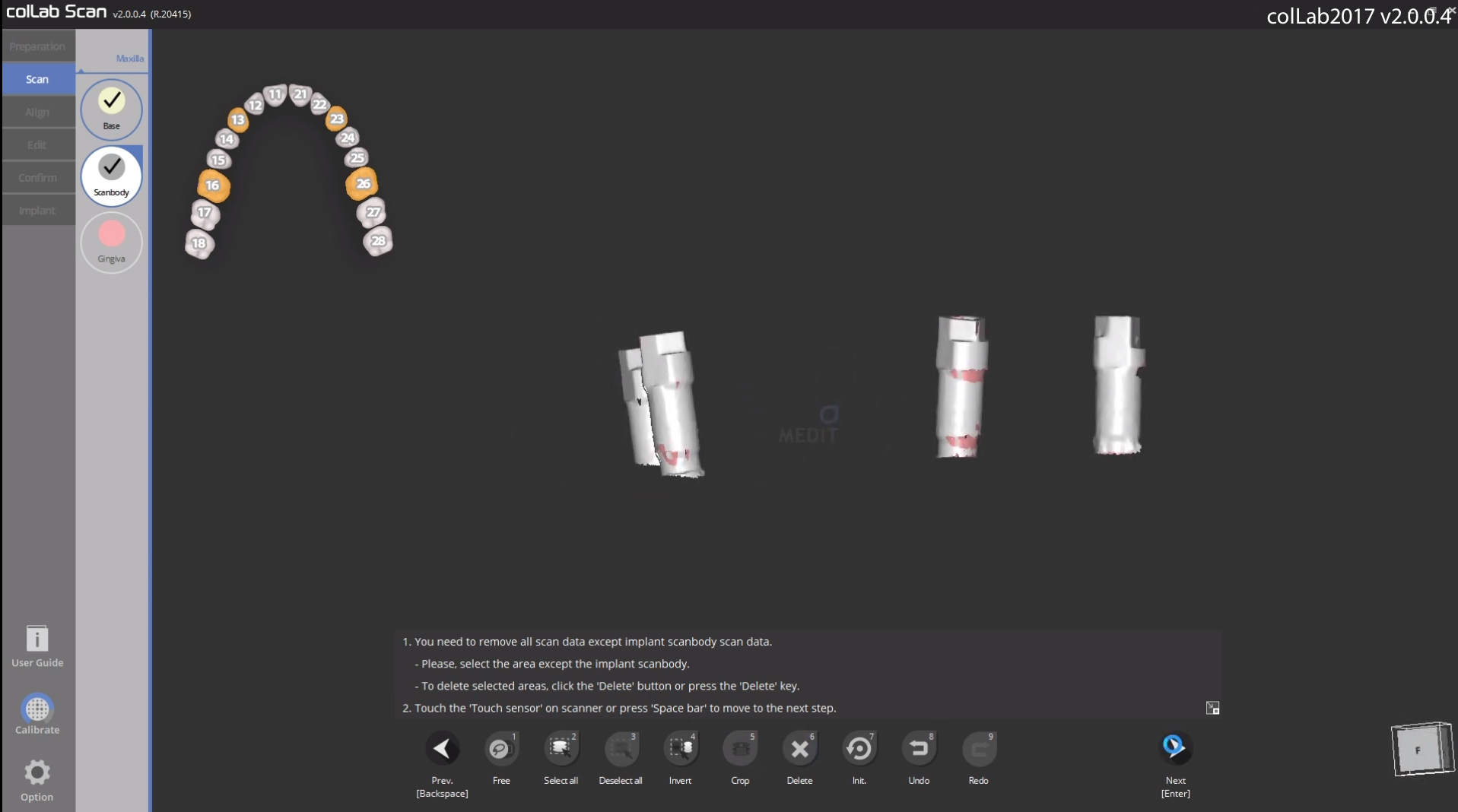

5. Click Next to go to the scanbody scan stage.
- The scan data from the previous stage is auto-loaded.
- Select the scanbody areas and remove the rest by using the editing tools.

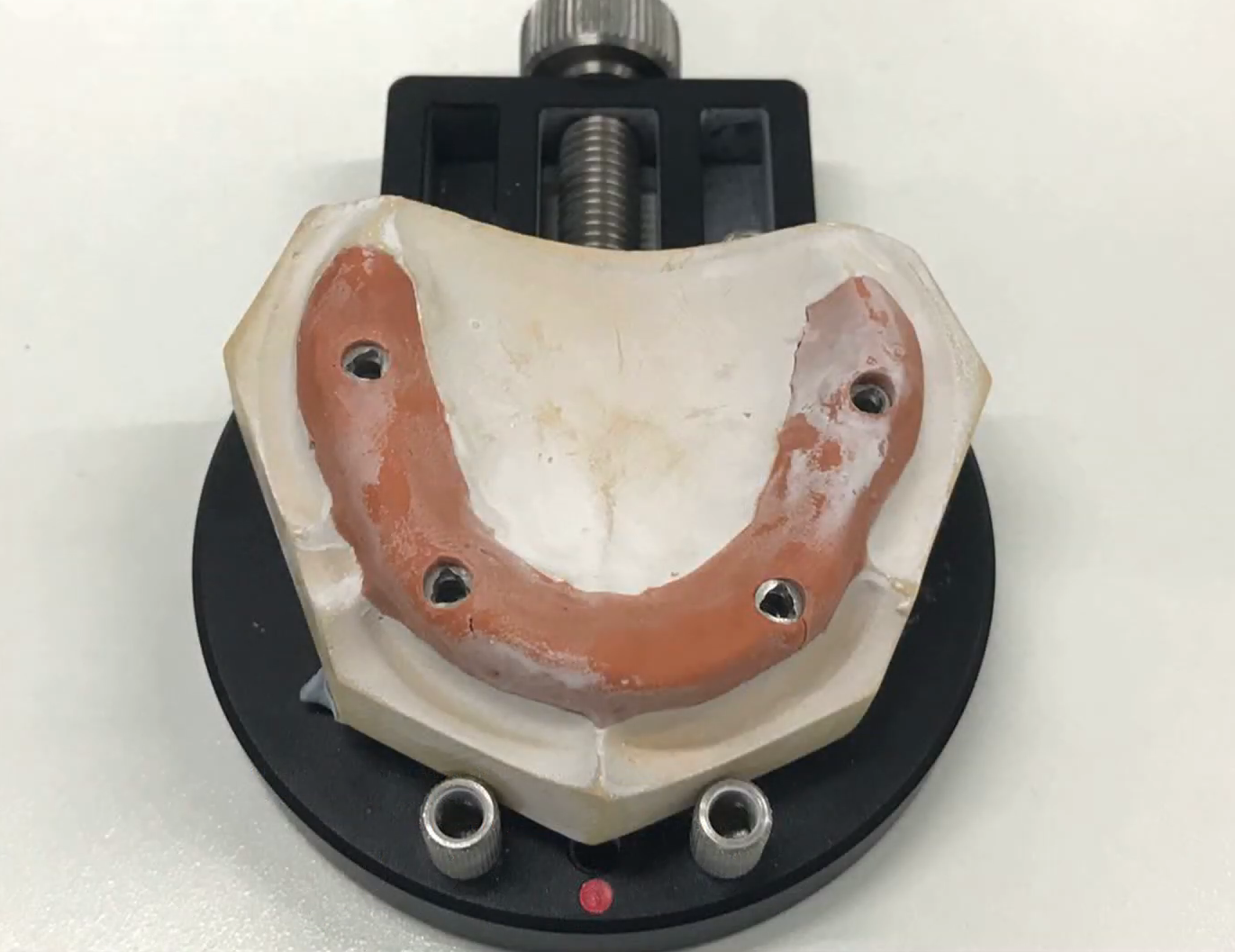

6. Insert the model, in which the gingiva is placed, to the scanner. Adjust the scan depth, and start scan.
7. The scan is complete.
- Check whether all scan images are acquired for necessary areas. If not, perform additional scan.
8. Align the gingiva data and the scanbody data by manual.
- 1 point or 3 points can be used for alignment.
- Mark alignment points onto both data respectively.
9. The alignment has been completed.
10. Remove unnecessary scan data by using editing tools, and then click Next to start the merging process.
11. Check the merged scan data, and click Exit to save and complete the case.
